Software s instructables Geology With Tinkercad CodeBlocks Software Instruction Manual

Lintho tse ngata tse tiileng tsa geometri li hlile li etsahala ka tlhaho. Likristale tsa liminerale li hola ho ba libopeho tse tloaelehileng, tsa geometri.

Li-tetrahedron
Tetrahedrite e etsa likristale tse tloaelehileng tse bōpehileng joaloka tetrahedral. E ile ea hlalosoa ka lekhetlo la pele ho pota 1845 Jeremane 'me e sebelisoa e le mohloli oa koporo. (del Court, 2014)

Li-cubes
Pyrite kapa "khauta ea maoatla" ka ho khetheha e etsa likristale tse ntle. Lekholong la bo16 le la bo17 la lilemo pyrite e ne e sebelisoa e le mohloli oa ho khantša li-rearms tsa pele, ho etsa litlhase ha li otloa ke selikalikoe -le. (del Court, 2014) Bismuth e boetse e na le ho hola ka sebopeho sa li-cubes tse holang ka mehato e lebileng bohareng ba eona, ka geometry ketsahalo ena e tsejoa e le paterone e kholo.

Octahedron
Ha e le hantle, Magnetite ke matla a khoheli ho feta liminerale life kapa life tse etsahalang ka tlhaho Lefatšeng. Ka ho shebella ho khahloa ha magnetite ho likotoana tse nyane tsa tšepe, batho ba Chaena nakong ea lekholo la bo4 la lilemo BC le Greece lekholong la bo6 la lilemo BC -rst hlokometse magnetism. (del Court, 2014)

Prism ea Hexagonal
Likristale tsa quartz li etsa li-prism tse mahlakore a mabeli. Lifahleho tse telele tsa prism li lula li etsa angle e phethahetseng ea 60° 'me li arola leseli ka har'a spectrum. (del Court, 2014)
Geometry ea kristale leha e le efe (ha e le hantle ea mohlala leha e le ofe oa geometri) e itšetlehile ka melao-motheo ea 3:

Sebopeho: Ke setsi sa motheo.

Pheta-pheta: Ke palo ea makhetlo ao base -gure a "kopitsoang le ho peista".
Ho tsamaisana: Ke taelo e fanoeng ho likopi tsa gure ea pele sefofaneng sa mosebetsi.

Ho E fetolela ho Tinkercad Codeblocks

Libopeho tsena tsa geometri li bonolo haholo ho elelloa, 'me (lehlohonolo ho rona) boholo ba tsona li se li hlophisitsoe esale pele ho menu ea Shapes kapa Primitives ea Tinkercad CodeBlocks. Ho khetha sebopeho se secha feela se hulele sebakeng sa mosebetsi ebe o tobetsa konopo ea Play ho tsamaisa papiso le ho bonts'a animation.

Libopeho tsa Pele

Libopeho tse ling tsa geometri tseo ha u li sheba li bonahala li le thata, ha e le hantle ke ho pheta-pheta le ho fetoha ha boemo ba motheo o tšoanang -gure. Ha re boneng hore na re ka e etsa joang ho Tinkercad CodeBlocks:

Li-tetrahedron

Hula le ho theola boloko ba piramite (menu ea foromo) sebakeng sa mosebetsi.
Tobetsa ho letšoao la "bula likhetho tse ling" (motsu o ka ho le letona).

Fetola boleng ba mahlakore ho 3 (ka tsela ena re tla fumana piramite ea mahlakoreng a 4 kapa tetahedron).

Li-cubes

Ntho e bonolo ka ho fetisisa -e leng taba feela ea ho hula le ho theola cube kapa lebokose la lebokose (menu ea foromo) sebakeng sa mosebetsi.

Octahedron

Hula le ho theola boloko ba piramite (menu ea foromo) sebakeng sa mosebetsi.
Eketsa block block (fetola menu) 'me u fetole boleng ba Z ho 20 (sena se tla tsamaisa li-unit tse 20 holimo)

Kenya piramite e ncha ka tlase ho khoutu.
Eketsa "rotate block" (fetola menu) 'me u fetole axis ea X ka likhato tse 180.

Eketsa sehlopha sa ho theha sehlopha (fetola menu) se tla kopanya liphiramide ka bobeli, ho etsa "gure" ea mahlakore a 8 (octahedron).
Haeba u batla ho nepahala haholoanyane, u ka eketsa sekala qetellong (fetola menu) 'me u fetole boleng ba Z ho 0.7 kahoo -gure e tla shebahala e ts'oanang haholoanyane.

Prism ea Hexagonal

Hula le ho lihela boloko ba polygon (menu ea foromo) sebakeng sa mosebetsi.

Tobetsa ho letšoao la "bula likhetho tse ling" (motsu o ka ho le letona).
Etsa bonnete ba hore boleng ba Sides bo behiloe ho 6.

U ka eketsa sekala (Fetola menyu) 'me u fetole boleng ba Z haeba u batla ho fetola bolelele ba prism ea hexagonal.

https://youtu.be/DAlibpGWiRo

Pheta-pheto

Ho pheta-pheta -gure makhetlo a mangata ho Tinkercad CodeBlocks re hloka ho sebelisa nako ea "1" block (taolo ea menu). Leha ho le joalo, pele re etsa pheta-pheto re tlameha ho theha ntho e ncha (Fetola menu):

Hula pele 'me u theohe ho theha block ea ntho e ncha ho tsoa ho menu ea phetoho sebakeng sa mosebetsi.
Hona joale ka tlase ho sebaka seo se hulelang 'me u tlohele sethibelo sa makhetlo a 1 ho tsoa ho menu ea taolo.
Khetha sebopeho sefe kapa sefe seo u se batlang (ho tsoa ho menu ea sebopeho) 'me u se kenye KA HARE ho boloko pheta makhetlo a 1. U tla bona hore likotoana li kopane joalo ka puzzle.

Haeba u fetola boleng ba "1" ho nomoro leha e le efe e 'ngoe ka har'a block e pheta ka makhetlo a 1, -gure e tla kopitsoa ka makhetlo a mangata kamoo u etsang qeto kateng.
Leha ho le joalo, le haeba u tsamaisa papiso, ho ke ke ha khoneha ho bona liphetoho tse hlahang peleviewer, hobaneng? hobane lintho li ntse li kopitsoa le ho peisoa hantle sebakeng se le seng! (e 'ngoe ka holim'a e' ngoe)… ho bona liphetoho tseo u hlokang ho li pheta le ho li tsamaisa! joalo ka ha re tla bona mohatong o latelang.
https://youtu.be/hxBtEIyZU5I

Alignment kapa Arrays

Pele ho tsohle, re lokela ho utloisisa hore na ho na le mefuta e sa tšoaneng ea likokoana-hloko:

Ho tsamaisana le linear kapa grid: moo dintho di phetoang nqa e le nngwe kapa tse pedi ho -ll sebaka.
Ho tsamaisana le potoloho: eo ho yona dintho di bilikang ho potoloha axis ya ho potoloha, ho etsa sedikadikwe.
Ho tsamaisana le maemo: moo dintho di leng teng - di tla ba le sebaka ka ho ema dibakeng tse fapaneng ka tsela e sa reroang

Joale a re boneng hore na re ka e etsa joang u sebelisa Tinkercad CodeBlocks:

Ho tsamaisana le mela:

Qala ka ho hula le ho theola ho theha block ea ntho e ncha ho tsoa ho menu ea phetoho sebakeng sa mosebetsi.
Hona joale re hloka ho etsa phetoho. O ka hula block block ho tsoa lenaneng la lipalo ebe o e beha ka tlase ho boloko bo fetileng (boloka boleng ba 0).
Fetola lebitso la ho feto-fetoha (bakeng sa ho tsebahatsa habonolo) ho lentsoe lefe kapa lefe leo u le batlang joalo ka "motsamao" ho etsa sena, tobetsa ho menu e theohang ka har'a block ebe u khetha khetho e reha lebitso hape…
Hona joale ka tlase ho sebaka seo se hulelang 'me u tlohele sethibelo sa makhetlo a 1 ho tsoa ho menu ea taolo.
Khetha sebopeho sefe kapa sefe seo u se batlang (ho tsoa ho menu ea sebopeho) 'me u se kenye KA HARE ho boloko pheta makhetlo a 1. U tla bona hore likotoana li kopane joalo ka puzzle.
Hona joale ka tlas'a boloko bo fetileng (empa u lula ka har'a thibelo e pheta-phetoang) u tla beha sebaka sa motsamao.

Fumana lenane la Lintlha 'me u tla hlokomela hore block e ncha e se e bōpiloe ka lebitso le tšoanang le leo u le fileng ho feto-fetoha ha hau.
Hula boloko boo 'me u bo behe ka har'a sebaka sa ho falla (e ka ba ho X, Y kapa Z ho itšetlehile ka hore na u batla ho tsamaisa -gure kae).
Hoo e batlang e le -nish re tla eketsa block element ea phetoho (u -nd e ka har'a menyu ea lipalo) 'me ho menu e theoha ea block khetha lebitso la mofuta oa hau.

Ke nako ea lipalo! Hula sekheo sa equation (u -e be ka hare ho menu ea lipalo ka matšoao 0 + 0) HO TSOA HO KHOUTU EA HAO, u ka sebelisa sebaka leha e le sefe se se nang letho sebakeng sa mosebetsi.
Fetola 0 ea ho qetela ho nomoro efe kapa efe eo u e batlang, sena se tla emela li-unit tseo -gure e tla li tsamaisa.
Ho -nish hulela equation block ea hau ebe u e beha kamora "ho" karolo ea phetoho e feto-fetohang ho feta 1 (ho nkela nomoro ea 1 sebaka ka equation 0 + n).

Qetellong, tsamaisa papiso mme u shebelle boselamose. Kea tseba hore nako ea pele ea khathatsa, empa ho ba bonolo ha u itloaetsa.

Ho tsamaisana le potoloho:

Hula pele 'me u theohe ho theha block ea ntho e ncha ho tsoa ho menu ea phetoho sebakeng sa mosebetsi.

Hona joale re hloka ho etsa phetoho. O ka hula block block ho tsoa lenaneng la lipalo ebe o e beha ka tlase ho boloko bo fetileng (boloka boleng ba 0).
Fetola lebitso la ho feto-fetoha (bakeng sa ho tsebahatsa habonolo) ho lentsoe lefe kapa lefe leo u le batlang joalo ka "rotation" ho etsa sena tobetsa ho menu e theohang ka har'a block ebe u khetha khetho e reha lebitso hape…
Hona joale ka tlase ho sebaka seo se hulelang 'me u tlohele sethibelo sa makhetlo a 1 ho tsoa ho menu ea taolo.

Khetha sebopeho sefe kapa sefe seo u se batlang (ho tsoa ho menu ea sebopeho) 'me u se kenye KA HARE ho boloko pheta makhetlo a 1. U tla bona hore likotoana li kopane joalo ka puzzle.
Hona joale ka tlas'a boloko bo fetileng (empa u lula ka har'a thibelo e pheta-phetoang) u tla beha sebaka sa motsamao.
Fetola boleng ba axis ea X kapa Y ea sebaka sa ho falla (ho tlosa -gure hole le bohareng ba sefofane se sebetsang kapa tšimoloho).

Eketsa potoloho ho pota-pota (o ka khona -e be ka har'a menu ea ho fetola) 'me u fetole khetho ea X axis ho Z axis.
Fumana lenane la Lintlha 'me u tla hlokomela hore block e ncha e se e bōpiloe ka lebitso le tšoanang le leo u le fileng ho feto-fetoha ha hau.
Hula boloko boo 'me u bo behe holim'a nomoro hang ka mor'a khetho ea "ho" sebakeng sa potoloho.

Hona joale ho tsoa lethathamong la lipalo hula "X: 0 Y: 0 Z: 0 Z: 0" 'me u e behe hang ka mor'a khetho ea likhato tsa potoloho ea boloko e fetileng (ka tsela ena re etsa bonnete ba hore -gure e potoloha bohareng ba sefofane eseng ho tloha setsing sa sona).
Hoo e batlang e le -nish re tla eketsa block element ea phetoho (u -nd e ka har'a menyu ea lipalo) 'me ho menu e theoha ea block khetha lebitso la mofuta oa hau.
Ke nako ea lipalo! Hula sekheo sa equation (u -e be ka hare ho menu ea lipalo ka matšoao 0 + 0) HO TSOA HO KHOUTU EA HAO, u ka sebelisa sebaka leha e le sefe se se nang letho sebakeng sa mosebetsi.

Fetola 0 ea ho qetela ho nomoro efe kapa efe eo u e batlang, sena se tla emela li-unit tseo -gure e tla li tsamaisa.
Ho -nish hulela equation block ea hau ebe u e beha kamora "ho" karolo ea phetoho e feto-fetohang ho feta 1 (ho nkela nomoro ea 1 sebaka ka equation 0 + n).
Qetellong, tsamaisa papiso mme u shebelle boselamose. Kea tseba hore nako ea pele ea khathatsa, empa ho ba bonolo ha u itloaetsa.

Ho tsamaisana le maemo:
Ka lehlohonolo, mofuta ona oa ho tsamaisana o bonolo haholo ho feta kamoo o shebahalang kateng.

Hula pele 'me u theohe ho theha block ea ntho e ncha ho tsoa ho menu ea phetoho sebakeng sa mosebetsi.
Hona joale ka tlaase ho moo thibela hula le ho theola pheta-pheta 1 timesblock ho tswa ho menu ea taolo (ka ho fetola palo eo u laolang palo ea -gures e tla hlaha).

Khetha sebopeho sefe kapa sefe seo u se batlang (ho tsoa ho menu ea sebopeho) 'me u se kenye KA HARE ho boloko pheta makhetlo a 1. U tla bona hore likotoana li kopane joalo ka puzzle.
Hona joale ka tlas'a boloko bo fetileng (empa u lula ka har'a thibelo e pheta-phetoang) u tla beha sebaka sa motsamao.
Re tla sebelisa boloko bo bocha bo bitsoang "random between 0 le 10" u ka khona -e be u bo fumane ho menu ea Math.

Hula boloko 'me u e behe hang ka mor'a khokahanyo ea X ea block block. Pheta ketso bakeng sa khokahanyo ea Y.
Qetellong hoa hlokahala ho hlalosa palo e fapaneng ea linomoro (kapa letoto la maemo ao ho ona -gures a tla hlaha ka tšohanyetso). Bakeng sa mohlalaample haeba u ka rata hore li-gures li hlahe hohle sefofaneng sa mosebetsi, u ka thaepa -100 ho 100 ka har'a block "random between ..."

https://youtu.be/fHy3oJSMf0M

Hands in Action

Kaha joale u ithutile lintho tsa motheo, ke nako ea hore u li leke. Hlalosa geometry ea likristale tse tsebahalang haholo 'me u sebelise seo u ithutileng sona thutong ea kajeno ho leka ho li pheta.
Mona ke mekhoa e 'maloa ea ts'ebetso (litlhahiso):

Magnetite

U tla tlameha ho kopanya liphiramide tse peli tse mahlakoreng a 4 ho etsa tetrahedron, e tla ba mojule oa sehlooho o tla phetoa.

Sebelisa boloko bo pheta-phetoang ho atisa palo ea libopeho le ho e kopanya le "move block +" pakeng tsa 0 - 10 ho beha libopeho libakeng tse fapaneng.
Leka ho kenya sekala ho fetola boholo ba libopeho.

Tetrahedrite

Qala ka piramite e mahlakoreng a 4. Sebelisa liphiramide tse ling tse 4 ho khaola likhutlo tsa -gure.
Pheta motsoako ona -gure ka makhetlo a 'maloa sefofaneng sa mosebetsi se fetola boholo ba sona.
Malebela a Pro: eketsa li-block tsa X, Y, Z 'me u li kopanye le boloko bo fapaneng (0 ho isa ho 360) ho potoloha -gures ka mokhoa o sa reroang bakeng sa chebahalo ea 'nete.

Pyrite

E bonolo ho feta tsohle, e sebelisa mabokose le li-blocks tse pheta-phetoang ho etsa mabokose a manyane ho potoloha cube e kholo.

Lefika la seretse se chesang

Ho bonahala ho le thata empa ha ho joalo! Qala ka 'mele o moholo o tiileng (ke khothaletsa sphere).
Ka tšohanyetso beha likaroloana tse ngata tse nyane le tse mahareng ho potoloha 'mele o moholo. Etsa bonnete ba hore o e beha ho "hollow" mode.
Kopanya ntho e 'ngoe le e' ngoe 'me u shebelle ha likaroloana tse nyenyane li tlosa likaroloana tsa' mele o moholo

Quartz

Theha prism ea hexagonal 'me u e lokisetse ho Z-axis.
Beha piramite e mahlakoreng a 6 holim'a eona

Seha hantle ntlheng ea phiramide
Kopanya ntho e 'ngoe le e' ngoe 'me u e sebelise e le mojule.
Pheta mojule ka ho pheta-pheta ho potoloha ho potoloha ho ea bohareng ba sefofane.

Bismuth

E rarahane -gure, tsohle li qala ka cube.
Hona joale o tla hloka liphiramide tse 6 tse tla khaola mahlakoreng a cube ho re siea feela ka "frame".

Pheta foreime ka makhetlo a 'maloa ho ea bohareng ba eona, o fokotsa sekhahla sa kakaretso.
Qetellong ka lebaka la thibelo ea khale (Tinkercad CodeBlocks e lumella feela li-primitives tse 200 sefofaneng sa mosebetsi) re tla khona ho pheta-pheta makhetlo a 'maloa, ho feta ho lekaneng ho finyella sephetho se seholo.

Geode

Li-cubes ke motheo oa eona
Pheta li-cubes tse potolohileng bohareng ho etsa mehele u sebelisa mekhoa ea phetoho.
Fetola 'mala oa mehele hore o tšoane le mebala ea sebele ea lehakoe

Qetellong sebelisa lebokose le leholo ho khaola moralo ka halofo (joaloka geode e sehiloeng bophelong ba sebele).

Haeba u na le bothata ba ho utloisisa taba, ke boetse ke u siela likhokahano tsa liteko tsa ka e le hore u ka li etsisa le ho li leka!

Magnetite

Tetrahedrite
Pyrite
Lefika la seretse se chesang

Quartz
Bismuth
Geode

Romela kantle bakeng sa Khatiso ea 3D

Ha -nala moralo oa hau u seke oa lebala ho kenya "bopa sehlopha" qetellong ea khoutu, ka tsela ena re etsa bonnete ba hore likotoana tsohle li kopane joalo ka ntho e le 'ngoe e tiileng. E-ea ho menu ea ho romela thepa ebe u khetha .stl (fomate e tloaelehileng haholo bakeng sa khatiso ea 3D).

Ho Lokisa Khatiso ea 3D (Tinkercad 3D Designs)

Hopola! Ho bohlokoa haholo hore pele u hatisa ntho leha e le efe ea 3D u tlameha ho etsa bonnete ba hore mohlala oa khoneha, ka mantsoe a mang, hore o lumellana le melao e latelang ea khatiso ea 3D:

O ke ke wa hatisa dimotlolo Ho potlaka sebakeng ntle le motheo kapa tshehetso.
Li-angles tse fetang likhato tse 45 li tla hloka tšehetso ea meralo ho software ea CAD.
Leka ho etsa botlaaseng ba hao -gure e le Pat kamoo ho ka khonehang ho etsa bonnete ba ho khomarela hantle betheng ea khatiso.

Tabeng ena ho thata haholo ho hlokomela melao ena ha re etsa mekhoa e sa reroang. Ke khothaletsa ho kenya mofuta oa .stl ho Tinkercad 3D Designs ho -x pele o hatisa, tabeng ena:

Ke kentse polyhedron bohareng moo e kopanang le libopeho tsohle.
Ebe o eketsa cube e sekoti ka tlase ho etsa bonnete ba hore Mofutsana ke Pat.

Qetellong a kopanya ntho e 'ngoe le e' ngoe 'me a romelloa ka ntle ho sebopeho sa .stl

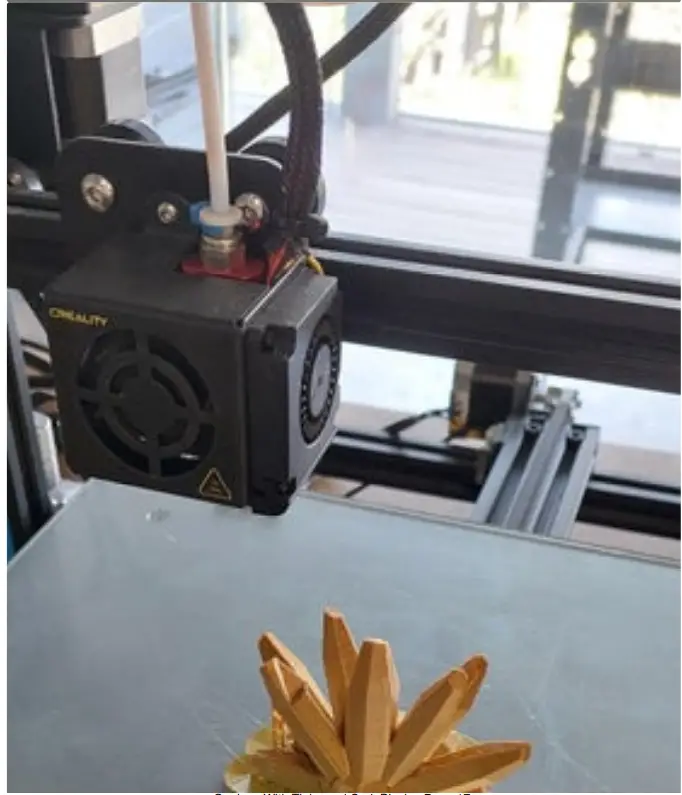

E hatise ka 3D

Bakeng sa morero ona re sebelisitse software ea mahala ea CAM Ultimaker Cura 3D e nang le liparamente tse latelang:

Boitsebiso: PLA + silika
Boholo ba nozzle: 0.4 limilimithara
Boleng ba lera: 0.28 limilimithara

In-ll: 20% mokhoa oa grid
Mocheso oa Extrusion: 210C
Mocheso o chesang oa bethe: 60C

Lebelo la ho hatisa: 45 limilimithara/s
E ts'ehetsa: E, (ka ho iketsa ho likhato tse 45)
Ho khomarela: Brim

Litšupiso

Del Court, M. (2014, 3 enero). Geology le Geometry. michelledelcourt. Recuperado 11 de septiembre de 2022, de
https://michelledelcourt.wordpress.com/2013/12/20/geology-and-geometry/

Sena se setle!
A na u arolelane moralo oa Codeblocks phatlalatsa ho gallery ea Tinkercad?
