Momcozy Baby Carrier with Hip Seat Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the safe and effective use of your Momcozy 2-in-1 Baby Carrier with Hip Seat. Please read this manual thoroughly before first use and keep it for future reference. This carrier is designed for active babies, offering versatility and comfort for both parent and child.

The Momcozy Baby Carrier with Hip Seat is a versatile 2-in-1 solution, functioning as both a full baby carrier and a standalone hip seat. It is designed to provide ergonomic support for your baby's healthy hip development and comfort for the parent through various carrying positions.

2. Important Safety Information

WARNING: Failure to follow these instructions can result in serious injury or death.

• Always ensure all buckles, snaps, and zippers are securely fastened before placing your baby in the carrier.
• Regularly inspect the carrier for any signs of wear, tear, or damage. Discontinue use if any damage is found.
• Ensure your baby's airway is clear and unobstructed at all times. Regularly check on your baby, especially infants.
• This carrier is suitable for babies weighing between 7 pounds (3.17 kg) and 44 pounds (19.96 kg).
• For babies under 5 months, it is recommended to use the hip seat in the cradle position to better support your baby's weight and ensure comfort.
• Always support your baby's head and neck, especially for newborns and young infants.
• Be aware of your surroundings and avoid activities that could compromise your balance or your baby's safety.
• Do not use the carrier while cooking, exercising, or engaging in activities that involve heat, sharp objects, or chemicals.

3. Product Components

The Momcozy 2-in-1 Baby Carrier with Hip Seat consists of the following main parts:

• Main Carrier Attachment: The upper part with shoulder straps and baby seating area.
• Hip Seat Base: The sturdy waist-worn seat that provides a stable platform for the baby.
• Waistbelt: Adjustable belt with Velcro and buckles for secure fit around the parent's waist.
• Shoulder Straps: Padded straps for parent comfort, featuring an X-shaped back design for even weight distribution.
• Buckles and Snaps: Secure fastening mechanisms for safety.
• Storage Pockets: Multiple pockets on the hip seat for essentials like wallets, diapers, and keys.

Figure 3.1: Overview of Momcozy 2-in-1 Hip Seat Baby Carrier features, including 3D Abdominal Support, X-shaped Back Design, Multiple Carrying Options, Guided M-shaped Sitting, and Spacious Storage Pockets.

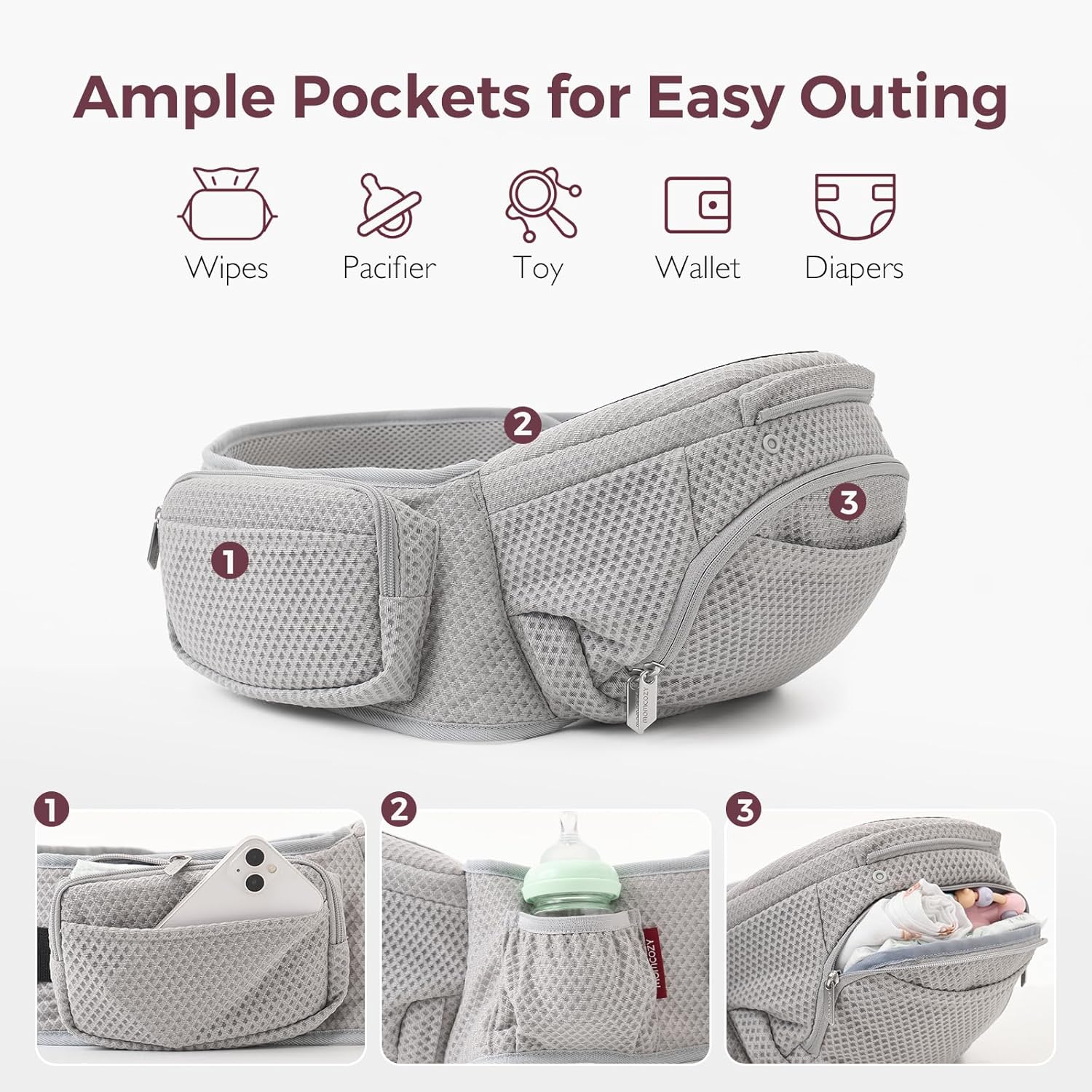

Figure 3.2: Detailed view of the hip seat's ample storage pockets, designed to hold items such as wipes, pacifiers, toys, wallets, and diapers.

4. Setup and Wearing Instructions

4.1 Wearing the Full Carrier

The X-shaped back design allows for easy one-person wear.

1. Buckle the Waistbelt: Secure the waistbelt around your waist and fasten the main buckle. Ensure it is snug and comfortable.
2. Position the Hip Seat: Turn the hip seat to the front, ensuring the seat is level and provides a stable base.
3. Place One Shoulder Strap: Place one shoulder strap over your shoulder.
4. Position Your Baby: Carefully place your baby onto the hip seat.
5. Cross and Buckle Second Strap: Cross the other shoulder strap over your body and buckle the safety buckle at your back.
6. Tighten and Adjust: Tighten all straps and check all safety buckles for a snug, secure, and comfortable fit for both you and your baby.

Figure 4.1: Step-by-step guide for wearing the Momcozy carrier by yourself, highlighting the ease of the X-shaped back design.

Figure 4.2: Visual comparison demonstrating the ease of wearing the Momcozy carrier with its X-shaped back design compared to other carrier types.

4.2 Converting to a Standalone Hip Seat

The carrier can be easily detached to use only the hip seat.

1. Unbuckle and Remove Straps: Unbuckle all safety straps and remove the upper carrier attachment from your shoulders.
2. Unbutton Fasteners: Unbutton the fasteners that connect the carrier attachment to the hip seat.
3. Unzip Connection: Unzip the main zipper located between the carrier attachment and the hip seat.
4. Remove and Store: Remove the carrier attachment. It can be folded and stored inside the hip seat pocket for convenience.

Figure 4.3: Step-by-step instructions for easily converting the Momcozy carrier into a standalone hip seat.

Figure 4.4: The convenient hip seat option allows active babies to move freely while remaining securely supported.

5. Operating the Carrier: Carrying Positions

The Momcozy 2-in-1 carrier offers six versatile carrying positions to adapt to your baby's age and developmental stage.

Figure 5.1: Visual guide to the six carrying positions: Cradle Carry (0-5 Months), Hip Carry (5-36 Months), Forward-facing (5-36 Months), Facing In (5-36 Months), Facing Out (5-36 Months), and Back Carry (5-36 Months).

• Cradle Carry (0-5 Months): Ideal for newborns, providing a secure and comfortable lying position on the hip seat.
• Hip Carry (5-36 Months): Baby sits on the hip seat, facing the parent, allowing for easy interaction and support.
• Forward-facing (5-36 Months): Baby sits on the hip seat, facing outwards to explore their surroundings.
• Facing In (5-36 Months): Baby is secured in the full carrier, facing the parent for bonding and comfort.
• Facing Out (5-36 Months): Baby is secured in the full carrier, facing outwards to observe the world.
• Back Carry (5-36 Months): Baby is secured in the full carrier on the parent's back, suitable for older infants and toddlers.

Ensure your baby is always in an ergonomic M-shaped position, where their knees are higher than their bottom, to support healthy hip development. The firm, wide seat and 10mm thick cushion are designed to facilitate this position.

Figure 5.2: Illustration of the ergonomic M-shaped position, crucial for healthy hip and spine development, supported by the carrier's design.

6. Care and Maintenance

Proper care will extend the life of your Momcozy Baby Carrier.

• Cleaning: The carrier is machine washable. Use a gentle cycle with cold water and mild detergent. Do not bleach.
• Drying: Air dry or tumble dry on low heat. Do not iron or dry clean.
• Storage: Store the carrier in a clean, dry place away from direct sunlight when not in use.
• Material: Made from breathable, durable 3D air mesh (100% Polyester) for comfort in all seasons.

7. Troubleshooting

If you encounter any issues with your Momcozy Baby Carrier, please refer to the following common solutions:

8. Product Specifications

9. Warranty and Support

Momcozy stands behind the quality of its products. For warranty information, product support, or to inquire about replacement parts, please contact Momcozy customer service directly. Details can typically be found on the product packaging or the official Momcozy website.

For additional resources and frequently asked questions, please visit the Momcozy Brand Store on Amazon.
