Introduction
Thank you for choosing the WAMPAT Modern Dresser TV Stand. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.
This versatile furniture piece combines modern functionality with a rustic French farmhouse style. It is designed to accommodate flat-screen TVs up to 55 inches and can also serve as an entryway console, media console, or kitchen storage unit. The stand features six smooth-gliding drawers for organized storage and an elegant curved design for both aesthetics and safety.
Setup and Assembly
Before you begin, ensure all parts are present and undamaged. Refer to the included parts list in your packaging. Assembly typically requires two people.
Assembly Video Guide
Official WAMPAT Assembly Guide for the Modern 6-Drawer Dresser. This video demonstrates the step-by-step process for assembling your furniture, ensuring correct installation of all components including drawer slides and panels.
Key Assembly Steps and Safety
- Prepare Components: Lay out all panels and hardware on a clean, soft surface to prevent scratches. Identify each part using the labels provided.
- Assemble Frame: Follow the detailed instructions in your package to connect the main frame panels using cam bolts, dowels, and cam locks. Ensure all connections are secure.
- Install Drawer Slides: Attach the metal drawer slides to the internal panels of the dresser frame. Ensure they are aligned correctly for smooth drawer operation.
- Assemble Drawers: Construct each of the six drawers by attaching the side and back panels to the front panel, then carefully sliding the bottom panel into place. Secure all connections.
- Insert Drawers: Once the main frame is assembled and the drawer slides are in place, carefully insert each assembled drawer into its designated slot.
- Attach Anti-Tip Kit: For safety, it is crucial to attach the provided anti-tip kit to the wall. This prevents accidental tipping, especially important in households with children or pets.
Anti-Tipping Furniture Straps: Secure the dresser to the wall using the provided anti-tip kit to prevent accidental tipping and ensure safety.
Operating Instructions
TV Placement
This TV stand is designed to safely hold flat-screen televisions up to 55 inches. Ensure the TV's base fits within the top surface dimensions (47.2"W x 15.7"D) and that its weight does not exceed the stand's capacity of 120 lbs. Distribute the weight evenly on the surface.

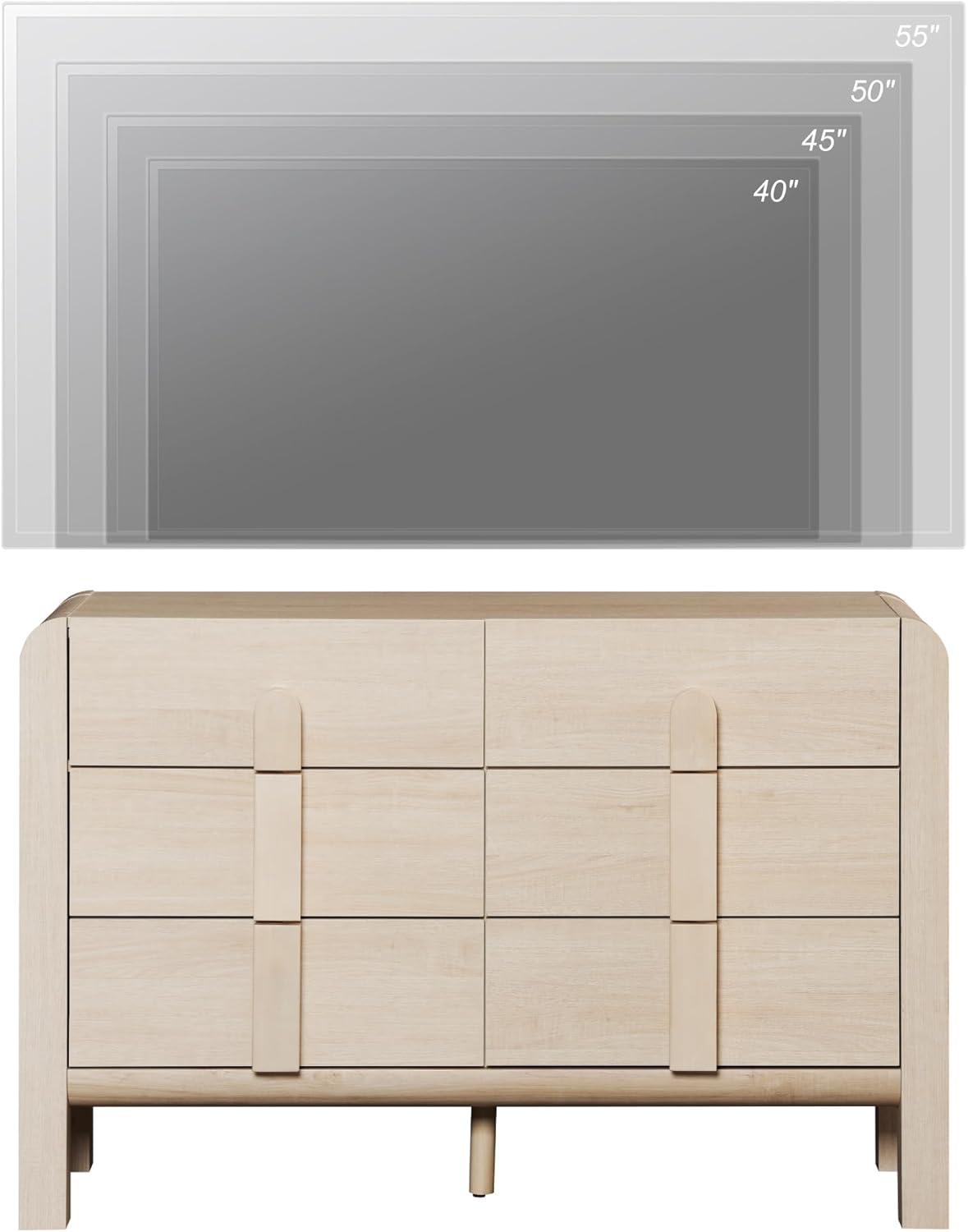

TV Size Compatibility: The stand is suitable for TVs up to 55 inches, ensuring a stable and secure display surface.
Drawer Usage
The six drawers are equipped with smooth-gliding metal slides for easy opening and closing. To ensure longevity, avoid overloading the drawers. When opening or closing, apply gentle, even pressure. The arch-designed handles provide a comfortable grip.
Ample Storage: The six drawers provide generous space for organizing various items, from media accessories to clothing.
Versatile Placement
This unit can be used in various rooms and for multiple purposes:
- Living Room: As a TV stand or media console.
- Bedroom: As a dresser for clothing storage.
- Entryway: As a console table for keys, mail, and decorative items.
- Dining Room: As a buffet or storage cabinet.
Maintenance and Care
Proper care will help maintain the appearance and longevity of your WAMPAT Modern Dresser TV Stand.
Cleaning
The surface of the stand is scratch- and water-resistant. For general cleaning, wipe with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the finish. Promptly wipe up any spills to prevent staining.
Easy to Clean Surface: The water-resistant finish allows for simple cleaning with a damp cloth.
General Care
- Avoid direct sunlight exposure to prevent fading.
- Keep the furniture away from heat sources and excessive humidity.
- Periodically check and tighten all hardware to ensure stability.
- Do not drag the furniture when moving it; always lift to prevent damage to the legs and frame.
Troubleshooting
If you encounter any issues with your WAMPAT Modern Dresser TV Stand, please refer to the following common solutions:
- Wobbly or Unstable: Ensure all cam locks and screws are fully tightened. Check that the furniture is placed on a level surface. Adjust the anti-tip kit if necessary.
- Drawers Not Closing Smoothly: Verify that the drawer slides are correctly installed and free of obstructions. Check if the drawer is overloaded or if items are blocking its path. Ensure the cam locks on the drawer panels are secure.
- Missing Parts: If any parts are missing upon unboxing, please contact WAMPAT customer service immediately with your model number and a description of the missing parts.
- Surface Scratches: Minor scratches can sometimes be touched up with a furniture repair marker that matches the light oak finish. For deeper damage, professional repair may be required.
Specifications

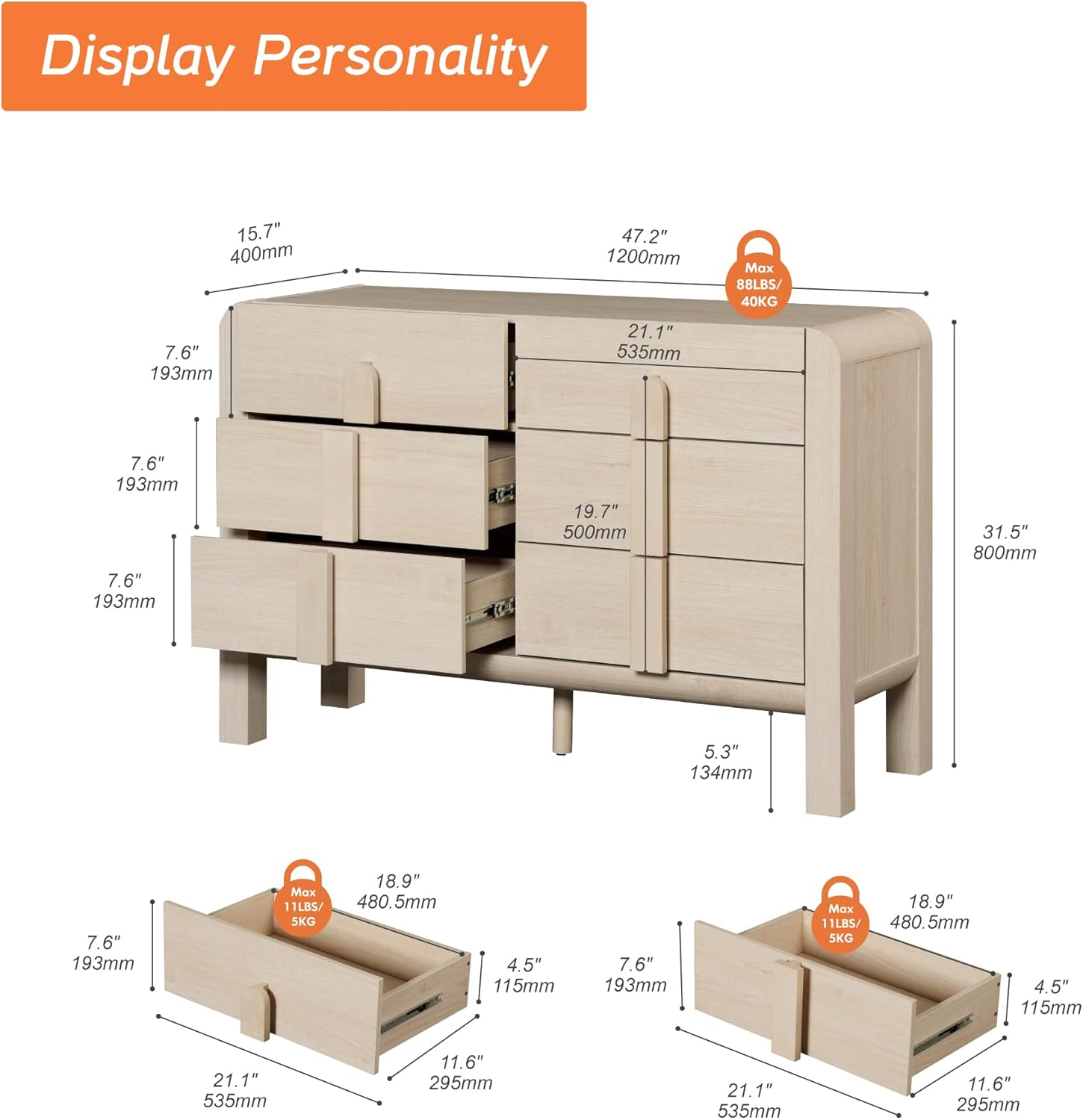

Product Dimensions: A visual representation of the stand's measurements.
| Feature | Detail |
|---|---|
| Brand | WAMPAT |
| Model Number | W11G312FN |
| Color | Light Oak |
| Product Dimensions | 15.7 x 47.2 x 31.5 inches (D x W x H) |
| Item Weight | 115.5 pounds |
| Number of Drawers | 6 |
| Special Features | Anti-Tipping, Scratch Resistant, Space Saving |
| Style | French Country, Farmhouse |
| TV Size Compatibility | Up to 55 inches |
| Weight Capacity | Up to 120 lbs (top surface) |
Warranty Information
WAMPAT products are manufactured with quality and durability in mind. This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase or visit the official WAMPAT website for specific terms and conditions. Keep your proof of purchase for warranty claims.
Customer Support
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please do not hesitate to contact our customer support team. We are dedicated to ensuring your satisfaction.
Contact Information:
- Email: support@wampat.com
- Phone: (Please refer to your product packaging or WAMPAT website for the most current phone number)
- Website: www.wampat.com
When contacting support, please have your model number (W11G312FN) and purchase details ready to expedite the process.
