1. Introduction
Thank you for choosing the Daewoo 5.5 Liter Multifunctional Air Fryer DAFG-1895X. This appliance is designed to simplify your cooking routine, offering versatile functions including air frying, grilling, and dehydrating. With its intuitive digital display and 2-in-1 design, you can prepare a variety of delicious and healthy meals with ease.
Please read this instruction manual thoroughly before using the appliance for the first time to ensure safe and optimal operation. Keep this manual for future reference.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the appliance is placed on a stable, heat-resistant surface.
- Do not block any ventilation openings.
3. Product Components
Familiarize yourself with the parts of your Daewoo Air Fryer.
4. Setup
4.1 Unpacking
- Carefully remove all packaging materials from the appliance and its accessories.
- Check that all components are present and undamaged.
- Keep packaging materials out of reach of children.
4.2 Initial Cleaning
- Before first use, wipe the exterior of the appliance with a damp cloth.

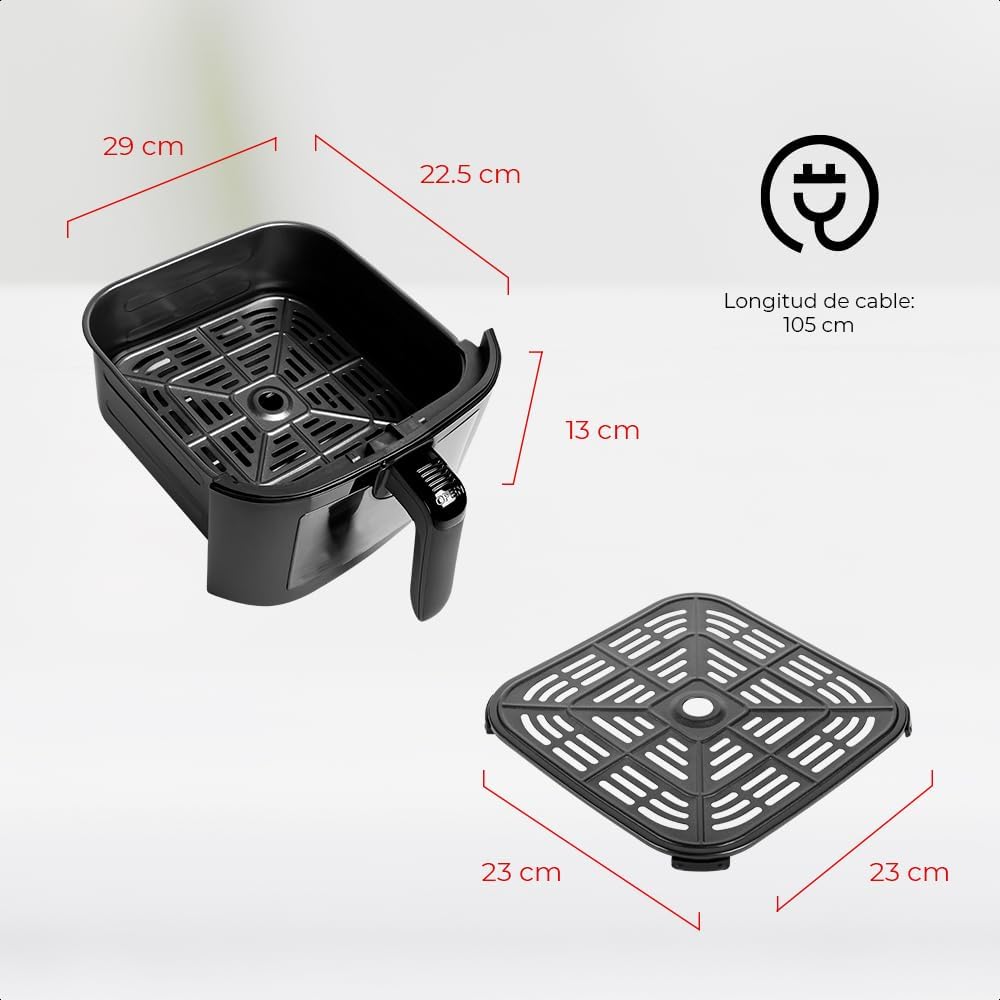

- Wash the cooking basket, crisper plate, and grill pan with warm, soapy water. Rinse thoroughly and dry completely.
- Do not immerse the main unit in water or any other liquid.
4.3 Placement
- Place the air fryer on a stable, flat, heat-resistant surface.
- Ensure there is at least 10 cm (4 inches) of clear space around the back and sides of the appliance for proper ventilation.
- Do not place the appliance directly under cabinets or near flammable materials.
- Plug the power cord into a grounded electrical outlet.
5. Operating Instructions
5.1 Digital Display and Controls
The Daewoo Air Fryer features an intuitive digital touch panel for easy operation. The display shows temperature, time, and selected cooking modes.
- Power Button: Turns the appliance on/off.
- Temperature Control: Adjusts cooking temperature.
- Time Control: Adjusts cooking time.
- Mode Selection: Cycles through pre-set cooking programs.
5.2 Air Frying Mode
Use this mode for crispy results with little to no oil.
- Place the crisper plate inside the cooking basket.
- Place food into the cooking basket. Do not overfill.
- Slide the cooking basket back into the main unit until it clicks into place.
- Press the Power button to turn on the appliance.
- Select an appropriate pre-set mode (e.g., Fry, Bake) or manually set the temperature and time using the controls.
- Press the Start button to begin cooking.
- Shake the basket halfway through cooking for even results (if applicable).
- Once cooking is complete, carefully pull out the basket and remove food.

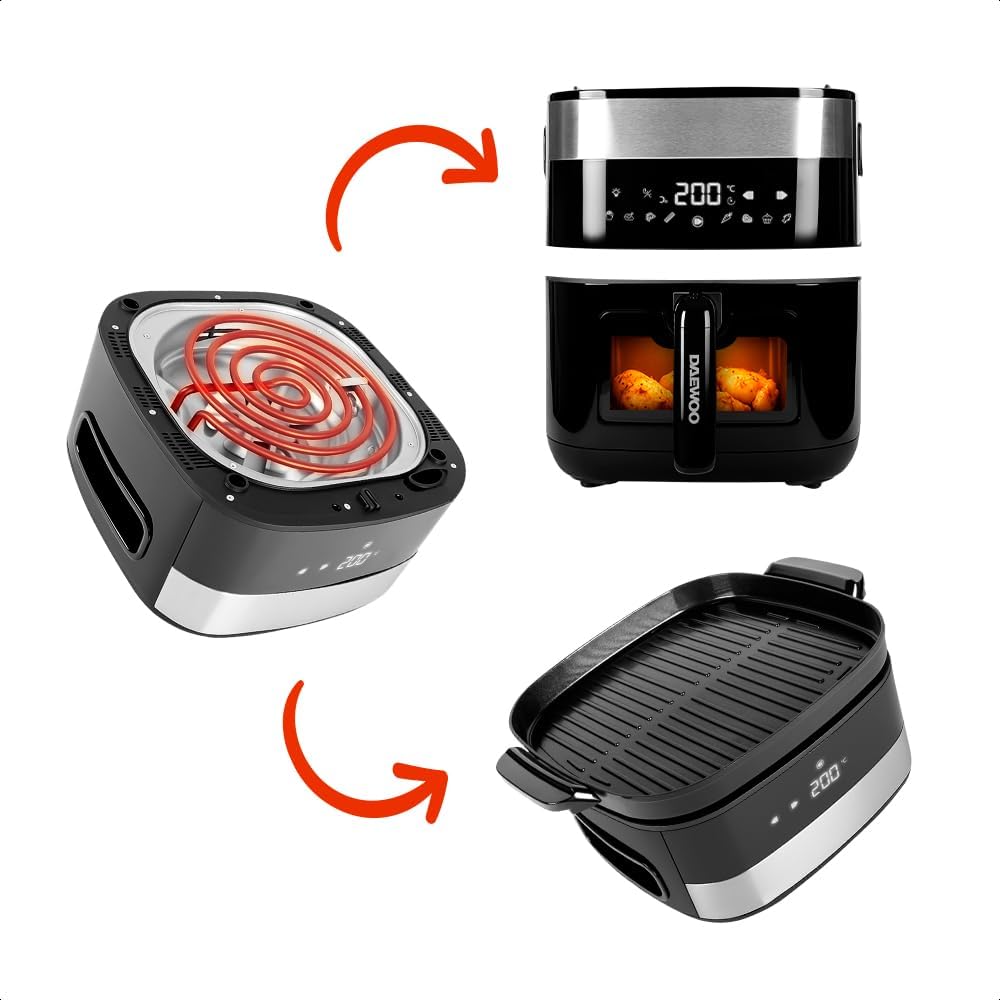

5.3 Grill Mode
The integrated grill allows for searing and grilling foods.
- Ensure the air fryer unit is off and unplugged.
- Carefully lift the top section of the air fryer and rotate it 180 degrees.
- Place the top section onto a flat, stable surface, ensuring the heating element is facing upwards.
- Place the grill pan onto the heating element base.
- Plug in the appliance.
- Place food onto the grill pan.
- Select the Grill mode or manually set temperature and time.
- Press Start to begin grilling.
5.4 Dehydrator Function
Prepare healthy snacks like dried fruits or jerky.
- Prepare food by slicing it thinly and evenly.
- Place food in a single layer on the crisper plate within the air fryer basket.
- Insert the basket into the main unit.
- Select the Dehydrate mode from the pre-set options.
- Adjust time and temperature as needed for your specific food item (refer to recipes or food-specific guidelines).
- Press Start to begin the dehydration process.
6. Cleaning and Maintenance
Regular cleaning ensures optimal performance and extends the life of your appliance.
- Always unplug the air fryer and allow it to cool completely before cleaning.
- Exterior: Wipe the exterior with a damp cloth. Do not use abrasive cleaners.
- Cooking Basket, Crisper Plate, and Grill Pan: These parts are non-stick and can be washed with warm, soapy water. For stubborn food residue, soak in warm water for 10-15 minutes before cleaning. Avoid using metal utensils or abrasive sponges that can damage the non-stick coating.
- Interior: Wipe the interior of the appliance with a damp cloth. If necessary, use a soft brush to clean the heating element, ensuring no food particles remain.
- Ensure all parts are completely dry before storing or using again.
7. Troubleshooting
If you encounter any issues with your Daewoo Air Fryer, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; Power outlet malfunction; Appliance damaged. | Ensure the power cord is securely plugged into a working outlet. Check the circuit breaker. If still not working, contact customer support. |
| Food is not cooked evenly. | Basket is overfilled; Food not shaken/flipped; Incorrect temperature/time. | Do not overfill the basket. Shake or flip food halfway through cooking. Adjust temperature and time as needed. |
| White smoke coming from the appliance. | Grease residue from previous use; Fatty food being cooked. | Clean the basket and crisper plate thoroughly. For fatty foods, add a small amount of water to the bottom of the basket to prevent smoke. |
| Food is not crispy. | Too much moisture in food; Not enough oil (for certain foods); Temperature too low. | Pat food dry before cooking. Lightly spray or brush food with oil. Increase temperature slightly. |
If the problem persists after trying these solutions, please contact Daewoo customer support.
8. Specifications
| Brand | Daewoo |
| Model Number | DAFG-1895X |
| Color | Black |
| Capacity | 5.5 Liters |
| Power | 1.5 KW |
| Voltage | 127 Volts |
| Material | Acrylonitrile Butadiene Styrene (ABS), Plastic |
| Special Features | Temperature Control, Programmable |
| Product Dimensions | 34 x 30 x 32 cm (Depth x Width x Height) |
| Product Weight | 4.6 Kilograms |
9. Warranty and Support
This Daewoo appliance comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.
For technical support, service, or questions regarding your product, please contact Daewoo customer service. Contact information can typically be found on the Daewoo official website or on your warranty documentation.
Online Resources: For additional recipes, tips, and FAQs, visit the official Daewoo website or the product support page.
