1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Wiltec Garden Pump 1200W. Please read these instructions carefully before using the pump and keep them for future reference. This self-priming garden pump is designed for transferring clear water, such as fresh water, rainwater, or well water, for domestic use or garden irrigation.
Figure 1: Wiltec Garden Pump in use for garden irrigation.
2. Safety Instructions
Always observe the following safety precautions to prevent injury and damage to the pump:
- Ensure the power supply matches the pump's specifications (230V, 50Hz).
- Do not operate the pump with damaged cables or plugs.
- Never immerse the pump in water. It is designed for external use.
- Keep children and unauthorized persons away from the operating pump.
- Disconnect the pump from the power supply before any maintenance or cleaning.
- Do not pump flammable, corrosive, or explosive liquids.
- Protect the pump from frost. Drain water completely during winter storage.
- Ensure proper ventilation during operation to prevent overheating.
3. Product Features
The Wiltec Garden Pump 1200W offers the following key features:
- Self-Priming Function: Enables immediate operation without manual priming, ensuring quick and smooth water transfer.
- Powerful Motor: Equipped with a 1200W motor for efficient performance.
- High Flow Rate: Delivers up to 3800 liters per hour.
- Significant Delivery Height: Capable of pumping water up to 48 meters.
- Deep Suction Capacity: Can draw water from depths of up to 8 meters.
- Integrated Bleed Screw: Facilitates complete water drainage for frost protection and maintenance.
- Ergonomic Carrying Handle: For easy transport and mobility.
- Accessible On/Off Switch: Simplifies daily operation.
4. Components and Overview
Familiarize yourself with the main components of the pump:

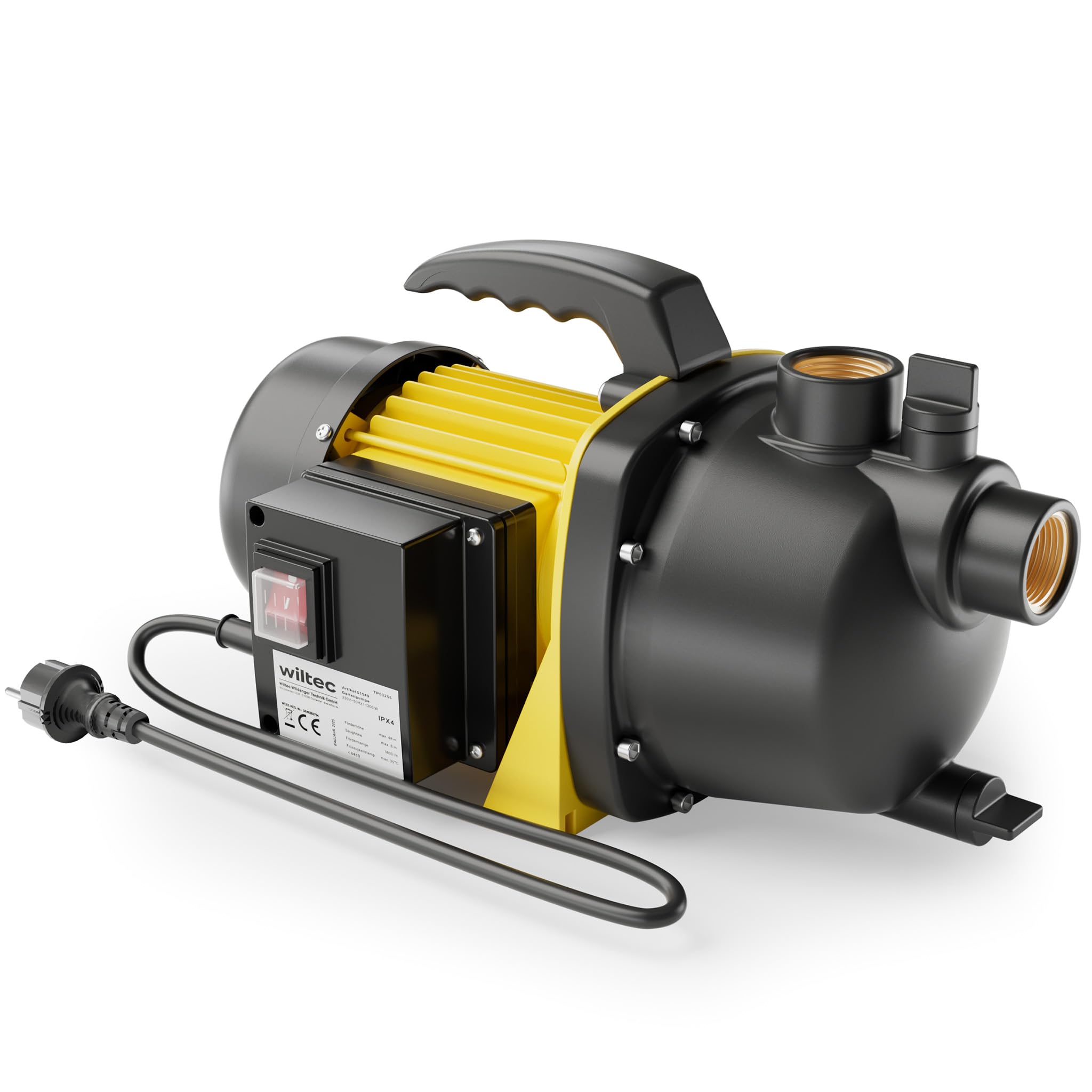

Figure 2: Labeled components of the Wiltec Garden Pump.
- Handle: For easy carrying.
- Motor: The power unit of the pump.
- Switch: On/Off control.
- Power Cable: Connects to the electrical supply.
- Outlet: Where pumped water exits.
- Filling Port: For initial water filling to enable self-priming.
- Inlet: Where water enters the pump from the source.
- Drainage Screw: For emptying the pump.
5. Setup and Installation
Follow these steps for proper setup:
- Placement: Position the pump on a stable, level surface, protected from direct weather exposure. Ensure adequate ventilation.
- Suction Hose Connection: Connect a suitable suction hose to the pump's inlet. Ensure all connections are airtight to prevent air leaks, which can affect priming. For optimal performance, use a hose with a non-return valve and a filter at the end submerged in the water source.
- Pressure Hose Connection: Connect the pressure hose to the pump's outlet.
- Filling the Pump: Before initial use, remove the filling port cap and completely fill the pump housing with clean water. This is crucial for the self-priming function. Replace the cap securely.
- Electrical Connection: Connect the power cable to a grounded electrical outlet. Ensure the voltage matches the pump's requirements.
Figure 3: Example of pump connection in a domestic setting.
6. Operating Instructions
To operate the Wiltec Garden Pump:
- Ensure the pump is properly set up and filled with water as described in Section 5.
- Submerge the end of the suction hose into the water source.
- Turn on the pump using the accessible on/off switch. The pump will begin to draw water.
- Monitor the water flow. If no water is pumped after a short period, switch off the pump, check connections for air leaks, and ensure the pump housing is adequately filled with water.
- After use, switch off the pump.
Figure 4: Versatile applications of the garden pump.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your pump:
- Cleaning: Periodically clean the exterior of the pump with a damp cloth. Do not use harsh detergents.
- Filter Check: If your suction hose has a filter, inspect and clean it regularly to prevent blockages.
- Winter Storage: Before the first frost, completely drain all water from the pump. Remove the drainage screw (see Figure 5) and allow all water to escape. Store the pump in a frost-free environment.
- Connections: Regularly check all hose connections for leaks and ensure they are securely fastened.

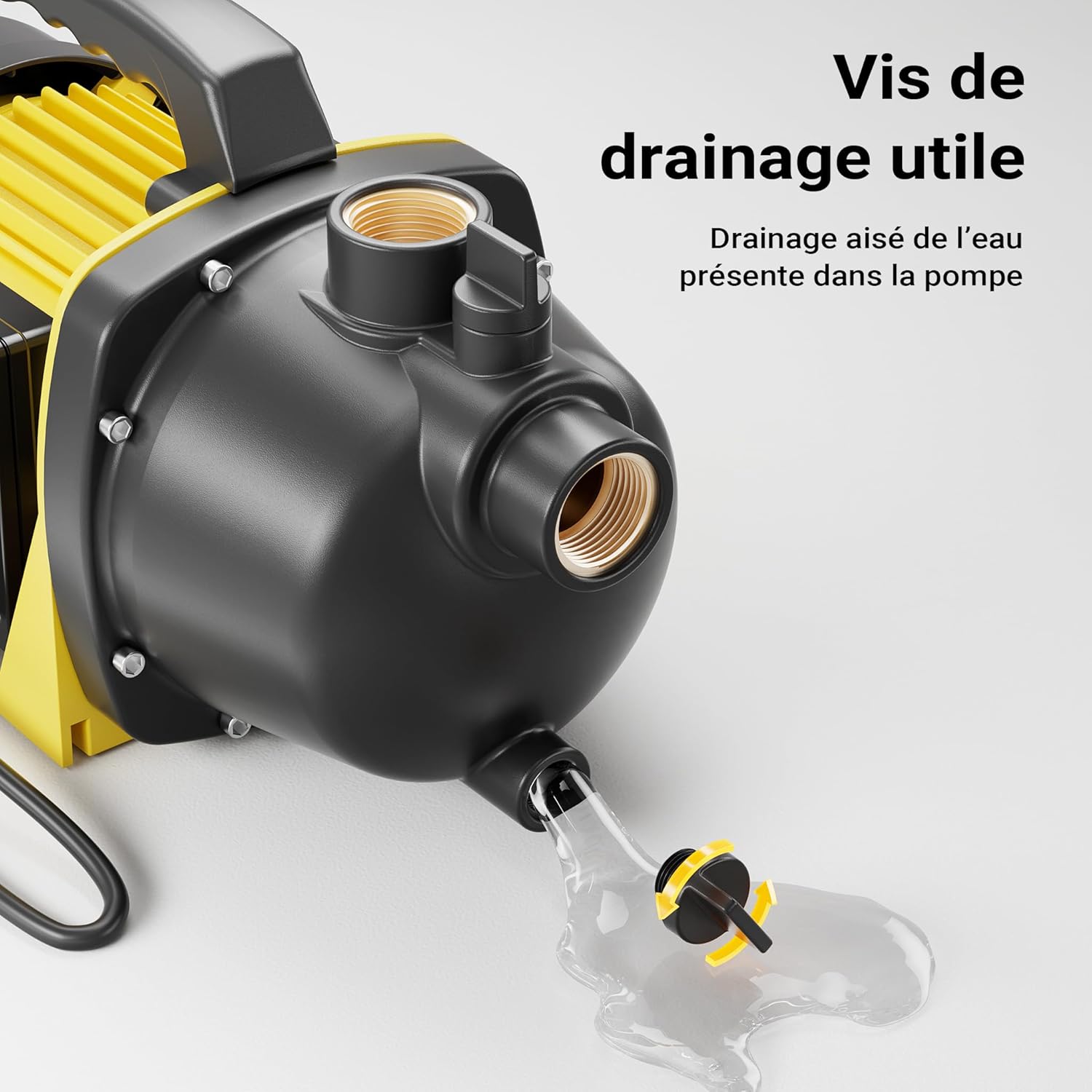

Figure 5: Using the drainage screw for winter preparation.
8. Troubleshooting
If you encounter issues with your pump, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start. | No power supply; faulty switch; motor overload. | Check power connection; inspect switch; allow motor to cool down. |
| Pump runs but does not draw water. | Air in suction line; pump not filled with water; suction hose not submerged; clogged filter. | Check for airtight connections; fill pump housing with water; ensure suction hose is fully submerged; clean filter. |
| Reduced water flow. | Partial blockage in suction or pressure line; worn impeller; air leaks. | Check and clear hoses; inspect impeller (if accessible); check all connections for air leaks. |
| Pump is noisy. | Air in pump; foreign object in impeller; motor bearing issue. | Bleed air from pump; check for and remove foreign objects; contact service if motor bearing is suspected. |
If problems persist, contact Wiltec customer support.
9. Technical Specifications
| Specification | Value |
|---|---|
| Model Number | 51549 |
| Power | 1200 W |
| Max Flow Rate | 3800 Liters per hour |
| Max Delivery Height | 48 meters |
| Max Suction Height | 8 meters |
| Dimensions (L x W x H) | 34 x 20.5 x 20.5 cm |
| Weight | 6.24 Kilograms |
| Material | Metal |
| Power Source | Electric Cable |
Figure 6: Product dimensions.
10. Warranty and Support
For warranty claims or technical support, please contact Wiltec customer service. Keep your purchase receipt and model number (51549) handy when contacting support.
You can find more information and contact details on the official Wiltec website: Wiltec Brand Store
