Introduction
Thank you for choosing the JAMARA 460516 Ride-on Jaguar F-type SVR 12V Electric Vehicle. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new ride-on toy. Please read these instructions carefully before use and retain them for future reference. Adult supervision is required at all times during operation.
Safety Information
Warning: To prevent the risk of serious injury, please observe the following safety guidelines:
- Use under direct adult supervision only.
- Not suitable for children under 36 months (3 years) due to its maximum speed and the presence of small parts.
- Contains small parts that can be swallowed. Choking hazard! Keep away from toddlers.
- Do not use on public roads, sidewalks, or in traffic. This vehicle is intended for private use on flat, safe surfaces.
- Risk of accidents and injury. Ensure the operating area is clear of obstacles and hazards.
- This toy has no brake. Children must be taught to stop the vehicle by releasing the accelerator pedal.
- Always ensure the child is wearing appropriate safety gear, such as a helmet.
- Do not allow children to stand in or on the vehicle while it is in motion.
- Keep hands, hair, and clothing away from moving parts.
- Only use the original charger and battery provided by JAMARA.
Product Overview
The JAMARA 460516 Ride-on Jaguar F-type SVR is an electric vehicle designed for children, featuring a realistic design and various interactive functions. It is equipped with a 12V battery system and two powerful drive motors for an engaging driving experience.
Key Features:
- 2-speed settings (slow, fast)
- Micro SD card slot, AUX port, and USB port for media playback
- Switchable LED headlights and rear lights
- Illuminated dashboard
- Engine sound at start, horn, and engine sounds on the steering wheel
- Keyless start process with a start button
- Two powerful drive motors
- Powerful battery for extended runtime
- Front and rear shock absorbers
- Carry and pull handle with transport wheels (manual fold-out)
- Manual opening doors and luggage compartment
- Battery voltage indicator

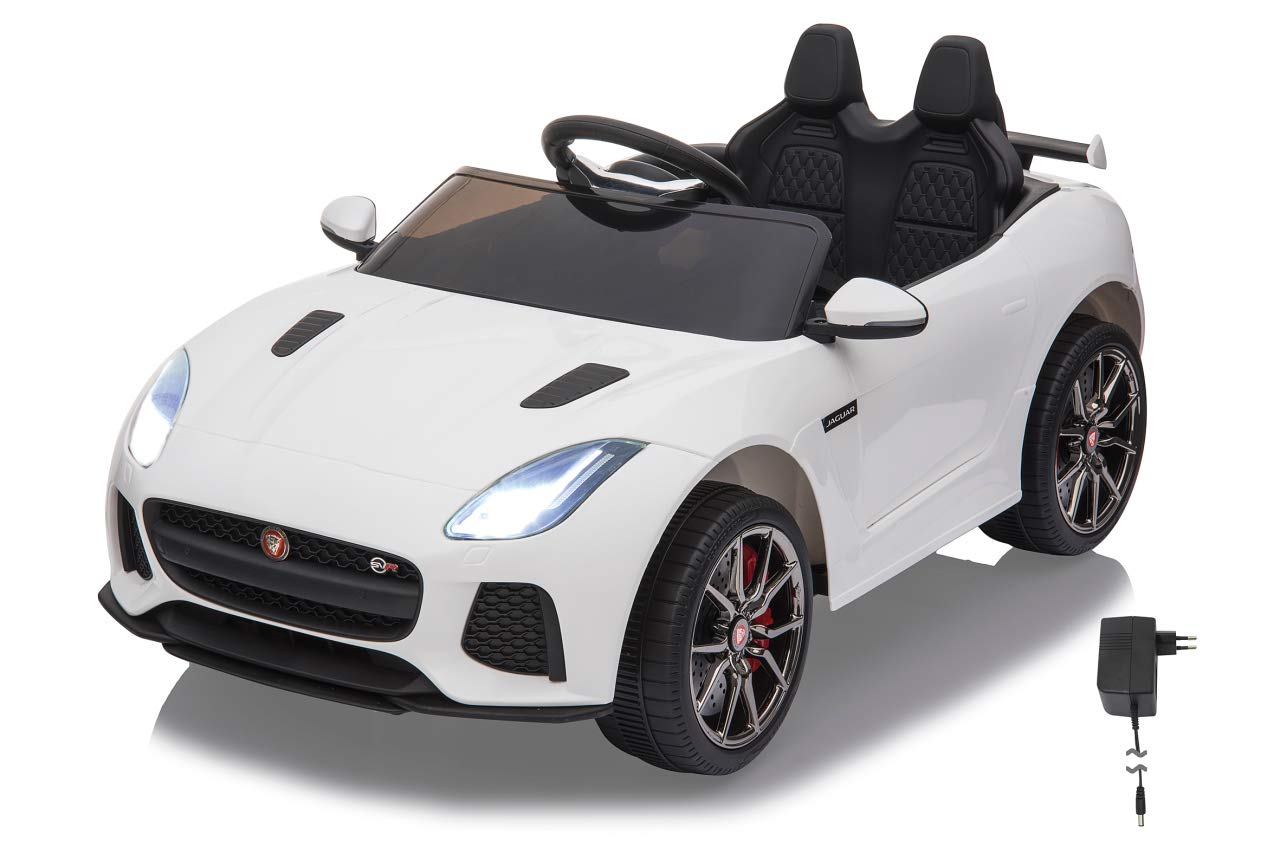

Image 1: The JAMARA Ride-on Jaguar F-type SVR electric vehicle with a child seated inside, showcasing its overall design.
Image 2: Side profile of the ride-on car, highlighting its sleek design and wheels.
Package Contents
Please check the contents of the package upon receipt to ensure all parts are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.
- 1x JAMARA 460516 Ride-on Jaguar F-type SVR Model
- 1x Drive Battery (12V 4.5Ah)
- 1x Charger (230V)
- 1x Instruction Manual (this document)
Image 3: The product packaging box, indicating the brand and model.
Assembly
Assembly of the ride-on vehicle is required. This process should be performed by an adult. Ensure all connections are secure before allowing a child to use the vehicle.
General Assembly Steps:
- Unpack Components: Carefully remove all parts from the packaging and lay them out.
- Install Wheels: Attach the wheels to the axles according to the diagrams in the separate assembly guide (if provided). Ensure all washers, pins, and caps are securely fastened.
- Connect Battery: Locate the battery compartment, typically under the seat. Connect the battery terminals (red to red, black to black). Ensure connections are tight.
- Install Seat: Place the seat onto the vehicle and secure it with the provided screws or clips.
- Attach Steering Wheel: Connect the steering column to the vehicle body and attach the steering wheel. Ensure any electrical connectors for horn/sound functions are properly plugged in.
- Install Windshield/Mirrors: Attach any remaining accessories like the windshield or side mirrors.
- Initial Charge: Before first use, fully charge the battery as described in the 'Battery Charging' section.

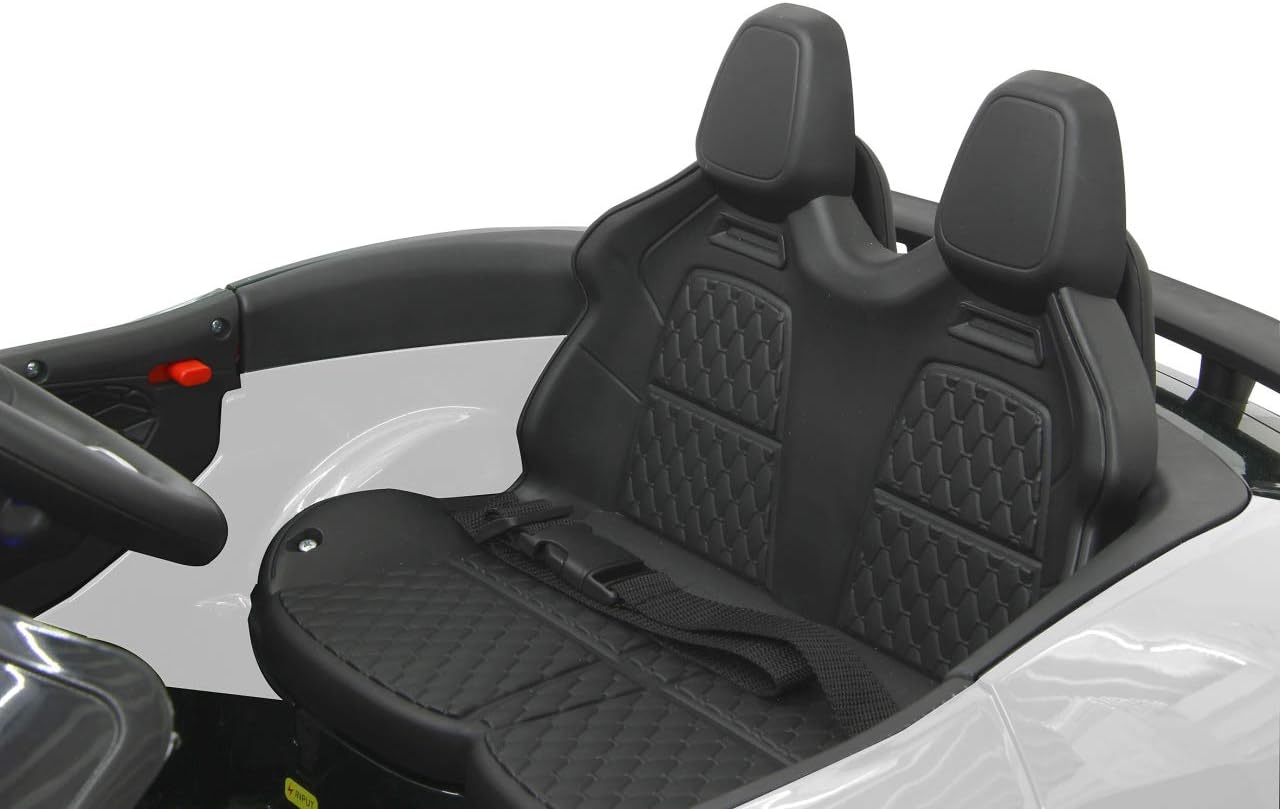

Image 4: The interior of the ride-on car, focusing on the seating area and safety belt, which needs to be secured during assembly.
Battery Charging
The vehicle is powered by a rechargeable 12V 4.5Ah battery. Always ensure the battery is fully charged before each use to maximize runtime and battery life. Charging must be performed by an adult.
Charging Procedure:
- Locate Charging Port: The charging port is typically located on the dashboard or under the seat.
- Connect Charger: Plug the charger into a standard 230V wall outlet. Then, connect the charger's output plug to the vehicle's charging port.
- Monitor Charging: The charger usually has an indicator light (e.g., red for charging, green for fully charged). Refer to the charger's specific instructions for details.
- Charging Time: An initial charge may take 8-12 hours. Subsequent charges typically take 8-10 hours. Do not charge for more than 18 hours to avoid battery damage.
- Disconnect Charger: Once fully charged, disconnect the charger from the vehicle and then from the wall outlet.
Important: Do not operate the vehicle while it is charging. Always use the original JAMARA 230V charger. If the vehicle will not be used for an extended period, charge the battery fully every 30 days to maintain its health.
Operating Instructions
Familiarize yourself with the controls before operating the vehicle. Always ensure the child is seated properly and the seatbelt is fastened.
Controls Overview:
Image 5: The illuminated dashboard and steering wheel, displaying the various control buttons and indicators.
- Start Button: Press to turn the vehicle on/off. An engine sound will typically play upon startup.
- Accelerator Pedal: Press to move forward. Release to stop. This vehicle does not have a separate brake pedal.
- Forward/Reverse Switch: Located near the dashboard, this switch controls the driving direction. Select 'Forward' (Framåt) or 'Reverse' (Bakåt).
- Speed Switch: Select between 'Slow' (Långsam) and 'Fast' (Snabb) speeds. Always start with the slow speed for younger children or new users.
- Steering Wheel: Turn left or right to steer the vehicle.
- Horn Button: Located on the steering wheel, press to activate the horn sound.
- Engine Sound Button: Also on the steering wheel, press for additional engine sounds.
- Lights On/Off Switch: Activates or deactivates the LED headlights and rear lights.
- Media Panel (Micro SD, USB, AUX): Use these ports to connect external audio devices or memory cards for music playback. Refer to the specific media panel instructions for detailed use.
- Battery Voltage Indicator: Displays the current battery charge level. Recharge when the indicator shows low power.
Maintenance
Regular maintenance ensures the longevity and safe operation of your ride-on vehicle.
Cleaning:
- Wipe the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Avoid spraying water directly onto electrical components.
Battery Care:
- Always fully charge the battery after each use.
- If storing the vehicle for more than 30 days, fully charge the battery before storage and recharge it every 30 days.
- Do not allow the battery to completely discharge, as this can shorten its lifespan.
- Store the battery in a cool, dry place.
General Inspection:
- Periodically check all screws, nuts, and fasteners to ensure they are tight.
- Inspect the wheels and tires for wear or damage.
- Check electrical connections for corrosion or loose wires.
Troubleshooting
If you encounter problems with your ride-on vehicle, consult the following table before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Battery is low or not connected; Power switch off; Loose wire connection; Overload protection activated. | Charge the battery; Ensure battery terminals are connected; Turn on power switch; Check all wire connections; Reduce load, wait a few minutes for reset. |
| Vehicle moves slowly | Low battery charge; Overloaded vehicle; Operating on rough terrain; Speed switch set to 'Slow'. | Recharge battery; Reduce weight; Operate on flat, smooth surfaces; Set speed switch to 'Fast'. |
| Lights or sounds not working | Loose wire connection; Battery low; Faulty component. | Check connections to lights/speakers; Recharge battery; Contact customer support if issue persists. |
| Charging indicator not working | Charger not properly connected; Faulty charger or battery. | Ensure charger is securely plugged into outlet and vehicle; Test charger with another device if possible; Contact customer support. |
Specifications
Technical details for the JAMARA 460516 Ride-on Jaguar F-type SVR:
- Model Number: 460516
- Brand: JAMARA
- Product Name: Jaguar F-type SVR
- Material: Plastic
- Battery: 12V 4.5Ah
- Charger: 230V
- Dimensions (L x W x H): 110 x 65 x 48 cm (43.3 x 25.6 x 18.9 inches)
- Item Weight: 15 kg (33 lbs)
- Recommended Minimum Age: 36 months (3 years)
- Recommended Maximum Age: 72 months (6 years)
- Assembly Required: Yes

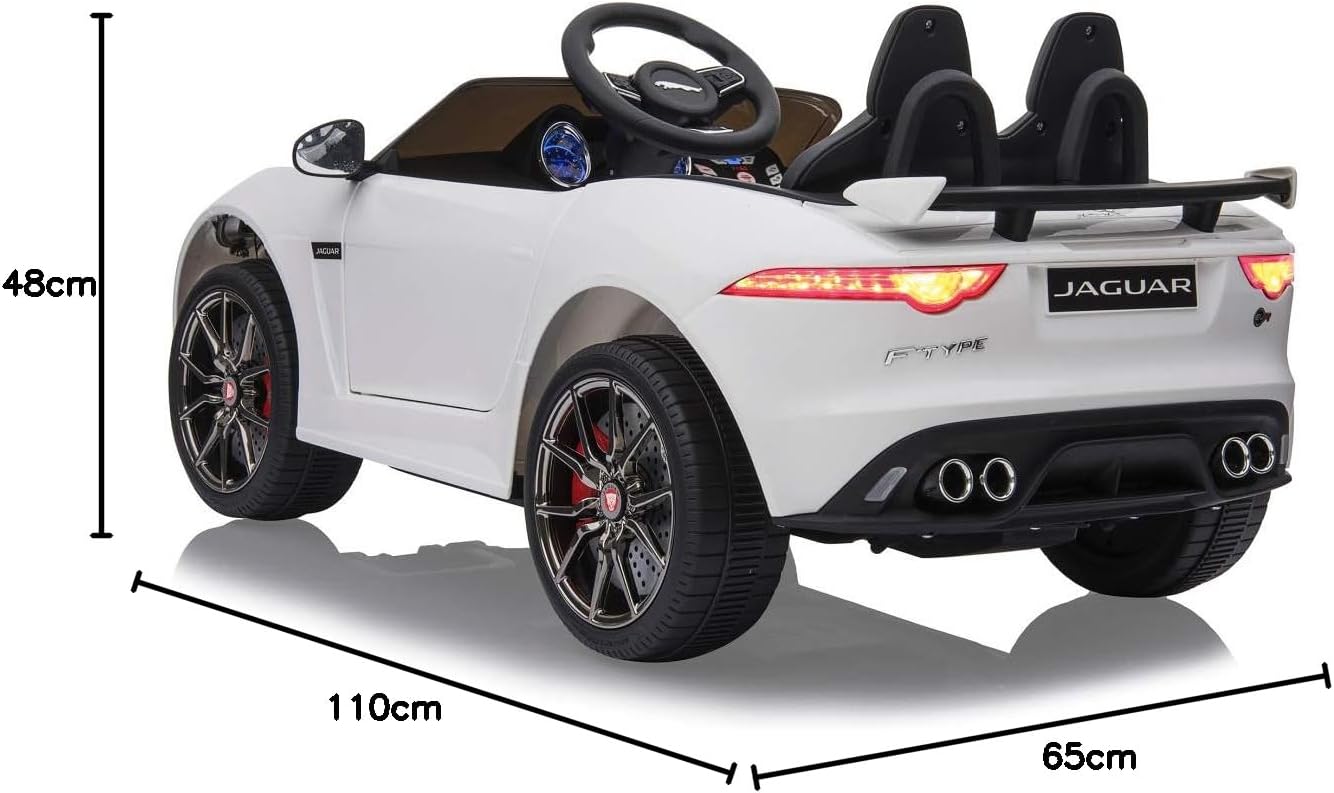

Image 6: A visual representation of the ride-on car's dimensions, indicating length, width, and height.
Disposal Information
Do not dispose of electrical appliances or batteries as unsorted municipal waste. Use separate collection facilities. Contact your local authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal free of charge.
Warranty and Support
For warranty information, technical support, or replacement parts, please refer to the warranty card included with your product or contact JAMARA customer service directly. Keep your proof of purchase for any warranty claims.
Manufacturer: Jamara e.K.
Website: www.jamara.com (Please check the official website for the most current contact information.)
