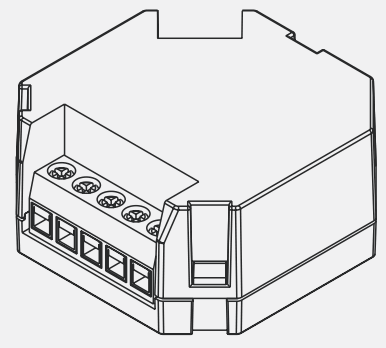

S2400IBH Smart Switch Relay Module
Installation Guide
APP Installation
Visit www.kasta.com.au or your app store to download the free KASTA app. iOS: requires iOS 9.0 or later.
Android: requires Android 4.4 or later.
Devices must support Bluetooth 4.0
Important Safety Information
- This product must be installed by a licensed electrician in accordance with all the requirements of AS/NZS 3000 (current edition) and other relevant Standards and Regulations.
- Electricity MUST be disconnected prior to installation. Failure to do so may result in serious injury and or loss of life.
- Indoor use only. Not suitable for damp or explosive environments.
- Complies to Australian Standards AS/NZS 60669.2.1, AS/NZS 60669.1, AS/NZS 4268, AS/NZS CISPR 15.
FEATURES
- Relay for switching a load on and off.
- Smart functions via phone/tablet with the app such as schedules, timers, scenes, and groups.
- Simple 5 wire connection-A, N, Load, T1, T2.
- Install in conjunction with an appropriately rated momentary action mechanism to T1 and T2.
- Multi-way load switching is possible using KASTA remote switches.
- Built-in thermal current overload protection.
- To prevent a reduction in Bluetooth® signal strength, install it away from metal objects.
FUNCTION SETUP
*Must be connected to a momentary action mechanism across T1/T2 terminal to perform setup.
| ON/OFF SWITCH | 1 CLICK |
| Turns lights on or off. When turned ON, the lights will adjust to the previous brightness setting. | |
| DELAY TO OFF | 3 CLICKS* |
| Lights automatically turn off after set time. | |
| FACTORY RESET | 9 CLICKS |
| Restores all settings back to the factory. | |
*If successful, light will pulse the number of times that the switch was clicked, indicating function.
TECHNICAL SPECIFICATIONS
Supply: 220-240V AC 50Hz
Operating Temp: -20ºc to 40ºc
LED Load Wattage: 2W – 2400W
Thermal Derating: 25ºc – 40ºc (2400W-1200W)
Max Switch Load and Multi Gang: 2400W I 1, 1800W I 2, 1320W I 3 (Multi Gang Derating on single switch plate)

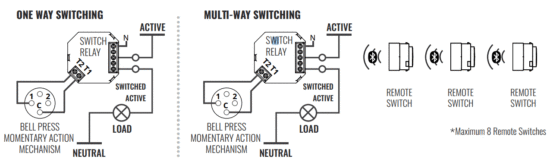

CONNECTION DIAGRAM
ver 1.6
kasta.com.au | (02) 9168 5900
