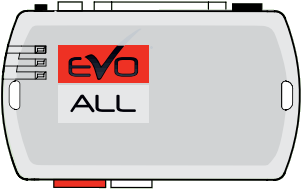

FORTIN EVO-ALL Remote Starter And Interface Module Installation Guide

	Program bypass option IF THE VEHICLE IS NOT EQUIPPED WITH FUNCTIONAL HOOD PIN:	UNIT OPTION		DESCRIPTION
		A11		Hood trigger (Output Status).

Program bypass option
(If equiped with OEM alarm):

Unlock before / Lock after (Disarm OEM alarm)

	ATTENTION!	DATE: XX-XX	E5		SPECIAL FUNCTIONS: BY DEFAULT DEACTIVATED
					MANUFACTURED MODULES BETWEEN: 04/2018 TO 04/2019

The vehicles Flip-key remote will not be functional during remote start.

MANDATORY INSTALL

Notice: the installation of safety elements are mandatory. The hood pin is an essential security element and must be installed.

* HOOD PIN

HOOD STATUS : THE HOOD PIN SWITCH MUST BE INSTALLED IF THE VEHICLE CAN BE REMOTE STARTED WITH THE HOOD OPEN, SET FUNCTION A11 TO OFF.

THIS MODULE MUST BE INSTALLED BY A QUALIFIED TECHNICIAN. A WRONG CONNECTION CAN CAUSE PERMANENT DAMAGE TO THE VEHICLE.

This guide may change without notice. See www.fortin.ca for latest version.

PARTS REQUIRED (NOT INCLUDED)

1x ,

1x Microsoft Windows Computer with Internet connection

1x Smartphone Android or iOS with Internet connection (provider charges may apply).

MANDATORY		Notice: the installation of safety elements are mandatory. The hood pin and the valet switch are essential security elements and must be installed.
HOOD PIN	REMOTE START SAFETY OVERRIDE SWITCH VALET SWITCH
Part #: RSPB available, Sold separately.

STAND ALONE CONFIGURATION

	Program bypass option:	UNIT OPTION	DESCRIPTION
		D1	Standalone enable

	Program bypass option with RF KIT antenna:	UNIT OPTION	DESCRIPTION
		H1 to H6	Supported RF Kits and select RF Kit

REMOTE STARTER FUNCTIONNALITY

RF KIT
REMOTE STARTER required
(sold separately)

REMOTE STARTER DIAGNOSTICS
MODULE RED LED
x2 flash :	Brake ON
x3 flash :	No tach
x4 flash :	Ignition before start
x5 flash :	Hood Open

REMOTE STARTER WARNING CARD

CUT THIS WARNING CARD AND STICK IT ON A VISIBLE PLACE: or use the package RSPB, Sold separately.		WARNING
		REMOTE STARTER
	THE VEHICLE CAN BE STARTED BY EITHER: PRESSING THE LOCK BUTTON ON THE OEM REMOTE 3 TIMES CONSECUTIVELY OR BY A SMARTPHONE. TURN ON THE SAFETY SWITCH LOCATED UNDER THE DASHBOARD BEFORE WORKING ON THE VEHICLE.

CONFIG.1 DESCRIPTION

AT IGNITION SWITCH

(1)(2) Ignition barrel

CONFIG.1 AUTOMATIC TRANSMISSION WIRING CONNECTION

a) Hood pin only required on vehicles not equipped with a factory hood pin.
b) SAFETY OVERRIDE SWITCH
c) Start / Stop external control
d) (-) Lock/Unlock input external control
e) OPTIONAL RF-KIT
(1) Back view
White 6-pin connector
At Ignition harness
(2) Back view
Burgundy 3-pin connector
Key Bypass
(3) Back view
Black 12-pin connector
At Parking light switch
(4) Front View
White 16-pin
OBDII Connector

CONFIG.2 DESCRIPTION

AT BCM

a) BCM – On the left of the steering column

CONFIG.2 AUTOMATIC TRANSMISSION WIRING CONNECTION

a) Hood pin only required on vehicles not equipped with a factory hood pin.
b) SAFETY OVERRIDE SWITCH
c) Start / Stop external control
d) (-) Lock/Unlock input external control
e) OPTIONAL RF-KIT
f) BCM – On the left of the steering column
(1) Back view
26-Pin White Connector
At BCM
(2) Back view
27-Pin Blue Connector
At BCM
(3) Back view
25-Pin Green Connector
At BCM

DCRYPTOR PROGRAMMING PROCEDURE

Parts required (not included)

1x ,

1x Microsoft Windows Computer with Internet connection

1x Smartphone Android or iOS with Internet connection (Internet provider charges may apply)

BEFORE PROGRAMMING SET THE UNIT OPTIONS AND SAVE.

[1]

LED may differ depending on the module casing.

Press and hold the programming button:
Connect the 4-PIN Data-link harness (Black connector).

The Blue, Red, Yellow and Blue & Red LEDs will alternatively illuminate.

[2]

Release the programming button when the LED is YELLOW.

If the LED is not solid YELLOW disconnect the 4-Pin connector (Data-Link) and go back to step 1.

[3]

Insert the required remaining connectors.

[4]

Press and release the programming button five times (5x).

The YELLOW LED will alternate between 5x flashes and a pause.
Wait until the YELLOW LED turns ON.

[5]

Turn the key to the Ignition ON/RUN position.

The RED LED will turns ON.
The YELLOW LED turns OFF.

If the LED is not solid RED disconnect the 4-Pin connector (Data-Link) and go back to step 1.

[6]

Turn the key to the OFF position.

[7]

Remove the key from the Ignition barrel.

[8]

Wait 5 seconds.

[9]

Turn the Ignition to the ON position.

The BLUE LED will turns ON.
Wait, the BLUE & RED LED will turns OFF.
Wait, the YELLOW LED will Flash.
Wait, the YELLOW LED will turns OFF.
Wait, the BLUE LED will Flash rapidly.

If the LEDs do not react as shown, disconnect the 4-Pin connector (Data-Link) and go back to step 1.

[10]

Turn the key to the OFF position.

the BLUE LED flash slowly.

[11]

Disconnect all the connectors and after the Data-Link (4-pins) connector.

[12]

Microsoft Windows Computer with Internet connection*

VEHICLE’S OBDII CONNECTOR

Smartphone*
(Internet provider charges may apply)

Use the tool:
FLASH LINK UPDATER or FLASH LINK MOBILE to visit the DCryptor menu.

*Parts required (not included)

[13]

AFTER DCRYPTOR PROGRAMMING COMPLETED
Go back to the vehicle and reconnect the 4-Pin (Data-Link) connector and after, all the remaining connector.

The module is now programmed.

REMOTE STARTER / ALARM VERIFICATION PROCEDURE

Test the remote starter. Remote start the vehicle.

OPTIONAL RF-KIT PROGRAMMING

PROGRAM BYPASS OPTION

Program bypass option:

Supported RF-KITS enable

H2 Fortin 2

OPTIONAL FORTIN RF KIT SERIES 4 OR SERIES 9 PROGRAMMING

The module must be programmed on the vehicle.	1 Turn the key to the ON/RUN position.	2 Turn the ignition to the OFF position.	3 Turn the key to the ON/RUN position.	4 4X BRAKES Press and release the brake pedal four times. The LED will turn off each time.	5 ON EACH TRANSMITTER	6 Turn the ignition to the OFF position.
					4 BUTTONS PRESS AND RELEASE PRESS AND RELEASE
					1 BUTTON PRESS APPROX. 12 SEC. AND WAIT FOR THE BLUE LED TO TURN OFF THEN BACK ON SOLID THEN RELEASE.
MAKE SURE THE IGNITION KEY HAS BEEN IN THE OFF POSITION FOR AT LEAST 5 SECONDS.			The LED will turn ON solide.	The LED will flash rapidly.	The LED will turn off each time.	The LED will turn Off.
	The YELLOW LED will turn ON solid.	The YELLOW LED will turn Off.	The YELLOW LED will turn ON solid.	The 3 LED will turn ON solid.	The LED will flash rapidly.	The 3 LED will turn off.
					The 3 LED will turn off each time.

REMOTE STARTER FUNCTIONALITY

All doors must be closed.

FORTIN - REMOTE STARTER FUNCTIONALITY - 2

Remote start the vehicle.

FORTIN - REMOTE STARTER FUNCTIONALITY - 3

Unlock the doors with the remote-starter remote.

FORTIN - REMOTE STARTER FUNCTIONALITY - 4

Insert and Turn the key to the Ignition ON/RUN position.

FORTIN - REMOTE STARTER FUNCTIONALITY - 5

Press the brake pedal.

FORTIN - REMOTE STARTER FUNCTIONALITY - 6

The vehicle can now be put in to gear and driven.

Module label

Notice: Updated Firmware and Installation Guides
Updated firmware and installation guides are posted on our web site on a regular basis. We recommend that you update this module to the latest firmware and download the latest installation guide(s) prior to the installation of this product.

WARNING
The information on this sheet is provided on an (as is) basis with no representation or warranty of accuracy whatsoever. It is the sole responsibility of the installer to check and verify any circuit before connecting to it. Only a computer safe logic probe or digital multimeter should be used. FORTIN ELECTRONIC SYSTEMS assumes absolutely no liability or responsibility whatsoever pertaining to the accuracy or currency of the information supplied. The installation in every case is the sole responsibility of the installer performing the work and FORTIN ELECTRONIC SYSTEMS assumes no liability or responsibility whatsoever resulting from any type of installation, whether performed properly, improperly or any other way. Neither the manufacturer or distributor of this module is responsible of damages of any kind indirectly or directly caused by this module, except for the replacement of this module in case of manufacturing defects. This module must be installed by qualified technician. The information supplied is a guide only. This instruction guide may change without notice. Visit www.fortinbypass.com to get the latest version.

TECH SUPPORT
————————————
Tél: 514-255-HELP (4357)
1-877-336-7797

ADDENDUM GUIDE

www.fortinbypass.com
————————————
WEB UPDATE
