EJEAS V4 Plus Motorcycle Intercom System

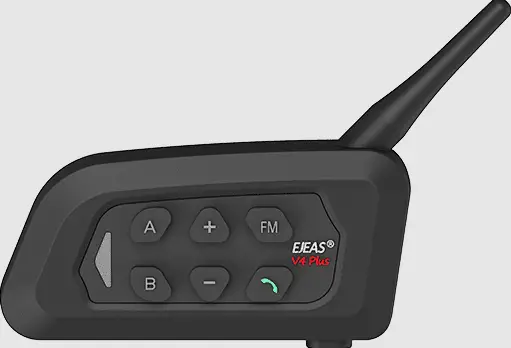

EJEAS V4 Plus Motorcycle Intercom System -product-image

Product Details

EJEAS V4 Plus Motorcycle Intercom System -01

Product installation

EJEAS V4 Plus Motorcycle Intercom System -02



Product Operation

Operation Diagram

EJEAS V4 Plus Motorcycle Intercom System -03Basic Operations
Power ON/OFF Please charge it before using

EJEAS V4 Plus Motorcycle Intercom System -04Battery Level

EJEAS V4 Plus Motorcycle Intercom System -05

                                                                                                Low Battery Indication                 Charging Indication

EJEAS V4 Plus Motorcycle Intercom System -06

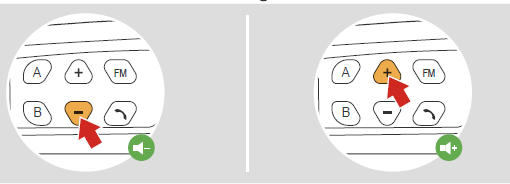

Volume Control FM and intercom can be used at the same time.

Intercom/ Calling /Music/ FM

EJEAS V4 Plus Motorcycle Intercom System -07

When Intercom & FM use simultaneously, FM volume control

EJEAS V4 Plus Motorcycle Intercom System -08

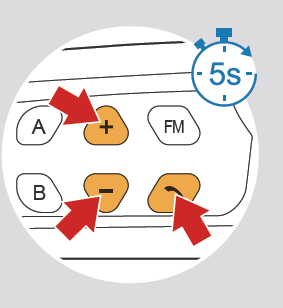

Factory Reset

EJEAS V4 Plus Motorcycle Intercom System -09Long press the <Volume+>, <Volume->, <Phone Button> for 5s at the same time.

  • The red and blue lights quickly flash three times simultaneously “Restore Default Settings”

Bluetooth Intercom

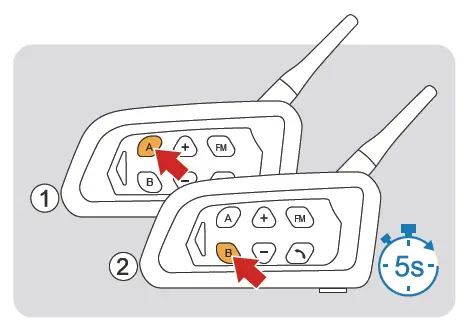

2-Way Intercom Pairing

EJEAS V4 Plus Motorcycle Intercom System -10Long press both <A Button> of device 1 and <B Button> of device 2 for 5s, waiting to pair.

  • Red and blue lights flash alternately

Searching and paring.
Paring successfully.

Connected, start communication.

3-Way Intercom PairingEJEAS V4 Plus Motorcycle Intercom System -11

  1. Pair device 1 and device 2 as above one step.
  2. Long press both <A Button> of device 2 and <B Button> of device 3 for 5s, waiting to pair.
    • Red and blue lights flash alternately
      Searching and paring.
      Paring successfully.
  3. Click <A Button> of device 1.
    {Blue light flashes once + stays on for 2s} and cycle.

Connected, start communication.

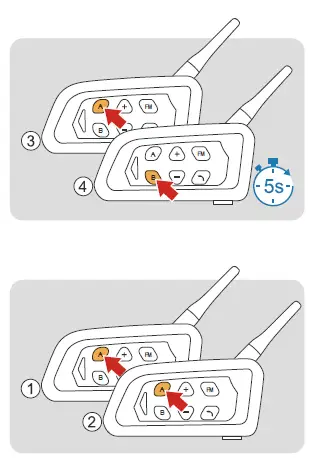

4-Way Intercom Pairing

EJEAS V4 Plus Motorcycle Intercom System -12

  1. Device 1, device 2, and device 3 are paired as above two steps.
  2. Long press both <A Button> of device 3 and <B Button> of device 4 for 5s, waiting to pair.
    • Red and blue lights flash alternately
      Searching and paring.
      Paring successfully.
  3. Click both <A Button> of device 1 and device 2.
    device 1 4 {Blue light flashes once + stays on for 2s} and cycle
    device 2 4 {Blue light flashes twice + stays on for 2s} and cycle

Connected, start communication.

Intercom Reconnection

Reconnect after disconnection or boot.

EJEAS V4 Plus Motorcycle Intercom System -13

  1. Device 1 & device 2 (or device 2 & device 3) connection is successful.
    {Blue light flashes once+ stays on for 2s) and cycle
  2. Device 1 & device 2 & device 3 simultaneously connected.
  3. {Blue light flashes twice + stays on for 2s} and cycle

Intercom DisconnectionEJEAS V4 Plus Motorcycle Intercom System -14

Compatible with Old Intercom Pairing

EJEAS V4 Plus Motorcycle Intercom System -15

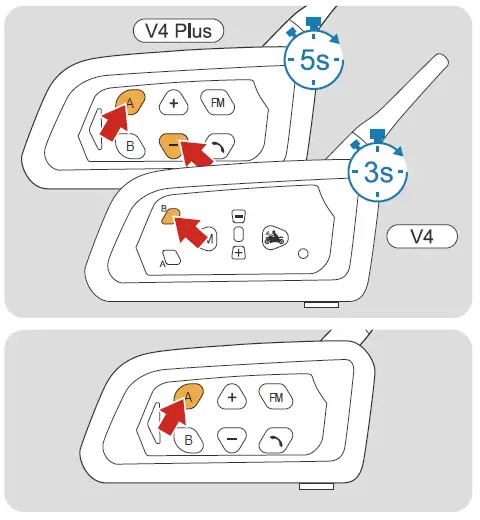

  1. Long press both < Volume – > and <A Button> of V4 Plus for 5s, while long press <B Button> ofV4 for3s.
    • Red and blue lights flash alternately
      Paring successfully.
  2. Click <A Button> of V4 Plus

EJEAS V4 Plus Motorcycle Intercom System -16

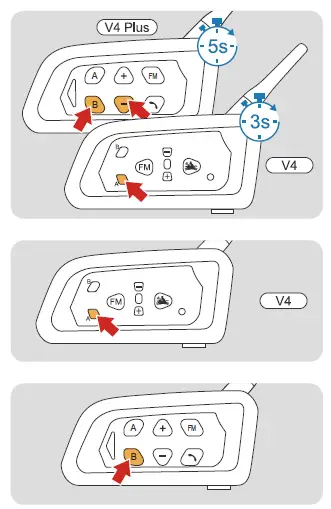

  1. Long press both < Volume – > and <B Button> of V4 Plus for 5s, while long press <A Button> ofV4 for3s.
    • Red and blue lights flash alternately
  2. Click <A Button> of V4. CE) 4 Blue light flashes
    Paring successfully.
  3. Click <B Button> of V4 Plus

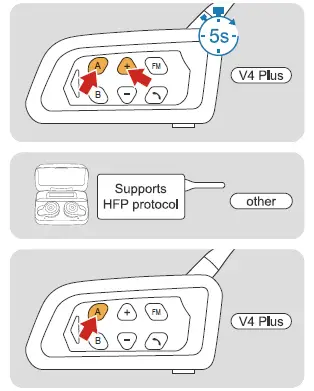

Pairing of Bluetooth HFP-AG

EJEAS V4 Plus Motorcycle Intercom System -17

  1. Long press both <Volume +> and <A Button> of V4 Plus simultaneously for 5s.
    • Red end blue lights flesh alternately
  2. Other devices enter Bluetooth search mode.
  3. Click <A Button> of V4 Plus to connect.

Pairing of Bluetooth HFP-HFEJEAS V4 Plus Motorcycle Intercom System -18



  1. Long press both <Volume +> and <B Button> of V4 Plus simultaneously for 5s.
    • Red end blue lights flash alternately
  2. Other devices enter Bluetooth search mode.
  3. Click <B Button> of V4 Plus to connect.

Bluetooth Pairing

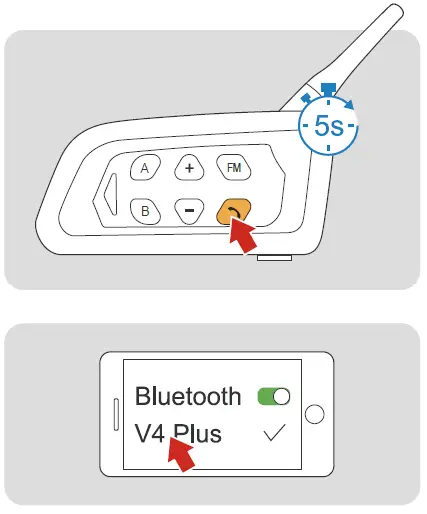

Phone Pairing

EJEAS V4 Plus Motorcycle Intercom System -19

  1. In standby mode, long press the <Phone Button> for 5s to enter the pairing state.
    • Red and blue lights flash alternately
    • “Phone Pairing”
  2. Turn on the Bluetooth of the mobile phone and click on the device.

Pairing successful.

  • Blue light twice flashes slowly
    “Pairing Successful”

EJEAS V4 Plus Motorcycle Intercom System -20Current power will be shown on your phone. (the mobile phone needs to support HFP)

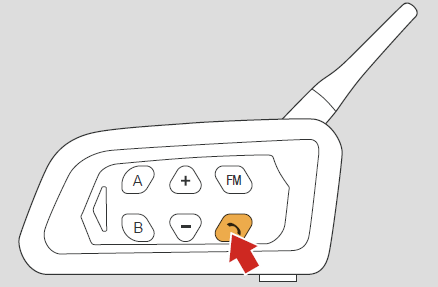

Phone Reconnection

Automatically connect or back to the last paired.EJEAS V4 Plus Motorcycle Intercom System -21

Mobile Phone

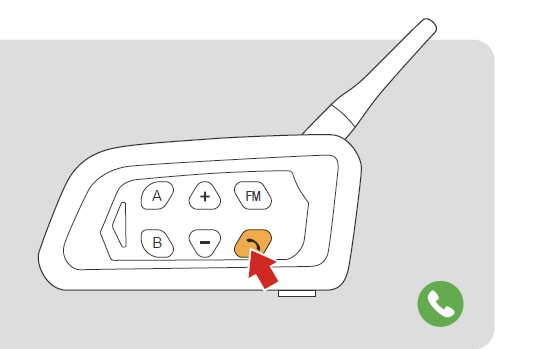

Answer a Call

Auto answering within 8s or if no any operation.EJEAS V4 Plus Motorcycle Intercom System -22

            Reject a Call Last                                                     Call Replay                                  End a Call EJEAS V4 Plus Motorcycle Intercom System -23

TEL Priority When listening to music. “FM/intercom, and receiving a phone call.

EJEAS V4 Plus Motorcycle Intercom System -24Voice Assistant
Phone must support the voice assistant (Google assistant & Siri). EJEAS V4 Plus Motorcycle Intercom System -25

Music Control

                                                                             Music Play/Pause                              Music SwitchingEJEAS V4 Plus Motorcycle Intercom System -26

FM Radio

FM On/Off
Auto search and radio, intercom and radio could working at the same time.

EJEAS V4 Plus Motorcycle Intercom System -27

Frequency Switching EJEAS V4 Plus Motorcycle Intercom System -28

EUC Remote Control (Optional)

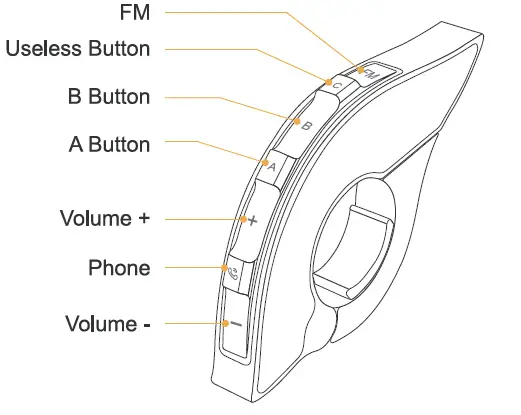

EUC Details

EJEAS V4 Plus Motorcycle Intercom System -29

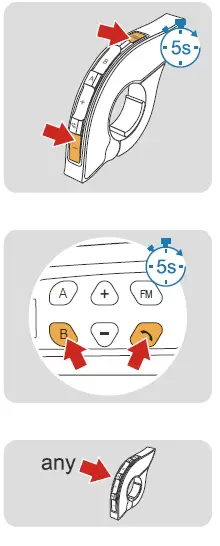

EUC Pairing EJEAS V4 Plus Motorcycle Intercom System -30



  1. Long press both <FM Button> and <Volume -> of EUC for 5s to clear the pairing record of EUC.
    • Red and Blue lights consistently on
  2. Long press both <Phone Button> and <B Button> of V4 Plus for 5s.
    • Red and blue lights flash alternately and quickly
      “Remote Control Pairing”
  3. Click any key of EUC

Pairing Successfully

  • “Pairing Successful”
    (If EUC cannot be successful paired in 2 mins, It will automatically exit the pairing mode.)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation

Documents / Resources

EJEAS V4 Plus Motorcycle Intercom System [pdf] User Manual
V4 Plus Motorcycle Intercom System, V4 Plus, Motorcycle Intercom System, Intercom System
