Q2 Motorcycle Intercom System
User Manual
Product Details
Product installation
Product Operations
Operation Diagram

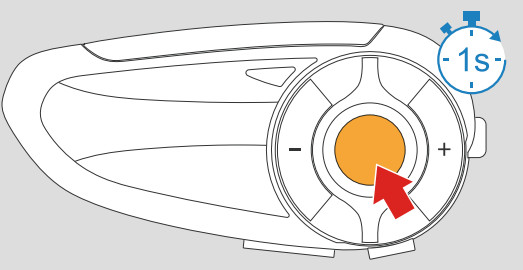

Power ON/OFF Please Chage it before using.
ON
Prompt tone
Standby
Blue light flashes slowly
OFF
Press the <Phone Button> and <Intercom Button> simultaneously.
Lights off
Battery Level
“Battery Level High”
“Battery Level Medium”
“Battery Level Low”
Low Battery Indication
Red light flashes twice
Low Battery”
Charging Constantly red
Full The red light out

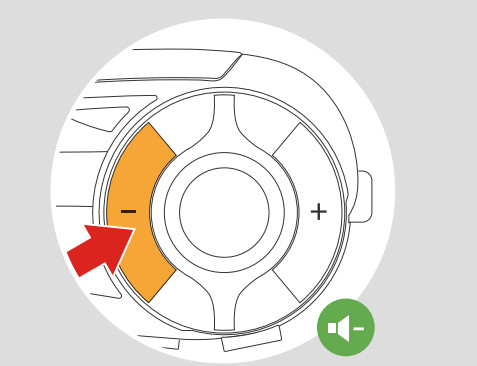

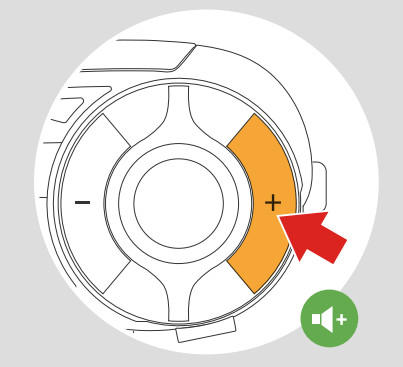

Volume Control FM and intercom can be used at the same time.
Intercom / Calling / Music / FM
 |
 |

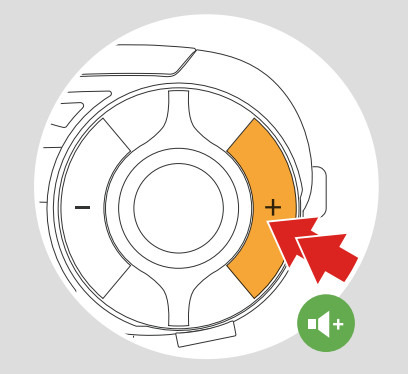

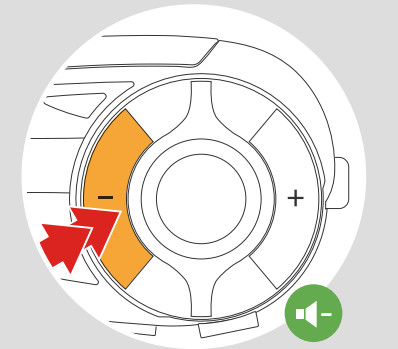

When Intercom & FM use simultaneously, FM volume control
 |
 |

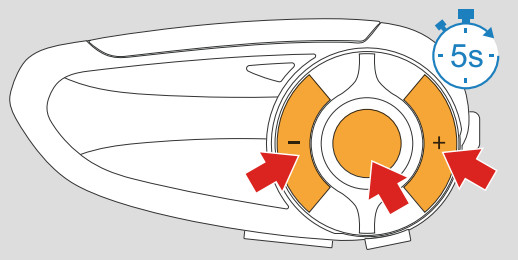

Factory Reset
Long press the <Volume +>, <Volume ->, <Phone Button> for 5s at the same time.
The red and blue lights quickly flash four times simultaneously
Restore Default Setting”
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equi pment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does caus harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliancecould void the user’s authority to operate the equipment. This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation
