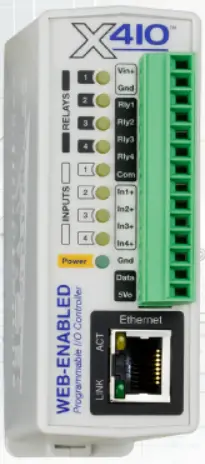

CONTROL by WEB X-410W Web Enabled Programmable Controller

Basic Setup Steps

1. Power the module and connect via ethernet to a computer.
2. Set IP address on computer to the same network as module.
   (Ex: 192.168.1.50) Note: restore computer settings after setup.
3. To configure module, open web browser and enter: http://192.168.1.2/setup.html
4. In General Settings under WiFi, enter the WiFi settings.
5. Assign the module a permanent IP address or enable DHCP.
6. Restart the module for the settings to take effect.

Factory Default Settings

• IP Address: 192.168.1.2
• Subnet Mask: 255.255.255.0
• Control Page Web Address: http://192.168.1.2
• Control Password: (no password set)
• Setup Page Web Address: http://192.168.1.2/setup.html
• Setup Username: admin
• Setup Password: web relay (all lower case)

Pinout Diagram
