The 3-in-1 Docking Station functions as a clean out tray, charging station, and storage tray for machine, brush rolls, and filter

Clean Out Cycle:

• Plug in the docking station

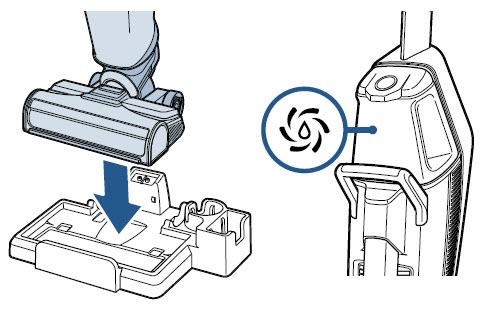

• Place machine on docking station
• Fill clean water tank with warm tap water and formula to the clean out cycle icon on the tank
  • Put clean water tank back on machine

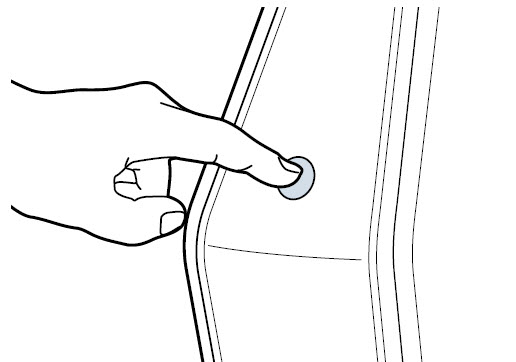

• Press clean out cycle button and let machine go through full 40 second cycle
  • If machine stops in middle of cycle and orange dirt tank indicator starts blinking on digital display, remove and empty dirty water tank
    • Clean out cycle button will be inactive until dirty water tank is emptied
    • Place empty dirty water tank back on machine, click clean out cycle button and the clean out cycle will resume



• If machine does not start the clean out cycle when the button is pushed, re-seat the machine onto the dock and allow it to charge for 30 minutes before trying again

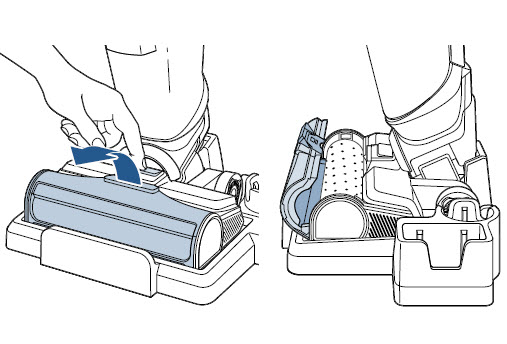

• When cycle is complete, remove brush roll window by pressing the button on the top of the foot and resting the brush roll window on the 3-in-1 docking station

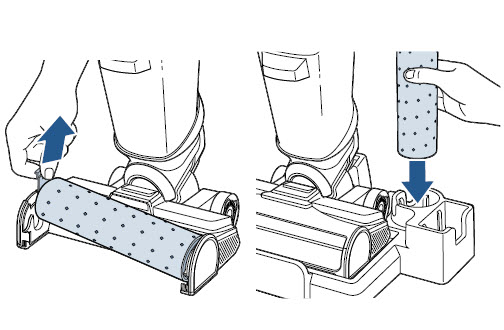

• Pull up on brush tab to remove brush roll
  • Place brush roll in drying tray to air dry

• Allow filter to dry for 24 hours after cleaning
  • Place filter in drying tray to air dry
• Take machine off docking station

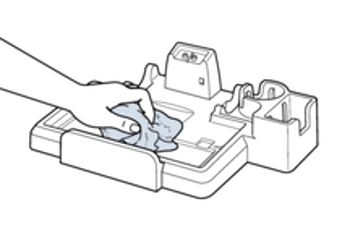

  • Wipe off any excess water on docking station

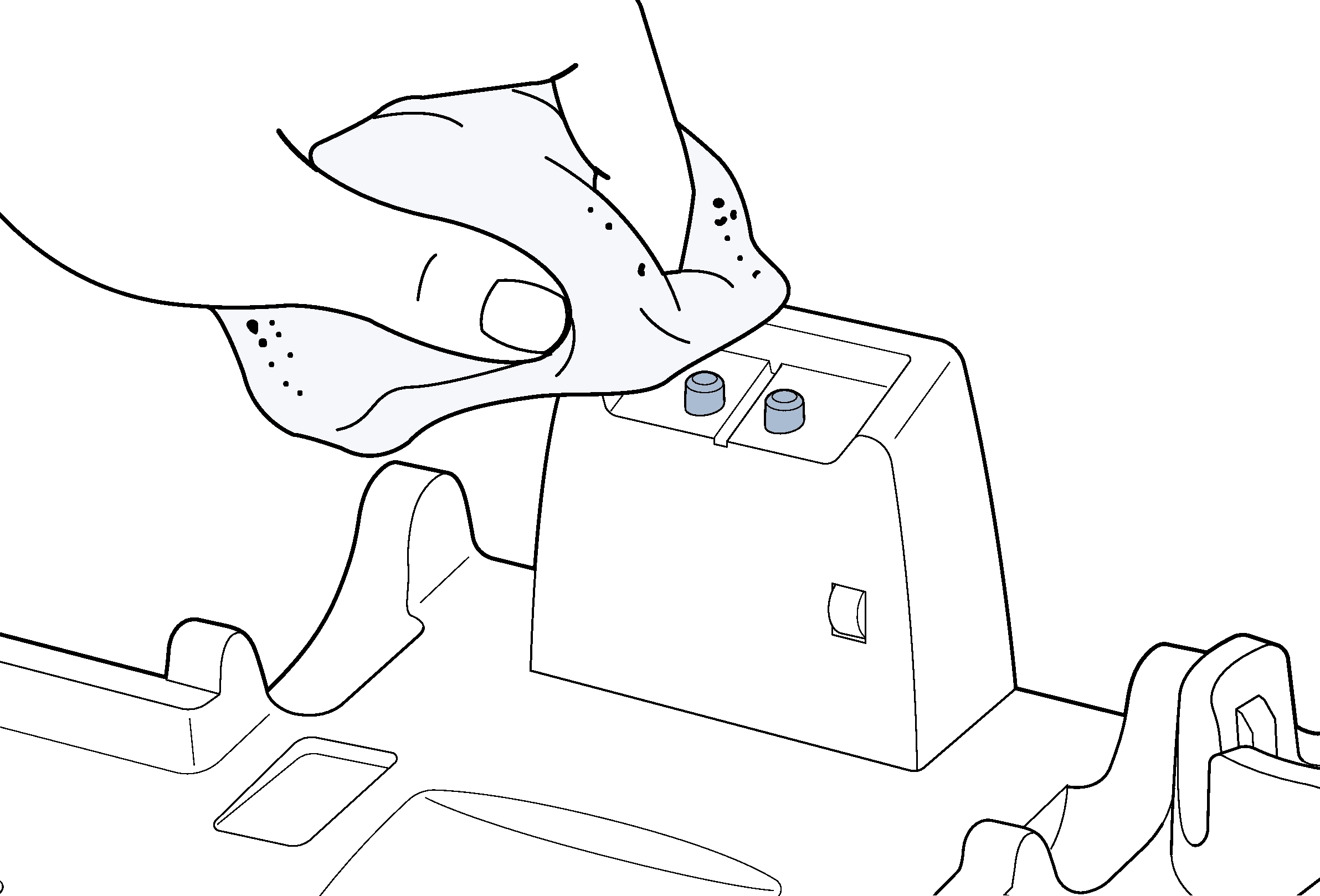

  • Wipe off the charging prongs

• Return machine to docking station
• Empty and clean dirty water tank before storing machine
  • For steps > Go to Dirty Water Tank Maintenance

Charging:

• Plug adaptor into wall outlet
• Put machine on docking station
  • Battery LED lights will illuminate white while charging
• If lights are not on, remove machine and realign on docking station
• If one light is blinking white, battery is at less than 10%
• For a full charge allow machine to charge for 4 hours
  • 3 white lights indicate a fully charged battery when machine is docked & turned on
