The 3-in-1 Docking Station functions as a clean out tray, charging station, and storage tray for machine, brush rolls, and filter

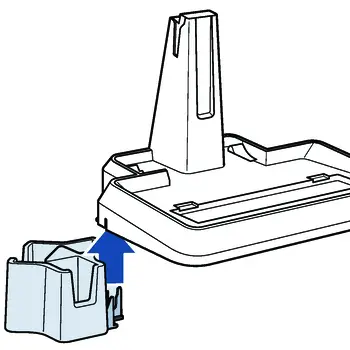

• Before placing machine on 3-in-1 Docking Station make sure Brush Roll Drying Tray is installed correctly, once it is securely installed it will click and sit flush on the floor

Clean Out Cycle:

• Place machine on docking station
• Make sure docking station is plugged in
• Fill clean water tank with warm tap water to the clean out cycle icon on the tank
  • Put clean water tank back on machine

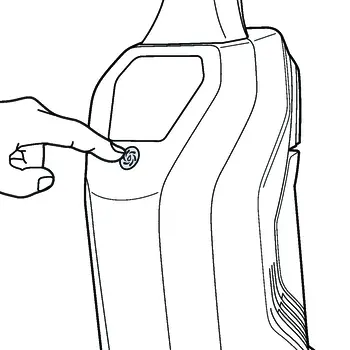

• Press clean out cycle button and let machine go through full 40 second cycle
  • If machine stops in middle of cycle and orange dirt tank indicator starts blinking on digital display, remove and empty dirty water tank
    • Clean out cycle button will be inactive until dirty water tank is emptied
    • Place empty dirty water tank back on machine and the clean out cycle with resume
• If machine does not start the clean out cycle when the button is pushed, re-seat the machine onto the dock and allow it to charge for 10 minutes before trying again

• Repeat as needed

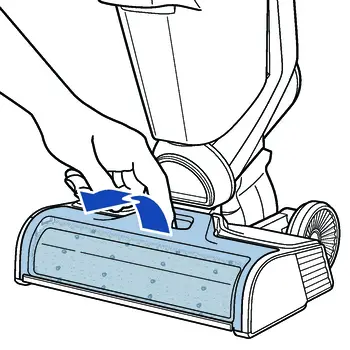

• When cycle is complete, remove brush roll window by grasping front and pulling upward

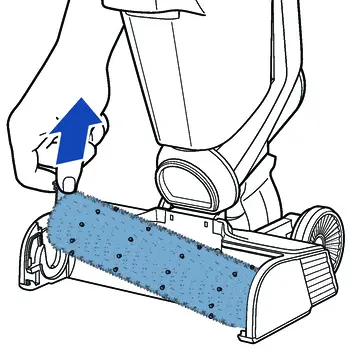

• Pull tab on brush up to remove brush roll

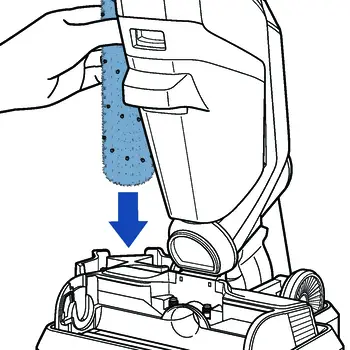

  • Place brush roll in drying tray to air dry

• Take machine off docking station

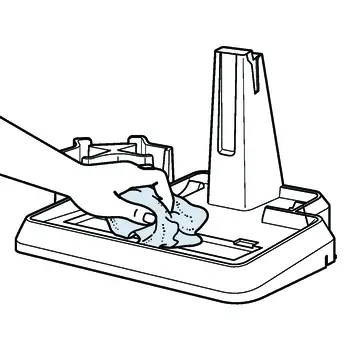

  • Wipe off any excess water on docking station

• Return machine to docking station
• Empty and clean both tanks before storing machine

Charging:

• Plug adaptor into wall outlet
• With machine on docking station, battery LED lights will illuminate white while charging
• If lights are not on, remove machine and realign on docking station
• If one light is blinking white battery is at less than 10%
• For a full charge allow machine to charge for 4 hours
  • 3 white lights indicate a fully charged battery
