1. Introduction
The ANDBEE H8 is a high-performance dual motor electric scooter designed for both urban commuting and off-road adventures. It features a powerful 6000W peak motor, capable of reaching speeds up to 50 MPH, and offers a range of up to 55 miles on a single charge with its 60V 30AH battery. Equipped with 11-inch off-road tires and a dual suspension system, the H8 provides a stable and comfortable ride across various terrains. Safety is enhanced with front and rear hydraulic disc brakes, high-brightness headlights, and UL2272 safety certification.
Figure 1: The ANDBEE H8 Dual Motor Off-Road Electric Scooter in its upright and folded configurations.
2. Safety Warnings
Always wear a helmet and appropriate safety gear when operating the scooter.
- Read this manual thoroughly before first use.
- Ensure all components are securely fastened before each ride.
- Do not operate the scooter under the influence of alcohol or drugs.
- Adhere to local traffic laws and regulations.
- Avoid riding in heavy rain or extreme weather conditions.
- The scooter is UL2272 safety certified, ensuring reliable performance.
- Equipped with front and rear hydraulic disc brakes for superior stopping power.
- High-brightness headlights enhance visibility during night riding.
3. Package Contents
The ANDBEE H8 Electric Scooter package includes the following items:
- H8 Electric Scooter (1 unit)
- Charger(s)
- Tool Kit
- User Manual
4. Setup
4.1 Unboxing
Carefully remove the scooter from its packaging. It is recommended to have two people for this step due to the scooter's weight.
Video 1: H8 Electric Scooter Unboxing Guide. This video demonstrates the process of unboxing the H8 scooter and removing its protective packaging.
4.2 Assembly
The H8 scooter comes partially assembled. Follow these steps to complete the assembly:
- Handlebar Installation: Securely attach the handlebar to the stem using the provided tools. Ensure all screws are tightened.
- Seat Installation (Optional): If your model includes a seat, attach it to the designated mounting point on the deck and adjust its height for comfort.
- Rear Fender/Blinker Installation: Attach the rear fender and turn signals as instructed in the installation video.
Video 2: Installation Guide for the Dual Motor Electric Scooter. This video provides step-by-step instructions for assembling the scooter's components.
4.3 Initial Charge
Before your first ride, fully charge the scooter's battery. The charging time is approximately 8 hours. Use only the provided charger(s).
5. Components Overview
5.1 Motor and Battery
The H8 is equipped with a powerful dual motor system, delivering a 6000W peak output. It is powered by a 60V 30AH battery, providing a maximum range of 55 miles.
Figure 2: An exploded view illustrating the dual motor system of the H8 electric scooter, highlighting its 3000W x 2 motor configuration.
5.2 Tires and Suspension
The scooter features 11-inch all-terrain pneumatic tires, designed for various surfaces including snow, mountain roads, and paved roads. A dual suspension system, with front and rear high-performance shock absorbers, ensures a smooth and comfortable ride by absorbing bumps effectively.
Figure 3: Close-up of the 11-inch all-terrain tire, demonstrating its tread pattern suitable for diverse road conditions including snow, mountain trails, and urban streets.
Figure 4: Illustration of the dual shock absorber system, showing how front and rear high-performance shock absorbers contribute to stability and comfort on the H8 electric scooter.
5.3 Braking System
The H8 is equipped with front and rear hydraulic disc brakes, providing reliable stopping power and enhanced safety in all conditions.

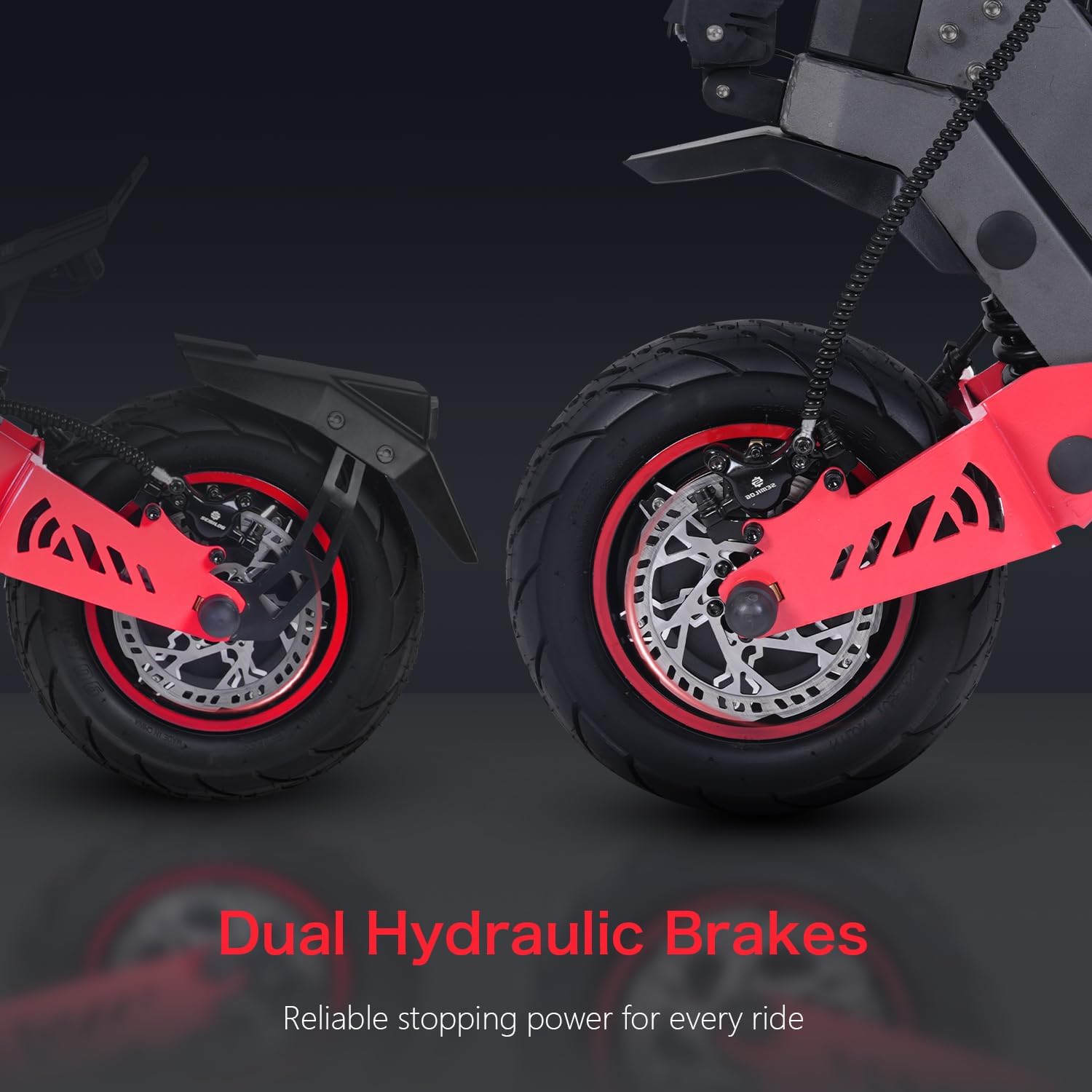

Figure 5: A detailed view of the dual hydraulic brakes, emphasizing their role in providing reliable stopping power for every ride.
5.4 Lighting and Display
The scooter features high-brightness front headlights and ambient lighting for increased visibility during night rides. A smart LCD display provides real-time information on speed, battery life, riding modes, and trip distance.
Figure 6: The front headlights and ambient lighting system of the scooter, designed to enhance visibility and safety during nighttime operation.
Figure 7: The Smart LCD Display, showing real-time riding status including speed, battery life, modes, and trip distance.
6. Operating Instructions
6.1 Power On/Off
To power on the scooter, insert the key and turn it to the 'ON' position. The LCD display will illuminate. To power off, turn the key to 'OFF' and remove it.
6.2 Riding Modes
The H8 offers multiple riding modes to suit different preferences and terrains:
- Eco Mode: Provides extended range and a smoother, less aggressive acceleration.
- Turbo Mode: Unleashes the full power of the motors for maximum speed and acceleration.
- Single/Dual Motor: Switch between single motor (rear wheel drive) for efficiency or dual motor (all-wheel drive) for enhanced traction and power.
Adjust these modes using the controls on the handlebar.
Video 3: V2 Electric Off-Road Scooter Riding Showcase. This video demonstrates the scooter's performance and handling in various riding scenarios.
Video 4: Real Video of Fast Scooter. This video highlights the scooter's speed capabilities and dynamic performance.
Video 5: DT06 Electric Scooter Features. This video showcases various features of a similar electric scooter model, including controls and design elements.
6.3 Braking
To engage the brakes, squeeze the brake levers on the handlebar. The hydraulic disc brakes will provide responsive stopping power. Apply brakes smoothly to avoid sudden stops.
7. Maintenance
- Regular Cleaning: Clean the scooter regularly with a damp cloth. Avoid using high-pressure water jets directly on electronic components. The scooter has an IPX5 waterproof rating, offering protection against water splashes.
- Tire Pressure: Check tire pressure before each ride and maintain it according to the recommended levels (refer to tire sidewall for details).
- Brake Inspection: Periodically inspect brake pads and discs for wear. Adjust or replace as necessary.
- Battery Care: Charge the battery fully after each use. If storing for an extended period, charge to 50-70% and recharge every 2-3 months.
- Fastener Checks: Regularly check all screws and fasteners for tightness and secure them if loose.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Low battery; Key not fully turned; Loose connections | Charge battery; Ensure key is fully engaged; Check connections |
| Reduced range/power | Low tire pressure; Battery degradation; Riding uphill frequently | Inflate tires to recommended pressure; Contact support for battery check; Adjust riding style |
| Brakes feel weak | Worn brake pads; Air in hydraulic line; Loose brake cable | Inspect/replace brake pads; Bleed brake system (professional recommended); Tighten brake cable |
| Unusual noises during operation | Loose components; Debris in wheels/brakes; Motor issue | Check all fasteners; Clean wheels/brakes; Contact support |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | ANDBEE |
| Model Name | H8 |
| Motor Power (Peak) | 6000W |
| Max Speed | 50 MPH |
| Max Distance Range | 55 Miles |
| Battery | 60V 30AH |
| Charging Time | 8 Hours |
| Tire Size | 11 Inches |
| Tire Type | Pneumatic, All-Terrain |
| Brake Style | Front and Rear Hydraulic Disc Brakes |
| Suspension Type | Dual Suspension |
| Frame Material | Aluminum Alloy |
| Weight Limit | 150 Kilograms |
| Waterproof Rating | IPX5 |
| Safety Certification | UL2272 |
| Product Dimensions | 26"L x 52"W x 52"H |
Figure 8: Visual representation of the H8 electric scooter's dimensions, both when fully extended and when folded for storage.
10. Warranty and Support
10.1 Manufacturer Warranty
The ANDBEE H8 Electric Scooter comes with a 6-month limited manufacturer warranty. This warranty covers parts and labor for defects encountered under normal use conditions. For additional or consumable parts beyond the warranty period, continued support is provided.
10.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact our customer support team. You can find contact information on the official ANDBEE website or through your purchase platform.
