1. Product Overview
The MD Sports Roll & Score Arcade Game brings classic arcade fun into your home. This durable 87-inch game table features electronic scoring with sound effects, a smooth playing surface, and a gravity-fed ball return system, providing endless entertainment for all ages. It is designed for both single and two-player modes, making it a perfect addition to any game room or recreational space.
Figure 1: The MD Sports Roll & Score Arcade Game, showcasing its full design.
2. Components and Package Contents
Before beginning assembly, please ensure all components listed below are present in your package.
- MD Sports Roll & Score Game Table (1 unit)
- Roll & Score Game Balls (2 included)
- Assembly Hardware (screws, bolts, etc.)
- Instruction Manual (this document)
Note: 3 AAA batteries are required for the electronic scoring unit and are not included.
Figure 2: Two yellow game balls included with the Roll & Score game.
3. Setup and Assembly
Assembly is required for this product. Please follow the detailed instructions provided in the separate assembly guide for proper setup. Ensure you have adequate space for assembly and operation. The recommended room size for this table is 11’ x 5.5’ to allow for comfortable movement around the game table.
Figure 3: Product dimensions: 87 inches long, 20.5 inches wide, and 47.625 inches tall.
The game table features a 5mm thick one-piece playing surface made of MDF with a laminated finish, designed for smooth ball roll and active play. Reinforced MDF wood leg panels provide additional stability and durability.
Figure 4: Close-up of the laminated playfield, designed for smooth ball movement.
Figure 5: View of the sturdy leg construction and built-in automatic ball return system.
4. Operating Instructions
Playing the MD Sports Roll & Score game is intuitive and fun, mimicking the classic arcade experience.
4.1 Game Play
- Place a game ball at the starting end of the playfield.
- Roll the ball up the ramp, aiming for one of the durable ABS scoring rings at the far end.
- The electronic scorer will automatically detect the ball entering a ring and update your score.
- Balls are collected in a gravity-fed ball return system under the playfield and deposited back into the goal box for the next throw.
4.2 Electronic Scoring and Sound Effects
The game features an electronic display that tracks scores for single or two-player modes. Arcade-style sound effects enhance the playing experience. Sounds can be turned on or off using the control panel.
Figure 6: Close-up of the durable ABS scoring rings, designed to withstand intense play.

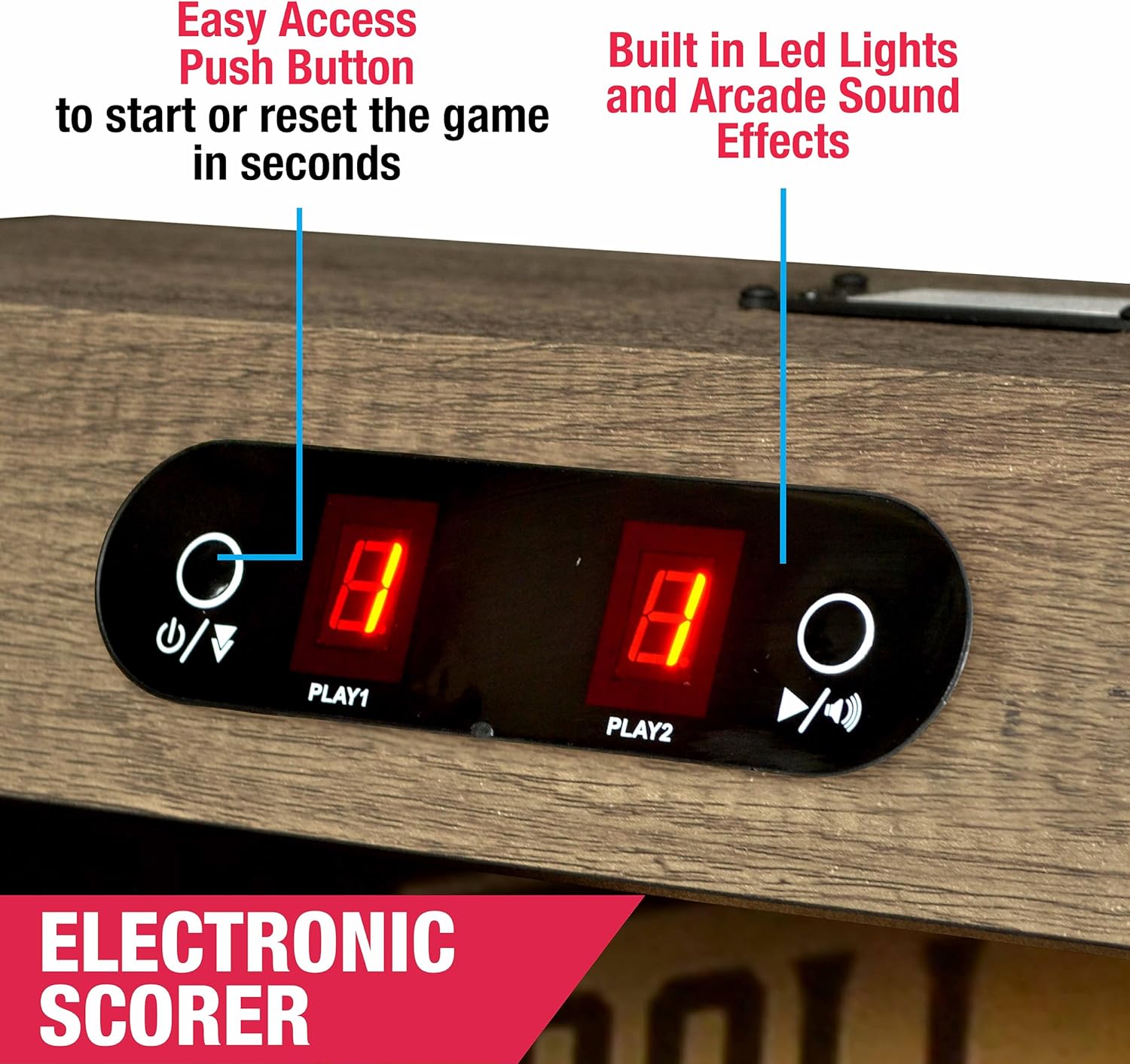

Figure 7: The electronic scorer with LED displays for Player 1 and Player 2, along with power and sound controls.
To start or reset the game, use the easy-access push button on the electronic scorer unit.
5. Maintenance
To ensure the longevity and optimal performance of your MD Sports Roll & Score Arcade Game, follow these simple maintenance guidelines:
- Cleaning: Wipe down the playfield and exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
- Storage: Store the game in a dry, temperature-controlled environment to prevent warping or damage to the wood and PVC components.
- Ball Care: Keep the game balls clean and free of debris to ensure smooth rolling.
6. Troubleshooting
If you encounter any issues with your game, please refer to the following common troubleshooting steps:
| Issue | Possible Cause | Solution |
|---|---|---|
| Electronic scoring not working | No batteries, dead batteries, or incorrect battery installation. | Ensure 3 AAA batteries are installed correctly and are not depleted. Replace if necessary. |
| No sound effects | Sound is turned off or batteries are low. | Check the sound control button on the electronic scorer. Replace batteries if sound is still absent or weak. |
| Balls not returning properly | Obstruction in the ball return system. | Inspect the gravity-fed ball return system for any lodged balls or debris and clear them. |
| Unstable game table | Loose assembly hardware. | Check all screws and bolts and tighten them securely. Ensure the table is on a flat, level surface. |
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | MD Sports |
| Model Name | Roll and Score |
| Part Number | AC287Y23001 |
| Dimensions (L x W x H) | 87 x 20.5 x 47.63 inches |
| Item Weight | 71.1 Pounds |
| Color | Wood Grain/Black |
| Material | Engineered Wood, Wood, PVC, Plastic |
| Assembly Required | Yes |
| Number of Players | 2 |
| Power Source | 3 AAA Batteries (not included) |
| Included Components | 2 Roll & Score Balls |
| UPC | 821735034098 |
8. Warranty and Support
This MD Sports Roll & Score Arcade Game comes with a 90-day warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use.
For warranty claims, technical support, or replacement parts, please contact the manufacturer, Medal Sports - Dropship, directly. Keep your proof of purchase for warranty validation.
For additional information or assistance, please visit the official MD Sports website or refer to the contact information provided in your product packaging.
