SAMEBIKE 20" Urban Folding E-bike User Manual

1. Introduction

Thank you for choosing the SAMEBIKE 20" Urban Folding E-bike. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your electric bicycle. Please read this manual thoroughly before your first ride to ensure proper use and to maximize your riding experience.

This e-bike is designed for urban commuting and leisure riding, offering a convenient and eco-friendly mode of transport with its powerful motor and long-lasting battery.

2. Safety Information

Your safety is paramount. Always adhere to the following guidelines:

• Always wear a helmet that meets safety standards.
• Obey all local traffic laws and regulations.
• Perform a pre-ride inspection before each use, checking brakes, tire pressure, and battery level.
• Do not ride under the influence of alcohol or drugs.
• Be aware of your surroundings and other road users.
• Avoid riding in adverse weather conditions such as heavy rain, snow, or strong winds.
• Ensure the folding mechanisms are securely locked before riding.

3. What's in the Box

Upon unpacking your SAMEBIKE 20" Urban Folding E-bike, please verify that all components are present:

• SAMEBIKE 20" Urban Folding E-bike (90% pre-installed)
• Removable 36V/12Ah Lithium Battery (may be pre-installed)
• Battery Charger
• Kickstand
• Front Basket
• Tool Kit
• User Manual (this document)

4. Setup and Initial Assembly

Your SAMEBIKE e-bike arrives approximately 90% pre-installed. Follow these steps to complete the assembly and prepare for your first ride:

1. Unfolding the Frame: Carefully unfold the main frame until it locks into place. Ensure the frame latch is securely fastened.
2. Handlebar Assembly: Raise the handlebar stem and lock it into the upright position. Adjust the handlebar height to your preference and secure the quick-release lever. Ensure the display and controls are properly oriented.
3. Seat Post Installation: Insert the seat post into the frame. Adjust the seat height so your feet can comfortably touch the ground when stopped. Secure the seat post quick-release lever.
4. Pedal Installation: Identify the left (L) and right (R) pedals. Screw the pedals into the crank arms. Note that the left pedal is reverse-threaded. Tighten securely with a wrench from the tool kit.
5. Front Basket Installation: Attach the front basket to the designated mounting points on the front of the bike using the provided hardware.
6. Battery Installation/Check: Ensure the removable 36V/12Ah lithium battery is securely inserted into its compartment. If not already charged, proceed to charge the battery fully before first use.

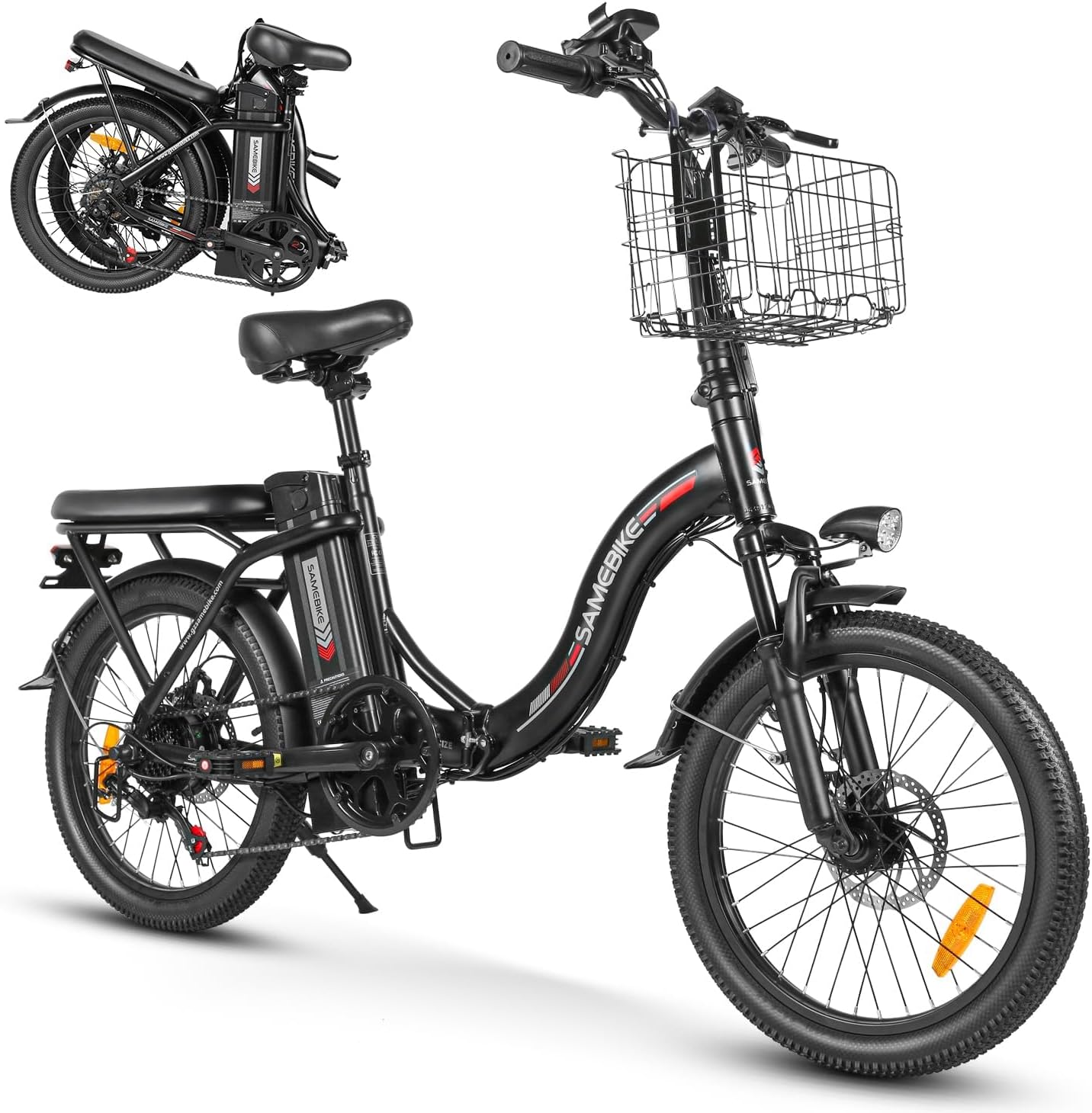

Image: The SAMEBIKE 20" Urban Folding E-bike shown in both its unfolded, ready-to-ride configuration and its compact, folded state for storage or transport.

5. Components Overview

Familiarize yourself with the key components of your SAMEBIKE e-bike:

• Motor: Rear hub-mounted 250W brushless motor providing electric assistance.
• Battery: Removable 36V 12Ah lithium battery, integrated into the frame for a sleek design.
• Display: Intelligent Colorful Display with USB Charge Port, showing speed, battery level, mileage, and assist mode.
• Brakes: Dual disc brake system on both front and rear wheels for reliable stopping power.
• Derailleur: 7-speed mechanical derailleur system for smooth gear changes.
• Suspension: Front fork spring suspension to absorb shocks and provide a comfortable ride on various terrains.
• Lighting: Bright LED headlights and taillights (taillight functions as brake light).
• Saddle: Comfort saddle, height adjustable for different riders.

Image: Detailed view of the 250W brushless motor, highlighting its rated power, speed, and torque specifications.

Image: The removable 36V 12Ah lithium battery, emphasizing its autonomy, weight, and waterproofing features.

Image: The intelligent colorful display and handlebar controls, including the light and horn buttons, 7-speed mechanical shifter, and thumb throttle.

6. Operating Instructions

Learn how to operate your SAMEBIKE e-bike effectively:

1. Powering On/Off: Press and hold the power button on the display to turn the e-bike on or off. The display will illuminate, showing current status.
2. Selecting Working Modes: Your e-bike offers three working modes:
   • Pure Electric Mode: Use the thumb throttle to propel the bike without pedaling.
   • Pedal Assist Mode: The motor provides assistance as you pedal. Adjust the assist level using the display controls.
   • Normal Bicycle Mode: Ride the bike like a traditional bicycle without any electric assistance.
3. Using the Display: The intelligent colorful display provides real-time data. Use the buttons to cycle through information such as speed, mileage (ODO/TRIP), battery level, and assist level. The integrated USB port allows for mobile phone charging.
4. Shifting Gears: Use the 7-speed mechanical shifter on the handlebar to change gears according to terrain and desired speed. Shift smoothly to avoid strain on the chain and derailleur.
5. Braking: The e-bike is equipped with dual disc brakes. Apply both front and rear brakes simultaneously for effective and safe stopping. Avoid sudden, hard braking, especially at high speeds.
6. Lights and Horn: Use the dedicated buttons on the handlebar to turn the LED headlights on/off and to activate the horn.

7. Battery Information and Charging

The SAMEBIKE e-bike is powered by a removable 36V 12Ah lithium battery. Proper battery care ensures longevity and performance.

• Charging: The battery can be charged while installed on the bike or removed. Connect the charger to the battery's charging port and then to a standard power outlet. The charger indicator light will show charging status (typically red for charging, green for fully charged).
• Charging Time: A full charge typically takes 4-6 hours.
• Battery Care:
  • Avoid completely draining the battery before recharging.
  • Store the battery in a cool, dry place when not in use, ideally with a partial charge (50-70%).
  • Do not expose the battery to extreme temperatures.
  • Use only the original charger provided by SAMEBIKE.
• Removable Design: The integrated detachable design allows for convenient charging anywhere.

8. Folding Instructions

The SAMEBIKE 20" Urban Folding E-bike features a double folding design for easy storage and transport. Follow these steps to fold your bike:

1. Lower the Seat Post: Open the quick-release lever and push the seat post all the way down. Close the lever.
2. Fold the Pedals: If your pedals are foldable, push them inwards towards the crank arm to fold them up.
3. Fold the Handlebar Stem: Open the quick-release lever on the handlebar stem and fold the handlebar down. Secure the latch.
4. Fold the Main Frame: Locate the main frame folding latch, typically near the center of the frame. Open the latch and carefully fold the front half of the bike towards the rear half until the two halves meet. Secure the frame latch.

The folded dimensions are approximately 33.2" (length) x 20.8" (width) x 27" (height), making it suitable for car trunks or public transport.

Image: Visual guide demonstrating the three-step folding process of the e-bike, illustrating its compact size for transport in a car trunk.

9. Maintenance

Regular maintenance will extend the life of your e-bike and ensure safe operation:

• Tires: Check tire pressure before each ride. Maintain recommended PSI for optimal performance and safety. Inspect tires for wear and damage.
• Brakes: Regularly check brake pads for wear and ensure brake levers provide firm and responsive braking. Adjust brake cables as needed.
• Chain: Keep the chain clean and lubricated to ensure smooth shifting and prevent rust.
• Fasteners: Periodically check all bolts, nuts, and quick-release levers to ensure they are tight and secure.
• Cleaning: Clean the bike with a damp cloth and mild soap. Avoid using high-pressure washers directly on electrical components.
• Battery Contacts: Keep battery contacts clean and dry.

10. Troubleshooting

Here are some common issues and their potential solutions:

For issues not listed here or if solutions do not resolve the problem, please contact SAMEBIKE customer support.

11. Specifications

Key technical specifications for your SAMEBIKE 20" Urban Folding E-bike:

Image: Detailed diagram illustrating the physical dimensions of the e-bike, along with recommended rider height, bicycle weight, and maximum load capacity.

12. Warranty and Support

SAMEBIKE offers a 1-year warranty on your electric bicycle. This warranty covers manufacturing defects and issues with non-wear parts under normal use.

• Warranty Coverage: The bike has a 1-year warranty. Wear parts can be purchased at cost.
• Contact Support: For warranty claims, technical assistance, or to purchase replacement wear parts, please contact SAMEBIKE customer support through the retailer where you purchased the product or visit the official SAMEBIKE website for contact information.
• Proof of Purchase: Always retain your proof of purchase for warranty purposes.
