Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Shark HV200 Rocket Corded Stick Vacuum. Designed for versatile cleaning, this lightweight, bagless vacuum is suitable for both carpeted and hard floor surfaces, featuring swivel steering for enhanced maneuverability. Please read these instructions thoroughly before using your vacuum cleaner to ensure safe and efficient operation.
Key Features
- Lightweight Design: Weighing under 9 lbs, this vacuum easily converts into a handheld unit for cleaning various surfaces from floor to ceiling.
- Powerful Suction: Delivers strong corded cleaning performance on both carpets and hard floors.
- Fingertip Controls: Allows for easy adjustment of suction levels to suit different cleaning surfaces.
- Swivel Steering: Provides excellent control for navigating around furniture and in tight spaces.
- Compact Storage: The hand vacuum can be hung from the bottom of the wand for convenient, upright storage.
- Easy-Empty Dust Cup: Quickly detaches for mess-free debris disposal.
- Versatile Cleaning: Converts to a handheld vacuum for furniture, stairs, and hard-to-reach areas.
- Low-Profile Design: Enables cleaning under furniture and appliances with ease.
What's Included
Your Shark HV200 Rocket Corded Stick Vacuum package includes:
- Shark Rocket Corded Stick Vacuum (HV200)
- Crevice Tool
Assembly Instructions
Follow these steps to assemble your Shark HV200 Rocket Corded Stick Vacuum. Ensure all components click securely into place before use.
- Insert the wand into the floor nozzle until it clicks.
- Attach the handheld vacuum to the top of the wand until it clicks.
- For handheld use, detach the handheld vacuum from the wand by pressing the release button. You can then attach the crevice tool directly to the handheld unit.
Image showing the Shark HV200 Rocket vacuum with its detachable hand vacuum and wand, illustrating how it can be configured for cleaning hard-to-reach areas.
A person using the Shark HV200 Rocket in its lightweight handheld configuration to clean a sofa, demonstrating its versatility for furniture and stairs.
Operating Instructions
Your Shark HV200 Rocket vacuum is designed for efficient cleaning across various surfaces.
Power and Suction Control
Plug the power cord into a standard electrical outlet. Use the fingertip controls located on the handle to switch the vacuum on/off and adjust suction levels for different surfaces.
A detailed diagram of the Shark HV200 Rocket vacuum, highlighting key features such as fingertip controls, removable dust cup, ultra-light design, swivel steering, and powerful cleaning on floors.
Cleaning Different Surfaces
The powerful suction effectively cleans both carpets and hard floors. The swivel steering allows for easy navigation around obstacles and under furniture.
The Shark HV200 Rocket vacuum in use, transitioning from a hard floor to a carpeted area, demonstrating its powerful suction for deep cleaning various surfaces.

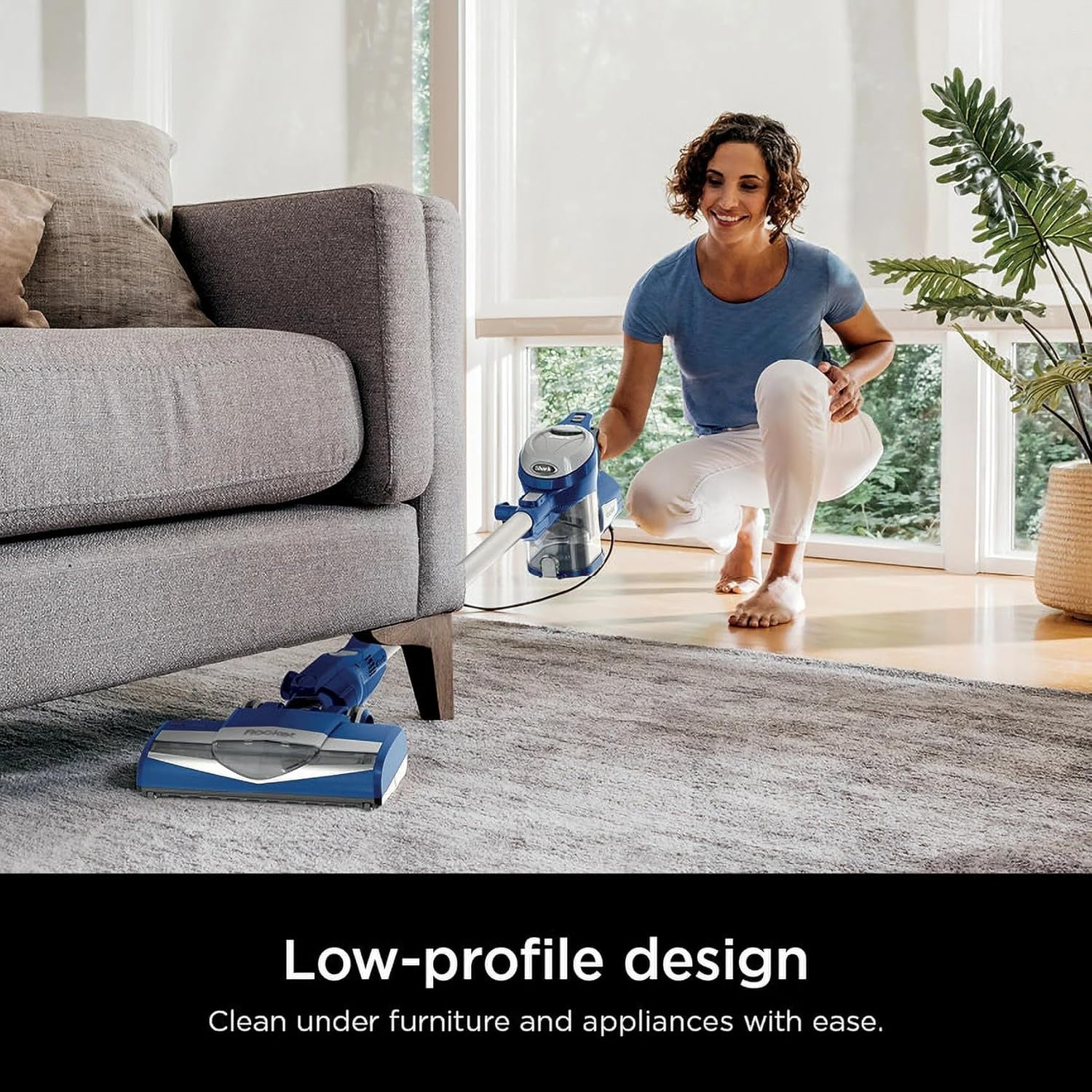

A person using the Shark HV200 Rocket vacuum with its low-profile design to clean underneath a sofa, highlighting its ability to reach tight spaces.
Storage
For compact and freestanding storage, detach the handheld vacuum and attach it to the bottom of the wand. This allows the unit to stand upright without tipping.
The Shark HV200 Rocket vacuum configured for freestanding storage, with the hand vacuum attached to the lower part of the wand, standing upright in a storage area.
Product Overview Video
Official video demonstrating the key features and versatility of the Shark Rocket Corded Stick Vacuum, including its conversion to a handheld unit, powerful cleaning, and easy storage.
Maintenance
Emptying the Dust Cup
To maintain optimal suction and performance, empty the dust cup regularly.
- Ensure the vacuum is unplugged.
- Press the dust cup release button to detach it from the handheld unit.
- Position the dust cup over a trash receptacle and press the bottom release latch to empty debris.
- Close the dust cup bottom securely and reattach the dust cup to the handheld unit until it clicks.
A person demonstrating how to easily empty the dust cup of the Shark HV200 Rocket vacuum, showing debris falling into a waste bin.
Filter Cleaning
Regularly check and clean the foam filter to maintain suction power. Refer to the full product manual for detailed filter cleaning instructions.
Troubleshooting
If your Shark HV200 Rocket vacuum is not performing as expected, please review the following common issues and solutions:
- No Power: Ensure the power cord is securely plugged into a working electrical outlet. Check your household circuit breaker.
- Loss of Suction:
- Empty the dust cup if it is full.
- Check and clean the foam filter.
- Inspect the nozzle, wand, and hose for blockages.
- Brush Roll Not Spinning: Ensure the vacuum is in the correct mode for the surface (e.g., carpet mode for brush roll activation). Check for obstructions in the brush roll.
For more detailed troubleshooting steps, please consult the comprehensive manual or contact Shark customer support.
Specifications
| Brand | Shark |
| Model Name | HV200 |
| Model Number | HV200 |
| Power Source | Corded Electric |
| Voltage | 120 Volts |
| Wattage | 500 watts |
| Item Weight | 8.58 Pounds |
| Capacity | 1 Gallons |
| Filter Type | Foam |
| Surface Recommendation | Carpet & Hard Floor |
| Control Method | Touch |
| Included Components | Crevice Tool |
| Color | Blue Jean |
| UPC | 703670614071 |
Warranty and Support
Warranty Information
This Shark HV200 Rocket Corded Stick Vacuum comes with a 90 days limited warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in material and workmanship under normal household use. It does not cover damage resulting from misuse, abuse, or normal wear and tear.
Customer Support
For technical assistance, troubleshooting, or warranty inquiries, please contact Shark customer support. You can find contact information on the official Shark website or through the retailer where the product was purchased.
