1. Introduction
Thank you for purchasing the Dreamflame 95-inch Electric Fireplace. This appliance is designed to provide both aesthetic ambiance with realistic flame effects and supplemental heating for your living space. Please read this manual thoroughly before installation and operation to ensure safe and efficient use of your new electric fireplace.
2. Safety Information
IMPORTANT: Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before using this fireplace.
- This electric fireplace is equipped with a built-in overheating protection device. If the heater overheats, it will automatically shut off.
- DO NOT cover the front air outlet on top of the fireplace heater. Obstruction can lead to overheating and potential fire hazards.
- Ensure the power cord is not pinched or routed in a way that could cause damage.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater.
- Always unplug the fireplace when not in use.
- Do not operate any heater with a damaged cord or plug, or after the heater malfunctions, has been dropped or damaged in any manner.
- Only use this fireplace as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
3. Package Contents
Verify that all components are present and undamaged before beginning installation.
- Dreamflame 95-inch Electric Fireplace Unit
- Remote Control (requires 2 AAA batteries, not included)
- Mounting Bracket
- Log Set and Crystal Clear Cube Ember Beds
- User Manual
Image: Key components of the electric fireplace, including the main unit, remote control, and mounting hardware.
4. Specifications
| Feature | Detail |
|---|---|
| Overall Dimensions (W x D x H) | 95.0" x 6.0" x 17.7" |
| Insert Part Dimensions (W x D x H) | 93.82" x 5.5" x 16.9" |
| Power Source | AC |
| Heating Options | 750W / 1500W |
| Heating Coverage | Up to 400 sq. ft. |
| Material | Metal |
| Installation Type | Recessed or Wall Mount |
| Flame Colors | 3 adjustable colors |
| Top Light Colors | 3 adjustable colors |
| Control Methods | Remote Control, Hidden Touchscreen Panel |
| Thermostat Range | 71°F ~ 99°F |
| Timer | 1-9 hours |
| Item Weight | 99.8 pounds |

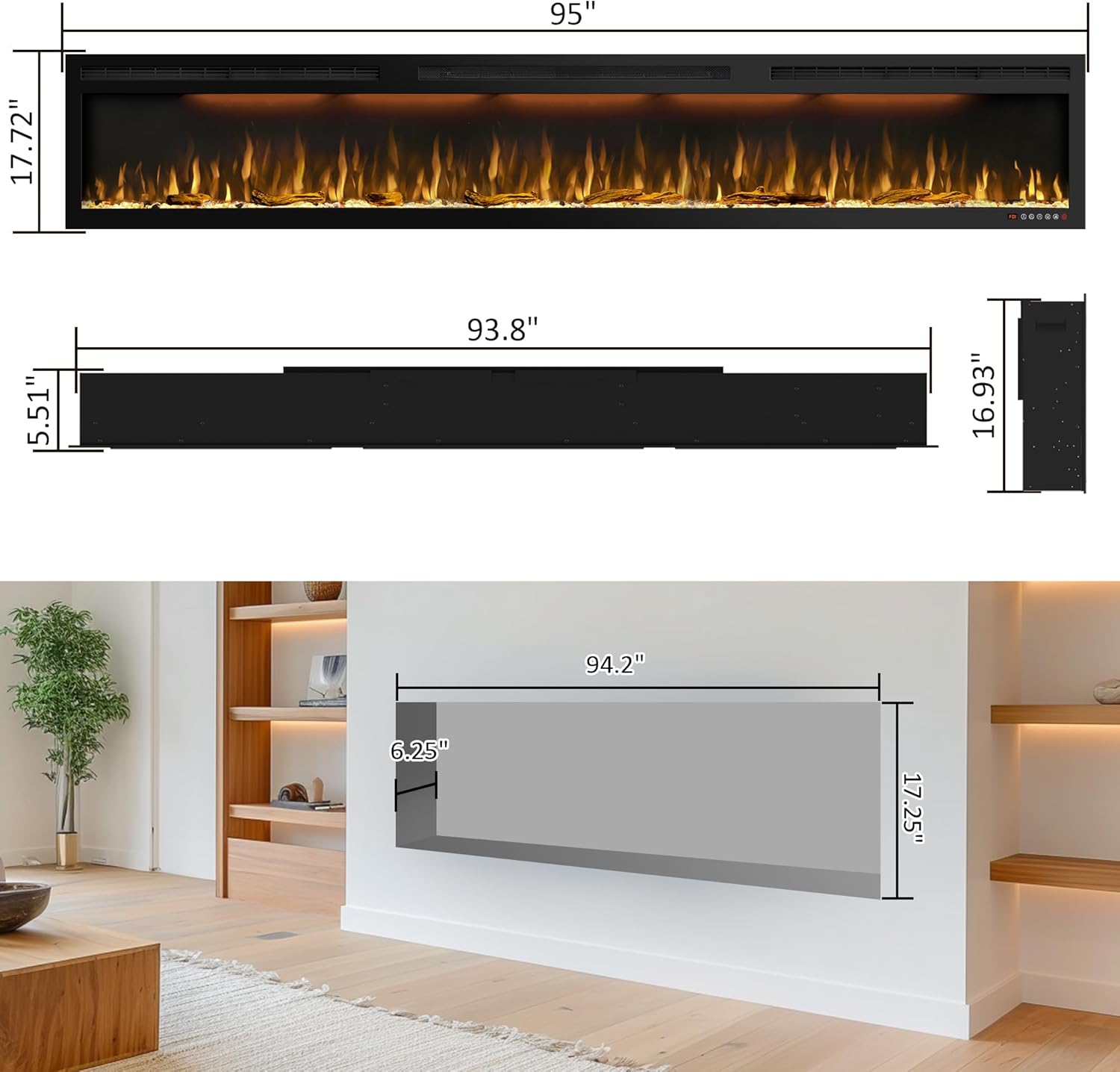

Image: Detailed dimensions for the fireplace unit and recommended wall cutout for recessed installation.
5. Setup and Installation
The Dreamflame electric fireplace offers flexible installation options: recessed into a wall or cabinet, or wall-mounted.
5.1 Recessed Installation
- Prepare the Opening: Create a wall opening with the dimensions specified in the specifications section (approximately 94.2" W x 17.25" H x 6.25" D). Ensure there is sufficient space for the plug-in cable and air vent.
- Secure the Unit: Carefully slide the fireplace unit into the prepared opening. Secure it using appropriate screws through the designated mounting points on the unit's frame.
- Install Media: Place the desired media (logs or crystals) into the ember bed.
Image: Step-by-step diagram for recessed installation.
5.2 Wall-Mounted Installation
- Attach Mounting Bracket: Secure the provided mounting bracket to the wall at the desired height using appropriate wall anchors and screws. Ensure the bracket is level and securely fastened to wall studs if possible.
- Hang the Fireplace: Carefully lift the fireplace unit and hook it onto the mounting bracket.
- Secure the Unit: Secure the bottom of the fireplace to the wall using the provided screws to prevent accidental dislodgement.
- Install Media: Place the desired media (logs or crystals) into the ember bed.
Image: Step-by-step diagram for wall-mounted installation.
Image: Visual examples of both recessed and wall-mounted installations.
6. Operating Instructions
Your Dreamflame electric fireplace can be operated using either the included remote control or the hidden touchscreen panel on the unit.
Image: Dual control methods: remote control and hidden touchscreen panel.
6.1 Power On/Off
- Press the Power button on the remote or touchscreen to turn the fireplace ON or OFF.
6.2 Flame and Light Settings
The fireplace offers realistic flame effects with customizable colors and top lighting.
- Flame Color: Use the Flame Color button to cycle through 3 different flame colors.
- Top Light Color: Use the Mood Light button to cycle through 3 different top light colors.
- The flame and top light colors can be combined freely to create various visual effects.
Image: Examples of bright and clear flame effects with different color options and media types (logs and crystals).
6.3 Heating Function
The fireplace provides supplemental heating with two power levels and a thermostat.
- Heater On/Off: Press the Heater button to activate or deactivate the heating function.
- Wattage Selection: The heater offers two settings: 750W and 1500W. Select the appropriate wattage based on your heating needs. 1500W provides faster heating for areas up to 400 sq. ft.
- Temperature Control: Use the Temperature buttons to adjust the desired room temperature between 71°F and 99°F. The fireplace will automatically maintain the set temperature.
- The heat function can be switched off independently while the flame effects remain active.
Image: Heating capabilities and temperature control.
6.4 Timer Function
- Press the Timer button to set an automatic shut-off time for the fireplace. The timer can be set from 1 to 9 hours.
Image: Features including mood lights, low noise, and timer function.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your electric fireplace.
- Cleaning: Always unplug the fireplace before cleaning. Use a soft, damp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners or sprays.
- Air Vents: Periodically check and clean the air intake and outlet vents to ensure they are free from dust and debris. This helps maintain proper airflow and prevents overheating.
- Light Bulbs: The LED lighting system is designed for long life and typically does not require replacement. If issues arise, contact customer support.
8. Troubleshooting
If you encounter any issues with your Dreamflame electric fireplace, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace does not turn on | No power, power switch off, remote batteries dead | Check power outlet, ensure main power switch is ON, replace remote batteries. |
| Heater not producing heat | Heater function off, thermostat set too low, air vents blocked, overheating protection activated | Turn heater ON, increase thermostat setting, clear air vents, unplug and wait 15 minutes for reset. |
| Flame effect not working | Flame function off, LED issue | Ensure flame function is ON. If problem persists, contact customer support. |
| Remote control not working | Dead batteries, obstruction, remote out of range | Replace AAA batteries, remove obstructions, ensure remote is within operating range. |
If the issue persists after attempting these solutions, please contact Dreamflame customer support.
9. Warranty and Support
Dreamflame is committed to providing high-quality products and excellent customer service.
- Warranty: This product comes with a 1-year quality warranty.
- Lifetime Support: Dreamflame provides lifetime support for this electric fireplace.
- Contact Us: If you have any questions, concerns, or require assistance, please contact Dreamflame customer support immediately. Your feedback is always welcome.
