Product Overview
The Ledvion 2M LED Track Lighting System provides a modern and flexible lighting solution for various indoor spaces. This system includes a 2-meter single-phase track and five adjustable spotlights designed for GU10 bulbs. Its durable aluminum construction and sleek white finish ensure seamless integration into any decor, offering versatile illumination for homes, offices, and shops.
This image shows the Ledvion track lighting system mounted on a ceiling in a contemporary kitchen, demonstrating its aesthetic integration and effective illumination of the workspace.
Key Features
- Modern and Flexible Illumination: Offers a contemporary and versatile way to light any room with GU10 compatibility.
- Customizable Lighting: Allows selection of desired GU10 lamps (not included) to fully adapt light intensity and color temperature.
- Simple Installation: Designed for easy setup in various environments like kitchens or living rooms, with spotlights that can be precisely positioned.
- Energy Efficient and Dimmable: Compatible with energy-saving LED GU10 bulbs and can be dimmed with an external dimmer (not included) for adjustable ambiance.
- Versatile Application: Ideal for residential, commercial, and retail environments, providing optimal personalized lighting.
What's in the Box
Your Ledvion 2M LED Track Lighting System package includes the following components:
- 2-meter Single-Phase Track
- 5 GU10 Spotlights
- Mounting hardware (screws, wall plugs)
- Track connectors
This image displays all the items included in the product package, showing the two track segments, five individual spotlights, and the necessary hardware for installation, such as screws and connectors.
Product Dimensions
The Ledvion 2M LED Track Lighting System has the following approximate dimensions:
- Track Length: 2000 mm (2 meters)
- Spotlight Height: 150 mm
- Spotlight Diameter: 50 mm

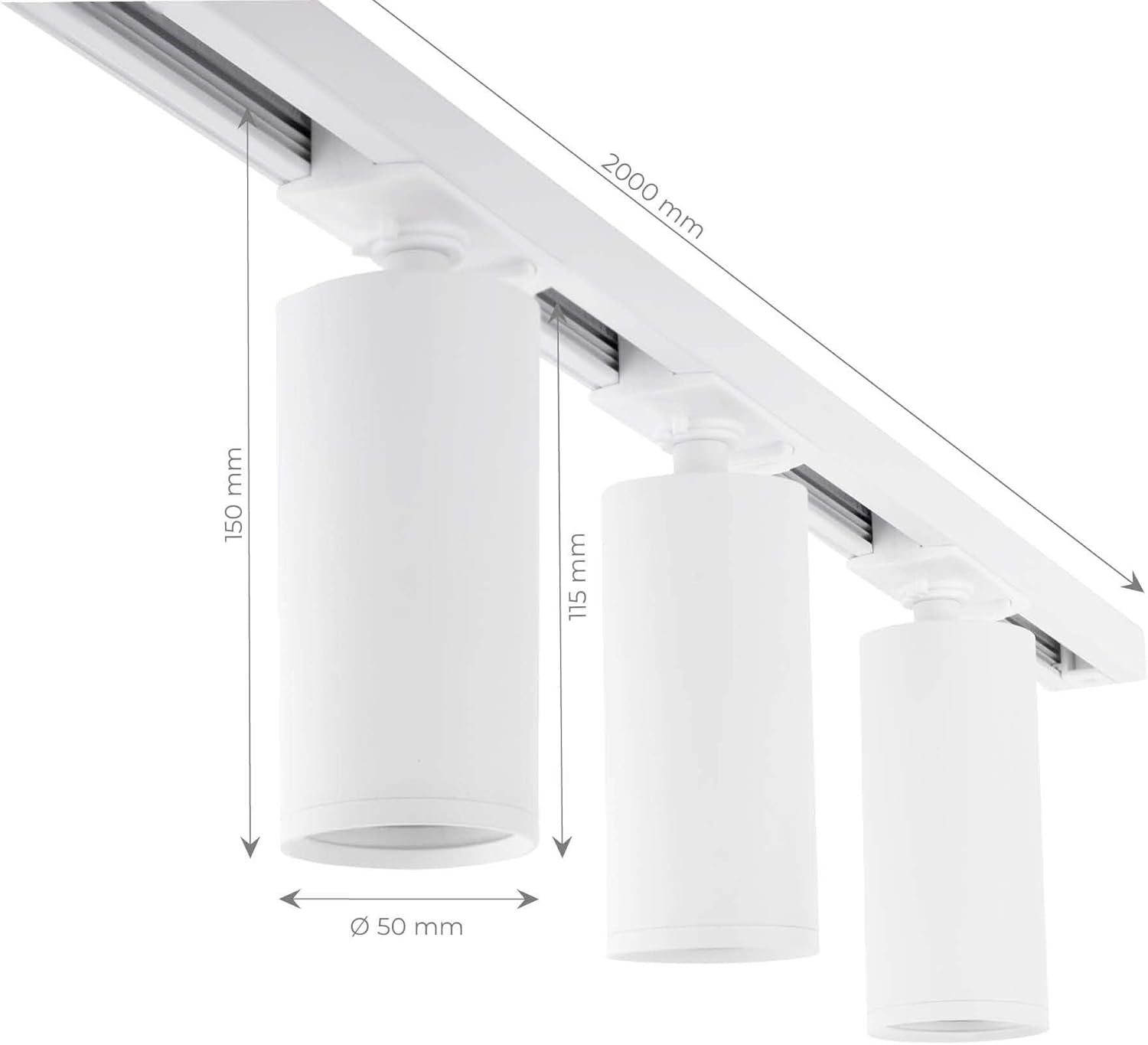

This diagram illustrates the key measurements of the track lighting system, including the total length of the track and the height and diameter of the individual spotlights, providing a clear understanding of the product's physical size.
Setup and Installation
Easy Connect Plug-and-Play Installation
The Ledvion track lighting system features an effortless plug-and-play installation with a user-friendly locking system. This design allows for easy addition, removal, or repositioning of spotlights along the track.
This image demonstrates the simple 'Easy Connect' system, highlighting how spotlights can be quickly attached and locked onto the track, and then unlocked for repositioning or removal.
Adjustable and Rotatable Spotlights
Each track lighting spotlight can be tilted 350 degrees in all directions, ensuring you can direct the light exactly where it is needed for optimal illumination.
This diagram visually explains the adjustability of the spotlights, showing their ability to rotate almost a full circle and tilt vertically, providing flexible light direction.
Optional Anti-Glare Grid
An optional anti-glare grid is available and can be freely supplied to prevent glare. This grid is easy to add and remove, enhancing visual comfort.

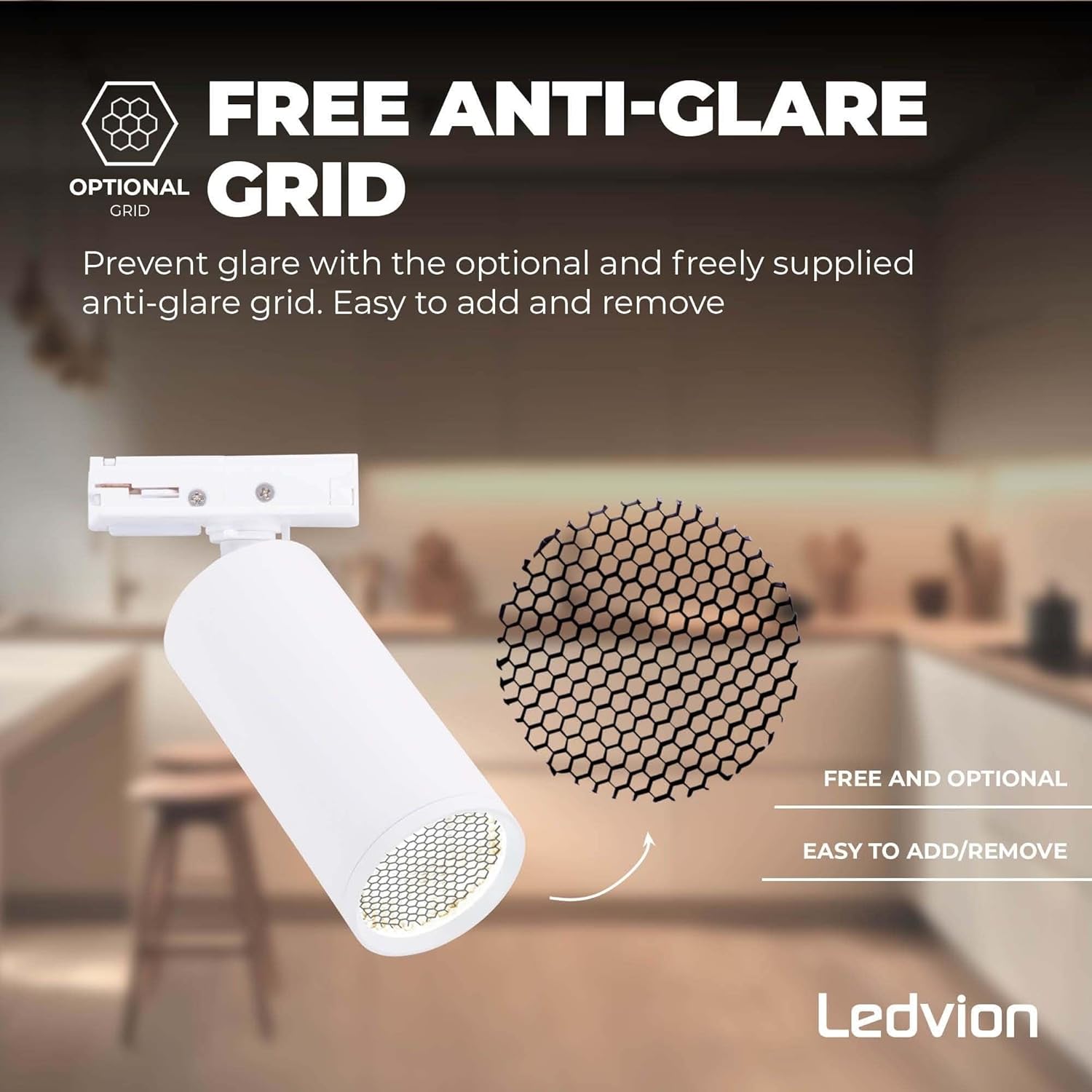

This image illustrates the optional anti-glare grid, a small, removable accessory that fits into the spotlight to diffuse light and minimize harsh glare, improving eye comfort.
Optional System Upgrades
You can easily expand your rail system with the following optional accessories (sold separately):
- Powerfeeder with Coverplate (SKU: LVT10019)
- Powerfeeder with I-Connector (SKU: LVT10021)
- X-Connector (SKU: LVT10017)
- T-Connector (SKU: LVT10015)
- Pendant Spot Adjustable Cord (SKU: LVT10005)

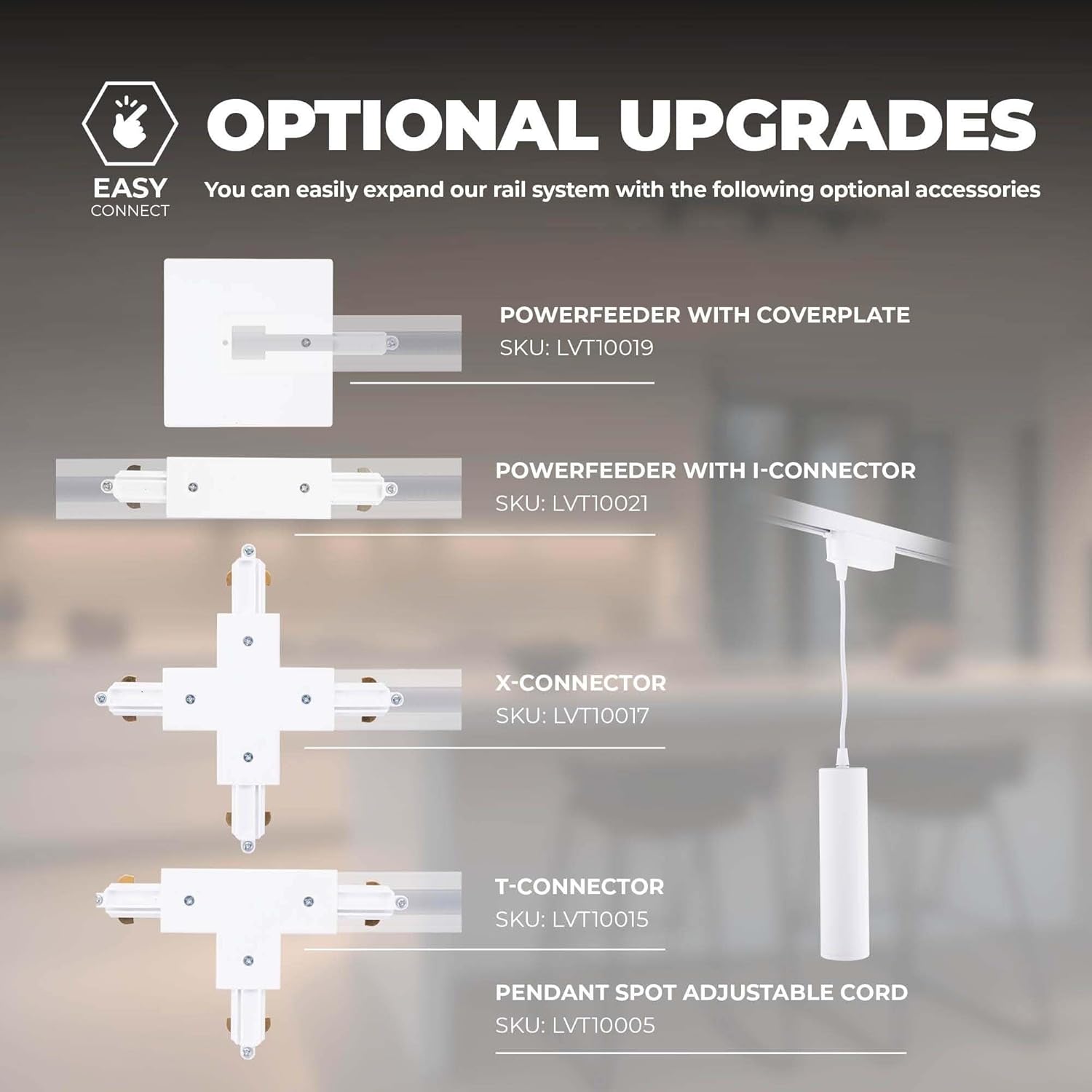

This image displays a range of optional components that can be used to customize and extend the track lighting system, such as various connectors for different track layouts and power supply options.
Operating Instructions
Once installed, the Ledvion track lighting system operates like standard lighting. Ensure that GU10 bulbs are correctly inserted into each spotlight. If using dimmable GU10 bulbs and an external dimmer, you can adjust the light intensity to your preference. The spotlights can be manually rotated and tilted to direct light as needed.
This close-up image highlights an individual spotlight securely mounted on the track, demonstrating its compact form factor and how it integrates with the rail system.
Maintenance
Cleaning
To clean the track and spotlights, ensure the power is off. Use a soft, dry cloth to wipe away dust. For stubborn marks, a slightly damp cloth can be used, followed by a dry cloth. Avoid abrasive cleaners or solvents.
Bulb Replacement
The system uses GU10 bulbs. To replace a bulb, ensure the power is off and the bulb has cooled. Gently twist the old GU10 bulb counter-clockwise to remove it. Insert the new GU10 bulb by aligning the pins and twisting clockwise until secure.
Recycling and Disposal
For information on recycling this and other types of lamps, please refer to local recycling guidelines.
Learn more about how to clean and dispose of broken or damaged lamps safely by consulting relevant safety instructions.
Troubleshooting
No Light from Spotlights
- Check Power: Ensure the main power supply to the track system is on.
- Bulb Connection: Verify that all GU10 bulbs are correctly inserted and securely twisted into their sockets.
- Bulb Functionality: Test bulbs in another working fixture if possible, or replace with new bulbs to rule out faulty bulbs.
- Track Connection: Ensure the spotlights are properly connected to the track and the locking mechanism is engaged.
Dimming Issues
- Dimmable Bulbs: Confirm that the GU10 bulbs you are using are explicitly marked as dimmable.
- Dimmer Compatibility: Ensure your external dimmer is compatible with LED lighting and the specific GU10 bulbs used.
Technical Specifications
| Property | Value |
|---|---|
| Brand | Ledvion |
| Model Number | LVT10002_2m5s |
| Product Dimensions | 105 x 20 x 15 cm |
| Item Weight | 2.14 kg |
| Style | 2m LED Track System - with 5 GU10 Spotlights - Dimmable - Single-Phase Track |
| Color | White |
| Material | Aluminum, Metal (Shade) |
| Number of Lights | 5 |
| Voltage | 230 Volts (AC) |
| Specific Uses | Home, Office, Shop |
| Bulb Type | LED (GU10) |
| Wattage | 1 watt (per spotlight) |
| Dimmable | Yes (with external dimmer) |
| Power Source | AC |
| Country of Origin | China |
Warranty and Support
Ledvion products are manufactured to high-quality standards. For specific warranty information and support, please refer to the documentation included with your purchase or visit the official Ledvion store on Amazon.
Online Support: Visit the Ledvion Store on Amazon
