GarveeLife 7x12 ft Heavy Duty Outdoor Storage Shed Instruction Manual

1. Introduction

Thank you for choosing the GarveeLife 7x12 ft Heavy Duty Outdoor Storage Shed. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new storage solution. Please read these instructions carefully before beginning assembly and retain them for future reference.

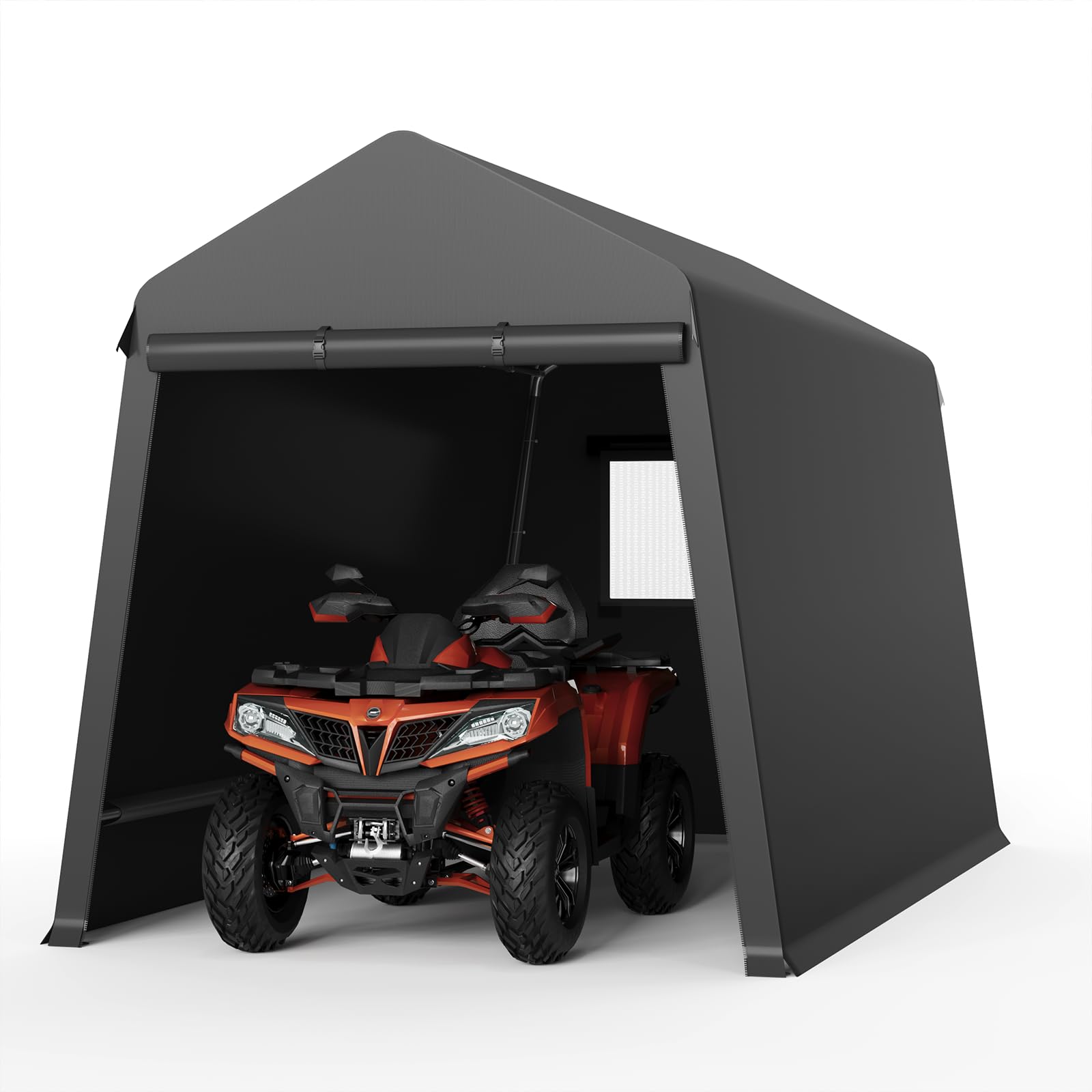

This portable storage shed is designed to offer protection for outdoor tools, small equipment, motorcycles, ATVs, and other belongings from environmental elements such as dust, UV rays, rain, and snow.

2. Safety Information

• Site Selection: Choose a level, stable surface for installation. Avoid areas prone to strong winds or flooding.
• Anchoring: Ensure the shed is securely anchored to the ground to prevent movement or collapse in adverse weather conditions.
• Assembly Safety: Wear appropriate safety gear, such as gloves, during assembly. Two or more people are recommended for safe installation.
• Ventilation: While the shed offers ventilation, do not store flammable materials or operate combustion engines inside without adequate external ventilation.
• Weight Distribution: Do not hang heavy objects from the frame. Distribute stored items evenly.
• Snow Load: In areas with heavy snowfall, regularly clear snow from the roof to prevent structural damage.

3. Package Contents

Before assembly, verify that all components listed below are present. If any parts are missing or damaged, please contact GarveeLife customer support.

• Steel Frame Components (numbered for easy identification)
• PE Cover (Waterproof, Windproof, Rainproof, Dustproof, Snowproof)
• Elastic Ball Straps
• Rope
• Assembly Wrench (Hex Key)
• Instruction Manual

Figure 3.1: Product Accessories Diagram. Includes elastic ball straps, rope, and an assembly wrench for assembly.

4. Setup and Assembly

Assembly is designed to be straightforward with a tool-free frame. Follow these step-by-step instructions for a smooth installation process.

4.1 Frame Assembly

1. Unpack all components and lay them out, verifying against the package contents list.
2. Identify the numbered steel pipes. Connect the steel pipes by inserting them into the spring buckles, forming a T-shaped reinforced structure.
3. Assemble the base frame first, ensuring all connections are secure.
4. Proceed to assemble the vertical and roof frame sections, following the detailed instruction manual provided in the package.
5. Ensure all connections are fully engaged and stable before proceeding to the next step.

Figure 4.1: All Steel Tube Frame Assembly. Illustrates the connection points and the wrench used for tightening.

4.2 Cover Installation

1. Carefully drape the PE cover over the assembled frame, ensuring it is centered and aligned.
2. Secure the cover to the frame using the provided elastic ball straps, attaching them to the designated points on the frame and cover.
3. Ensure the cover is taut to prevent water pooling and wind damage.

Figure 4.2: Key Components. Highlights the roll-up door, the steel tube frame, and the durable PE cloth material.

Figure 4.3: Metal Frame Details. Shows the robust construction of the frame and securing mechanisms.

5. Operating Instructions

The GarveeLife storage shed features convenient access and ventilation options.

5.1 Zipper Doors and Windows

• Front Door: The large rolling shutter door at the front features a zipper for easy opening and closing. This allows for convenient entry and exit, and for moving larger items like motorcycles or lawnmowers.
• Rear Window: A smaller rolling shutter window is located at the rear. This window can be opened to provide additional ventilation, helping to keep the interior fresh and dry and preventing condensation.

Figure 5.1: Versatile Storage Applications. Demonstrates the shed's use for motorcycles, firewood, and general storage.

Figure 5.2: Interior Storage Example. Shows the shed accommodating gardening tools and a small lawnmower.

6. Maintenance

Proper maintenance will extend the lifespan of your GarveeLife storage shed.

• Cover Cleaning: Periodically clean the PE cover with mild soap and water. Avoid harsh chemicals or abrasive brushes that could damage the material.
• Frame Inspection: Regularly check the steel frame for any signs of rust, loose connections, or damage. Tighten any loose bolts or connections as needed.
• Anchoring Check: Ensure the shed remains securely anchored, especially after strong winds or storms.
• Snow Removal: In winter, promptly remove heavy snow accumulation from the roof to prevent structural strain.
• Ventilation: Utilize the rolling shutter windows to ensure adequate airflow and prevent moisture buildup, which can lead to mold or mildew.

Figure 6.1: Weather Resistance Features. Highlights the protective qualities of the PE cover against various elements.

7. Troubleshooting

This section addresses common issues you might encounter.

7.1 Water Accumulation on Roof

• Cause: Cover not taut enough, allowing water to pool.
• Solution: Re-adjust the PE cover and tighten all elastic ball straps to ensure a snug fit. Check for proper frame assembly.

7.2 Condensation Inside Shed

• Cause: Insufficient ventilation, especially during temperature fluctuations.
• Solution: Open the rear rolling shutter window to improve airflow. Ensure the shed is not completely sealed for extended periods.

7.3 Frame Instability

• Cause: Loose connections or improper anchoring.
• Solution: Inspect all frame connections and tighten any loose spring buckles. Verify that the shed is securely anchored to the ground.

8. Specifications

Figure 8.1: Product Dimensions. Visual representation of the shed's length, width, and height measurements.

9. Warranty and Support

Your GarveeLife 7x12 ft Heavy Duty Outdoor Storage Shed is designed for durability and performance. For any issues or inquiries, please refer to the following information:

9.1 Return Policy

This product is eligible for a 30-day return policy, allowing for a refund or replacement if necessary. Please refer to the retailer's specific return guidelines for detailed instructions.

9.2 Protection Plans

Extended protection plans may be available for purchase to cover your product beyond the standard return period. Options may include:

• 2-Year Protection Plan
• 3-Year Protection Plan
• Complete Protect (monthly plan covering eligible purchases)

Please check with your retailer for current availability and terms of these protection plans.

9.3 Customer Support

For technical assistance, missing parts, or any questions regarding your GarveeLife product, please contact GarveeLife customer support through the retailer's platform or the official GarveeLife website. Have your model number (HJS-GarveeLife-STORAGETENT-7X12Black8m) and purchase details ready when contacting support.
