Introduction
This manual provides detailed instructions for the assembly, use, and maintenance of your Zinus Elias Metal Platform Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image: The Zinus Elias Metal Platform Bed Frame, fully assembled with a mattress and light green bedding, showcasing its minimalist design and under-bed storage capability with a storage box visible.
Safety Warnings
- Weight Capacity: Do not load more than 160 kg (350 lbs) on the 90x190 cm single size bed frame. Exceeding this limit may cause damage to the frame and potential injury.
- Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
- Keep small parts away from children during assembly to prevent choking hazards.
- Do not stand or jump on the bed frame.
Setup and Assembly
The Zinus Elias Metal Platform Bed Frame is designed for quick and easy assembly. It is recommended that two people assemble the frame in less than an hour.
What's Included
All necessary tools, parts, and instructions are conveniently packed in one box.

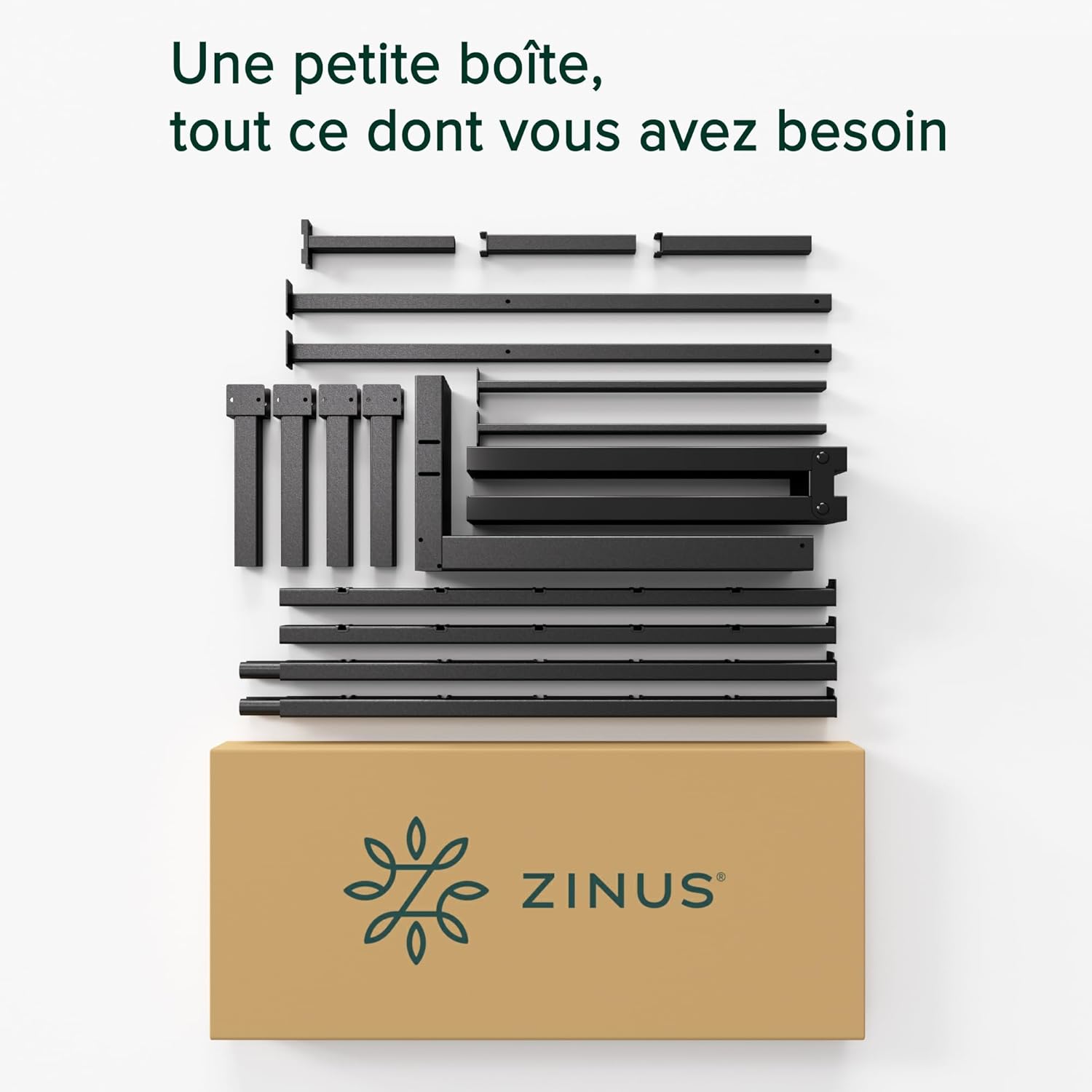

Image: All components of the Zinus Elias bed frame, including frame sections, slats, and hardware, neatly arranged on a floor, demonstrating how they are compactly packaged in one box.
Assembly Steps
- Unpack and Identify Parts: Carefully unpack all components from the box. Refer to the included instruction sheet to identify each part, which may be numbered for easy matching.
- Assemble Frame Sections: The frame features an intuitive design with foldable slats. Connect the main frame sections as per the detailed instructions provided in the box.
- Secure Connections: Use the provided ratchet tool to securely tighten all bolts and connections. Ensure all six points of contact with the floor are stable.
- Headboard Compatibility: The frame includes pre-drilled holes for attaching most standard-sized headboards. Headboard and attachment hardware are sold separately.

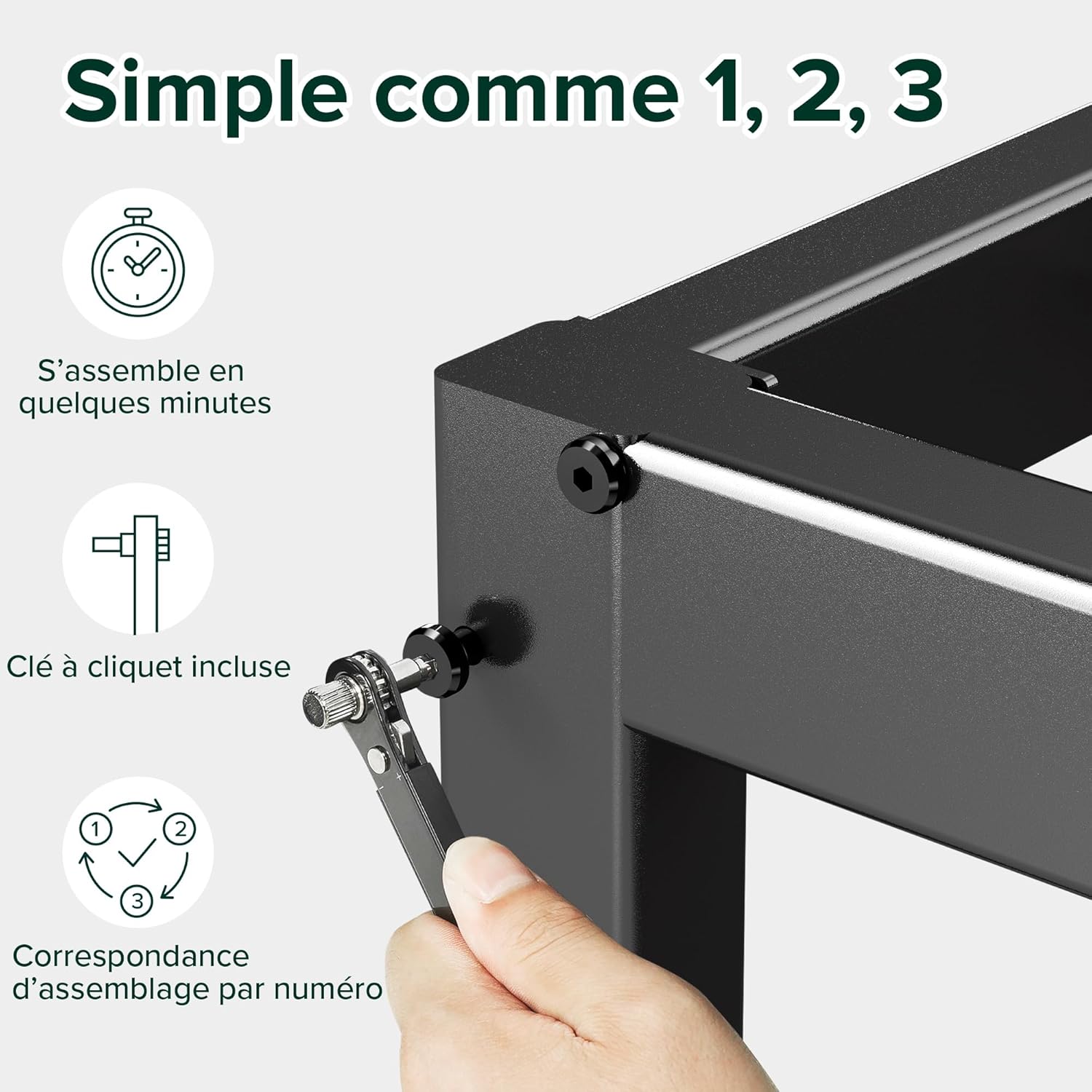

Image: A close-up view of the Zinus Elias bed frame during assembly, highlighting the numbered parts for easy identification and the included ratchet tool for tightening bolts.
Image: A visual representation of the Zinus Elias bed frame's intuitive design, showing how the frame sections connect and highlighting the pre-drilled holes for headboard attachment.
Image: A detailed view of the Zinus Elias bed frame's leg, illustrating the pre-drilled holes designed for easy attachment of a headboard. A table of attachment point distances is also shown.
Operating and Usage
The Zinus Elias Metal Platform Bed Frame is designed to provide robust support for various mattress types, including foam, latex, and spring mattresses. No box spring is required.
- Mattress Placement: Place your mattress directly onto the assembled bed frame. The sturdy steel slats provide ample support.
- Under-bed Storage: The frame offers over 31 cm (12 inches) of clearance beneath the bed, providing valuable space for storage.
Image: A view under the Zinus Elias bed frame, illustrating the 31 cm (approximately 12 inches) of clearance available for under-bed storage, with storage boxes placed underneath.
Maintenance
- Cleaning: Wipe the metal frame with a damp cloth and mild detergent if necessary. Avoid abrasive cleaners.
- Inspection: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten as needed to maintain stability and safety.
- Movement: When moving the bed frame, lift it rather than dragging it to prevent damage to the frame or your flooring.
Troubleshooting
- Squeaking Noises: If the bed frame makes squeaking noises, check all bolts and connections. Tighten any loose fasteners. Ensure the mattress is properly seated on the slats.
- Instability: If the frame feels unstable, verify that all legs are making firm contact with the floor and that all assembly steps have been followed correctly. Re-check all connections for tightness.
- Missing Parts: If any parts are missing or damaged upon arrival, contact Zinus customer support immediately for assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | Zinus |
| Model Number | EU-FBMMP1ZC-14E |
| Color | Black |
| Product Dimensions (L x W x H) | 190 x 90 x 36 cm |
| Material | Alloy Steel |
| Item Weight | 9.65 Kilograms |
| Origin | China |
| Mattress Size Compatibility | 90 x 190 cm (French double) |
| Under-bed Clearance | Approximately 31 cm |
| Included Components | Installation Manual, Slats, Assembly Tools |
Image: A technical drawing of the Zinus Elias bed frame, illustrating its key dimensions: 190 cm length, 90 cm width, and 35.6 cm height.
Warranty and Support
The Zinus Elias Metal Platform Bed Frame comes with a 5-year warranty covering manufacturing defects and material flaws. This warranty provides peace of mind regarding the quality and durability of your product.
For warranty claims, missing parts, or any other support inquiries, please contact Zinus customer service through their official website or the retailer where the product was purchased.
