Yaheetech Metal Bed Frame 140 x 200 cm Instruction Manual

1. Introduction

Thank you for purchasing the Yaheetech Metal Bed Frame. This manual provides essential information for the safe assembly, proper use, and maintenance of your new bed frame. Please read these instructions carefully before beginning assembly and retain them for future reference.

Figure 1: Fully assembled Yaheetech Metal Bed Frame in a bedroom.

2. Safety Information

• Always assemble the bed frame on a soft, clean surface to prevent scratches.
• Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not exceed the maximum weight capacity of 363 kg (800 lbs).
• Keep small parts away from children during assembly to avoid choking hazards.
• Do not stand or jump on the bed frame.
• Use only the mattress size specified for this bed frame (140 x 200 cm).

3. Package Contents

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Headboard and Footboard sections
• Side Rails
• Metal Slats
• Support Legs
• Hardware Pack (bolts, washers, nuts, L-shaped plates, hex key)
• Instruction Manual

4. Assembly Instructions

Follow these steps carefully for proper assembly. It is recommended to have two people for assembly.

1. Unpack and Identify Parts: Lay out all components on a soft surface. Refer to the parts diagram to identify each piece.


Figure 2: Detailed dimensions and component layout of the bed frame.

2. Assemble Headboard and Footboard: Attach the horizontal bars to the vertical posts of the headboard and footboard using the provided bolts and hex key. Ensure all connections are firm.
3. Attach Side Rails: Connect the side rails to the assembled headboard and footboard. Use the L-shaped plates and bolts to secure these connections, ensuring a stable structure.


Figure 3: Illustration of L-shaped plates for enhanced stability during assembly.

4. Install Support Legs: Attach the central support legs to the frame. These legs provide multi-point support for increased stability and weight distribution.

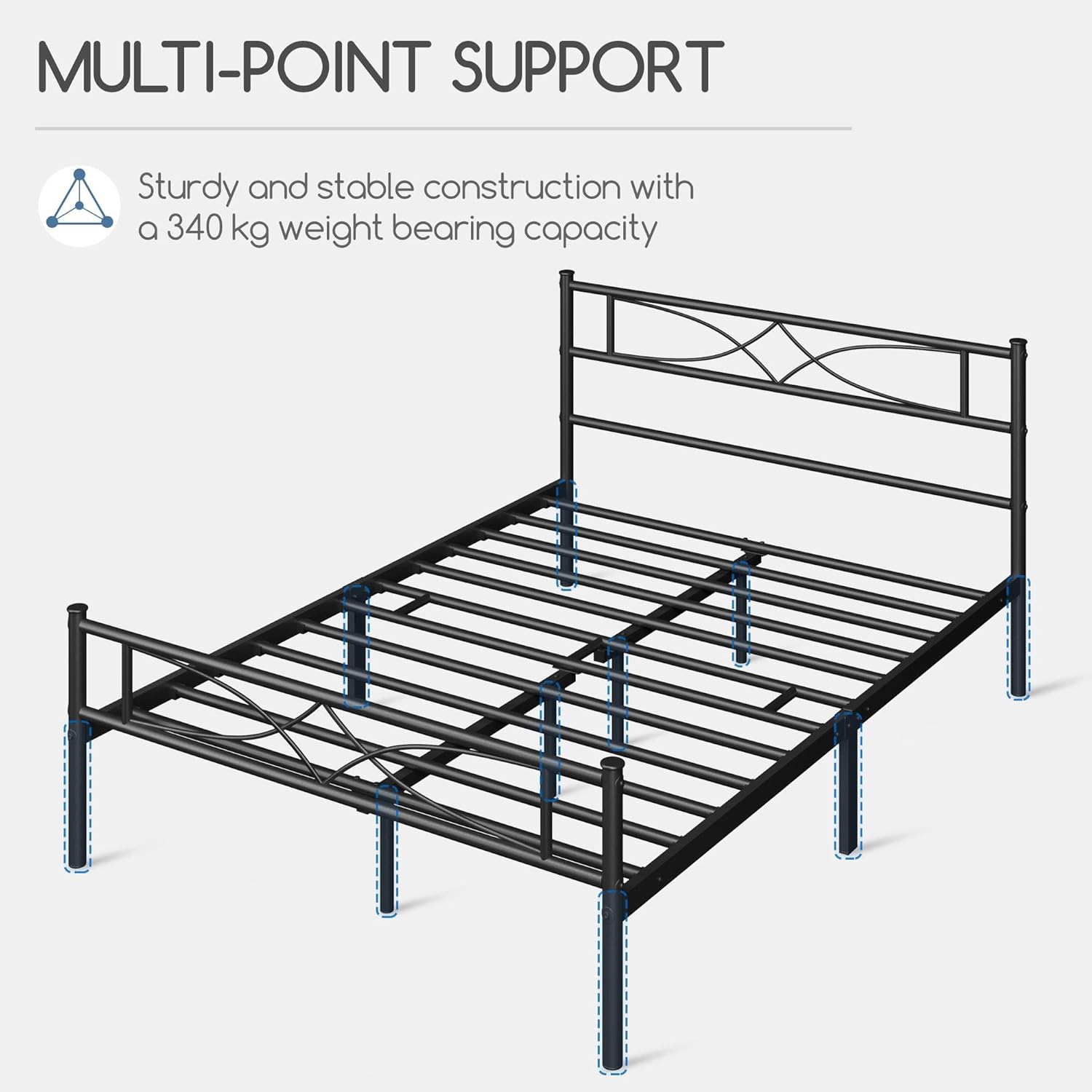

Figure 4: Multi-point support system for enhanced stability and load bearing.
5. Place Metal Slats: Position the metal slats across the frame. Ensure they are securely seated in their designated slots. The built-in design helps prevent the mattress from sliding.


Figure 5: Detailed view of built-in metal slats, robust metal frame, and protective foot pads.

6. Final Check: Double-check all connections to ensure they are tight and secure. The bed frame is now ready for use.

5. Usage

This bed frame is designed for use with a 140 x 200 cm mattress. The high headboard and footboard provide a secure fit for various mattress thicknesses, preventing movement. The frame offers ample under-bed clearance for storage.

Figure 6: Under-bed storage area and the aesthetic curved design elements.

The 32 cm (12.6 inches) under-bed clearance allows for convenient storage of boxes, luggage, or other items, helping to keep your bedroom tidy.

6. Care and Maintenance

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Inspection: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent creaking.
• Movement: When moving the bed frame, lift it rather than dragging it to prevent damage to the frame or your flooring.

7. Troubleshooting

• Squeaking Noises: If the bed frame squeaks, check all bolts and connections. Tighten any loose hardware. Ensure the mattress is properly seated on the slats.
• Instability: If the bed frame feels unstable, verify that all support legs are firmly on the ground and all connections are securely tightened. Ensure the frame is on a level surface.
• Mattress Sliding: The bed frame features built-in slats designed to prevent mattress sliding. Ensure the mattress is correctly positioned within the frame's edges.

8. Specifications

Figure 7: Product specifications and key measurements.

9. Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact Yaheetech customer service directly through the retailer where the product was purchased. Please have your model number (YA-00128914) and purchase date available when contacting support.
