RCB R17 Electric Scooter User Manual

1. Introduction

Welcome to the world of convenient and eco-friendly transportation with your new RCB R17 Electric Scooter. This manual provides essential information for the safe assembly, operation, and maintenance of your scooter. Please read it thoroughly before your first ride to ensure optimal performance and safety.

2. Safety Information

Your safety is paramount. Always wear a helmet and appropriate protective gear when riding. Adhere to all local laws and regulations regarding electric scooter usage. It is crucial to understand that local legal restrictions may apply to the use of this product on roads, footways, cycle lanes, or other public areas, including requirements for licenses, plates, safety helmets, and driving restrictions. For example, in the UK, e-scooters are currently prohibited from use on any public road or space. Always check and comply with local regulations before using this product.

• Always wear a helmet and protective gear.
• Familiarize yourself with local laws and regulations before riding.
• Perform a pre-ride check: brakes, tires, and battery level.
• Do not ride in adverse weather conditions.
• Maintain a safe distance from other vehicles and pedestrians.
• Avoid riding under the influence of alcohol or drugs.
• The maximum load capacity is 120 kg. Do not exceed this limit.

3. What's in the Box

Upon opening your RCB R17 Electric Scooter package, you should find the following components:

• 1x RCB R17 Electric Scooter
• 1x Charging Adapter
• 1x User Manual (this document)
• L-shape Allen Key
• Screws (4 pieces)

Image: The packaging box for the RCB R17 Electric Scooter, indicating a heavy package.

4. Product Overview and Assembly

The RCB R17 Electric Scooter is designed for ease of use and portability. It features an aluminum frame, 8.5-inch solid tires, and a dual suspension system for a comfortable ride.

Image: The RCB R17 Electric Scooter, showcasing its sleek design and connectivity with a mobile application.

Key Components:

• Handlebar: Features the control panel, power button, accelerator, brake lever, bell, and turn signal button.
• Front Wheel: Equipped with front shock absorption for a smoother ride.
• Rear Wheel: Includes a disc brake and tail light with turn signals.
• Folding Mechanism: Allows for quick and easy folding for storage and transport.

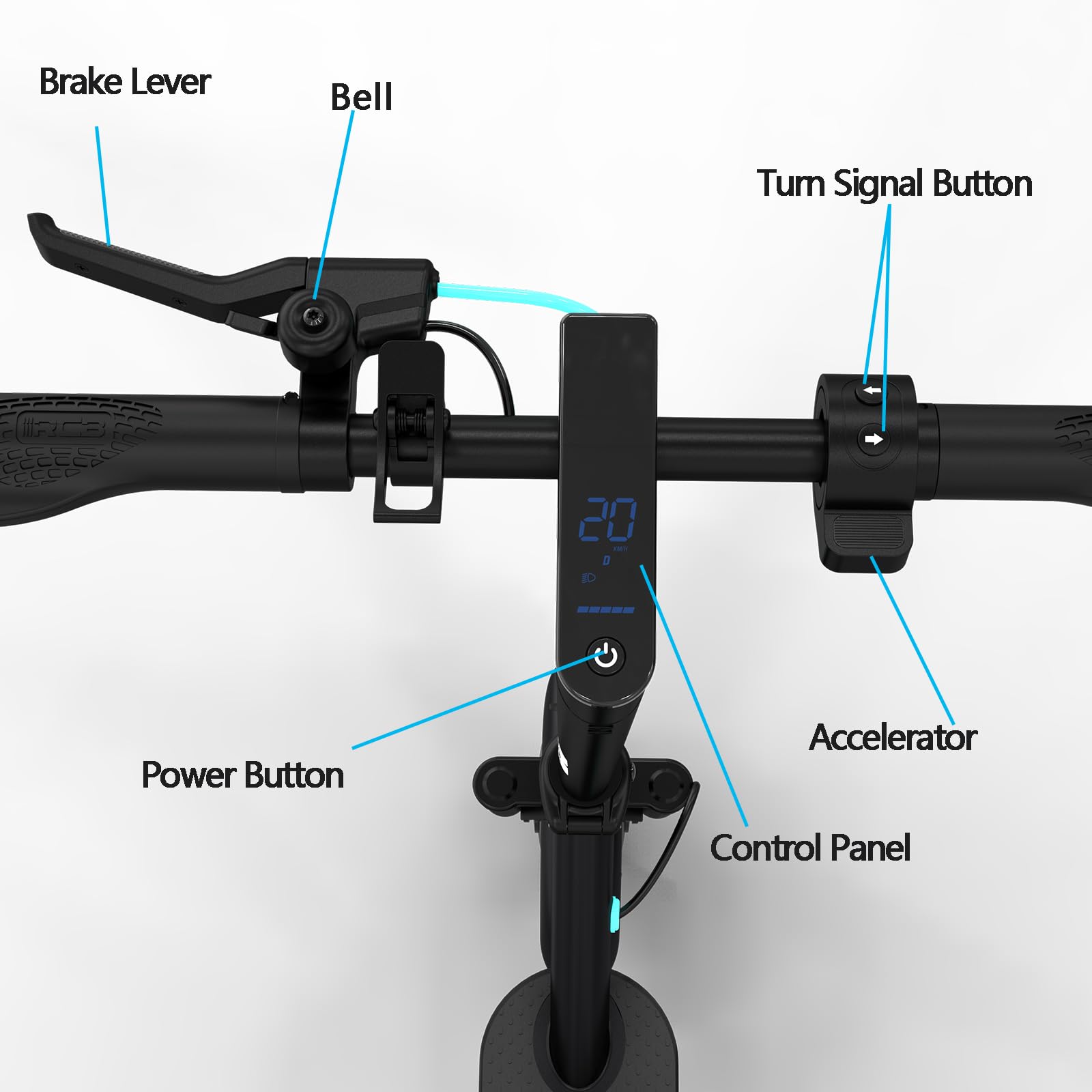

Image: Detailed view of the handlebar, showing the brake lever, bell, turn signal button, accelerator, control panel, and power button.

Assembly Steps:

The RCB R17 Electric Scooter is designed for quick assembly. Typically, this involves attaching the handlebar to the main stem and securing it with the provided screws and Allen key.

1. Carefully remove all components from the packaging.
2. Lift the main stem of the scooter until it locks into place.
3. Attach the handlebar to the top of the stem, aligning the holes.
4. Insert the provided screws and tighten them securely with the L-shape Allen key.
5. Ensure all connections are firm and the folding mechanism is properly engaged before use.

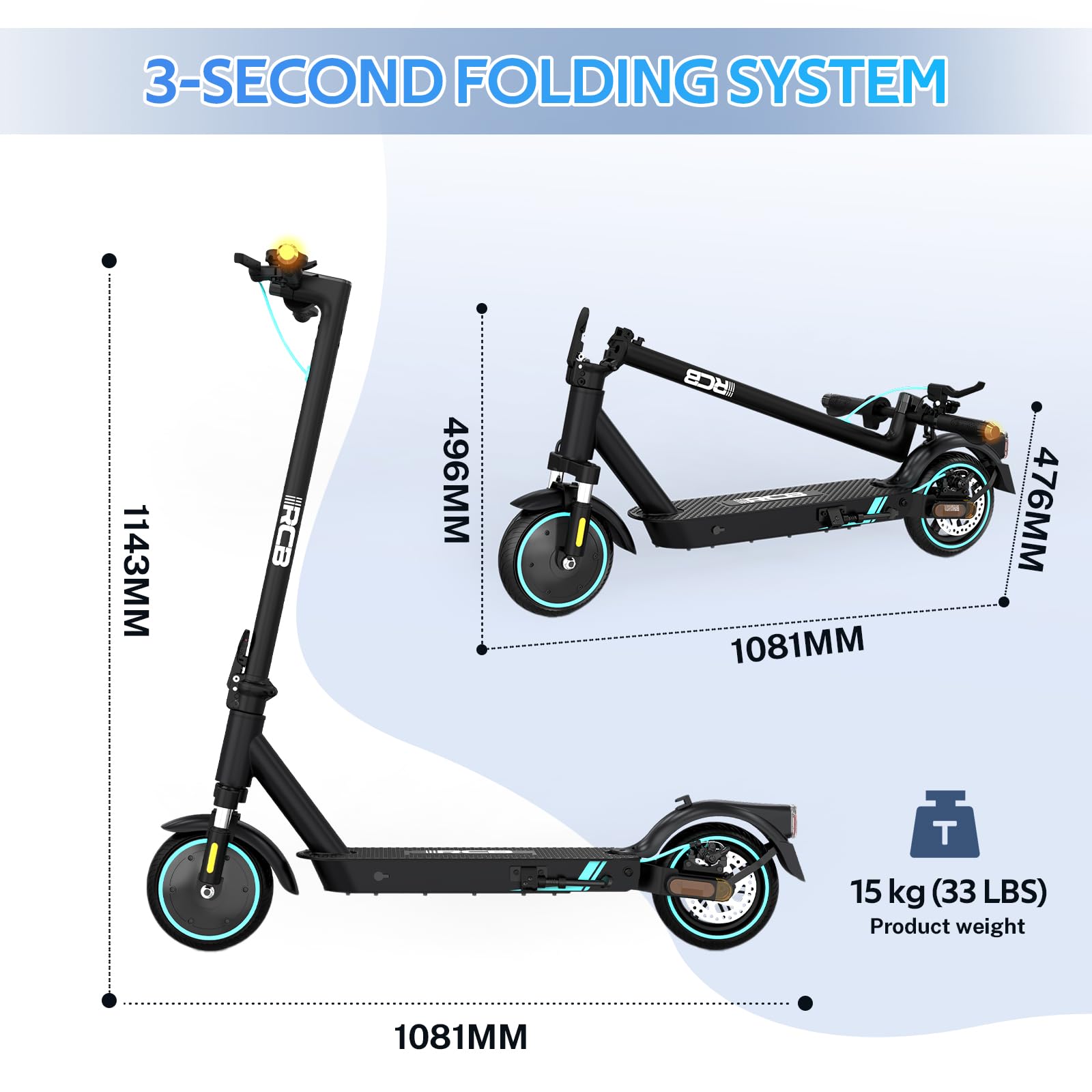

Image: Visual representation of the scooter's dimensions when unfolded (1143mm height, 1081mm length) and folded (496mm height, 1081mm length, 476mm width), highlighting its compact storage.

5. Setup and Charging

Initial Charging:

Before your first ride, fully charge the scooter's 7.8Ah Lithium Battery. Connect the charging adapter to the scooter's charging port and then to a power outlet. The charging indicator on the adapter will change when fully charged. A full charge typically takes approximately 6 hours.

APP Control:

The RCB R17 Electric Scooter can be controlled and monitored via a dedicated mobile application. Download the app from your smartphone's app store. Once installed, pair your scooter via Bluetooth. The app allows you to view electric vehicle data, adjust speed settings, control the headlight, activate cruise control, and monitor battery level.

Image: Users interacting with the scooter's control panel and the companion mobile application, demonstrating features like riding data, headlight control, cruise control, battery level, 3 speed modes, and zero start function.

6. Operating Your Scooter

Power On/Off:

Press and hold the power button on the control panel to turn the scooter on or off.

Speed Modes:

The scooter features 3 speed modes, suitable for different riding conditions and preferences. You can adjust the speed mode directly through the control panel or via the mobile application. The maximum speed is 25 km/h.

Braking System:

The RCB R17 is equipped with a double brake system, combining a disc brake and an electronic brake, ensuring reliable stopping power for your safety.

Image: A user riding the scooter, illustrating the "Safe Lights System" with headlight, tail light, and turn signal lights, along with front shock absorption for a secure ride.

Folding and Transport:

The R17 electric scooter can be folded in approximately 3 seconds, making it highly portable and easy to store or transport. Utilize the quick-release folding mechanism on the stem to collapse the scooter.

Image: A woman demonstrating the 3-second folding system of the scooter and its compact storage in a car trunk, emphasizing portability.

Official Product Video:

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Cleaning: Wipe down the scooter with a damp cloth. Do not use high-pressure water or immerse the scooter in water.
• Tires: Although the R17 uses solid tires, regularly inspect them for wear and tear.
• Brakes: Periodically check the brake system for proper function and adjust if necessary.
• Battery Care: Charge the battery regularly, even if not in use, to maintain its health. Avoid completely draining the battery. Store the scooter in a cool, dry place.
• Fasteners: Check all screws and bolts periodically and tighten if loose.

8. Troubleshooting

If you encounter issues with your RCB R17 Electric Scooter, refer to the following common troubleshooting tips:

• Scooter not turning on: Ensure the battery is charged. Check the power button for proper function.
• Reduced range/power: This may indicate a low battery charge or a need for battery recalibration. Ensure the battery is fully charged before each ride.
• Brakes not responsive: Check the brake levers and cables. If issues persist, professional inspection is recommended.
• Unusual noises: Inspect for loose components or debris caught in the wheels.

For more complex issues, please contact customer support.

9. Specifications

10. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact the seller directly. For technical support or further assistance, please reach out to the manufacturer or seller:

• Brand: RCB
• Manufacturer: kuantu
• Seller: XF MOTOR (Seller Information Page)

Please have your model number (R17) and purchase details ready when contacting support.
