Introduction
Thank you for choosing the FZF Countertop Ice Maker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new ice machine. Please read it thoroughly before first use and keep it for future reference.
1. Setup
1.1 Unboxing and Placement
- Carefully remove all packaging materials and tape.
- Place the ice maker on a stable, level surface away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
- Allow the unit to stand upright for at least 24 hours before plugging it in to allow refrigerants to settle.
1.2 Initial Cleaning
- Before first use, clean the interior of the ice maker with a soft cloth and mild detergent. Rinse thoroughly with clean water.
- Ensure the water tank and ice basket are dry before adding water.
1.3 Water Filling
Open the lid and remove the ice basket. Fill the water reservoir with potable water up to the "MAX" fill line. Do not overfill. For best results, use filtered water.

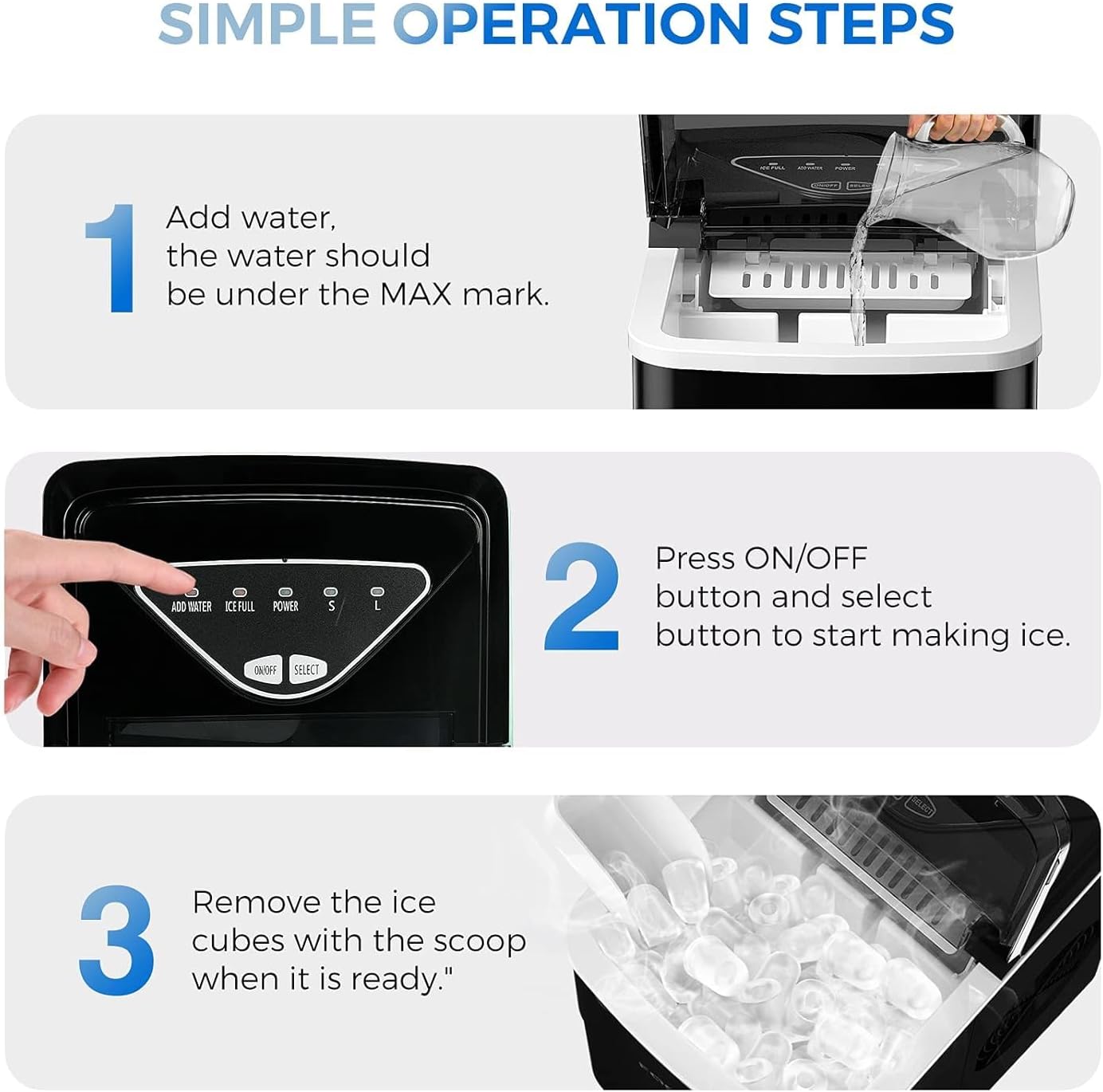

Figure 1.1: Adding water to the ice maker. Ensure water level does not exceed the MAX mark.
1.4 Power Connection
Plug the ice maker into a grounded electrical outlet. The power indicator light will illuminate.
Video 1.1: Unboxing and initial water filling of a similar countertop ice maker. Note: This video demonstrates general setup steps.
2. Operating Instructions
2.1 Power On/Off
- Press the "ON/OFF" button to turn the unit on or off.
2.2 Selecting Ice Cube Size
Press the "SELECT" button to choose between small (S) or large (L) ice cubes. The corresponding indicator light will illuminate.
Figure 2.1: Touch-sensitive control panel for operating the ice maker.

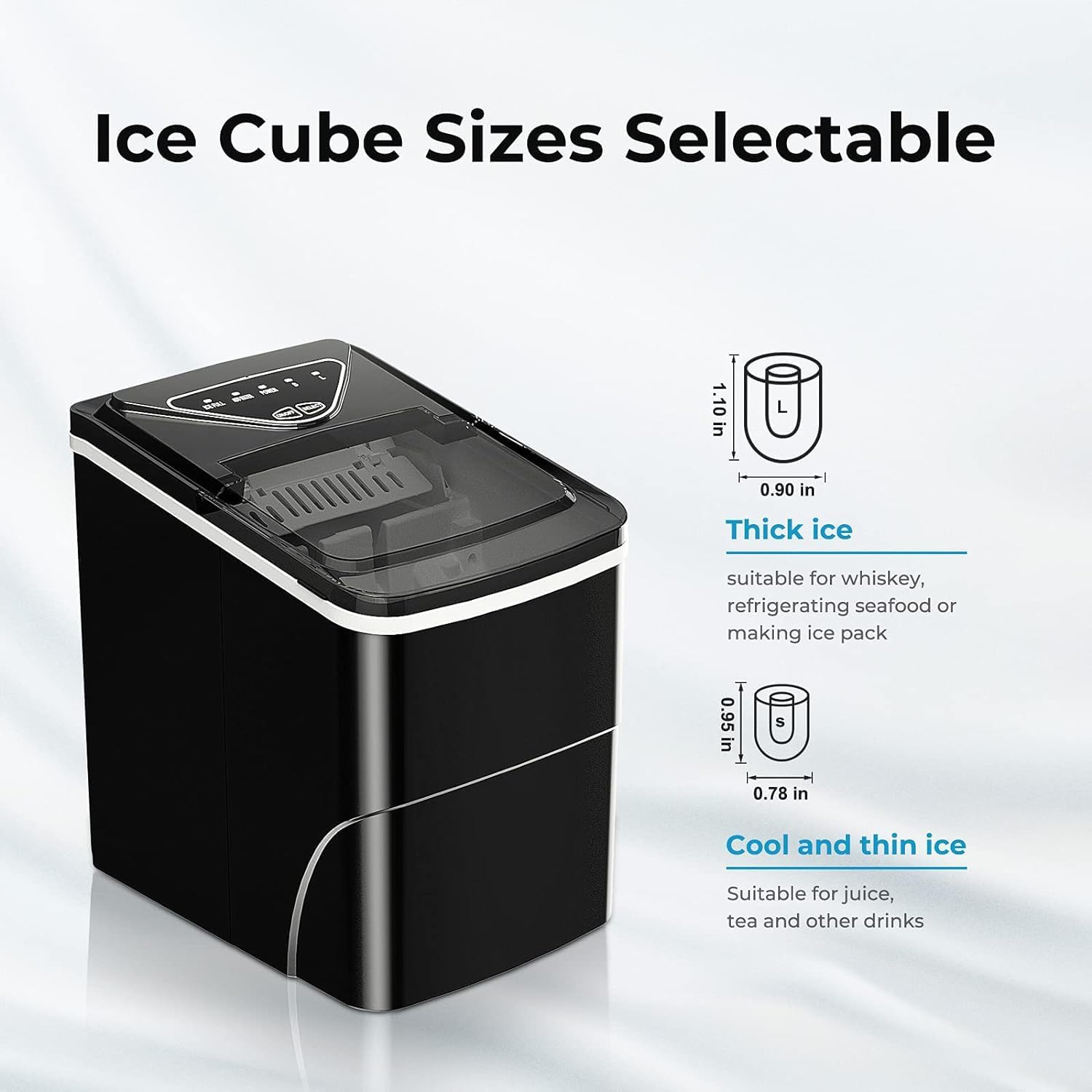

Figure 2.2: Available ice cube sizes: Small (S) and Large (L).
2.3 Ice Making Cycle
- Once powered on and an ice size is selected, the ice maker will begin its cycle. The first batch of ice cubes will be ready in approximately 6-13 minutes.
- The unit can produce up to 26 pounds of ice in 24 hours.
2.4 Indicator Lights
- ADD WATER: This red indicator light will illuminate when the water reservoir needs refilling.
- ICE FULL: This red indicator light will illuminate when the ice basket is full, and the ice making process will pause automatically. Remove ice to resume operation.
Video 2.1: Demonstration of the ice making process and control panel features.
3. Maintenance
3.1 Self-Cleaning Function
The FZF ice maker features a convenient self-cleaning function. To activate, press and hold the "ON/OFF" button for 5 seconds. The unit will perform an automatic cleaning cycle.

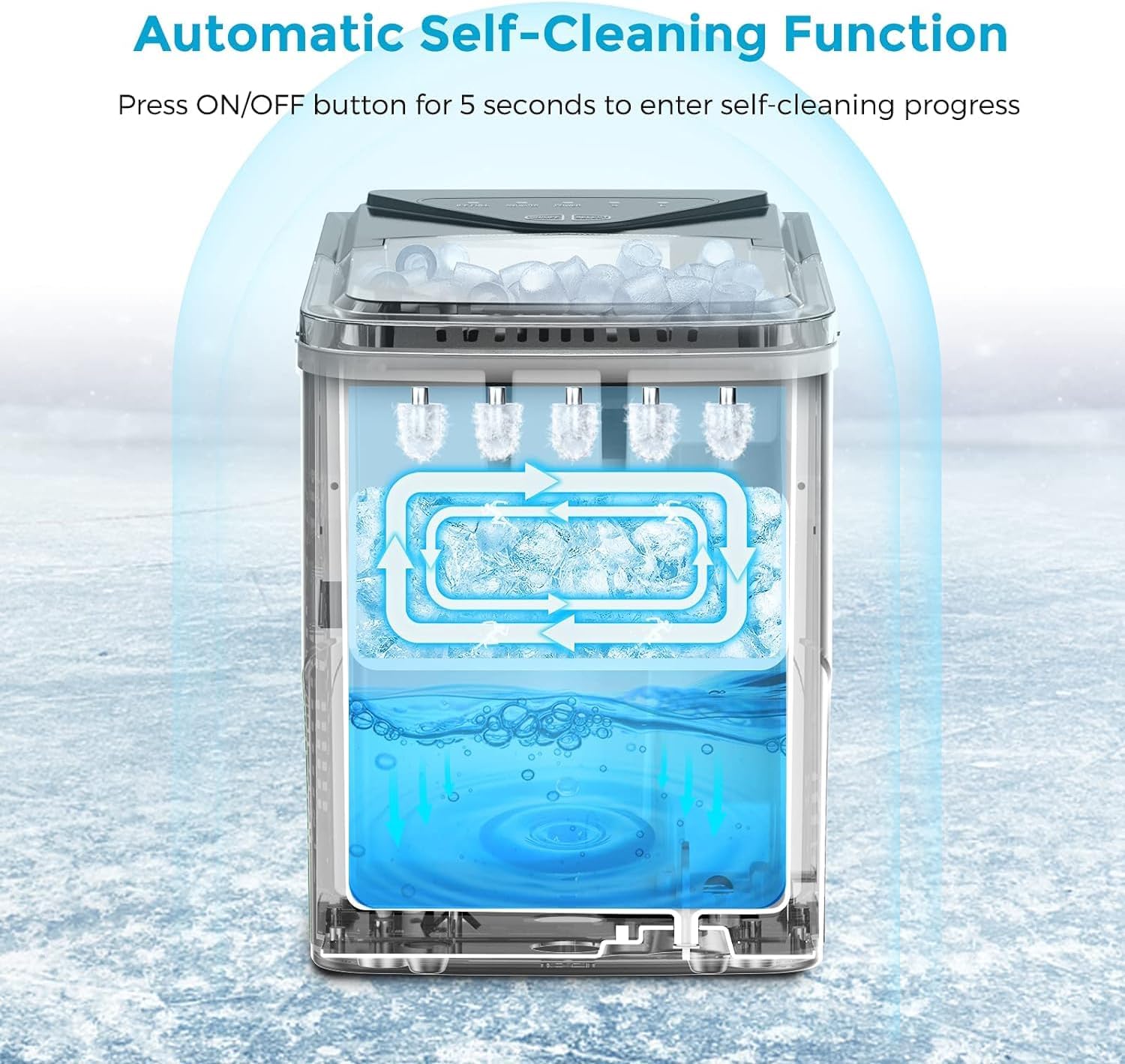

Figure 3.1: Automatic self-cleaning in progress.
3.2 Draining Excess Water
To drain excess water from the reservoir, locate the drain plug at the bottom of the unit. Remove the plug to allow water to flow out. Ensure the unit is unplugged before draining.
Video 3.1: Demonstration of the simple draining process for the ice maker.
3.3 Regular Cleaning
- Regularly clean the ice basket and water reservoir to prevent mineral buildup and ensure hygienic ice production.
- Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners.
4. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Ice maker not producing ice. | No water in reservoir; unit not plugged in; ambient temperature too high. | Fill water reservoir; ensure unit is plugged in and powered on; operate in a cooler environment. |
| "ADD WATER" indicator is on. | Water level is too low. | Add water to the reservoir up to the MAX line. |
| "ICE FULL" indicator is on. | Ice basket is full. | Remove ice from the basket. |
| Ice cubes are too small or clumpy. | Water temperature too high; unit needs cleaning. | Use colder water; perform a self-cleaning cycle. |
5. Specifications
- Brand: FZF
- Model Number: 10015703
- Capacity: 26 Pounds (ice production in 24 hours)
- Water Tank Capacity: 2 Liters
- Power/Wattage: 160 watts
- Voltage: 110 Volts
- Material: Acrylonitrile Butadiene Styrene
- Product Dimensions: 20D x 20W x 25H Centimetres (approx. 7.87D x 7.87W x 9.84H inches)
- Item Weight: 7 kg (approx. 15.4 lbs)
- Refrigerant: R600a
- Ice Cube Shape: Bullet-shaped
- Ice Making Time: 6-13 minutes per cycle
- Noise Level: Less than 40dB
6. Warranty and Support
6.1 Warranty Information
This FZF ice maker comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official FZF website for detailed warranty terms and conditions. Keep your proof of purchase for warranty claims.
6.2 Customer Support
For any questions, technical assistance, or service requests, please contact FZF customer support. Contact details can typically be found on the product packaging, the official FZF website, or through your retailer.
