Gorenje Classico GECS 5B70CLI Electric Cooker User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your Gorenje Classico GECS 5B70CLI Electric Cooker. Please read these instructions carefully before installation, operation, or maintenance. Keep this manual for future reference.

The Gorenje Classico GECS 5B70CLI is a freestanding electric cooker featuring a ceramic hob and a 70-liter oven. It combines a retro design with modern cooking technologies such as Fast Heating, AirFry, ExtraSteam, Pizza Mode, and AquaClean for easy maintenance.

2. Safety Instructions

Always prioritize safety when operating electrical appliances. Failure to follow these instructions may result in electric shock, fire, or injury.

• Electrical Connection: Ensure the appliance is correctly connected to a suitable electrical supply by a qualified electrician. The voltage (230V) must match your household supply.
• Children and Vulnerable Persons: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Hot Surfaces: The hob and oven surfaces become very hot during operation. Use oven mitts and avoid touching hot elements.
• Overheating: Do not store flammable materials in or near the oven. Never cover the oven vents.
• Cleaning: Always switch off and disconnect the appliance from the power supply before cleaning. Allow it to cool down completely.
• Ventilation: Ensure adequate ventilation around the appliance during use.
• Damage: Do not operate the appliance if it is damaged. Contact authorized service personnel for repairs.

3. Product Overview

The Gorenje Classico GECS 5B70CLI features a ceramic hob with four cooking zones, a spacious oven, and intuitive controls.

Figure 3.1: Front view of the Gorenje Classico GECS 5B70CLI electric cooker, showcasing its retro design, control panel, and oven door.

Figure 3.2: Top view of the ceramic hob, illustrating the four distinct cooking zones.

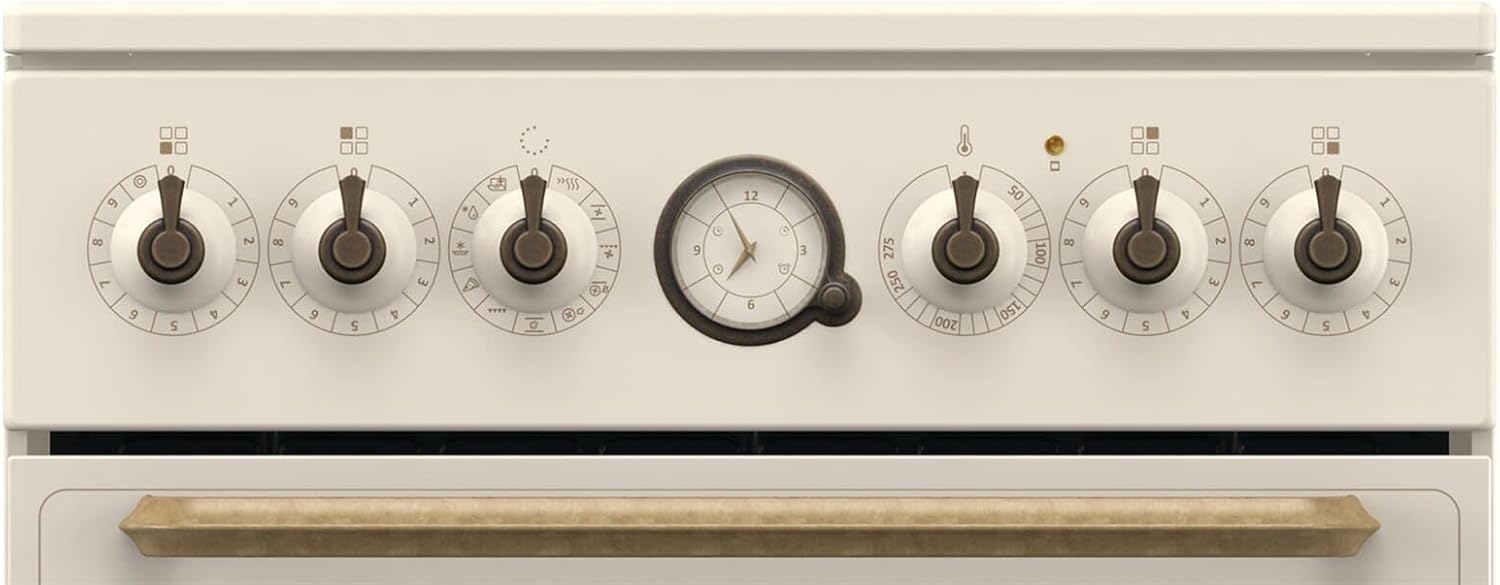

Figure 3.3: Close-up of the control panel, showing the rotary knobs for hob and oven functions, and the integrated analog clock.

Components:

• Ceramic Hob: Four electric cooking zones with touch controls.
• Control Panel: Rotary knobs for hob power levels, oven functions, and temperature. Features an analog clock.
• Oven: 70-liter capacity with multiple cooking functions and interior lighting.
• Oven Door: Equipped with a handle and viewing window.
• Storage Compartment: Located at the bottom (if applicable, typically for trays).

4. Setup and Installation

Proper installation is crucial for the safe and optimal performance of your cooker.

4.1 Unpacking

1. Carefully remove all packaging materials.
2. Inspect the appliance for any signs of damage. If damaged, do not install or operate it, and contact your retailer.
3. Remove all accessories from inside the oven cavity.

4.2 Positioning

The Gorenje Classico GECS 5B70CLI is a freestanding model. Ensure it is placed on a stable, level surface. Maintain adequate clearance from adjacent furniture or walls as specified in the installation guide (not provided here, refer to manufacturer's full installation manual).

Figure 4.1: Dimensional diagram of the Gorenje Classico GECS 5B70CLI, indicating its height (85cm), width (50cm), and depth (59.41cm).

4.3 Electrical Connection

WARNING: Electrical installation must be performed by a qualified electrician in accordance with local regulations.

• The appliance requires a 230 Volt electrical supply.
• Ensure the electrical circuit is adequately protected and has a suitable earthing connection.
• Do not use extension cords or adapters.

5. Operating Instructions

Familiarize yourself with the controls and functions before cooking.

5.1 Ceramic Hob Operation

The ceramic hob features four cooking zones controlled by rotary knobs on the control panel.

1. Place a suitable pan on the desired cooking zone.
2. Turn the corresponding hob control knob to the desired heat setting (typically 1-9).
3. The hob surface will heat up. After use, turn the knob back to '0' to switch off.
4. Residual heat indicators will remain lit until the zone has cooled down sufficiently.

5.2 Oven Operation

The 70-liter oven offers various cooking functions and temperature settings.

Figure 5.1: Interior view of the oven, showing the two racks and baking trays in position.

1. Setting the Time: Use the analog clock to set the current time. This may be required for some timed functions.
2. Selecting a Function: Turn the oven function knob to choose your desired cooking mode (e.g., conventional heating, fan-assisted, grill).
3. Setting Temperature: Turn the oven temperature knob to the required temperature (e.g., 50°C to 275°C).
4. Preheating: Allow the oven to preheat to the set temperature before placing food inside.
5. Cooking: Place food in the oven. Monitor cooking progress through the oven door.
6. Switching Off: Once cooking is complete, turn both the function and temperature knobs to the 'Off' position.

5.3 Special Oven Functions

• Fast Heating: Quickly preheats the oven to the desired temperature, saving time.
• AirFry: A function designed for healthier frying with little to no oil, circulating hot air for crispy results.
• ExtraSteam: Introduces steam during baking, ideal for achieving a crispy crust on bread or moist roasts.
• Pizza Mode: Optimized heating elements and temperature for baking perfect pizzas with a crispy base.

6. Maintenance and Cleaning

Regular cleaning and maintenance ensure the longevity and hygiene of your appliance.

6.1 General Cleaning

• Always ensure the cooker is switched off and cooled down before cleaning.
• Use a soft cloth and mild detergent for external surfaces. Avoid abrasive cleaners or scourers.
• Clean the control panel gently to avoid damaging the markings.

6.2 Ceramic Hob Cleaning

• For light spills, wipe with a damp cloth and mild detergent once cooled.
• For stubborn stains or burnt-on food, use a specialized ceramic hob cleaner and a scraper designed for ceramic surfaces.
• Never use abrasive sponges or harsh chemicals that can scratch the surface.

6.3 Oven Cleaning (AquaClean)

The AquaClean function simplifies oven cleaning:

1. Pour approximately 0.5 liters of water into a baking tray and place it on the lowest oven rack.
2. Select the AquaClean function (refer to your oven's specific symbol) and set the temperature to around 70°C.
3. Allow the program to run for about 30 minutes. The steam generated will soften baked-on food residues.
4. Once the program finishes and the oven cools, wipe the interior with a soft cloth.

7. Troubleshooting

Before contacting service, check the following common issues:

If the problem persists after checking these points, please contact Gorenje customer support or an authorized service center.

8. Specifications

Detailed technical specifications for the Gorenje Classico GECS 5B70CLI electric cooker:

9. Warranty and Support

9.1 Warranty Information

This Gorenje Classico GECS 5B70CLI electric cooker comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and faults under normal use conditions.

For specific terms and conditions, please refer to the warranty card included with your appliance or visit the official Gorenje website.

9.2 Customer Support

If you require technical assistance, have questions about your appliance, or need to arrange a service visit, please contact Gorenje customer support.

• Visit the official Gorenje website for contact details specific to your region.
• Have your model number (GECS 5B70CLI) and serial number ready when contacting support.
