1. Introduction
Thank you for choosing the AIKE Wash + Dry Auto Soap Dispenser and Hand Dryer Combo. This integrated system provides a touch-free solution for hand hygiene, combining an automatic soap dispenser and a high-speed hand dryer. Designed for efficiency and cleanliness, this manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your unit.
Image: The AIKE Wash + Dry Auto Soap Dispenser (left) and Hand Dryer (right) units, showcasing their sleek brushed stainless steel design.
2. Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or injury.
- Ensure the power supply matches the voltage specified on the product label.
- Do not immerse the unit in water or spray water directly onto electrical components.
- Keep hands and foreign objects away from the air outlet and inlet during operation.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Only use liquid soap suitable for automatic dispensers. Do not use abrasive or corrosive cleaning agents.
- Disconnect power before performing any maintenance or refilling.
3. Setup and Installation
The AIKE Wash + Dry Combo units are designed for wall mounting. Professional installation is recommended for optimal safety and performance.
3.1. Choosing a Location
Select a suitable wall location near a power outlet, ensuring sufficient space for hand washing and drying. Avoid placing directly above electrical outlets or in areas prone to excessive moisture.
Image: AIKE soap dispensers and hand dryers installed on a wall above washbasins, demonstrating typical placement.
3.2. Mounting the Units
- Mark the desired mounting height and positions for both the soap dispenser (AK1205) and hand dryer (AK2805). Ensure they are at a comfortable height for users and adequately spaced.
- Drill pilot holes according to the mounting template (if provided) or the unit's backplate.
- Insert wall anchors if necessary.
- Securely fasten the mounting brackets or the units directly to the wall using appropriate screws.
Image: A collage showing different installation views of the AIKE soap dispenser and hand dryer in various bathroom and kitchen settings.
3.3. Filling the Soap Dispenser (AK1205)
- Open the top cover of the soap dispenser.
- Carefully pour liquid soap into the reservoir. Do not overfill.
- Close the top cover securely.
Image: A close-up view of the AIKE soap dispenser being refilled with liquid soap, highlighting the easy access top opening.
3.4. Power Connection
Connect the power cords of both units to appropriate electrical outlets. Ensure connections are secure and units are powered on.
4. Operating Instructions
4.1. Automatic Soap Dispensing (AK1205)
- Place your hands under the soap dispenser's sensor.
- The dispenser will automatically release a measured amount of liquid soap.
- Rub your hands together thoroughly with soap and water.
Image: The AIKE soap dispenser releasing soap onto a hand, demonstrating its touch-free operation.
4.2. Automatic Hand Drying (AK2805)
- After washing, move your wet hands under the hand dryer's sensor.
- The dryer will activate automatically, emitting a powerful jet of air.
- Move your hands slowly back and forth under the airflow until dry. The dryer will stop automatically once hands are removed.

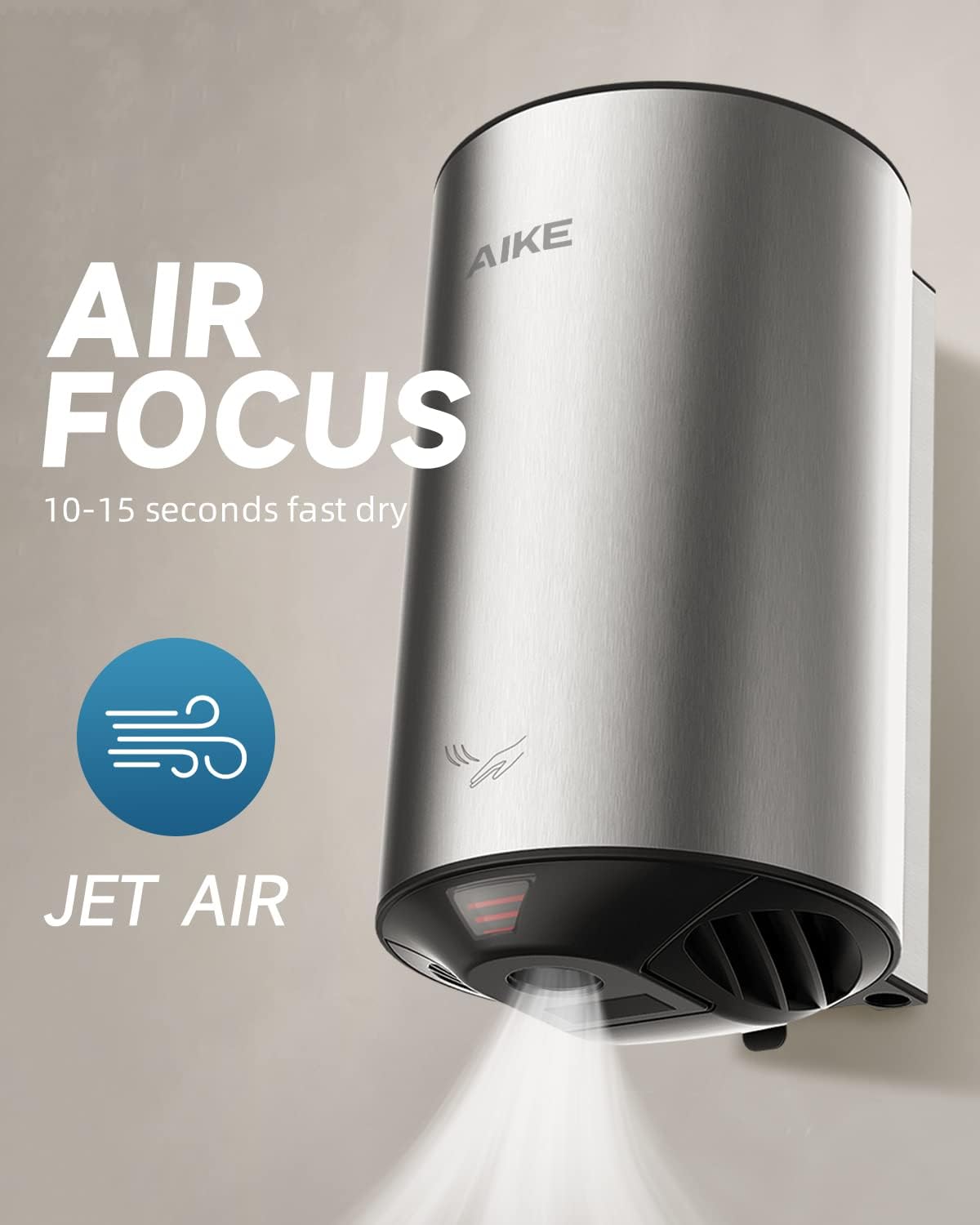

Image: A person's hands positioned under the AIKE hand dryer, which is actively drying them with a powerful air stream.
Image: A user drying their hands under the AIKE hand dryer, illustrating the practical application of the device.
5. Maintenance
5.1. Cleaning
Regularly clean the exterior of both units with a soft, damp cloth. Do not use abrasive cleaners or solvents. For the hand dryer, ensure the air inlet and outlet are free from dust and debris.
5.2. Refilling Soap
Monitor the soap level in the dispenser. When low, refill following the instructions in Section 3.3. Use only compatible liquid soap.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Soap dispenser not dispensing | Low soap level, sensor obstructed, power issue. | Refill soap, clean sensor, check power connection. |
| Hand dryer not activating | Sensor obstructed, power issue, air inlet/outlet blocked. | Clean sensor, check power, clear blockages. |
| Weak airflow from dryer | Air inlet/outlet blocked, internal issue. | Clear blockages. If problem persists, contact support. |
7. Specifications
The following specifications apply to the AIKE Wash + Dry Auto Soap Dispenser (AK1205) and Hand Dryer (AK2805) Combo:
Hand Dryer (Model AK2805)
- Material: Stainless Steel
- Voltage: AC120V
- Frequency: 60Hz
- Input: 1150W
- Noise Level: 72dB
- Air Velocity: 152 MPH
- Motor Speed: 24,000 RPM
- Dimensions: 11" (H) x 6" (W) x 6.4" (D)
- Power Cord: 59 inches
Image: Detailed specifications and dimensions for the AIKE AK2805 Hand Dryer.
Soap Dispenser (Model AK1205)
- Material: Stainless Steel
- Color: White (as per product specifications, though unit is brushed stainless steel)
- Shape: Cylindrical
8. Warranty and Support
AIKE products are built to last and are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your purchase or visit the official AIKE website. For technical support, troubleshooting assistance, or replacement parts, please contact AIKE customer service through the contact information provided on the product packaging or website.
