1. Introduction
This manual provides essential information for the safe and efficient operation of your Daewoo DWC-SD1233 Front Load Washing Machine. Please read these instructions carefully before installation, use, or maintenance. Keep this manual for future reference.

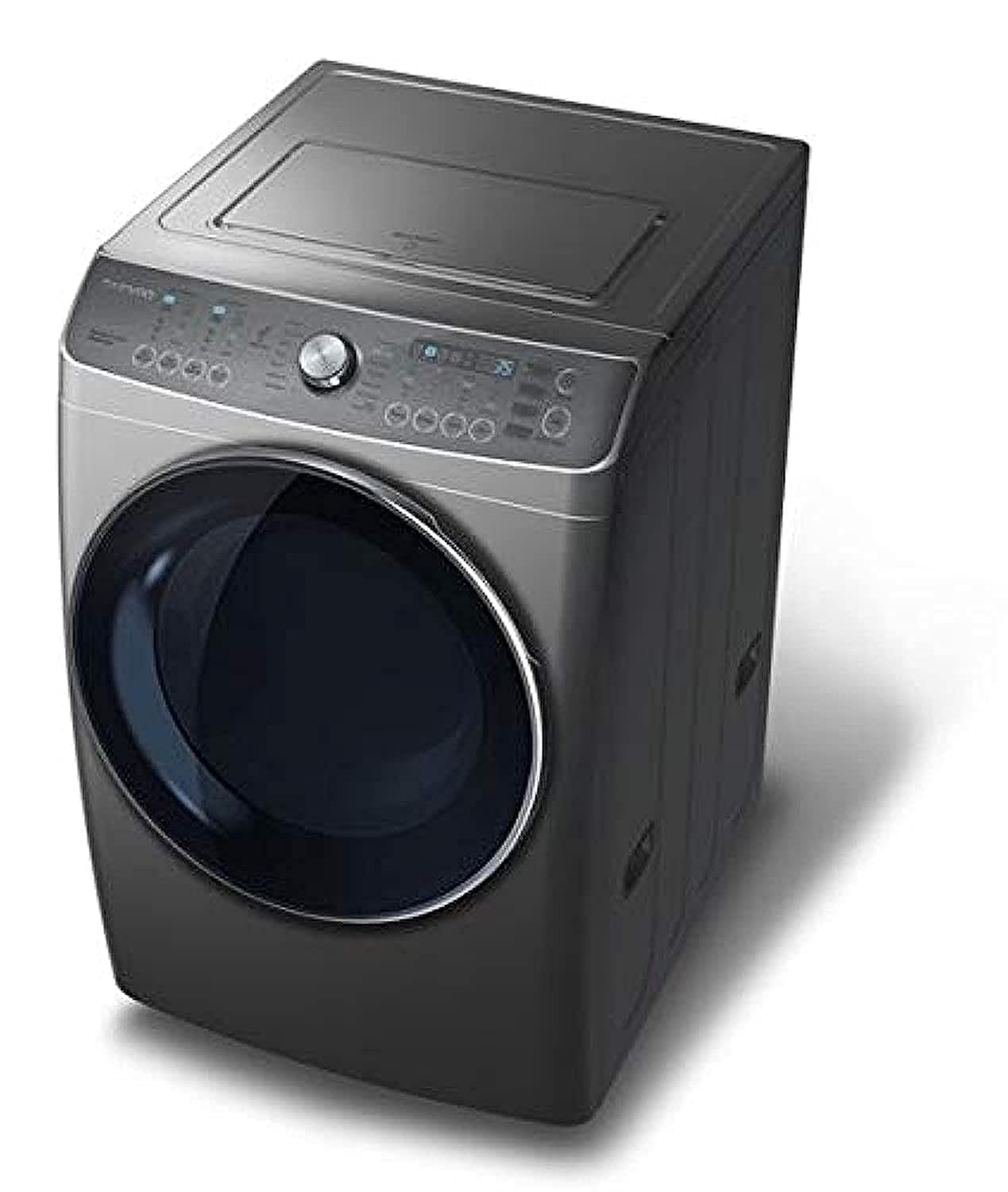

Image: Daewoo DWC-SD1233 front load washing machine in black, showcasing its sleek design and front-loading door.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.
- Ensure the washing machine is properly grounded.
- Do not operate the machine if the power cord is damaged.
- Keep children and pets away from the appliance during operation.
- Do not wash items that are soiled with flammable substances.
- Unplug the machine before cleaning or performing any maintenance.
- Do not attempt to repair the appliance yourself. Contact qualified service personnel.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Inspect the machine for any damage incurred during transit. Remove all transit bolts from the rear of the machine before use. Failure to do so will cause severe vibration and damage.
3.2 Location
Place the washing machine on a firm, level surface. Ensure there is adequate space around the machine for ventilation and access. Avoid direct sunlight or extreme temperatures.
3.3 Leveling
Adjust the leveling feet at the bottom of the machine until it is perfectly stable and level. Use a spirit level to verify.
3.4 Water and Drain Connections
- Connect the water inlet hoses to the hot and cold water taps. Ensure connections are tight to prevent leaks.
- Securely attach the drain hose to a standpipe or laundry tub, ensuring it is properly positioned to prevent siphoning.
3.5 Power Connection
Plug the power cord into a grounded electrical outlet. Do not use extension cords or adapters.
4. Operating Instructions
4.1 Preparing Laundry
- Sort laundry by fabric type, color, and soil level.
- Check pockets for foreign objects.
- Close zippers and fasten hooks to prevent damage.
4.2 Loading the Machine
Open the front door and load laundry loosely into the drum. Do not overload the machine, as this can affect washing performance and cause damage. The capacity of this machine is 11 kg.
4.3 Adding Detergent and Additives
Add the appropriate amount of detergent to the detergent dispenser. If using fabric softener or bleach, add them to their designated compartments. Refer to detergent packaging for dosage recommendations.
4.4 Selecting a Wash Cycle
Turn the program selector knob or press the cycle buttons to choose the desired wash program. This model features multiple programs. Common cycle options include Drain, Spin, and Rinse.
4.5 Starting the Wash
Press the Start/Pause button to begin the wash cycle. The machine will automatically fill with water and start the selected program.
4.6 After the Wash Cycle
Once the cycle is complete, the machine will signal. Open the door and remove the laundry promptly to prevent wrinkles and odors. Leave the door slightly ajar to allow the drum to air dry.
5. Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your washing machine. Always unplug the appliance before cleaning.
5.1 Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
5.2 Cleaning the Detergent Dispenser
Remove the detergent dispenser drawer and rinse it under running water to remove any residue. Clean the dispenser housing with a brush if necessary.
5.3 Cleaning the Drum
Periodically run a maintenance wash cycle (e.g., a hot wash with no laundry and a washing machine cleaner) to remove detergent residue and prevent odors.
5.4 Cleaning the Drain Filter
Locate and clean the drain filter regularly (e.g., every few months) to prevent blockages. Refer to the diagram in the full manual for filter location.
6. Troubleshooting
Before contacting customer service, refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, door not closed properly, power outage. | Check power connection, ensure door is latched, check circuit breaker. |
| Excessive vibration | Transit bolts not removed, machine not level, uneven load. | Remove transit bolts, level the machine, redistribute laundry. |
| Water leakage | Loose hose connections, clogged drain filter, excessive detergent. | Tighten hoses, clean drain filter, use correct detergent amount. |
| Poor washing results | Overloading, insufficient detergent, incorrect program selection. | Reduce load, use correct detergent, select appropriate wash cycle. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Daewoo Electronics |
| Model Number | DWC-SD1233 |
| Type | Front Load Washing Machine |
| Capacity | 11 Kilograms |
| Color | Black |
| Material | Metal |
| Finish Type | Metal |
| Installation Method | Freestanding |
| Special Features | Multiple Programs |
| Cycle Options | Drain, Spin, Rinse |
| Control Type | Push Button |
| Recommended Uses | Residential |
| Shipping Weight | 28 kg |
| First Available Date | September 18, 2019 |
8. Warranty and Support
For warranty information, please refer to the warranty card included with your purchase or visit the official Daewoo Electronics website.
If you require technical assistance or have questions not covered in this manual, please contact Daewoo customer support. Contact details can typically be found on the manufacturer's website or on your purchase documentation.
