Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your GROHE Tempesta Cosmopolitan 100 4-Spray Shower Head. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Image: The GROHE Tempesta Cosmopolitan 100 4-Spray Shower Head, showcasing its sleek Starlight Chrome finish and compact design.
Product Features
- GROHE DreamSpray: Ensures a perfect spray pattern for an enjoyable shower experience.
- GROHE StarLight Chrome Finish: Provides a durable, scratch-resistant, and easy-to-clean surface.
- GROHE SpeedClean Anti-Lime System: Allows for easy removal of limescale from the spray nozzles with a simple wipe.
- 4 Spray Patterns: Offers a choice of Rain O², Rain, Massage, and Jet sprays for varied preferences.
- 1/2" Connection Thread: Standard connection for easy compatibility.
- 2.5 GPM Flow Restrictor: Ensures efficient water usage.
- Inner WaterGuide: Protects the chrome surface from excessive heat, extending product life.
- 4" Face: Compact and functional shower head diameter.

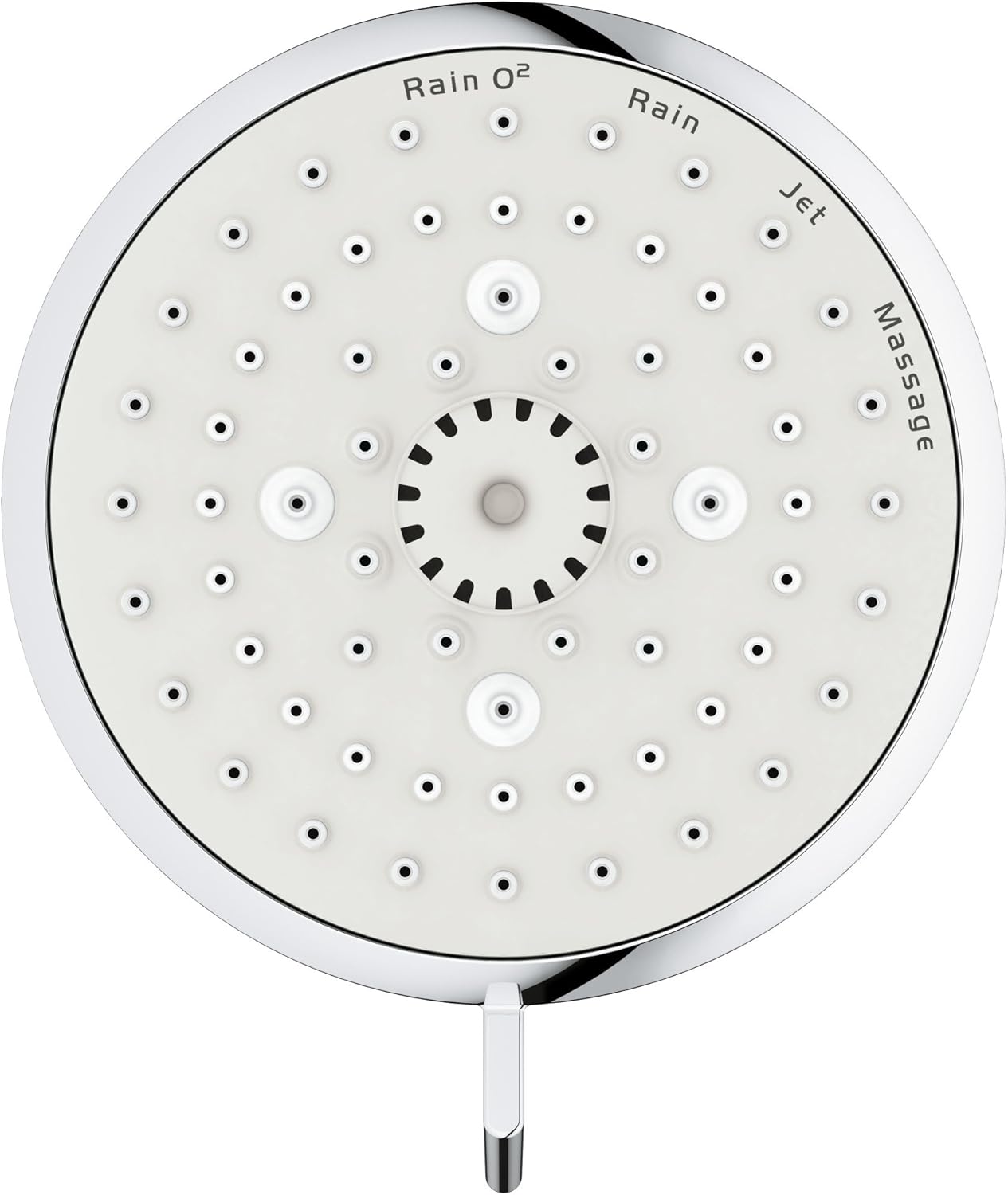

Image: A detailed view of the shower head's spray face, indicating the four distinct spray settings: Rain O², Rain, Jet, and Massage.
Setup: Installation Guide
Before beginning installation, ensure you have the necessary tools (adjustable wrench, plumber's tape) and that the water supply to your shower is turned off.
- Remove Old Shower Head: Unscrew your existing shower head from the shower arm. If it's difficult to remove, use an adjustable wrench.
- Clean Shower Arm Threads: Clean any debris or old plumber's tape from the shower arm threads.
- Apply Plumber's Tape: Wrap plumber's tape clockwise around the threads of the shower arm 3-4 times.
- Install New Shower Head: Screw the GROHE Tempesta Cosmopolitan 100 shower head onto the shower arm. Hand-tighten first, then use an adjustable wrench for a final quarter-turn, being careful not to overtighten.
- Check for Leaks: Turn on the water supply and check for any leaks around the connection. If leaks occur, tighten slightly or reapply plumber's tape.
Image: Technical diagram illustrating the dimensions and connection type (G 1/2) of the GROHE Tempesta Cosmopolitan 100 shower head.
Operating Instructions
Your GROHE Tempesta Cosmopolitan 100 shower head features four distinct spray patterns. To switch between these patterns, simply rotate the spray face of the shower head. Each click indicates a change to a new spray type.
- Rain O²: A soft, air-infused spray for a gentle and full shower.
- Rain: A wide, even spray that mimics natural rainfall.
- Massage: A pulsating spray designed to relieve tension.
- Jet: A focused, powerful spray for invigorating rinsing or cleaning.
Maintenance
Regular cleaning and maintenance will ensure your shower head performs optimally and retains its aesthetic appeal.
- SpeedClean Anti-Lime System: The flexible silicone nozzles allow you to easily wipe away limescale deposits with your finger. This should be done regularly, especially in hard water areas.
- Cleaning the Finish: Clean the GROHE StarLight Chrome finish with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals, abrasive pads, or acidic cleaners, as these can damage the chrome finish. Rinse thoroughly with water after cleaning and dry with a soft cloth to prevent water spots.
- Flow Restrictor: The 2.5 GPM flow restrictor is designed for water efficiency. Do not attempt to remove or modify it, as this may void your warranty and could lead to excessive water consumption.
Troubleshooting Common Issues
| Issue | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Limescale buildup in nozzles; partially closed shut-off valve; low household water pressure. | Clean nozzles using SpeedClean system; ensure shut-off valve is fully open; consult a plumber if household pressure is consistently low. |
| Limescale Buildup | Hard water deposits on spray nozzles. | Regularly wipe the silicone nozzles to dislodge deposits. For stubborn buildup, use a mild descaling solution designed for bathroom fixtures. |
| Leaking Connections | Improperly tightened connection; worn plumber's tape. | Ensure the shower head is securely tightened to the shower arm. If necessary, remove, reapply plumber's tape, and re-install. |
Technical Specifications
- Brand: GROHE
- Model Number: 27591001
- Product Name: Tempesta Cosmopolitan 100
- Material: Metal
- Finish Type: Starlight Chrome
- Installation Type: Wall Mounted
- Number of Spray Settings: 4 (Rain O², Rain, Massage, Jet)
- Flow Rate: 2.5 Gallons Per Minute (GPM)
- Product Dimensions: Approximately 1"L x 1"W (refer to diagram for detailed measurements)
- Item Weight: 10.5 ounces
- Size: 4 Inch face
- Included Components: Shower Head, Install Sheet
Image: Official 'Made in Germany' logo, signifying the product's origin and quality standards.
Warranty and Customer Support
Your GROHE Tempesta Cosmopolitan 100 4-Spray Shower Head is backed by a Limited Lifetime Warranty. This warranty covers defects in material and workmanship under normal use and service. For specific terms and conditions, please refer to the warranty documentation included with your product or visit the official GROHE website.
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact GROHE customer support. Contact information can typically be found on the GROHE website or on the product packaging.
