1. Introduction
This manual provides essential information for the safe and effective use of the Idec BS-001 Contact Block. The BS-001 is a normally closed (NC) contact block designed for industrial electrical applications, rated for A 600 and P 600.

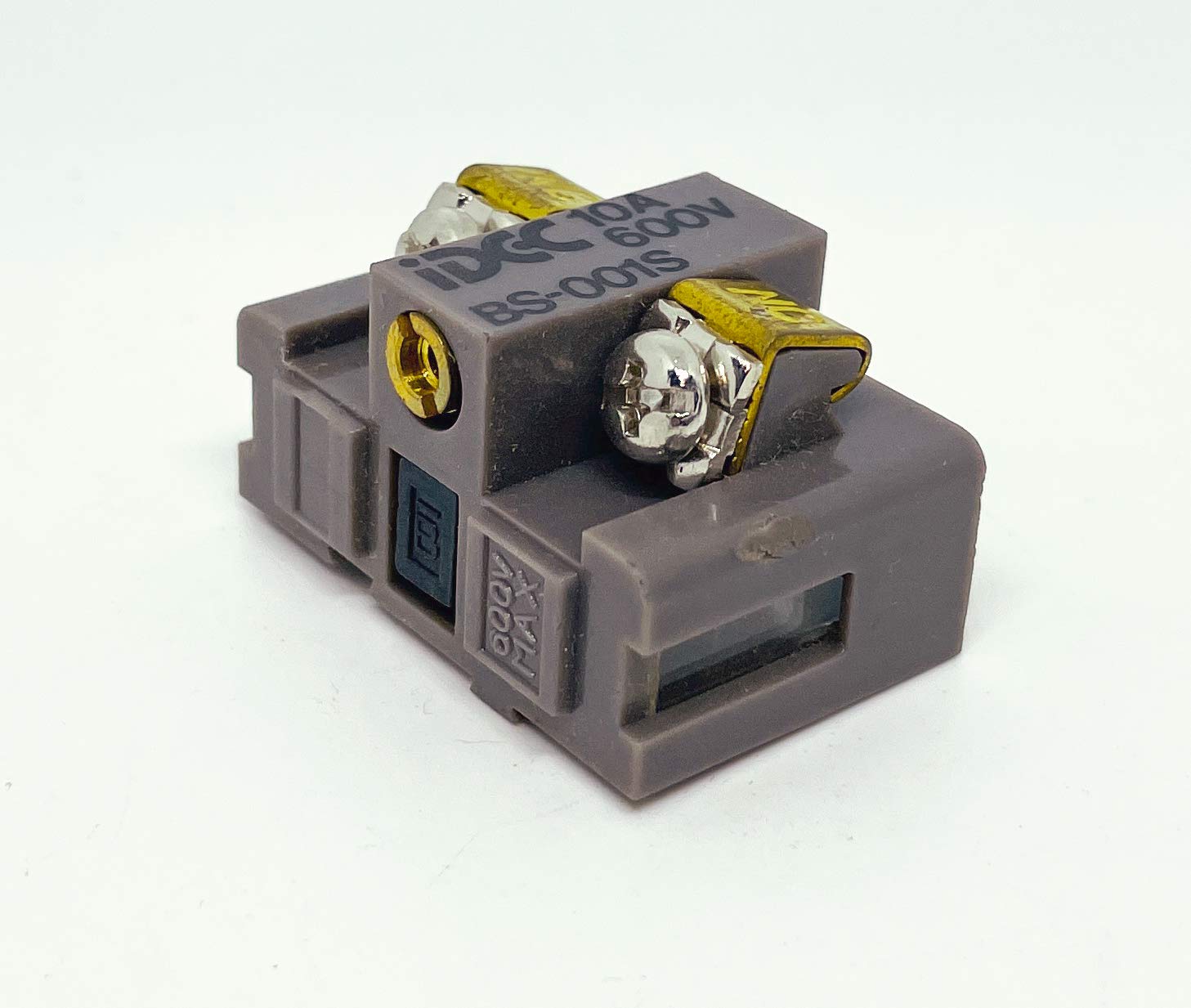

Figure 1: Front-side view of the Idec BS-001 Contact Block, showing the main body and screw terminals.
2. Safety Information
Always disconnect power before installing, servicing, or removing the contact block. Installation should be performed by qualified personnel in accordance with all local and national electrical codes. Failure to follow these instructions may result in serious injury or property damage.
- Ensure proper grounding.
- Verify voltage and current ratings before connection.
- Do not operate in environments exceeding specified temperature or humidity limits.
3. Setup and Installation
The Idec BS-001 Contact Block is designed for easy integration into control panels and electrical enclosures. It features screw-type connectors for secure wiring.
3.1 Mounting
The contact block typically mounts to a compatible operator or base unit. Ensure the mounting mechanism is secure and the block is firmly seated to prevent vibration-induced disconnections.
3.2 Wiring Connections
- Identify the Normally Closed (NC) terminals. For the BS-001, it functions as a normally closed contact.
- Strip wire insulation to the appropriate length, ensuring no loose strands.
- Insert the wire into the screw terminal and tighten the screw firmly to ensure good electrical contact. Do not overtighten.
- Verify all connections are secure and correctly wired according to your circuit diagram.
Figure 2: Top view of the Idec BS-001 Contact Block, highlighting the screw terminals for wiring connections.
4. Operating Principles
The Idec BS-001 is a Normally Closed (NC) contact block. This means that in its default, unactuated state, the electrical circuit through the contact block is closed, allowing current to flow. When actuated (e.g., by pressing a pushbutton or activating a switch operator), the contact opens, breaking the circuit.
- Normally Closed (NC): Circuit is closed when the contact is at rest.
- Actuation: When the associated operator is activated, the contact opens.
- Ratings: Rated for A 600 and P 600, indicating its suitability for specific voltage and current applications.
Figure 3: Side view of the Idec BS-001 Contact Block, illustrating the grooves for secure mounting.
5. Maintenance
The Idec BS-001 Contact Block is designed for long-term reliability with minimal maintenance. However, periodic inspection is recommended to ensure optimal performance and safety.
- Visual Inspection: Regularly check for any signs of physical damage, discoloration, or loose connections.
- Connection Integrity: Periodically verify that all screw terminals are tight and wires are securely fastened. Loose connections can lead to overheating or intermittent operation.
- Cleaning: If necessary, gently clean the exterior of the contact block with a dry, lint-free cloth. Do not use solvents or abrasive cleaners.
6. Troubleshooting
This section provides guidance for common issues that may arise with the Idec BS-001 Contact Block.
| Problem | Possible Cause | Solution |
|---|---|---|
| Contact not making/breaking circuit | Loose wiring connection Damaged contact block Incorrect mounting/actuation | Check and tighten all screw terminals. Inspect for physical damage; replace if necessary. Ensure the contact block is correctly mounted and the associated operator is functioning properly. |
| Intermittent operation | Loose wiring Vibration Contamination | Secure all connections. Ensure the mounting is firm and vibration-free. Clean the contact block exterior. |
7. Specifications
| Attribute | Value |
|---|---|
| Brand | Idec |
| Model Number | BS-001 |
| Part Number (PN) | BS-001 |
| Contact Type | Normally Closed (NC) |
| Electrical Rating | A 600, P 600 |
| Connector Type | Screw |
| Manufacturer | Idec |
| Date First Available | November 26, 2015 |
8. Warranty and Support
For warranty information or technical support regarding your Idec BS-001 Contact Block, please refer to the official Idec website or contact your authorized Idec distributor. Specific warranty terms may vary by region and purchase agreement.
