1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Idec RH4B-U General Purpose Relay. The RH4B-U is a robust electromechanical relay designed for various industrial control applications, offering reliable switching capabilities for electrical circuits. It features a compact design suitable for DIN rail mounting.
Figure 1: Side view of the Idec RH4B-U General Purpose Relay, showcasing its transparent casing and multiple blade terminals.
2. Safety Information
Always observe the following safety precautions to prevent personal injury or damage to the equipment.
- Electrical Hazard: Ensure all power is disconnected before installation, wiring, or maintenance. Work on electrical systems should only be performed by qualified personnel.
- Voltage Rating: Do not exceed the specified input voltage of 120V AC for the coil. Exceeding this voltage can damage the relay and pose a safety risk.
- Load Rating: Do not exceed the contact current and voltage ratings. Overloading contacts can lead to premature failure, overheating, and fire hazards.
- Proper Wiring: Use appropriate wire gauges and ensure all connections are secure to prevent loose connections, which can cause arcing or overheating.
- Environmental Conditions: Install the relay in an environment free from excessive moisture, dust, corrosive gases, and extreme temperatures.
3. Specifications
| Parameter | Value |
|---|---|
| Model Number | RH4B-U |
| Brand | Idec |
| Input Voltage (Coil) | 120V AC |
| Type | General Purpose Relay |
| Contact Material | Silver |
| Contact Type | Multiple contacts (typically 4PDT) |
| Mounting Type | DIN Rail Mount (requires compatible socket) |
| Connector Type | Blade Terminals |
| Product Dimensions (L x W x H) | 3.5 x 3.5 x 1.25 inches |
| Weight | 4.8 ounces |
| SKU | D440176 (KFP) |
4. Setup and Installation
The Idec RH4B-U relay is designed for easy integration into industrial control panels.
4.1. Mounting
- Ensure the power to the control panel is completely disconnected and locked out.
- The RH4B-U relay requires a compatible DIN rail mountable socket (not included) for installation. Secure the relay socket onto a standard DIN rail within your control panel.
- Align the blade terminals of the RH4B-U relay with the corresponding slots on the relay socket.
- Gently push the relay into the socket until it clicks securely into place. Ensure all terminals are fully seated.
4.2. Wiring
Refer to the wiring diagram on the relay's casing for correct terminal connections.

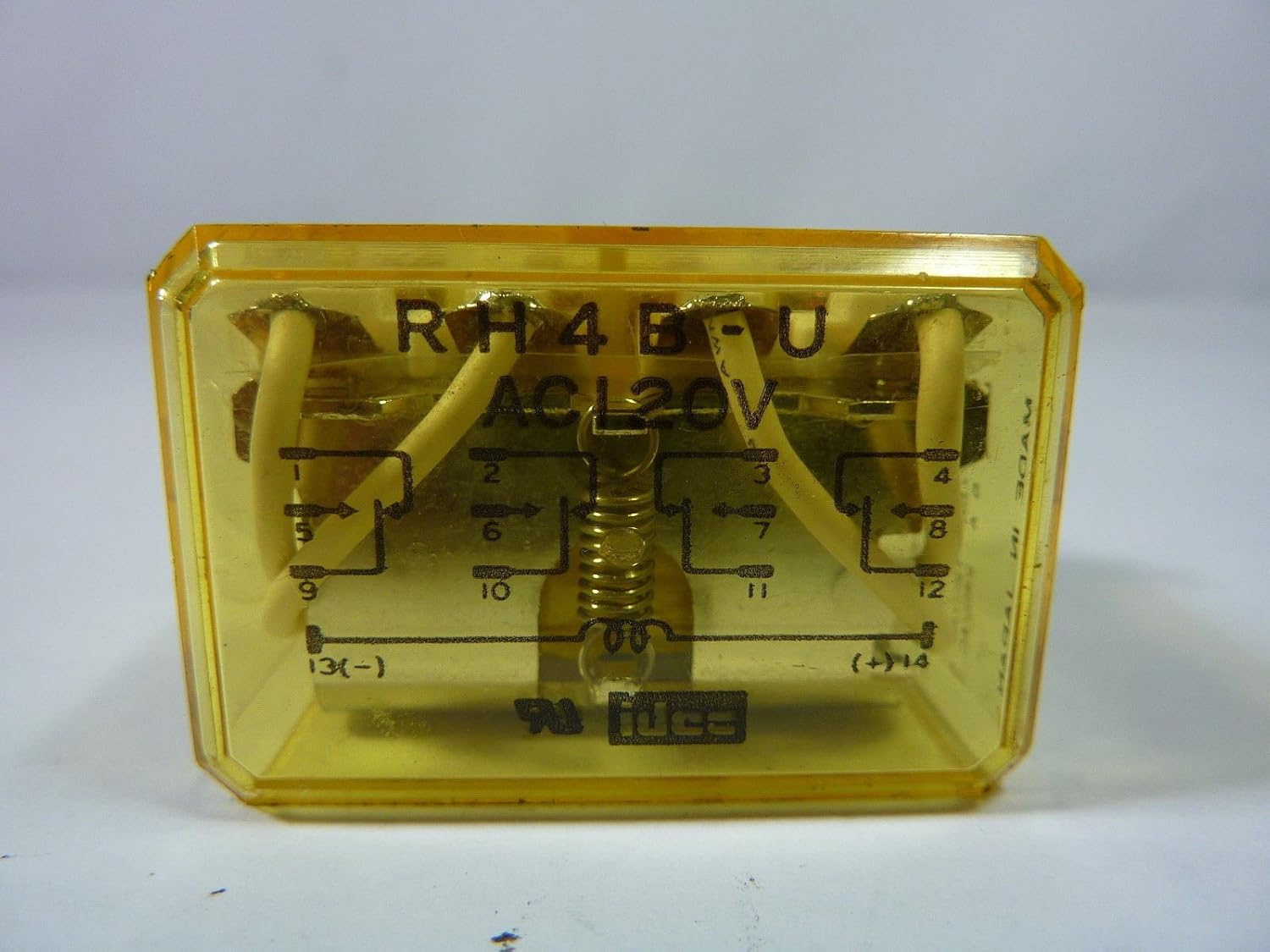

Figure 2: Front view of the Idec RH4B-U relay, displaying the integrated wiring diagram. This diagram illustrates the coil terminals (13, 14) and the multiple contact sets (e.g., 1-4, 5-8, 9-12).
- Coil Connections: Connect the 120V AC control voltage to the coil terminals (typically labeled 13 and 14 on the relay diagram).
- Contact Connections: Wire the load circuits to the appropriate contact terminals. The RH4B-U typically features four sets of changeover contacts (4PDT), allowing for various Normally Open (NO) and Normally Closed (NC) configurations. Consult the specific application requirements and the relay's internal diagram for correct load wiring.
- Ensure all wires are securely fastened within the screw terminals of the relay socket.
- After wiring, double-check all connections against your circuit diagram before applying power.
5. Operating Principles
The Idec RH4B-U is an electromechanical relay that operates on the principle of electromagnetism.
- When the specified 120V AC voltage is applied across the coil terminals (13 and 14), an electromagnetic field is generated.
- This magnetic field attracts an armature, causing the mechanical movement of the contact sets.
- Normally Open (NO) contacts close, completing the circuit, while Normally Closed (NC) contacts open, breaking the circuit.
- When the voltage is removed from the coil, the magnetic field collapses, and a spring mechanism returns the armature and contacts to their original state.
Figure 3: Top view of the Idec RH4B-U relay, revealing the internal coil and contact assembly, which are key to its electromechanical operation.
6. Maintenance
The Idec RH4B-U relay is designed for long-term reliability with minimal maintenance.
- Regular Inspection: Periodically inspect the relay and its socket for any signs of physical damage, discoloration due to overheating, or loose connections.
- Cleanliness: Ensure the relay and its surroundings are free from dust, dirt, and moisture. Use a dry, soft cloth for cleaning. Do not use solvents or abrasive cleaners.
- Contact Wear: While not typically user-serviceable, excessive arcing or pitting on contacts can indicate an overloaded circuit or end-of-life. If such signs are observed, consider replacing the relay.
- Environmental Control: Maintain stable environmental conditions as specified in the product's technical datasheet to ensure optimal performance and lifespan.
7. Troubleshooting
If the relay is not functioning as expected, consider the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Relay does not energize (no click sound) |
|
|
| Contacts do not switch or switch intermittently |
|
|
| Relay overheats |
|
|
8. Warranty and Support
For information regarding warranty coverage, technical support, or replacement parts for your Idec RH4B-U General Purpose Relay, please contact Idec Corporation directly or refer to their official website.
Idec Corporation: https://us.idec.com/
