1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and setup of your JET GH-2280ZX 22" x 80" Geared Head Metal Lathe. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.
The JET ZX Series Large Spindle Bore Lathe is designed to deliver power, precision, efficiency, and reliability for metalworking applications. Key features include a one-piece cast iron base for vibration absorption, a universal gearbox, and safety enhancements like an e-stop on the carriage.
Figure 1: Full view of the JET GH-2280ZX Geared Head Metal Lathe.
2. Safety Instructions
Always prioritize safety when operating machinery. Failure to follow safety guidelines can result in serious injury or death. This section outlines general safety practices. Refer to the full safety manual (if provided separately) for comprehensive details.
- Read the Manual: Understand all instructions and warnings before operation.
- Wear Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, and appropriate clothing. Avoid loose clothing, jewelry, and long hair.
- Work Area: Keep the work area clean, well-lit, and free from obstructions.
- Machine Condition: Inspect the lathe for damage or loose parts before each use. Ensure all guards are in place.
- Emergency Stop: Familiarize yourself with the location and operation of the emergency stop button. The GH-2280ZX features an e-stop on the carriage for increased operator safety.
- Power Disconnection: Disconnect power before performing any maintenance, adjustments, or when changing accessories.
- Secure Workpiece: Always ensure the workpiece is securely clamped in the chuck or between centers.
- Proper Tooling: Use only sharp, correctly ground cutting tools suitable for the material being machined.
3. Setup and Installation
Proper setup is crucial for the performance and safety of your lathe. Due to the weight and complexity of this machine, professional installation is recommended.
3.1 Unpacking and Placement
The JET GH-2280ZX weighs approximately 6933 pounds. Ensure the installation location has a solid, level foundation capable of supporting this weight. Use appropriate lifting equipment for unpacking and positioning.
- Carefully remove all packaging materials.
- Inspect the machine for any shipping damage. Report any damage immediately to the carrier and supplier.
- Position the lathe in an area with sufficient space for operation and maintenance, ensuring adequate clearance around all moving parts.
- Level the machine using shims under the base as necessary.
3.2 Electrical Connection
This machine requires a 3-phase, 230/460V power supply. Electrical connections must be performed by a qualified electrician in accordance with all local and national electrical codes.
- Verify the voltage and phase of your power supply match the machine's requirements.
- Ensure proper grounding.
- Install appropriate circuit protection.
3.3 Component Installation
Install included accessories such as the 10" 3-Jaw Chuck, 12" 4-Jaw Chuck, Steady Rest, and Follow Rest as needed for your specific operations. Refer to the detailed diagrams in the full product manual for precise installation steps.
Figure 2: The JET GH-2280ZX lathe with various components and accessories installed.
4. Operating Instructions
Understanding the controls and functions of your lathe is essential for safe and effective operation.
4.1 Control Panel Overview
The lathe features centrally-located controls for ease of use. Familiarize yourself with the main power switch, emergency stop button, spindle speed selectors, and feed controls.

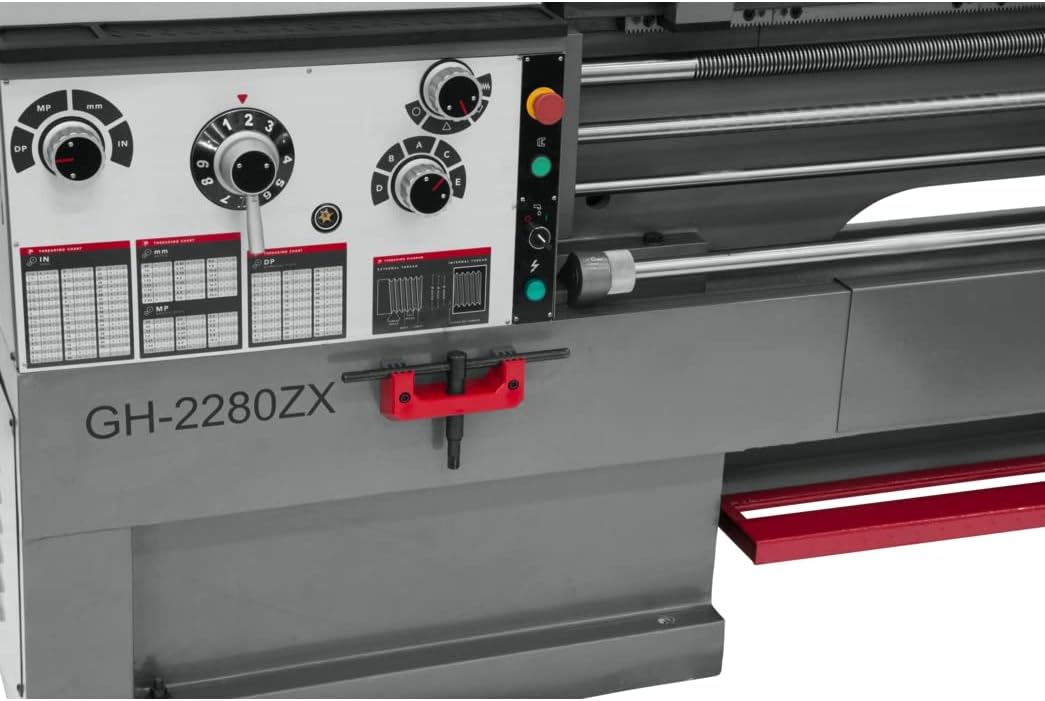

Figure 3: Close-up view of the main control panel with various dials and buttons.
4.2 Spindle Operation
The 3-1/8" bore spindle is supported by two tapered and one ball bearing. Use the spindle speed selectors to choose the appropriate RPM for your material and cutting tool. Always ensure the chuck or faceplate is securely mounted before starting the spindle.
Figure 4: View of the chuck and headstock area, showing the spindle and chuck guard.
4.3 Carriage and Tool Post
The carriage allows for longitudinal and cross-feeding operations. The GH-2280ZX features a five-position automatic carriage stop for increased productivity and precision. The tool post holds the cutting tools securely.
Figure 5: Detailed view of the carriage, tool post, and lead screw.
4.4 Threading Operations
The universal gearbox eliminates the need for manual gear changes, allowing for easy selection of inch, metric, diametral, and module pitch threads. Consult the threading chart on the machine for correct settings.
4.5 Coolant System
The fully-integrated coolant system includes a full-length splash guard and coolant return, contributing to a cleaner work environment and improved tool life. Ensure the coolant reservoir is filled with appropriate cutting fluid.

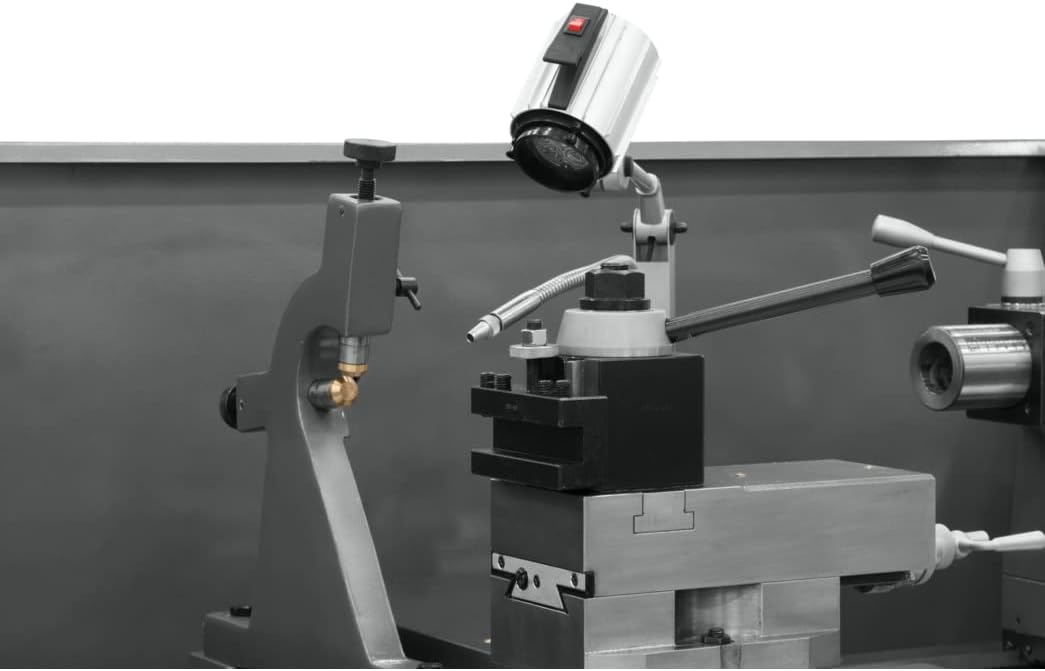

Figure 6: Work light and coolant nozzle positioned near the cutting area.
4.6 Tailstock
The tailstock is used to support long workpieces or to hold drilling and reaming tools. Ensure it is properly aligned and locked in position before use.
Figure 7: Detailed view of the tailstock assembly.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your JET GH-2280ZX lathe. Always disconnect power before performing any maintenance.
- Cleaning: After each use, clean chips and debris from the bed, carriage, and other surfaces. Use a brush or shop vacuum; never use compressed air to blow chips towards yourself or others.
- Lubrication: Regularly lubricate all moving parts, including the lead screw, feed rod, and gearbox components, according to the lubrication schedule provided in the comprehensive manual.
- Inspection: Periodically inspect belts, gears, and electrical connections for wear or damage. Replace worn components as necessary.
- Coolant System: Clean the coolant tank and filter regularly to prevent buildup and maintain coolant effectiveness.
6. Troubleshooting
This section provides general guidance for common issues. For complex problems, contact qualified service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | No power, emergency stop engaged, circuit breaker tripped. | Check power supply, disengage e-stop, reset circuit breaker. |
| Excessive vibration | Unbalanced workpiece, loose mounting, worn bearings, improper cutting conditions. | Balance workpiece, tighten mounting bolts, inspect bearings, adjust cutting speed/feed. |
| Poor surface finish | Dull cutting tool, incorrect speed/feed, excessive tool overhang, machine chatter. | Sharpen/replace tool, adjust speed/feed, reduce tool overhang, check machine rigidity. |
7. Specifications
Key technical specifications for the JET GH-2280ZX Geared Head Metal Lathe:
| Specification | Value |
|---|---|
| Model Number | GH-2280ZX |
| Manufacturer | Jet |
| Spindle Bore | 3-1/8 inches |
| Power Source | Corded Electric |
| Voltage | 230 Volts (3-Phase) |
| Horsepower | 10 HP |
| Item Weight | 6933 pounds |
| Product Dimensions | 136 x 45 x 69 inches |
| Material | Cast Iron |
| Included Components | Lathe, Steady Rest, Follow Rest, 10" 3-Jaw Chuck, 12" 4-Jaw Chuck, Tool Box (with tools) |
8. Warranty Information
The JET GH-2280ZX Geared Head Metal Lathe is backed by a 2-Year Warranty. This warranty covers defects in materials and workmanship under normal use. For specific terms, conditions, and claim procedures, please refer to the official JET warranty documentation or contact JET customer support.
Figure 8: JET Red Assurance 2-Year Warranty.
JET also performs a 30-Point Inspection on its products to ensure quality and reliability.
Figure 9: JET Red Assurance 30 Point Inspection.
9. Customer Support
For technical assistance, parts, or service inquiries regarding your JET GH-2280ZX lathe, please contact JET customer support. You can typically find contact information on the official JET website or in the packaging materials.
Visit the official JET Store for more information and product resources.
