ZYXEL NETWORKS RM-ZN-T1 Network Device Mounting Kit Owner’s Manual

RM-ZN-T1 Network Device Mounting Kit

“

Specifications:

• Model: RM-ZN-T1
• Vendor: Zyxel Networks
• Supported Models: USG Flex 100, USG Flex
  100AX, USG Flex 100H, USG Flex 100HP, USG Flex 100W, USG Flex 50,
  USG Flex 50AX, USG Flex 50H, USG Flex 50HP
• Color: Silver
• Dimensions (HxWxD): 44 x 483 x 217 mm / 1.73 x
  19.00 x 8.54 inch

Mounting Instructions:

1. Unscrew the middle screw on the back of the appliance.
2. Slide your appliance through the front of the rack and secure
   it with one bolt.
3. Place the power supply on the rack and secure it with two zip
   ties.
4. Connect the power supply to the appliance and tie down the
   excess length to the rack with one zip tie.
5. Connect the appliance to the keystones using the supplied
   cables.
6. Tie the cables together using the Velcro strap.

Please ensure proper ventilation according to the network
appliance manufacturer’s guidelines.

Package Contents:

• 1 Rackmount kit
• 1 Bolt
• 3 Zip ties
• 9 Cat 6 cables
• 2 Velcro straps

Appliance not included.

CONSIDER THE ENVIRONMENT, RECYCLE WHERE
APPLICABLE

FAQ:

1. Question: How can I get support?

Answer: For support, you can email
support@rackmount.it or contact your reseller.

Install Guide – 25-06-2025

“`

RM-ZN-T1

VENDOR ZYXEL NETWORKS

SUPPORTED MODELS
USG Flex 100 USG Flex 100AX USG Flex 100H USG Flex 100HP USG Flex 100W USG Flex 50 USG Flex 50AX USG Flex 50H USG Flex 50HP

COLOR SILVER
DIMENSIONS
(HxWxD)
44 x 483 x 217 mm 1.73 x 19.00 x 8.54 inch

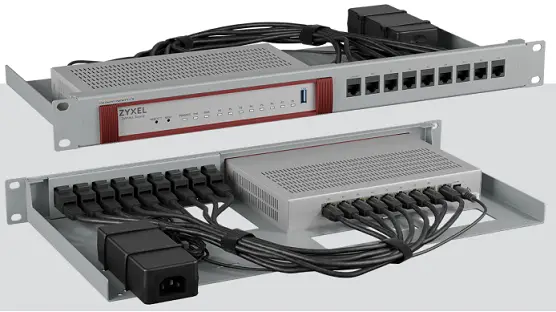

MOUNTING INSTRUCTIONS 1. Unscrew the middle screw on the back of the appliance. 2. Slide your appliance through the front of the rack and secure it with one bolt. 3. Place the power supply on the rack and secure with two zip ties. 4. Connect the power supply to the appliance and tie down the exces lenght to
the rack with one zip tie. 5. Connect the appliance to the keystones using the supplied cables. 6. Tie the cables together using the Velcro strap.
Please ensure proper ventilation according to the network appliance manufacturer’s guidelines.

PACKAGE CONTENTS 1 Rackmount kit 1 Bolt 3 Zip ties 9 Cat 6 cables 2 Velcro straps
Appliance not included.
CONSIDER THE ENVIRONMENT, RECYCLE WHERE APPLICABLE

QUESTIONS
Email support@rackmount.it or contact your reseller.

Install Guide – 25-06-2025
