TE-02 PROH
Temperature and Humidity
Data Logger
User Manual

Product Introductions

ThermElc TE-02 PRO H is used for monitoring temp- erature and humidity of the sensitive goods during storage and transportation. TE-02 Pro H is integrated with USB & Plug-N-Play features for auto-generating secured PDF & CSV report without requiring addit onal Hardware (cable/interface) or software. TE-02 Pro H dataloggers are equipped with highly precise sensor with accuracy of £0.5°C for entie range of – 30°C to +60°C and +3% rH

Main Feature

• Multiple use temperature & humidity logger
• Auto generates PDF reports
•  Auto generates CSV reports
• Logging of 32000 points
• No special device driver required
• Temperature and humidity over-limit alarm

Specification of ThermElc

TE-02 PRO H

Type	Reusable / Multiple Use	Dimension	89 mm x 36 mm x 16 mm
Measurement Range	-30°C to +60°C	Weight	approx. 30 Grams
Accuracy	±0.5°C(-30°C to +60°C)	Certifications	El112830, CE
Humidity Range	0% to 100% rH	Validation Certificate	Hard Copy Included
Humidity Accuracy	±3% rH	Report	Self-Generated PDF + CSV
Memory Capacity	32,000 Values	Alarm Range	High & Low Alarm
Recording Interval	10 sec to 18 Hrs (Customizable)	Connectivity	USB 2.0
Battery Type	3V / Replaceable CR2032	Protection Class	IP65

Quick Start

Quick Start
ThermELC TE-02 PRO H

1. softvare Dowrioas.
   https://www.thermelc.com/pages/download  config your parameter

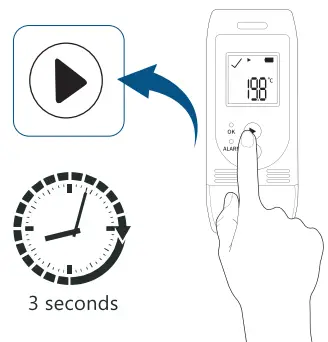

2. Press start 3 seconds

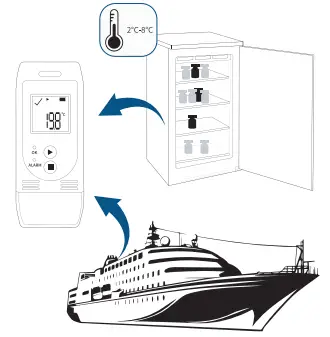

3. Measure Monitoring
4. Read
5. ReportAuto PDF. CSV Report Data & Graphic Comparison Available
6. Helps https://www.thermelc.com/pages/contact-us

Operation Functions

1. Start Recording
   Press and hold the START button for approximately 3sec.The OK light is on and the () or (WAIT) on scr- een indicates the logger is started.
2. Mark
   When the device is recording, press and hold the START button for more than 3sec, and the screen will switch to the “MARK’ interface. The number of MARK” willincrease by one, indicating data was marked suc- cessfully.
3. stop Recording
   Press and hold the STOP button for more than 3sec until the STOP ( ) symbol displays on the screen, indicating stopping recording successfully.
4. Switch the display
   Shortly press START button to switch to different dis- play interface. The interfaces shown in sequence are respectively: Real-time Temperature > Real-time Hu- midity > LOG > MARK > Temperature Upper Limit > Temperature Lower Limit > Humidity Upper Limit > Humidity Lower Limit.
5. Get Report

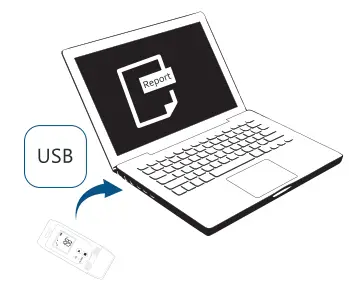

   Connect the data logger to PC via USB, and it will auto-generate PDF and CSV reports.

LCD Display Instructions

	Data logger s recording
	Data logger has stopped recording
WAIT	Data logger s in Sart Delay satus,
√	Temperature and Humidity Is within the limited range
Xand↑	Measured value exceeds it upper limit
Xand↓	Messured value exceeds s lower imit

Battery Replacement

Technical Support

https://thermelc.com/pages/support

Video Instruction

https://www.youtube.com/channel/UCVcVdaeDAISsSzAxqYYj_jw

https://www.thermelc.com
sales@thermelc.com
+44 (0)207 1939 488
