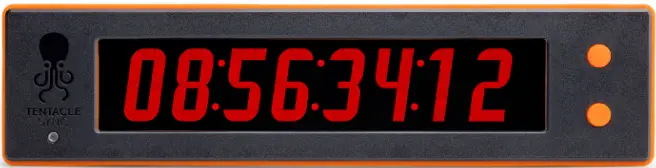

TENTACLE SYNC 002 Multipurpose Timecode Display

TENTACLE-SYNC-002-Multipurpose-Timecode-Display-product

FAQ

Frequently Asked Questions

  • Q: How do I update the firmware of the device?
    • A: Connect the device to a computer using the USB-C port and follow the instructions provided in the firmware update section of the user manual.
  • Q: How do I charge the device?
    • A: Use a compatible USB-C cable to connect the device to a power source for charging.
  • Q: How do I adjust the brightness settings?
    • A: Press the BRIGHTNESS button on the device to adjust the brightness level. Press it twice for a Brightness Boost for 30 seconds.

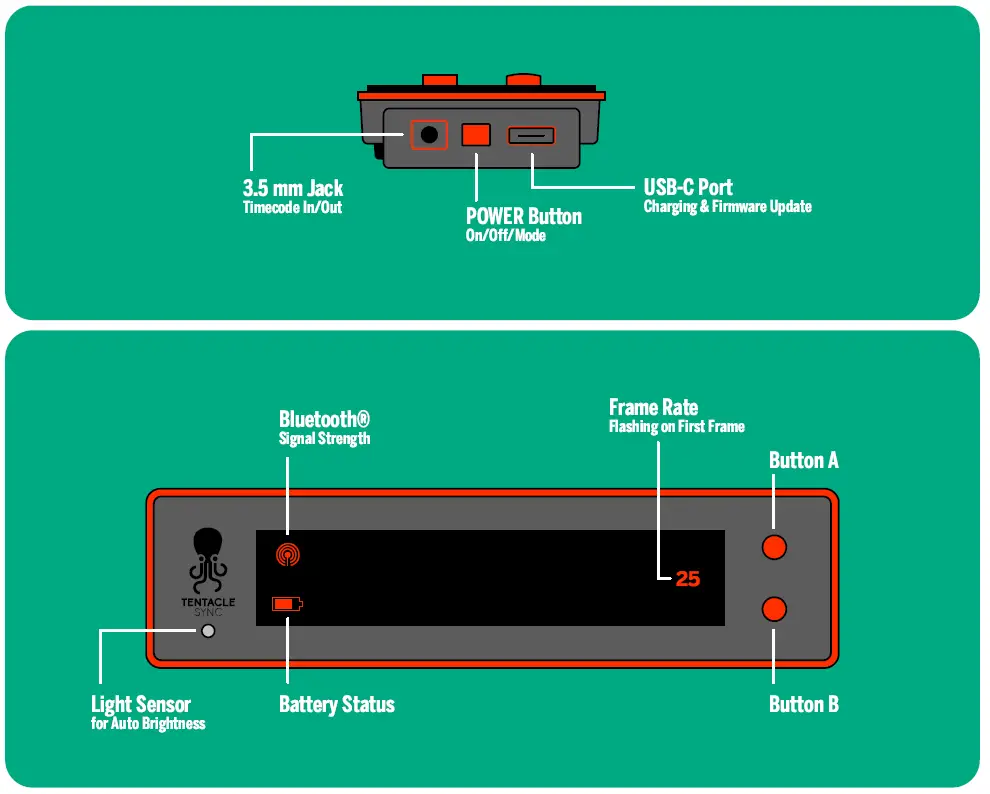

Product Overview

TENTACLE-SYNC-002-Multipurpose-Timecode-Display-fig-1

Using Instructions

POWER ON

  • Short press POWER: Timebar starts up waiting to be synchronized by app or external timecode
  • Long press POWER: Timebar starts up generating timecode with Time of Day (RTC)

POWER OFF

  • Long press POWER: Timebar turns off

BRIGHTNESS

  • Press A & B at once: Enter Brightness Selection
  • Press A or B: Select Brightness Level (1–31/Auto)

BRIGHTNESS BOOST

  • Press A & B twice: Brightness Boost for 30 Seconds

MODE

Press POWER: Enter Mode Selection

  • Press A or B: Browse Modes
  • Press POWER: Select Mode

TIMECODE

  • A: Show User Bits for 5 Seconds
  • B: Hold Timecode for 5 Seconds

TIMER

  • A: Select one of 3 Timer Presets
  • B: Start/Stop

STOPWATCH

  • A: Reset Stopwatch
  • B: Start/Stop

MESSAGE

  • A: Select one of 3 Message Presets
  • B: Start/Stop

All these functions and other settings are also accessible through the Tentacle Setup App.

Documents / Resources

TENTACLE SYNC 002 Multipurpose Timecode Display [pdf] User Guide
002, 002 Multipurpose Timecode Display, Multipurpose Timecode Display, Timecode Display, Display
