Specifications

Dynamic Program 99 programs
Dynamic Speed 10 levels
Dynamic Length 16-500
Demo Mode Yes
Static Color 29 colors
Static Brightness 10 levels
Working Voltage 5~24 VDC
Driving Capacity 800 pixels
Control mode RF wireless remote
Remote Frequency 433.92MHz
Remote Distance >15 meters (50ft) in open air
FCC ID 2ACJPRM03

Product Usage Instructions

Power Input and Signal Output:
The power input is through the DC jack with the inner pin positive and the outer contact negative. The signal output includes Black/Ground, Green/Clock, Red/Data, and Blue/12V+.

Remote Functions:
The remote functions include Power Input, Signal Output, Mode Adjust, Speed (Brightness) Adjust, Pause/Play, Turn On/Standby, Unit Length (Static Color) Adjust, Program direct selection keys, Static Color Mode, Demo Mode, and Remote Controller indicator.

Controller Installation:
Follow the provided instructions for connecting the Color Chasing RGB LED Flexible Light Strip (SWDC-RGB-240) and the Power Supply (GS60A12-P1J) to the Color Chasing RGB Controller (MCB-RGB-DC99).

Battery Safety:
Ensure safe handling and disposal of the CR2025 3V Battery included with the product.

Important: Read all instructions prior to installation.

Color Chasing RGB LED Controller with Remote

Parts Included

  • 1 – LED Controller
  • 1 – Wireless Remote
  • 1 – CR2025 3V Battery

Remote Functions

  1. Power Input
    The power supply input. The DC jack’s inner pin is positive and outer contact is negative.
  2. Signal Output
    Black / Ground, Green / Clock Red / Data Blue / 12V+
  3. Mode Adjust
    Selects running mode.
    Advance to next mode by pressing ‘MODE+’ or advance to previous mode by pressing ‘MODE-’.
  4. Speed (Brightness) Adjust
    Sets running speed of a dynamic mode or brightness of a static color. There are 10 different levels for both speed and brightness.
  5. Pause / Play
    Toggles between Play and Pause modes. Button will also release pause mode and start to play if running mode is changed.
  6. Turn On / Standby
    Turns on or switches to standby mode. Main unit will memorize current setting. When power is restored to the unit, it will automatically restore to previous state.
  7. Unit Length (Static Color) Adjust
    Adjusts playing unit length during dynamic modes or adjusts color during static color modes. On static color mode, press these keys to access one of 29 preset colors.
  8. Program direct selection keys
    User can directly select a program by the Enter and Number keys. For example, if you want to run program #58, press number 5 and then 8. Press Enter key to send the command.
  9. Static Color Mode
    User can directly select a static color by pressing 0, 0 then Enter. Use the Length (+) / Length (-) to select color.
  10. Demo Mode
    Switch to demo mode. In demo mode, the controller will automatically cycle through 99 dynamic programs.
  11. Remote Controller indicator
    The blue indicator will light up when remote controller is sending a command. When directly selecting a pattern with the 0-9 buttons, the blue indicator will flash up to seven times before the last key input is ignored. All digits and enter need to be input with no more than 7 seconds between button presses.

WARNING

  • INGESTION HAZARD: This product contains a button cell or coin battery.
  • DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
  • KEEP new and used batteries OUT OF REACH of CHILDREN
  • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body

Remote Pairing Options

  • Controller and remote are 1 to 1 paired as default. Controller can only be controlled by a paired remote. When an extra remote is needed or the controller needs to be matched to another remote, the user can match the remote by following the instructions below.

Pairing a New Remote
Unplug controller power and plug in again after waiting 10 seconds. Press the ‘MODE-’ and ‘LENGTH-’ keys at same time once within 5 seconds after the power is on, then release the keys and press the ‘SPEED+’ key once within another 5 seconds. The controller can be paired to maximum 5 remotes.

Pairing to Any Remote

  • Unplug the controller power and plug in again after 10 seconds.
  • Press the ‘MODE-’ and ‘LENGTH-’ keys at same time once within 5 seconds after power is on, then release the keys and press the ‘DEMO’ key once within another 5 seconds.

Pairing to One Remote
Unplug controller power and plug in again after 10 seconds. Press the  ‘MODE-’ and ‘LENGTH-’ keys at the same time once within 5 seconds after power is on, then release the keys and press ‘SPEED-’ key once within another 5 seconds.

Controller Installation

Pre-test LED Configure

  • Remove strip from the reel and make connections to the controller and power supply (see “Method 1” diagram). Turn on the strip using the included remote control to ensure proper operation of the strip, controller, power supply, and remote.
  • See Method 1 diagram for a guide to installing and connecting LED strip to included controller and power supply for your application. Choose a suitable location for the power supply and controller. Direct line of sight is not required with RF remote control.

Power Supply
The power supply jack is a 5.5mm diameter DC socket. The main unit can work at DC 5V to 24V. Since the power supply is directly connected to the LED signal output, make sure the power voltage matches the LED strip requirement, incorrect voltage may damage LED strip.

Output Signal
The output signal is from an LC4 type plug. LEDs may not work properly if the data cable is too long or gets interfered with. Max run is 50 meters or 10 strips.

Battery Safety

  • Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate.
  • Even used batteries may cause severe injury or death.
  • Call a local poison control center for treatment information.
  • Non-rechargeable batteries are not to be recharged.
  • Do not force discharge, recharge, disassemble, heat above (manufacturer’s specified temperature rating) or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.
  • Ensure the batteries are installed correctly according to polarity (+ and -).
  • Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or rechargeable batteries.
  • Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of time according to local regulations.
  • Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep them away from children.

Important: Read all instructions prior to installation.

Color Chasing RGB LED Controller

Connection Method 1 (Single 5m Strip)

superbrightleds-MCB-RGB-DC99-Color-Chasing-RGB-LED-Controller-with Remote-fig- (3)

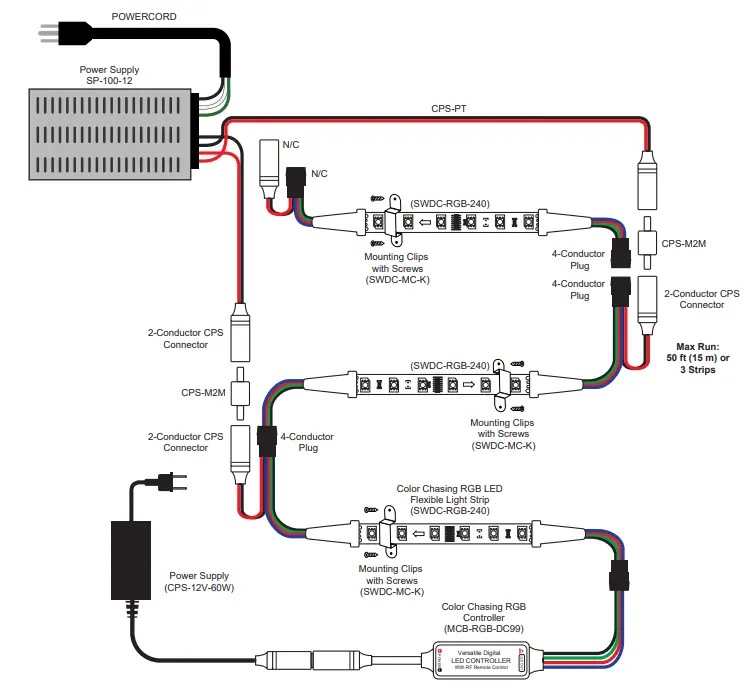

Connections Method 2 (Multiple 5m Strip)

superbrightleds-MCB-RGB-DC99-Color-Chasing-RGB-LED-Controller-with Remote-fig- (4)

FCC Statement

  • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
    1. This device may not cause harmful interference, and
    2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Static Programs

0 Static Colors
1 Cool White
2 Red
3 Orange
4 Orange Yellow
5 Green Yellow
6 Yellow Green
7 Green
8 Blue Green
9 Aqua Green
10 Aqua Blue
11 Turquoise
12 Cerulean Blue
13 Blue
14 Blue Violet
15 Violet
16 Purple
17 Fusha
18 Pink
19 Light Pink
20 Warm White
21 Natural White
22 Pale Green
23 Lime
24 Royal Blue
25 State Blue
26 Orchid
27 Plum
28 Cyan
29 Sky Blue

Dynamic Programs

1 Full color forward sequence   51 Blue on White open
2 Full color reverse sequence 52 Blue on White close
3 Full color middle open 53 Red on White forward
4 Full color middle close 54 Red on White reverse
5 6-color forward comet 55 Red on White open
6 6-color reverse comet 56 Red on White close
7 6-color comet open 57 Green on White forward
8 6-color comet close 58 Green on White reverse
9 3-color forward comet 59 Green on White open
10 3-color reverse comet 60 Green on White close
11 3-color comet open 61 Green ping pong
12 3-color comet close 62 Green ping pong with dim
13 Red sandglass 63 Red ping pong
14 Green sandglass 64 Red ping pong with dim
15 Blue sandglass 65 Blue ping pong
16 3-color sandglass 66 Blue ping pong with dim
17 6-color forward flow 67 Yellow ping pong
18 6-color reverse flow 68 Yellow ping pong with dim
19 6-color open 69 Purple ping pong
20 6-color close 70 Purple ping pong with dim
21 3-color forward 71 Cyan ping pong
22 3-color reverse 72 Cyan ping pong with dim
23 3-color open 73 3-color ping pong
24 3-color close 74 3-color ping pong with dim
25 Red on Purple forward 75 6-color ping pong
26 Red on Purple reverse 76 6-color ping pong with dim
27 Red on Purple open 77 White on Blue ping pong
28 Red on Purple close 78 Green kissing
29 Red on Green forward 79 Green kissing with dim
30 Red on Green reverse 80 Red kissing
31 Red on Green open 81 Red kissing with dim
32 Red on Green close 82 Blue kissing
33 Green on Yellow forward 83 Blue kissing with dim
34 Green on Yellow reverse 84 3-color kissing with dim
35 Green on Yellow open 85 6-color kissing with dim
36 Green on Yellow close 86 Green snake
37 Green on Cyan forward 87 Green snake with dim
38 Green on Cyan reverse 88 Red snake
39 Green on Cyan open 89 Red snake with dim
40 Green on Cyan close 90 Blue snake
41 Blue on Purple forward 91 Blue snake with dim
42 Blue on Purple reverse 92 White snake on Blue
43 Blue on Purple open 93 White snake on Red
44 Blue on Purple close 94 White snake on Green
45 Blue on Cyan forward 95 3-color chase
46 Blue on Cyan reverse 96 6-color chase
47 Blue on Cyan open 97 3-color sway
48 Blue on Cyan close 98 6-color sway
49 Blue on White forward 99 6-color jump
50 Blue on White reverse

FAQs

Q: Is the MCB-RGB-DC99 controller compatible with multiple 5m strips?
A: The MCB-RGB-DC99 controller is only compatible with the SWDC-RGB-240 strip as mentioned in the user manual. For multiple strips, follow the recommended connection method provided in the manual.
