1. Produk Langkungview
The JBL Arena 26Be is a 2-way component speaker system designed for car audio applications. It features carbon fiber woofers and beryllium dome tweeters, engineered for accurate audio reproduction. This system includes precision crossover networks to ensure optimal sound integration between the drivers.
Fitur konci:
- Carbon Fiber Woofers: 6-1/2" woofers designed for robust and accurate low-frequency reproduction.
- Beryllium Dome Tweeters: Oval ceramic-coated, cast-aluminum acoustic lens waveguide for enhanced off-axis response and high-frequency clarity up to 40,000 Hz.
- 2-Way Crossover Network: Selectable crossover points at 2500 Hz or 3500 Hz, with a 3-position tweeter level adjustment.
- Penanganan kakuatan: Up to 100 watts RMS (200 watts peak power).
- Tanggapan Frékuénsi: 60-40,000 Hz.
- Sensitipitas: 91 dB at 2.83 volts/1 meter.
- Included Grilles: Acoustically optimized metal grilles for protection and aesthetic integration.
2. Instalasi jeung Setup
Proper installation is crucial for optimal performance. It is recommended that installation be performed by a qualified professional. Ensure the vehicle's power is disconnected before beginning installation.
2.1 Ngabongkar bungkusan sareng Idéntifikasi Komponén
Sacara saksama ngabongkar sadaya komponén sareng pariksa kana daptar bungkusan:
- 2x Woofer
- 2x Tweeters (with 5" wire attached)
- 2x Crossover
- 2x Woofer grilles
- 2x Flush-mount tweeter housings
- 2x Threaded flush-mount housing retention nuts
- 2x Angled surface-mount tweeter housings
- 2x Starfish dipasang tweeter
- Mounting hardware (screws, speed clips)
- 2x Adhesive backed trim rings
- Adhesive backed foam gasket strip
2.2 Pamasangan Woofer
Install the 6.5-inch woofers into the desired mounting locations. Ensure a secure fit using the provided screws and speed clips. The woofers are designed for flush mounting.
Gambar: Hareupeun view of the JBL Arena 26Be carbon fiber woofers, showing the speaker cone and mounting holes.
Gambar: Tukangeun view of the JBL Arena 26Be woofers, showing the magnet structure and terminal connections.
2.3 Pamasangan Tweeter
The beryllium dome tweeters can be installed using either the flush-mount or angled surface-mount housings. Select the housing that best suits your vehicle's interior and desired sound staging. Secure the tweeters using the appropriate mounts and hardware.
2.4 Crossover Network Connection
Connect the woofers and tweeters to the passive crossover networks. The crossover unit manages the frequency distribution to each speaker component. Refer to the wiring diagram in the full manual for specific connections. The crossover offers selectable points (2500 Hz or 3500 Hz) and a 3-position tweeter level adjustment to fine-tune the sound.

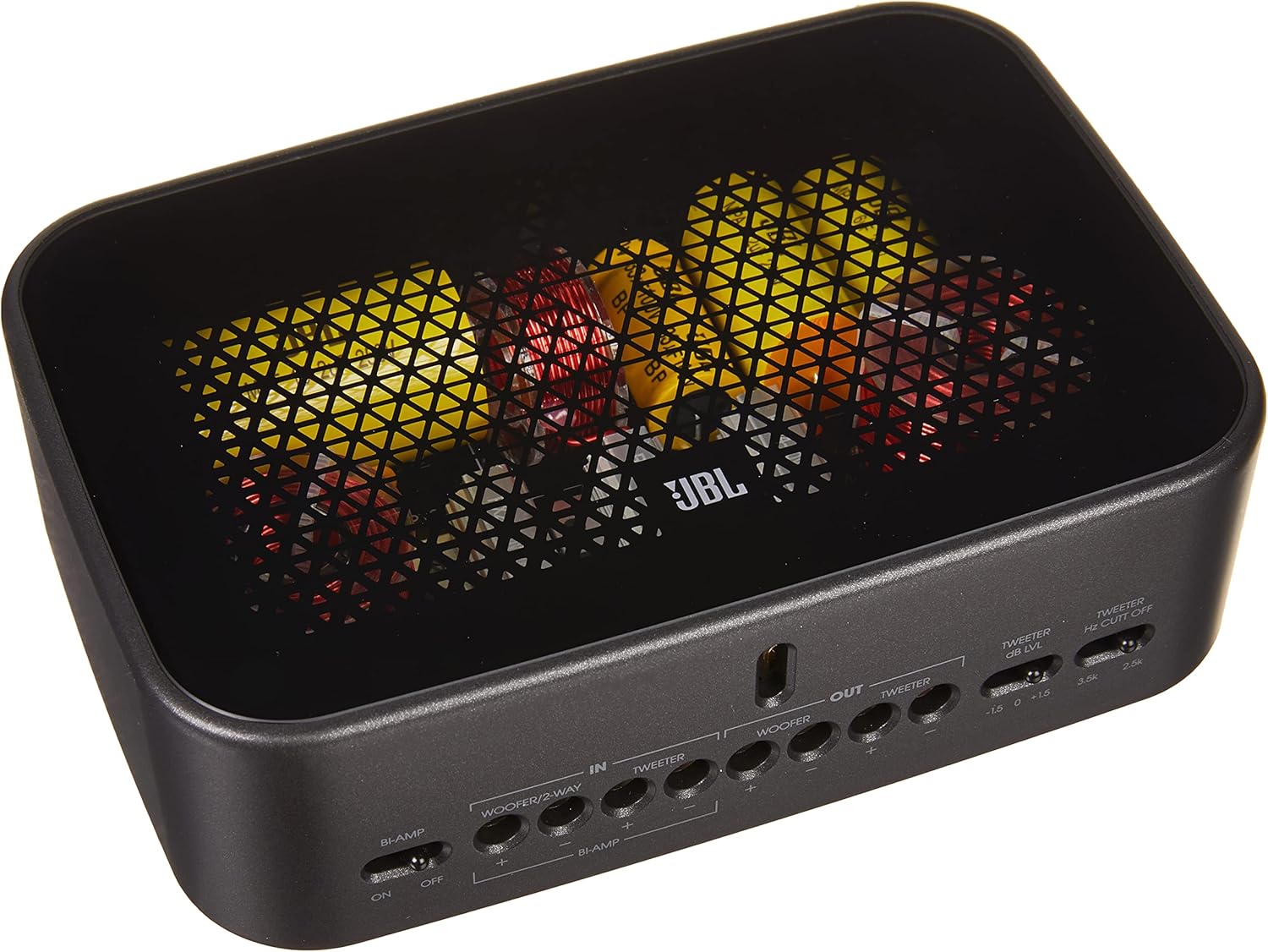

Image: The JBL Arena 26Be 2-way crossover network, showing input and output terminals, and adjustment switches.
Pastikeun sadaya sambungan aman sareng insulated leres pikeun nyegah sirkuit pondok.
3. Parentah Operasi
Once installed, the JBL Arena 26Be speaker system operates as part of your vehicle's audio system. These speakers are designed to deliver stereo audio output.
3.1 Ngaronjatkeun Daya sareng Uji Coba Mimiti
- After installation, reconnect the vehicle's power.
- Turn on your car audio head unit at a low volume.
- Gradually increase the volume and listen for clear audio output from all speakers.
- Adjust the tweeter level on the crossover network if necessary to achieve desired high-frequency balance.
3.2 Setélan Audio
Utilize your head unit's audio settings (equalizer, balance, fader) to optimize the sound for your vehicle's acoustics and personal preference. The speakers are capable of handling up to 100 watts RMS, so ensure your amplifier's output matches this specification to prevent damage.
4. Pangropéa
The JBL Arena 26Be speaker system requires minimal maintenance to ensure long-term performance.
- beberesih: Anggo kaén anu garing sareng lembut pikeun ngusap hampang spiker sareng sakurilingna. Hindarkeun ngagunakeun bahan kimia anu kasar atanapi pembersih abrasive.
- Pamariksaan: Périodik pariksa sambungan spiker keur tightness tur pastikeun euweuh kawat anu frayed atawa kakeunaan.
- Faktor Lingkungan: While robust, avoid exposing speakers to extreme moisture or direct sunlight for prolonged periods, as this can affect material integrity. The product is not waterproof.
5. Cara ngungkulan
If you experience issues with your JBL Arena 26Be speaker system, refer to the following common troubleshooting steps:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Teu aya sora ti panyatur | Loose wiring connection; Amplifier off or faulty; Head unit settings incorrect. | Pariksa sagala speaker na ampsambungan lampu. Pastikeun amplifier is powered on. Verify head unit output settings. |
| Sora distort | Volume teuing tinggi; Amplifier clipping; Incorrect crossover settings; Damaged speaker. | Ngurangan polumeu. Cék amplifier gain settings. Verify crossover points and tweeter level. Inspect speakers for physical damage. |
| Hiji spiker teu jalan | Loose connection to that speaker; Faulty speaker wire; Damaged speaker or crossover channel. | Check connections for the specific speaker. Test speaker with a known good source if possible. Inspect crossover output for that channel. |
| Kurangna bass atanapi treble | Incorrect crossover settings; Head unit EQ settings; Phase issues. | Adjust crossover points and tweeter level. Check head unit equalizer settings. Ensure speakers are wired in phase. |
If problems persist after attempting these solutions, contact JBL customer support or a qualified car audio technician.
6. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | JBL |
| Nomer modél | JBLSPKAR26BEAM |
| Tipe Speaker | 2-Way Component System (Woofer, Tweeters) |
| Diaméterna Woofer | 6.5 inci |
| Tipe Tweeter | Beryllium Dome |
| Speaker Maksimum Kaluaran Power | 200 Watt (Puncak) |
| RMS Power nanganan | 100 Watt |
| Réspon Frékuénsi | 60-40,000 Hz |
| Sensitipitas | 91 dB at 2.83 volts/1 meter |
| Crossover nunjuk | 2500 Hz atawa 3500 Hz (bisa dipilih) |
| Adjustment Tingkat Tweeter | 3-posisi |
| Mode Kaluaran Audio | Stereo |
| Tipe Pamasangan | Flush Mount (Woofers) |
| Warna | Hideung |
| Nyaéta Waterproof | PALSU |
| Ukuran barang (D x W x H) | 18.2"D x 16.1"W x 18.2"H (Packaging/Overall) |
| UPC | 050036379137 |
7. Émbaran jaminan
This JBL Arena 26Be speaker system is covered by a 1 Taun Produsén Garansi. Garansi ieu nyertakeun cacad dina bahan sareng pagawean dina panggunaan normal. Punten tahan bukti pameseran anjeun pikeun klaim garansi.
For detailed warranty terms and conditions, please refer to the official JBL warranty documentation included with your product or visit the official JBL websitus.
8. Rojongan
For technical assistance, product inquiries, or warranty service, please contact JBL customer support. You can find contact information on the official JBL websitus atawa ngaliwatan dokuméntasi disadiakeun kalawan produk Anjeun.
Sumberdaya Online: For additional information and support, visit the official JBL Store: Toko Resmi JBL
