RETROFLAG 64Pi Case for Raspberry Pi5 SD Card Storage

Impotent Information

Please be careful when handling the parts.
It is not our responsibility for any damage caused in use.
Waining: Please make sure there is NO MicroSD inserted before assembling.

2.4G WiFi might be affected by the environment and USB 3.0, recommend use 5G WiFi or wired connect to network.

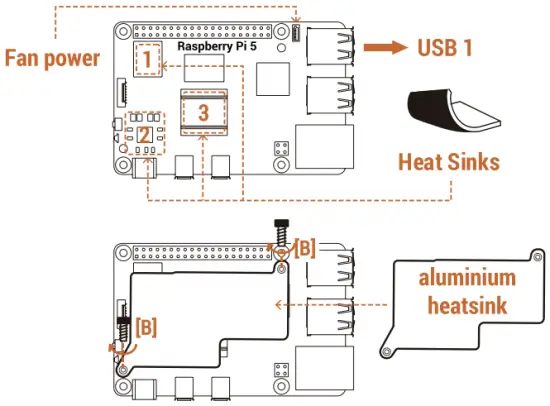

Install heat sinks

Step 1

Parts

(A)
( PB 2.5 X 5 ) * 4

(B)
(PW1.7×5) *2

(C)
(PB 2 x 7) *2

( D )
(PB 2 x 18) *2

1. ( 12.5 x 9. 9 x 1 ) * 1

2. ( 16.5 x 11. 7 x 2) * 1

3. [19 x 19 x 1) *1

   [Fan] ( 30 x 30 x 7 ) *1

   ( Screwdriver ) * 1

   ( aluminium heatsink ) * 1

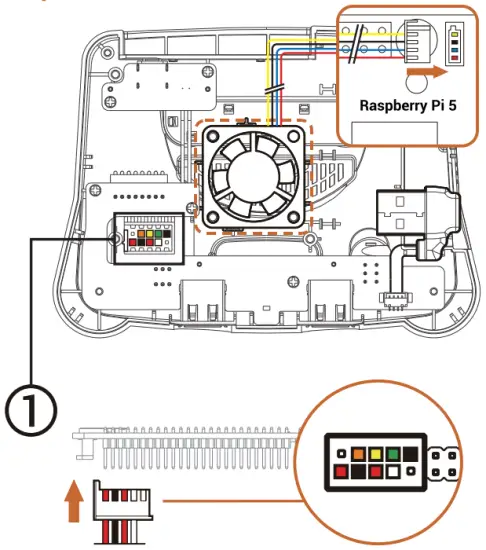

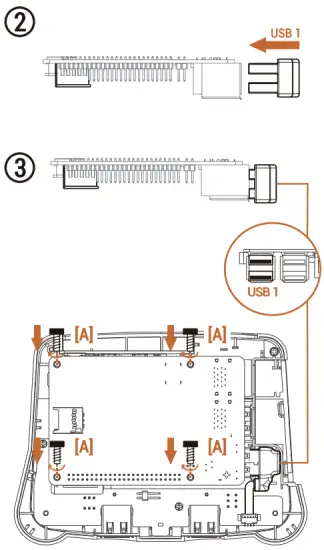

Assemble

Step 2

Documents / Resources

RETROFLAG 64Pi Case for Raspberry Pi5 SD Card Storage [pdf] Instruction Manual 64Pi, 64Pi Case for Raspberry Pi5 SD Card Storage, Case for Raspberry Pi5 SD Card Storage, Raspberry Pi5 SD Card Storage, SD Card Storage, Storage
