PROMAX PROWATCH Neo 2 Advanced Remote Monitoring System
Product Overview

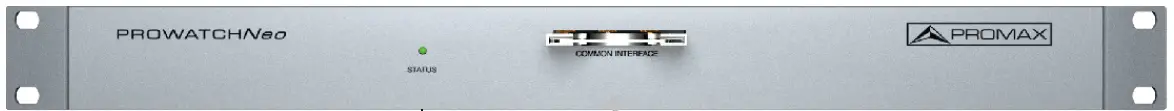

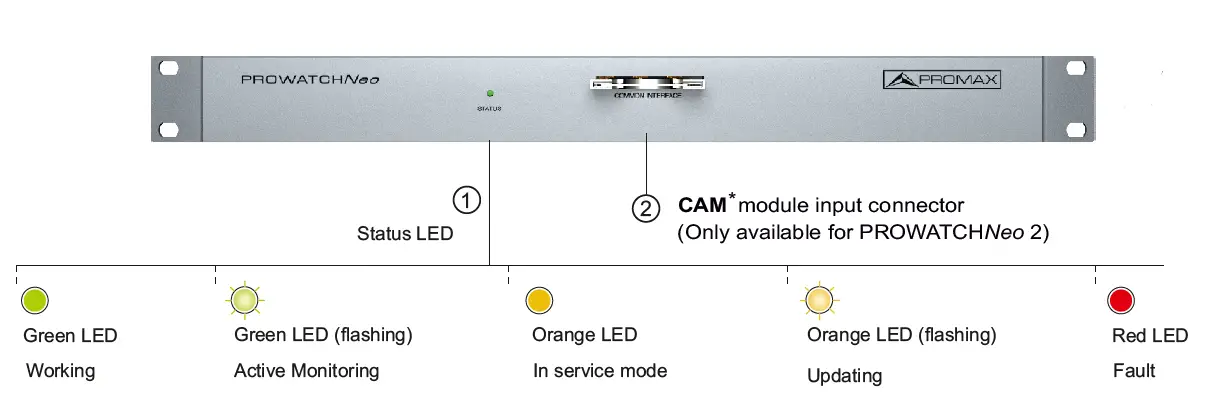

FRONT VIEW
- Status LED
- CAM module input connector
(Only available for PROWATCHNeo 2)

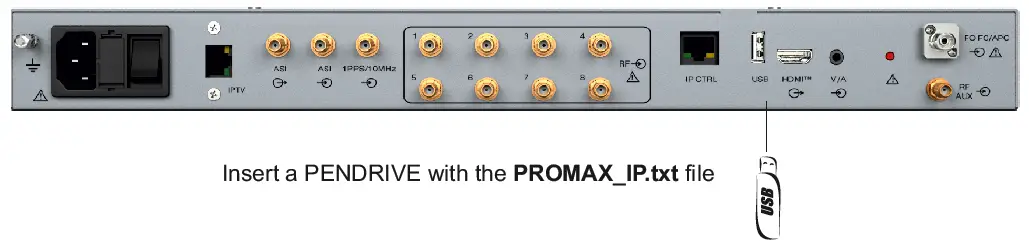

REAR VIEW
- Power input connector
- Fuses
- Switch on-off button
- IPTV Ethernet connector (only available for PROWATCHNeo 2)
- ASI output (only available for PROWATCHNeo 2)
- ASI input (only available for PROWATCHNeo 2)
- External reference signal input 10 MHz (PROWATCHNeo 2 only)
- RF signal input connectors (RF inputs depending on configuration)
- ETHERNET connector for (NetUpdate / Streaming VA / WebControl**)
- USB connector
- HDMI output
- Video / Audio input
- Reset / Updates button
- RF auxiliary input connector
- FC/APC optical input connector (PROWATCH Neo 2 only)
Note: Some of the options shown in the images in this document may not match those on your equipment. See the attached instruction manual for more information.

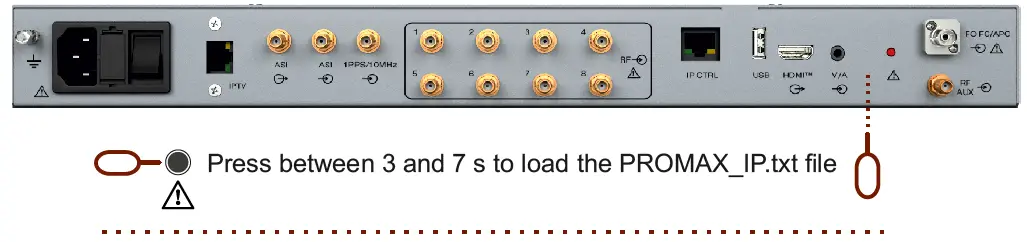

LOAD DEFAULT CONFIGURATION
- Update version to R29.9 or higher.

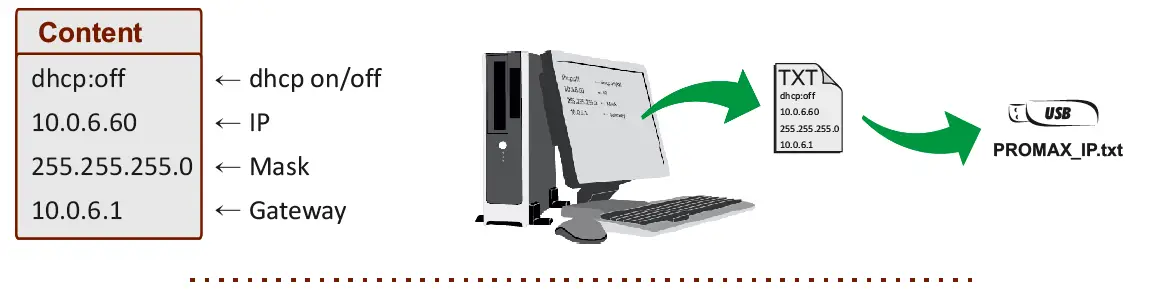

- Prepare a TXT file with the name PROMAX_IP.txt and copy it to the root directory of a PENDRIVE.

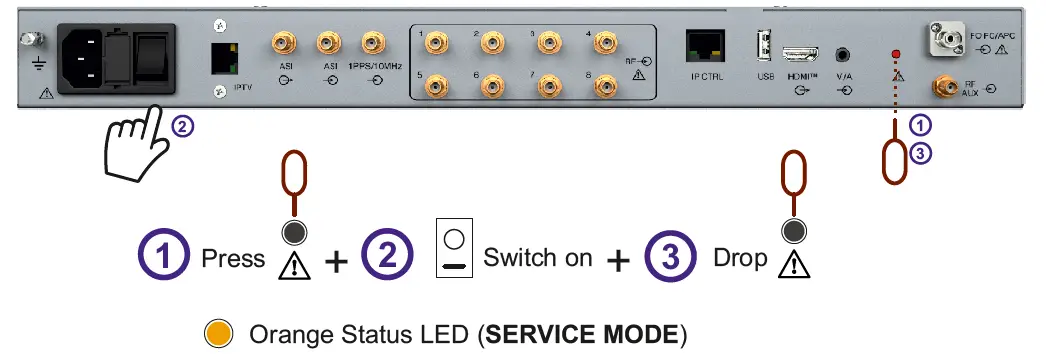

- Set the equipment in SERVICE MODE
- The equipment restarts.

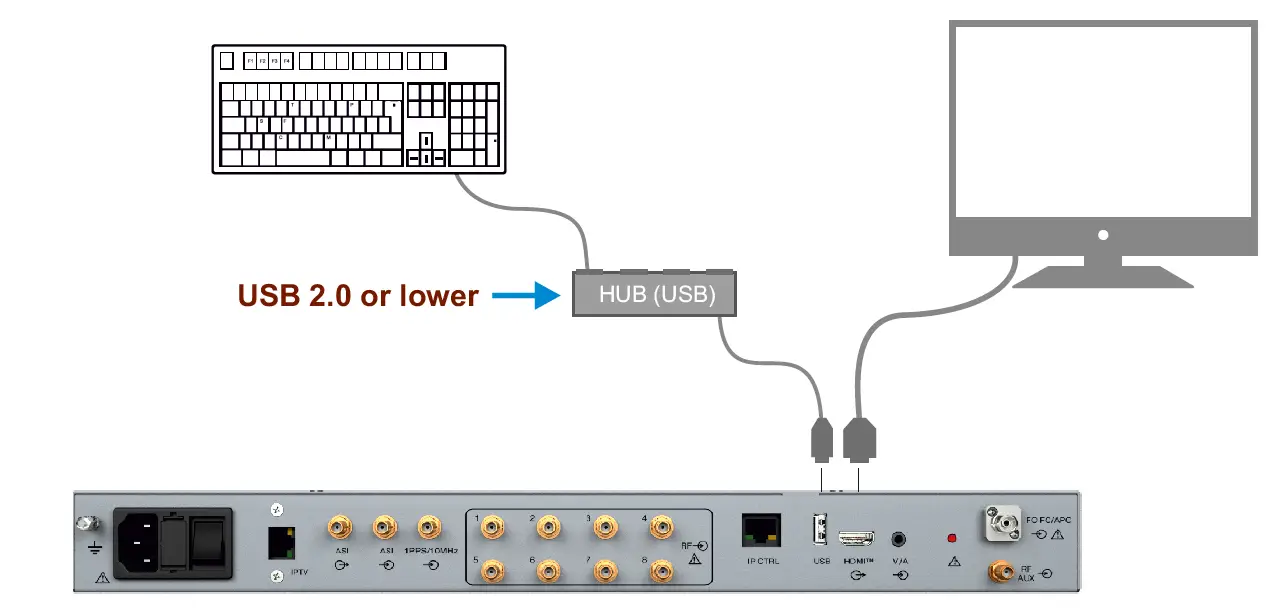

LOCAL MODE CONNECTION

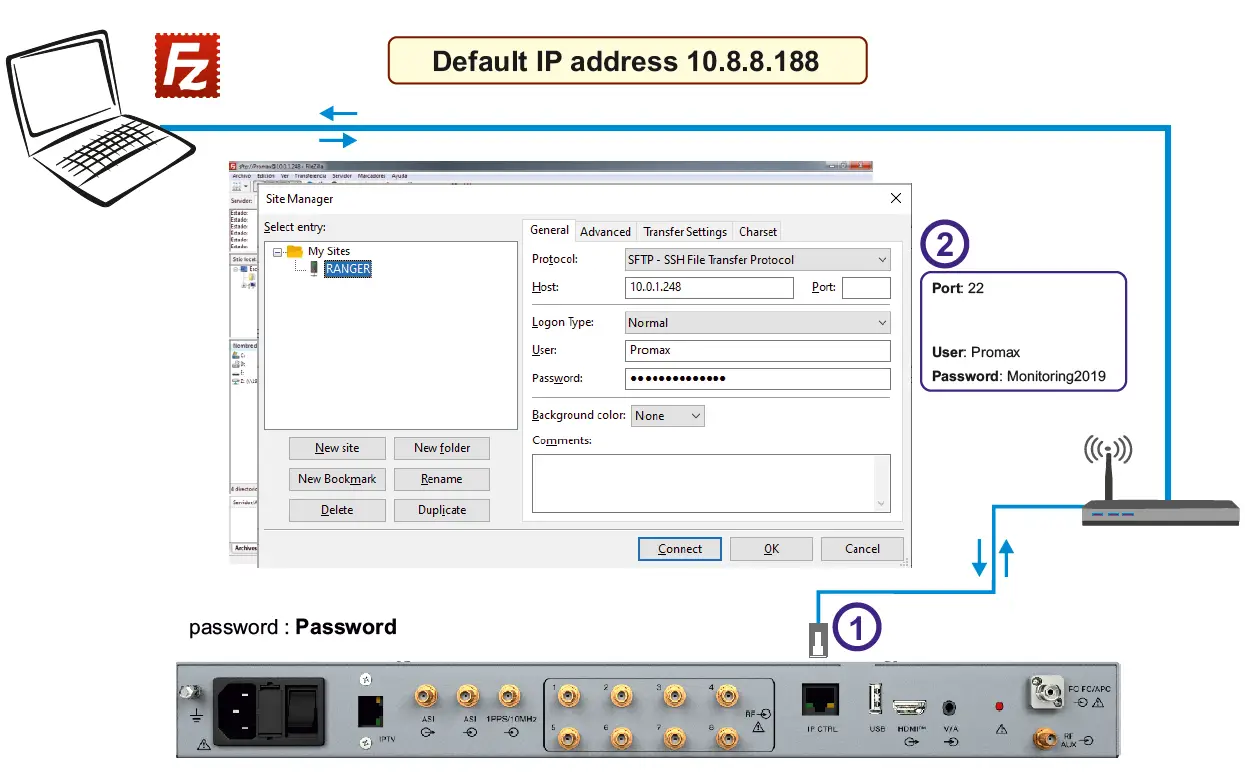

SFTP ACCESS

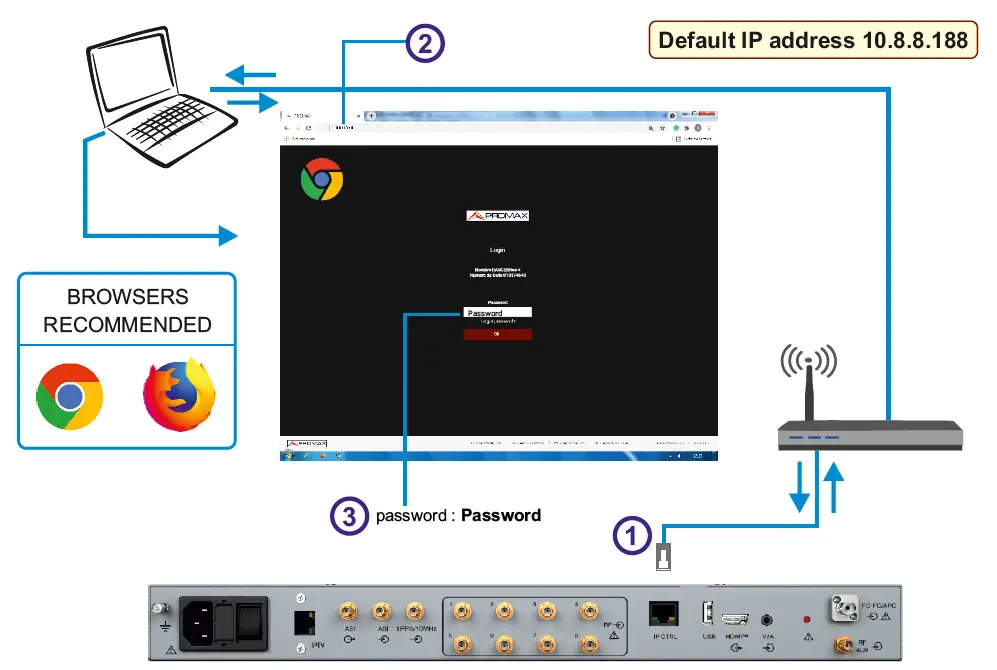

CONNECTION IN REMOTE MODE AND ACCESS TO THE WEBCONTROL

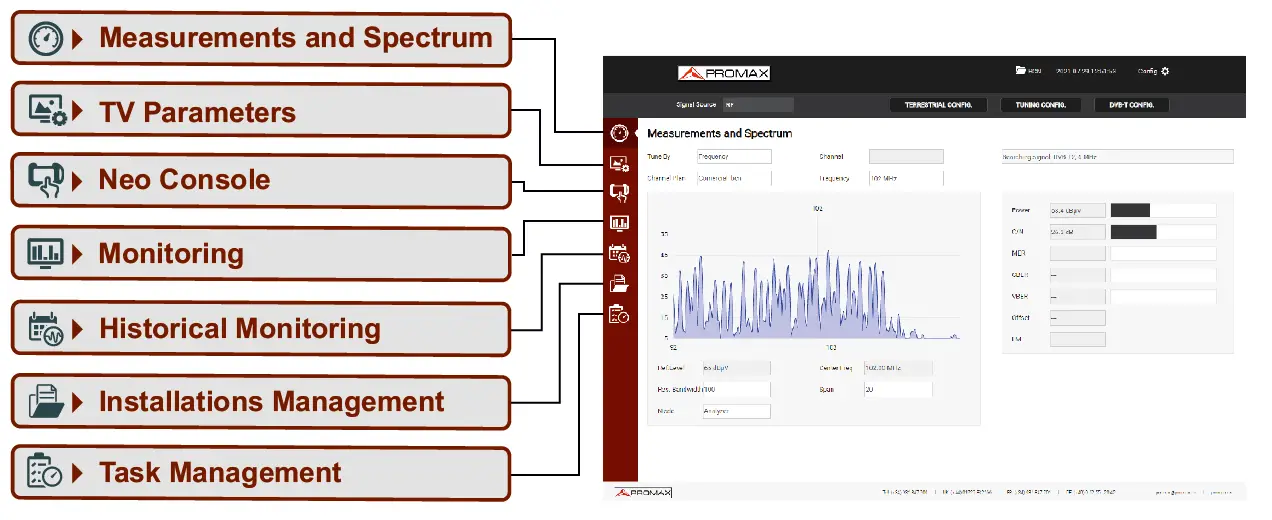

WEB-CONTROL

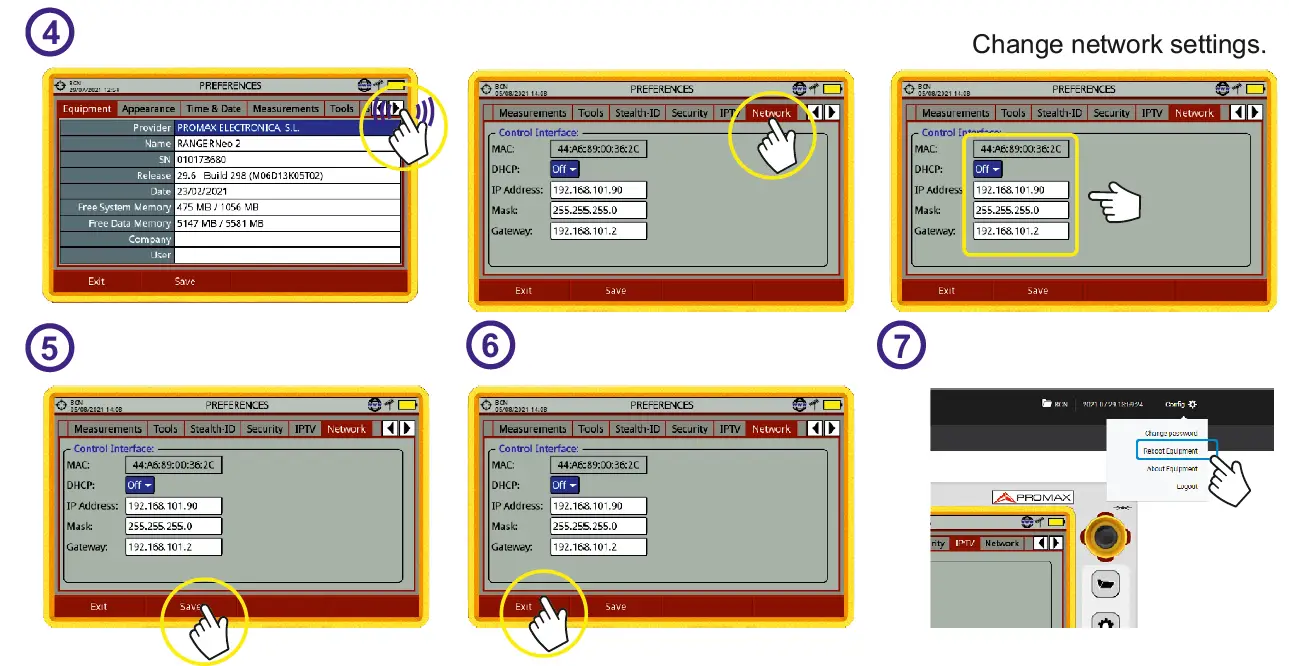

CHANGE IP VIA WEBCONTROL
WARNING! At the moment of pressing “Exit”, the communication will be lost because it will have a new IP.
RECOMMENDED SETTINGS FOR MONITORING
CAUTION: Once recommended parameters have been configured, be sure to press “Save” to ensure that settings do not lose in case of disconnection or shutdown.
TIME ZONE AND TIME CONFIGURATION
CAUTION: Before carrying out the monitoring, select the geographical zone where the equipment is. Ensure that the equipment has time and date right. See figure below.
NTP TIME SERVER SETTINGS

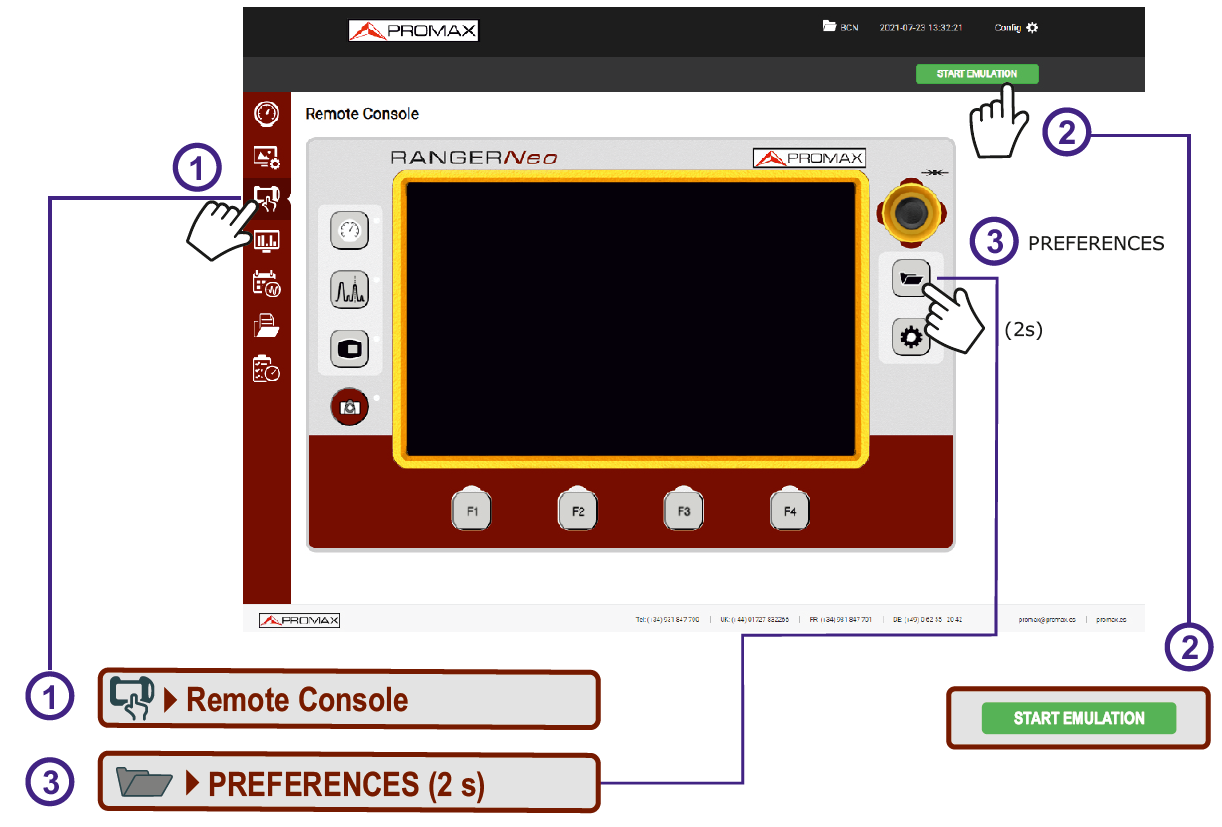

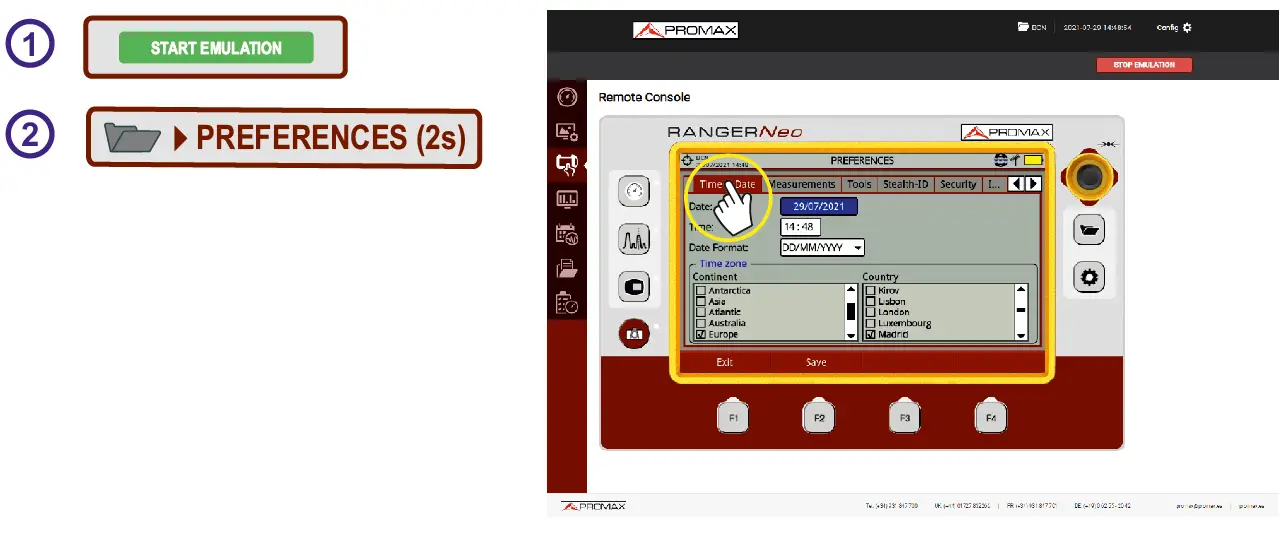

PREFERENCES (2s)
NTP Automatically adjusts the time if it’s connected to the network.

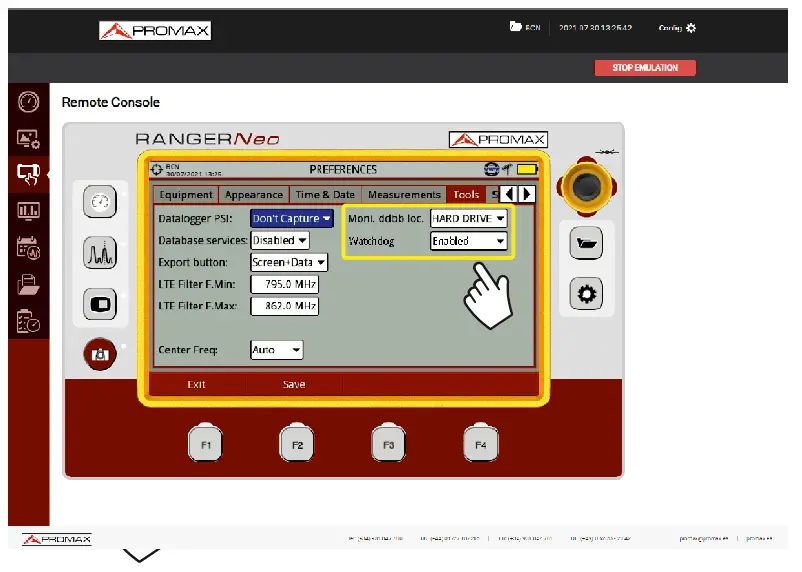

TOOLS
- Moni. ddbb loc. HARD DRIVE
- Watchdog Enabled
CAUTION: To do the Monitoring it is recommended to use the “HARD DRIVE” option instead of internal memory. And the watchdog option in “Enabled” mode.
SMTP
Mail server settings for sending alarms.

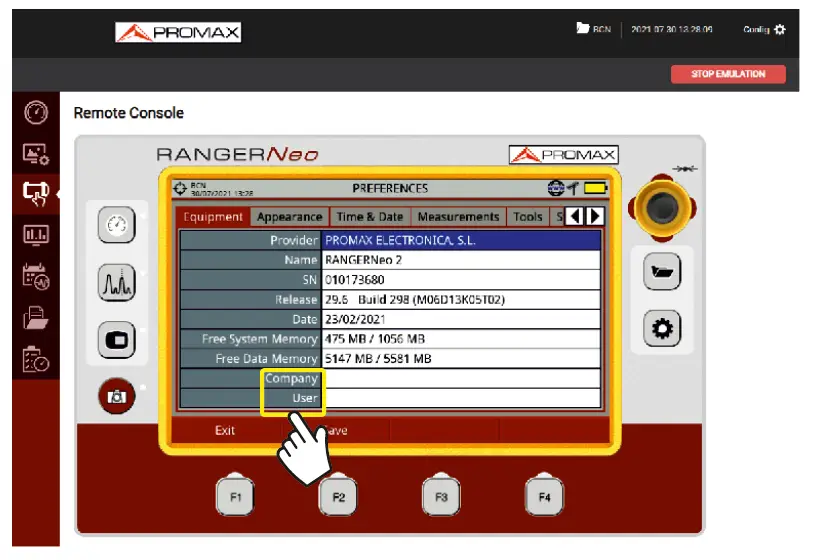

EQUIPMENT-Company-User
- Company: The company to which the alarms are sent.
- User: Person who the alarms are addressing.

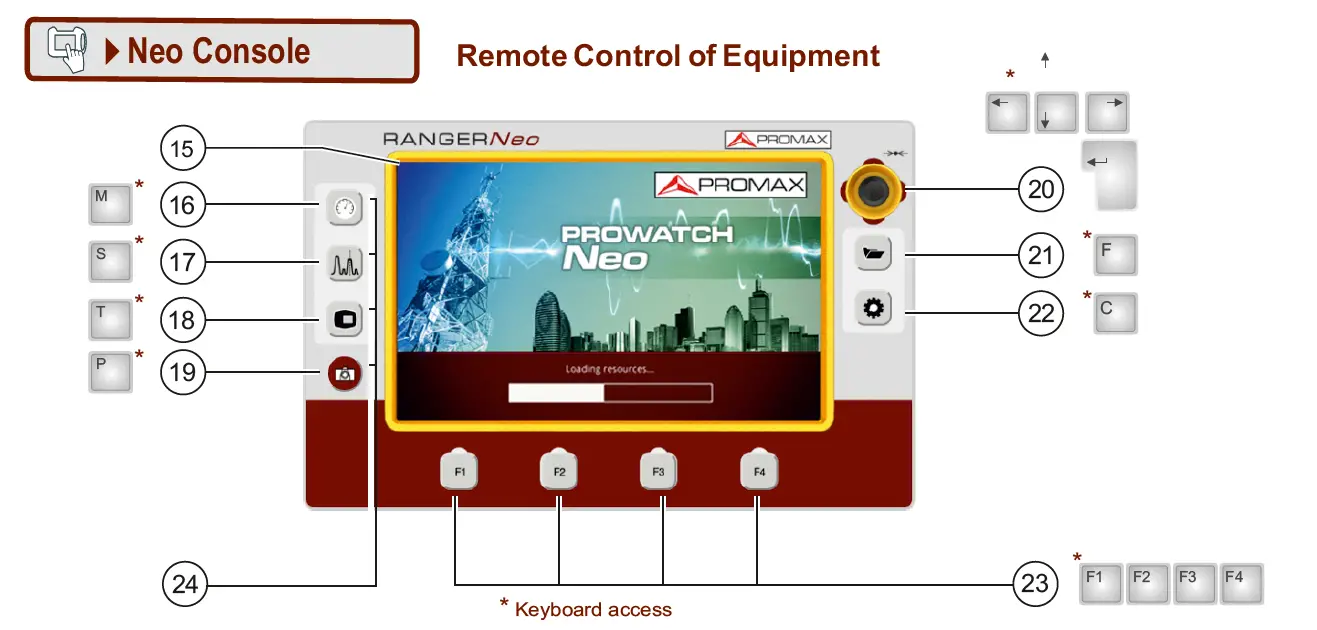

Neo Console
- (15) Screen
- (16) Measurement key
- (17) Spectrum key
- (18) TV key
- (19) Export (press >1s)/ Reference (press <1s)
- (20) Joystick
- (21) Installations management key
- (22) Settings key
- (23) Softkeys
- (24) Active Function Indicator
Find the user’s manual on the download area at: www.promaxelectronics.com
