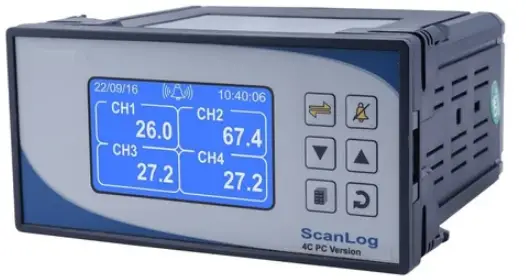

PPI ScanLog 4-8 Channel Recorder with Printer Interface

PPI-ScanLog-4-8-Channel-Recorder-with-Printer-Interface-PRODUCT

SPECIFICATIONS

OPERATOR PARAMETERS
Parameters Settings (Default Value)
Stop Printing No Yes
Select Option 1. None

2. Print (New)

3. Re-print (Old)

4. Resume

5. Recover

6. Print Info Page

(Default : None)

Batch Start Batch Stop No Yes
Balance Slot Time Read Only
Line Per Page 25 to 100

(Default : 65)

Top Margine 1 to 5

(Default : 2)

Bottom Margine 1 to 5

(Default : 2)

Offset Records 10 to 1000

(Default : 10)

Print Page Header>> No

On First Page Every Page

(Default : Every Page)

Delete Page Header>> No Yes
Delete Page Footer>> No Yes
READ USB PARAMETERS
Parameters Settings (Default Value)
Select Option 1. None

2. Read Set.txt File

3. Read Hdr.dat File

4. Read Ftr.dat File

(Default : None)

ALARM SETTINGS
Parameters Settings (Default Value)
Select Channel Channel-1 to

Channel-4

(for 4C Printer Version) Channel-1 to Channel-8

(for 8C Printer Version)

Select Alarm AL1, AL2, AL3, AL4

(The actual available options depends on the numbers of Alarms

set per channel on Alarm configuration page)

AL1 Type None Process Low Process High

(Default : None)

AL1 Setpoint Min. to Max. of selected input type range

(Default : 0)

Parameters Settings (Default Value)
AL1 Hysteresis 1 to 30000

(Default : 20)

AL1 Inhibit No Yes

(Default : No)

DEVICE CONFIGURATION
Parameters Settings (Default Value)
Delete Records No Yes

(Default : No)

CHANNEL CONFIGURATION
Parameters Settings (Default Value)
All Chan Common No Yes

(Default : No)

Select Channel Channel-1 to

Channel-4

(for 4C Printer Version)

Channel-1 to

Channel-8

(for 8C Printer Version)

Input Type Refer Table 1

(Default : 0 to 10 V)

Resolution Refer Table 1
Signal Low
Signal High
Parameters Settings (Default Value)
Range Low -30000 to +30000

(Default : 0)

Range High -30000 to +30000

(Default : 1000)

Low Clipping Disable Enable

(Default : Disable)

Low Clip Val -30000 to High Clip Val (Default : 0)
High Clipping Disable Enable

(Default : Disable)

High Clip Val Low Clip Val to 30000 (Default : 1000)
Zero Offset -30000 to +30000

(Default : 0)

ALARM CONFIGURATION
Parameters Settings (Default Value)
Alarms/Chan 1 to 4

(Default : 4)

RECORDER CONFIGURATION
Parameters Settings (Default Value)
Normal Interval 0:00:00 (H:MM:SS) to

2:30:00 (H:MM:SS)

(Default : 0:00:30)

Zoom Interval 0:00:00 (H:MM:SS) to

2:30:00 (H:MM:SS)

(Default : 0:00:10)

Alrm Toggl Rec Disable Enable

(Default : Enable)

Recording Mode Continuous Batch

(Default : Continuous)

Batch Time 0:01 (HH:MM) to

250:00 (HHH:MM)

(Default : 1:00)

Batch Start Batch Stop No Yes
RTC SETTING
Parameters Settings
Time (HH:MM) 0.0 to 23:59
Date 1 to 31
Month 1 to 12
Year 2000 to 2099
UTILITIES
Parameters Settings (Default Value)
Lock Unlock No Yes

(Default : No)

Factory Default No Yes

(Default : No)

TABLE 1
Option Range (Min. to Max.) Resolution & Unit
Type J (Fe-K) 0.0 to +960.0°C











1 °C

or

0.1 °C

Type K (Cr-Al) -200.0 to +1376.0°C
Type T (Cu-Con) -200.0 to +387.0°C
Type R (Rh-13%) 0.0 to +1771.0°C
Type S (Rh-10%) 0.0 to +1768.0°C
Type B 0.0 to +1826.0°C
Type N 0.0 to +1314.0°C
Reserved for customer specific Thermocouple type not listed above. The type shall be specified in accordance with the ordered (optional on request) Thermocouple type.
RTD Pt100 -199.9 to +600.0°C 1°C or 0.1 °C
0 to 20 mA



-30000 to 30000 units







1

0.1

0.01

0.001

units

4 to 20 mA
0 to 80 mV
Reserved
0 to 1.25 V





-30000 to 30000 units

0 to 5 V
0 to 10 V
1 to 5 V

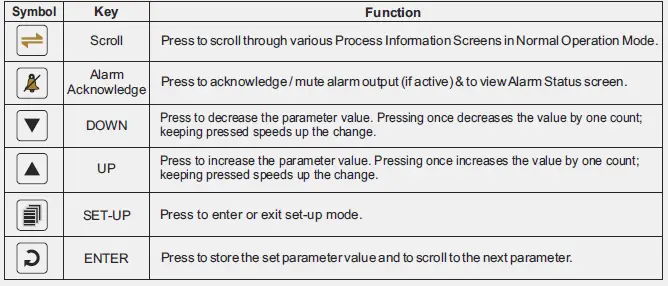

FRONT PANEL KEYS

PPI-ScanLog-4-8-Channel-Recorder-with-Printer-Interface-FIG-1

SCROLLING THROUGH VARIOUS SCREENS

The screen shown below are for 4 Channel Version. The sequence is the same for 8 Channel Version.

PPI-ScanLog-4-8-Channel-Recorder-with-Printer-Interface-FIG-2

VIEWING ALARM STATUS SCREEN

PPI-ScanLog-4-8-Channel-Recorder-with-Printer-Interface-FIG-3

ELECTRICAL CONNECTIONS

4 Channel Without Alarm Relay Outputs

PPI-ScanLog-4-8-Channel-Recorder-with-Printer-Interface-FIG-4

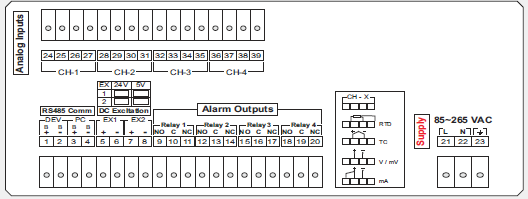

4 Channel With Alarm Relay Outputs

PPI-ScanLog-4-8-Channel-Recorder-with-Printer-Interface-FIG-5

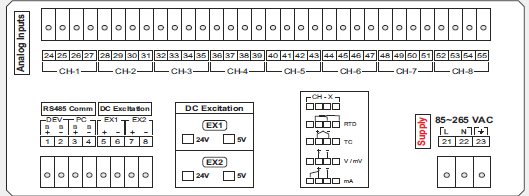

8 Channel Without Alarm Relay Outputs

PPI-ScanLog-4-8-Channel-Recorder-with-Printer-Interface-FIG-6

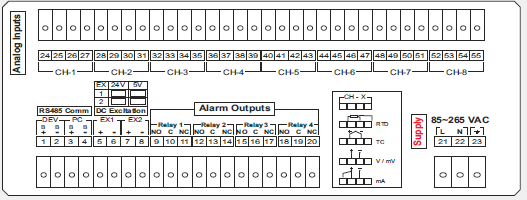

8 Channel With Alarm Relay Outputs

PPI-ScanLog-4-8-Channel-Recorder-with-Printer-Interface-FIG-7

This brief manual is primarily meant for quick reference to wiring connections and parameter searching. For more details on operation and application please log on to www.ppiindia.net

101, Diamond Industrial Estate, Navghar, Vasai Road (E), Dist. Palghar – 401 210.
