matt E EVU-1-100-TP Three Phase Connection Unit
Specifications
- Description: Dedicated EV connection centre
- Input Volts: Nominal input voltage three-phase 400V 50Hz
- Max Load: 100 amps per phase
- Cable Entry Facility: Top and bottom
- Terminal Capacity: Supply, 50.0 mm2; Load, 50.0 mm2
- Dimensions (H x W x D): 550mm x 360mm x 140mm
- Weight: Approximately 10kg
- Enclosure: Mild Steel Powder Coated
- Ingress Protection: IP4X
- Warranty: 1 year limited warranty for faulty components
Product Usage Instructions
Installation
Ensure the power supply is switched off before installation. Connect the cables to the designated terminals based on the specified terminal capacity for supply and load.
Cable Entry
Use the top or bottom cable entry facility to route the cables securely into the unit.
Mounting
Mount the unit securely on a suitable surface using appropriate mounting hardware. Ensure the unit is stable and level.
Powering Up
After installation, switch on the power supply and verify proper functioning of the unit before connecting the EV load.
Maintenance
Regularly inspect the unit for any signs of damage or wear. Clean the unit as needed with a soft, dry cloth. Do not use abrasive cleaners.
Frequently Asked Questions (FAQ)
Q: What is the warranty period for the EVU-1-100-TP unit?
A: The unit comes with a 1-year limited warranty from the date of purchase, covering the replacement of faulty components only.
Q: What is the Ingress Protection rating of the unit?
A: The EVU-1-100-TP has an IP4X rating, providing protection against solid objects larger than 1mm and no protection against liquids.
EVU-1-100-TP
Three-phase connection unit suitable for 1 x 100amp TPN load
- The EVU-1-100-TP from matt:e is simple, single dedicated connection unit with built in O-PEN technology, that allows for the connection 1 x 100amp TPN load to the existing PME earthing facility.
- The unit incorporates a 5 pole isolator with built-in shunt trip which disconnects all poles including CPC in the event of a fault, manually resettable in line with BS: 7671, 2018 Amendment 1 2020 Regulation 722.411.4.1 (iii)
- The O-PEN technology does not require earth rods or measuring electrodes to function correctly
Product Features
- Built in O-PEN technology
- Standard mild steel IP4X enclosure
- NO EARTH ELECTRODES REQUIRED
- Phase loss protection
- Built in 5 pole mains isolator with manually resettable shunt trip
- Standard 1 Year parts warranty
- Simple wire in wire out connection
- Suitable for 1 x 100amp TPN load
- Designed and Built in the UK

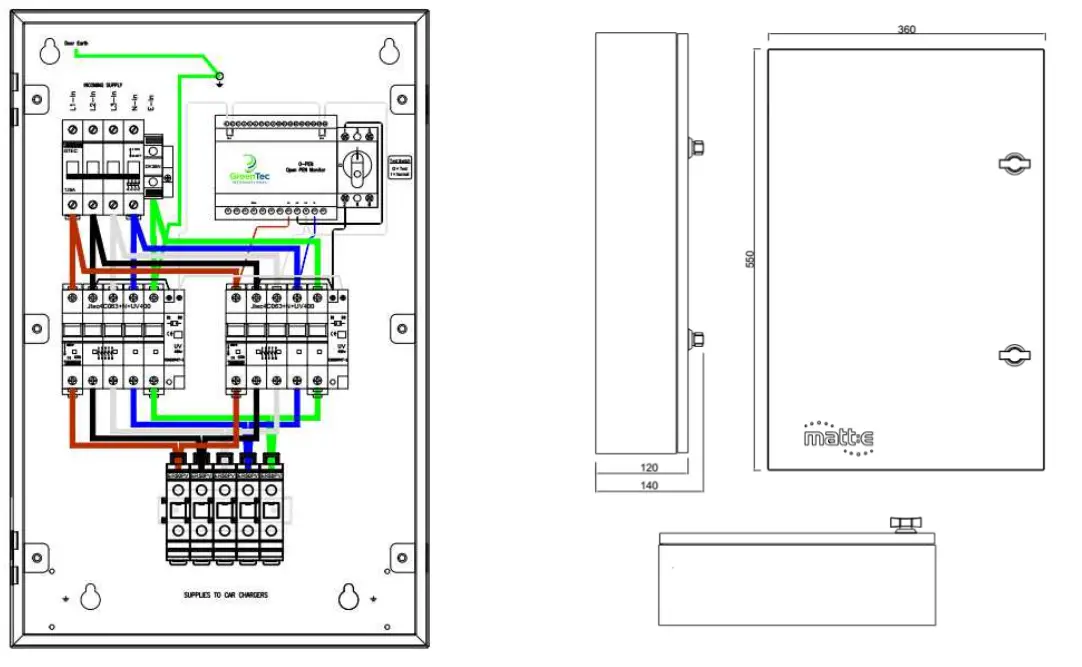

Dimensions and Specifications
| Description | Dedicated EV connection centre |
| Input Volts | Nominal input voltage three-phase 400V 50Hz |
| Max Load | 100 amps per phase |
| Cable Entry Facility | Top and bottom |
| Terminal Capacity | Supply, 50.0 mm2 Load, 50.0 mm2 |
| Dimensions ( H x W x D ) | 550mm x 360mm x 140mm |
| Weight | Approximately 10kG |
| Enclosure | Mild Steel Powder Coated |
| Ingress Protection | IP4X |
| Warranty | The matt:e EVU-1-100-TP is guaranteed for a period of 1 year from the date of purchase. This warranty is limited to the replacement of faulty components only. |
