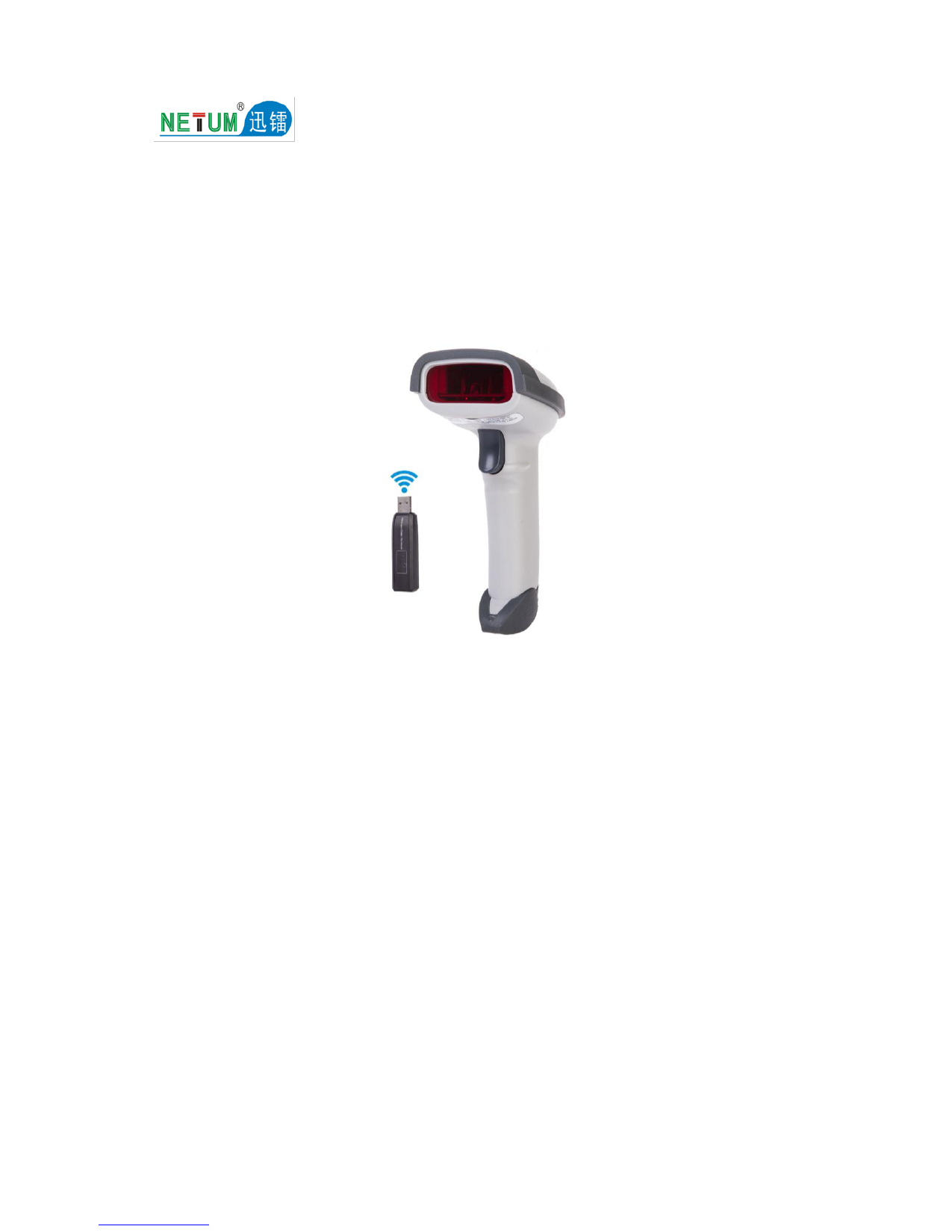

M1 1D Laser Wired Barcode Scanner
1. Keyboard Language
In order to let scanner upload the codes in a correct way, you have to set the keyboard language.
For example If you use French Keyboard, scan below barcode of “French keyboard". So the scanner can be able to upload barcodes according to French keyboard layout. American Keyboard is set by default, if you use a US keyboard you can ignore this part.
American Keyboard0005000
Italy Keyboard0005012
Portugal Keyboard0005017
French Keyboard0005009
Spanish Keyboard0005020
Germany Keyboard0005010
Turkey Q Keyboard0005027
2. Scan Mode
Key trigger (by default)013301
Continuous Mode013304
3. Common Function Barcodes
Default Setting0B
4. Beep Sound On/Off
Turn off the sound014200
Turn on the sound0B142
5. Terminator Setting
Suffix Character- CR0202011000$OD
Suffix Character- LF0202011000$0A
Suffix Character- CR+LF0202011000$OD$OA
Suffix Character- TAB0202011000$09
Cancel Suffix Character0B20201
6. Function Setup Barcodes
Enable Code 1101261
Disable Code 1101260
Enable Code 3900221
Disable Code 3900220
Enable Full ASCII00231
Disable Full ASCII00230
Enable Code 3200261
Disable Code 3200260
Enable Code 9300621
Disable Code 9300620
Enable Code 12800691
Disable Code 12800690
Enable Codabar00851
Disable Codabar00850
Enable Interleaved 2 of 500961
Disable Interleaved 2 of 500960
Enable Industrial 2 of 501061
Disable Industrial 2 of 501060
Enable Matrix 2 of 501461
Disable Matrix 2 of 501460
Enable MSI01151
Disable MSI01150
Enable UPC-A00341
Disable UPC-A00340
Enable UPC-E00351
Disable UPC-E00350
Enable EAN-1300361
Disable EAN-1300360
Enable EAN-800371
Disable EAN-800370
7. Additional Settings
For adding prefix or suffix to barcodes, visit the official website: www.gzxlscan.com to download the manual titled 'Prefix + suffix setting for 1D barcode scanner'.
8. Support
For inquiries or comments regarding NETUM products, please email service@gzxlscan.com. We will respond as soon as possible.
Contact Information:
Tel.: +0086 20-6626-0708
Email: service@gzxlscan.com
Web: www.gzxlscan.com
Address: Unit 137, The Pacific Industry Park, Xintang Town, Zengcheng District, Guangzhou, China/511340
