R14 Ultrathin Touch Slide RF Remote Controller
Instruction Manual
Ultrathin Touch Slide RF Remote Controller
Model No.: R14
Touch color slide/RGB+W/Wireless remote 30m distance/CR2032 battery/Magnet stuck fi
Features
- Apply to RGB+W LED controller.
- Ultra sensitive color adjustment touch slide.
- Each remote can match one or more receivers.
- CR2032 battery powered.
- Operate with LED indicator light.
- Magnet on the back which can be easily stuck on back holder or any metal surfaces.
Technical Parameters
Input and Output
| Output signal | RF(2.4GHz) |
| Working voltage | 3VDC(CR2032) |
| Working current | <5mA |
| Standby current | < 10A |
| Standby time | 1 year |
| Remote distance | 30m(Barrier-free space) |
Warranty
| Warranty | 5 years |
Safety and EMC
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE,EMC,LVD,RED |
Environment
| Operation temperature | Ta: -30 OC ~ +55OC |
| IP rating | IP20 |
Mechanical Structures and Installations
To fix the remote, three options are offered for selection:
Option 1: stuck the remote on any metal surfaces directly.
Option 2: fix the remote’ back holder on the wall with two screws.
Option 3: adhere the remote’ back holder to the wall with paster.
Match Remote Control (two match ways)
The end users can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key
Match: Short press the match key, and immediately press on/off key on the remote. The LED indicator fast flash a few times means the match is successful.
Delete: Press and hold the match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.
Use Power Restart
Match: Switch off the power, then switch on the power, repeat again. An immediately short press on/off key 3 times on the remote. The light blinks 3 times means the match is successful.
Delete: Switch off the power, then switch on the power, and repeat again. An immediately short press on/off key 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.

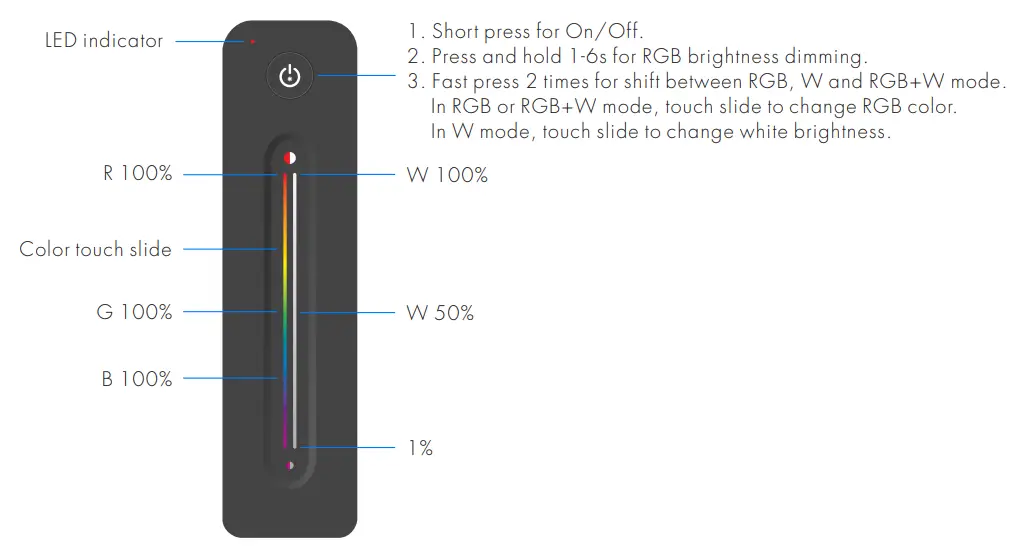

Key function
Safety information
- Read all instructions carefully before you begin this installation.
- When installing the battery, pay attention to the battery’s positive and negative polarity. A long time without the remote control, remove the battery. When remote distance becomes smaller and insensitive, replace the battery.
- If no response from the receiver, please re-match the remote.
- Gently handle the remote, beware of falling. 5. For indoor and dry location use only.
User Manual Ver 1.0.4
R14 Ultrathin
Touch Slide RF Remote Controller
