Launch Tech X-431 Euro Link with Smart Link

Specifications

• Recommended network bandwidth: 100M
• Upload/download speed: no less than 10mbps

Product Usage Instructions

Registration and Setup
To begin using Smart Link C, follow these steps:

1. Register on Launch Super Remote Diagnosis reservation platform by visiting smartlink.x431.com/login.
2. Input your email address and click “Get verification code”. The platform will send the verification code to your email.
3. Locate the Product Serial Number (S/N) and Activation code (A/C) on the rear side of the Smart Link C device.
4. Once registered, log in to the platform.

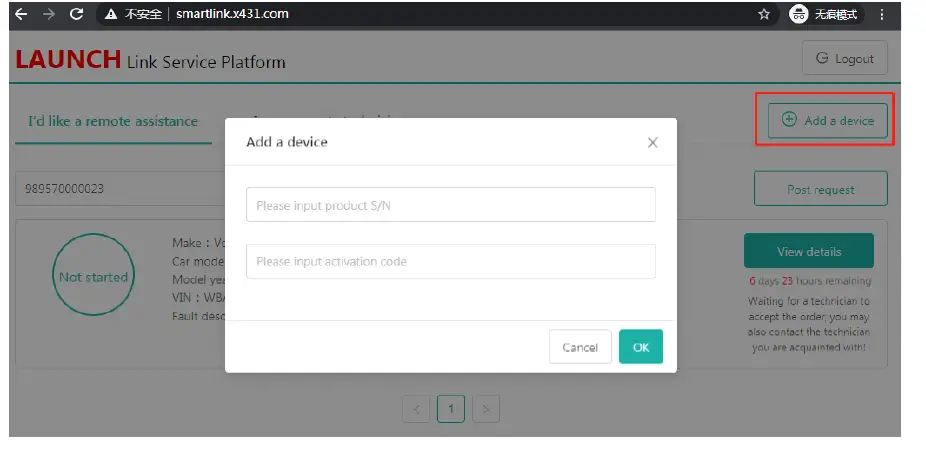

5. If you have multiple Smart Link devices, click “Add a device” and input the product serial number and activation code.

Making Requests

3. To post requests, click “Post request”.
4. Wait for a professional technician to accept your request. Your contact information will be forwarded to them for future communication.
5. The request status will change to “In Process”.

Remote Diagnosis

6. When scheduling remote time with the technician, connect Smart Link C to your vehicle.
7. Follow the technician’s instructions, such as turning the ignition on/off, etc.
8. After the technician fixes your vehicle, you can post your review on the platform.

FAQ

• Q: How can I find the Product Serial Number and Activation Code?|

  • A: The Product Serial Number (S/N) and Activation Code (A/C) can be found on the rear side of the Smart Link C device.
• Q: What should I do if my network bandwidth is below the recommended speed?

  • A: To ensure optimal performance, it is recommended to have a network bandwidth of 100M with an upload/download speed of no less than 10mbps. Consider upgrading your network connection for better results.

Smart Link Sample Test Guide

Introduction

• Diagnosing from a Thousand Miles, Predicting the Future -Launch Super Remote Diagnosis. Launch Super Remote Diagnosis is the latest remote diagnostic technology developed by Launch Tech, using the super remote diagnostic box to perform auto fault diagnosis and repair without being on-site. It is not only a new auto repair model in the era of mobile Internet, but also a forward-looking technology to reduce auto maintenance costs.
• Launch super remote diagnosis consists of three parts: Smartlink C (client end), Smartlink B (businessmen) and Launch super remote diagnosis reservation platform.
• Smartlink C (client end) is suitable for the DIYers, technicians or auto repair shops, who does not have sufficient skills and professional tools. They can accept remote assistance from a remote expert technician by connecting Smartlink C to the vehicle and network.
• Smartlink B (businessmen) is suitable for these remote expert technicians who take advantage of their experience and tools and provide remote diagnostic services to Smartlink C (client end) users.
• Launch Super Remote Diagnosis reservation platform is an online remote diagnostic service information platform for auto repair business-related enterprises and expert technicians. the Smartlink C users can publish their requests on the platform and seek remote diagnosis support, and the Smartlink B users can check the remote service requests on it and provide remote diagnostic services. It will form a closed loop where combines the demand and the service end.

Networking Architecture

Smartlink C user guide

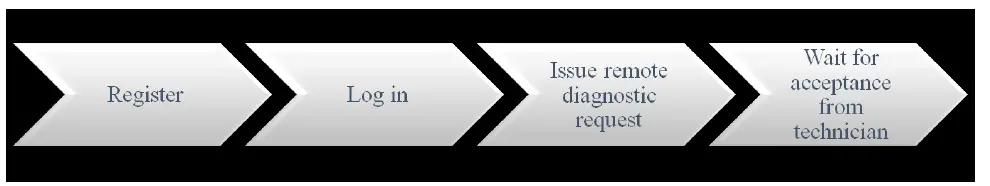

The main steps are:

In order to ensure the connection performance, we recommend100M network band width upload/download speed no less than 10mbps.

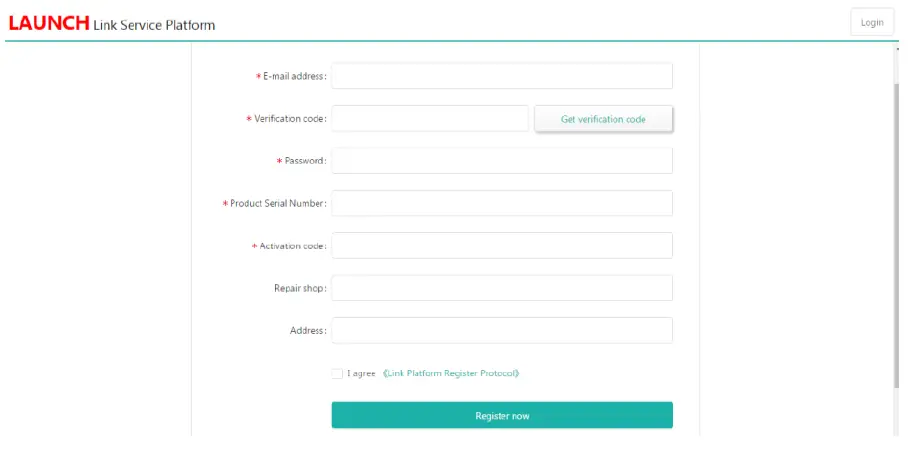

1. Register on “Launch Super Remote Diagnosis reservation platform” by link ” http://smartlink.x431.com/login ” . Input your email address and click “Get verification code”, platform will send the verification code to your email box .”Product Serial Number” and “Activation code” are pasted as “S/N” and “A/C” on the rear side of Smart link C device.
2. If you registered successfully, you can log in to the platform: Input your email address and click “Get verification code”, platform will send the verification code to your email box .”Product Serial Number” and “Activation code” are pasted as “S/N” and “A/C” on the rear side of Smart link C device.

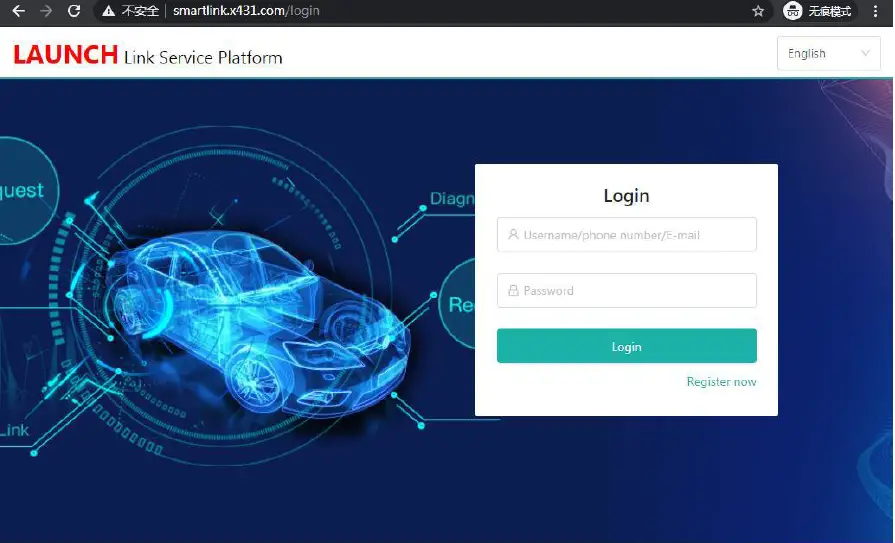

3. If you registered successfully, you can log in to the platform:

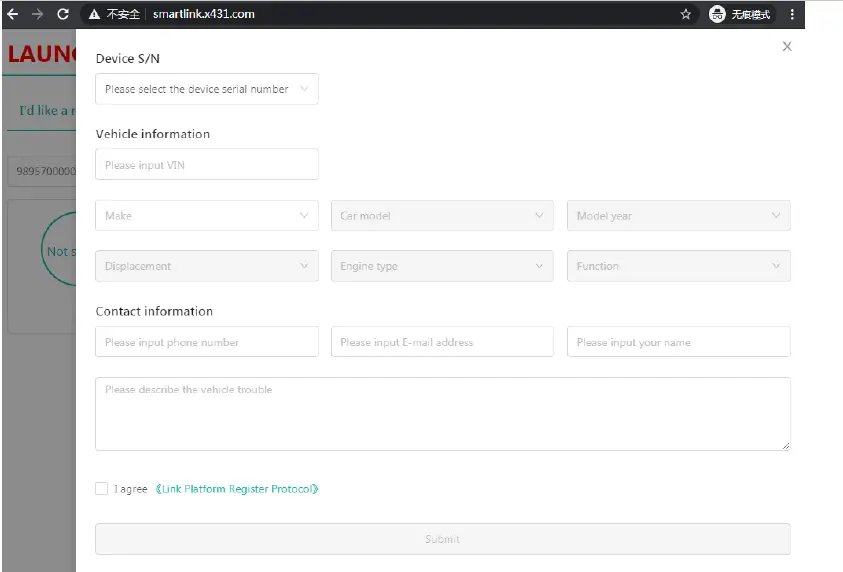

4. Now, you can post requests by click “Post request”:

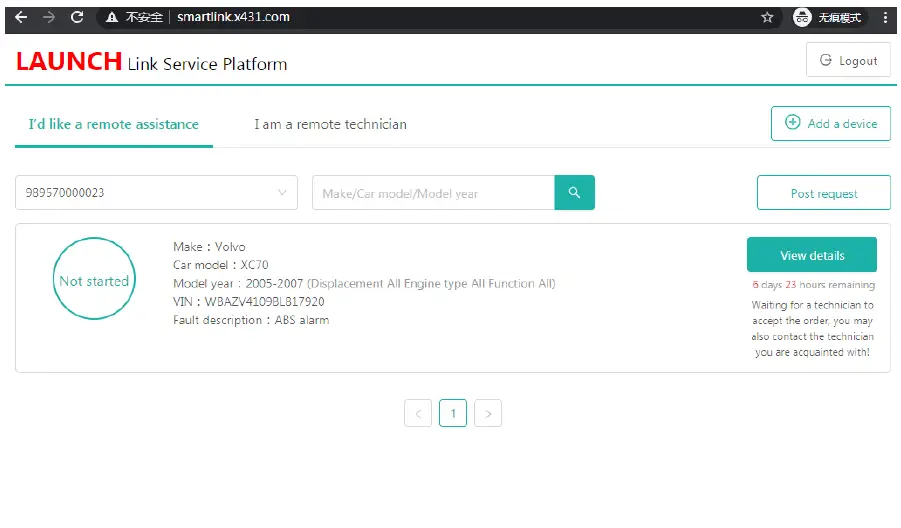

5. After you post a request, you have to wait until a professional technician accept your request. Your contact information will be forward to them for future communication. And the request status will change to “In Process”:
6. When you and the technician schedule the remote time, you have to connect Smart link C to your vehicle and follow his/her instruction, such as ignition on/off, etc.

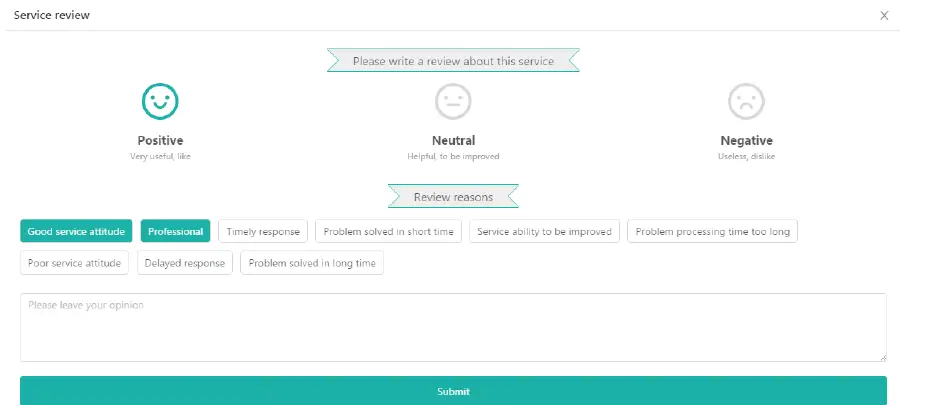

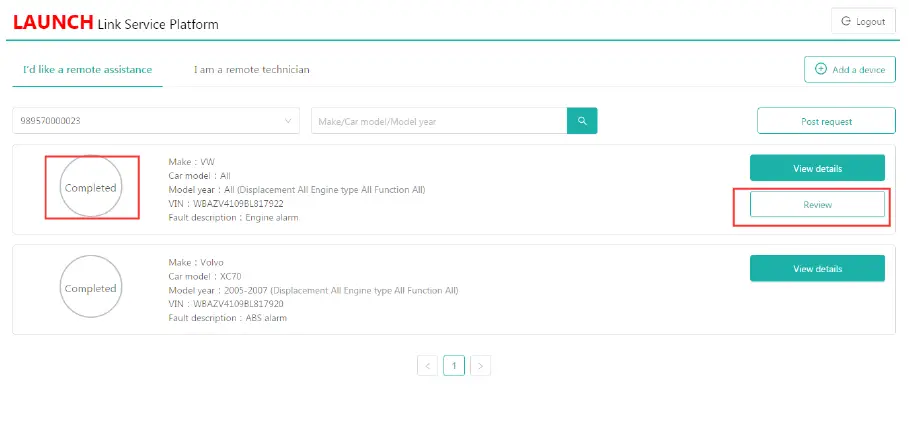

7. After the technician fixes your vehicle, you can post your review on the platform:
