Notendahandbók fyrir RGBlink mini streymisrofa

4 HDMI 2.0 inputs, 2 HDMI 1.3 output
HDMI output can be set to 6-window Preview, Program or Inputs 1~4
2-inch TFT full color touchscreen built in for signal monitoring and menu operation

Styður MIC og LINE hljóðinntak, fjölrása blanda hljóð
Myndstærð og klipping
PIP function including PBP for layout setting
USB 2.0 recording function, supporting exFAT and FAT32 formats
T-Bar seamless transition including CUT | FADE
15 umbreytingaráhrif
LOGO yfirborð
web APP & open APl for remote control
Air cooling design to secure 24/7 stable operation
Integrated design, easy to carry

Í kassanum

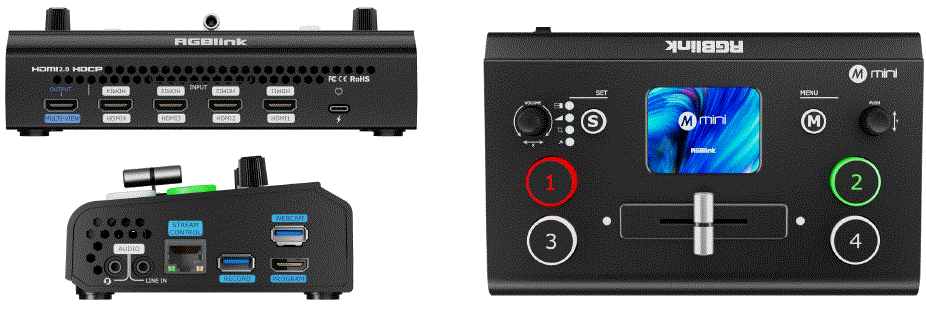

Framhlið

❶	VOLUME/X Knob	Stillir hljóðstyrk. In PIP mode: Adjust layer width and horizontal position. In PTZ mode: Adjust camera left/right position, zoom and focus.
❷	S Shortcut Key	Press to quickly enter the function interface. Press repeatedly to switch functions in the following order: Effects, Switching Mode, PIP, View, Record, and Stream.
❸	Snertiskjár	Rauntíma fyrirframview með 4 myndinntökum eða birtir valmyndarviðmótið fyrir snertistýringu.
❹	M (Menu) Key	Valmyndartakkinn og enter-takkinn.
❺	Y Knob	Y: Rotate left/right to select menu items. Press: confirm and enter the next interface. Enter PTZ setting interface when using the touchscreen for signal monitoring. In PIP mode: Adjust layer height and vertical position. In PTZ mode: Adjust camera up/down position.
❻	1, 2, 3, 4	4 input signals: Red light: signal on the output program. White light: Signal ready to switch. Green light: signal on the preview glugga. No light: No input signal detected.
❼	T-Bar	Manual Transition Effect switching. Signal source cannot be switched if the T-Bar is not in the right position (leftmost end or rightmost end).

Athugið: The mini basic version does not include HDMI output. If needed, subscribe to PGM HDMI on the TAO Cloud.

Viðmótspjald

❶	MARG-VIEW	Multi-screen preview úttaksgátt (sjálfgefið).
❷	HDMI-IN	4 HDMI inntakstengi fyrir tengingu við tæki eins og HD myndavélar eða tölvur.
❸	USB-C aflgjafi	TYPE-C power interface.
❹	HLJÓÐ INN/ÚT	Lína inn: Analog audio input for microphones. Hljóð út: Analog audio output for speakers.
❺	LAN	Nettenging fyrir web App-stjórnun og streymi.
❻	MET	Recording port for USB drives or external hard drives to record live content.
❼	HDMI OUT	HDMI output port for multi-screen preview or main output.
❽	USB	USB 3.0 port for capturing the signals and streaming via third-party software to live platforms.

Notaðu vöruna þína

Kveikt á
After powering on, the device displays the startup screen on the built-in TFT touch screen.

Aðalvalmynd
Touch icons to enter corresponding functions. Slide to switch icons.

Mynd á mynd (PIP)

Enable PIP
Press the PIP icon in the main menu or press the S button to enter PIP adjust settings.

Select main and sub-screens
Press “Adjust” in the PIP interface and select A/B icon. If the main layer icon, A, is green, the corresponding signal button will flicker. Press another signal to change the current A layer if needed. Press the A/B icon again to switch to adjust layer B.
Lagastilling
Enter the Adjustment page, select the layer (A/B), and use the X/Y knobs to adjust width/height or select a 9:16 aspect ratio. Or scale the selected layer Proportionally using the last icon. Use “Full” for
full-screen or “Reset” to restore default settings.

Skipulag
Press “Layout” to choose from 10 default layouts.
Enable Blending
Enable blending to switch between A/B modes and adjust width/position.

View

Vista a View
Ýttu á „View” icon to save or switch views.

Yellow: View being edited.
Grænn: Vistað view.
Grár: No saved view.

Interface Operations

Light press to save the current preview til a view.
Choose manual or automatic view að skipta.
Sett view switch duration.

Umbreytingaráhrif

Select a Transition Effect
Press the “Transition Effect” icon or press the S button to select from 15 effects (e.g., fade, wipe).

Umskiptastilling

T-Bar Mode (Manual)
Tap the MODE icon on the main menu to enter. Default mode: Push the T-Bar to transition the preview to the main output.
T-Bar Mode (Manual)
Tap the MODE icon on the main menu to enter. Default mode: Push the T-Bar to transition the preview to the main output.

Hljóð

Hljóðstuðningur
The mini device is equipped with two audio interfaces, four HDMI inputs, and one HDMI output, supporting embedded audio. Click the audio icon on the main menu to access volume adjustment and function settings.

Hljóðstyrksstilling

Snertiskjár: for the two audio interfaces, select a channel and enable it, then click the “-” or “+” buttons to adjust the gain. For HDMI 1–4, select a channel and click “-” or “+” to adjust the volume.

Hnappar: rotate the Y knob for MIC IN, LINE IN, HDMI 1~4 embedded volume adjustments. Rotate the X knob for HDMI Output volume adjustment.

Audio-Follow-Video& Mixing

The embedded audio from HDMI 1–4 can be mixed. When enabled, it will play simultaneously with other audio in the current preview.

For HDMI 1–4 embedded audio, you can choose whether the audio follows the video playback and whether it switches to the main output along with the video. Adjust volume for audio inputs or HDMI embedded audio.

Binding TAO Cloud

Sem fyrsta myndskiptaforritið í streymiiðnaðinum býður það upp á aðlögunarhæfa eiginleika sem notendur geta nýtt sér, annað hvort með mánaðarlegri áskrift eða ævilangri kaupum á TAO Cloud.

Gerð aðgerða	Heimildaraðferð	Upplýsingar um virkni
Grunnaðgerðir	Ókeypis	Mynd-í-mynd View Umbreytingaráhrif Skipta um ham Hljóð Merki PGM HDMI Output WEBCAM Capture Output
Leyfisbundin virkni TAO Cloud	Mánaðarleg/ævilang áskrift	▼ Production Upptaka PTZ stjórn Chroma Key ▼ Network Streaming Straumur MP4 Playback (coming soon)
		TAO Remote Control NDI Encoding/Decoding (coming soon) UVC Camera (coming soon) Overlays (coming soon) Background (coming soon) MIC IN (coming soon)
	Ljúktu við aðgerðir	Opnaðu aðgang að öllum aðgerðum ævilangt

Getting a Verification Code
If the device is unbound, use the verification code to bind it.

Login/Register TAO Cloud

Heimsókn https://www.tao1live.com.
Enter your email and verification code to log in or register.

Tækjabinding

Go to “All Devices” > “Bind Device.”
Enter a custom device name and verification code, then press “Bind.”

Function Authorization

Go to the device management interface and click “Setting”
Select functions to authorize (monthly Plan, Separate Lifetime Plan and Complete Functions) and complete payment.

TAO Cloud Premium Functions

Athugið: These premium functions require TAO Cloud purchase for activation.The premise of viewing and using the function pages on TAO Cloud is that you must go to Settings and subscribe “TAO Remote Control” function first. Other premium functions can only be activated on TAO Cloud and mini device after subscribing to the TAO Remote Control function.

Myndbandsúttak

Select Output Signal
Configure the display and resolution for the two HDMI outputs.

Upplýsingaskjár
Enable features like HDMI/DVI adaptation, audio meter display, framing guide, or LCD signal resolution info.

Straumur
Users can bind the mini to the TAO Cloud Platform for efficient content production and creation. The mini device supports simultaneous streaming to up to 4 platforms.

Pre-Streaming Setup

Connect the mini device to the network using an Ethernet cable.
Ensure the mini is bound to TAO Cloud.
Enable the Streaming button on the mini’s streaming interface.

Distribute Streaming Address to mini

Go to the mini management page under “My Devices” in TAO Cloud.

Enter the streaming addresses of the target platform(s) in the streaming section.
Click “Distribute” to distribute the addresses.

Start the Stream
Return to the mini streaming interface, select the received streaming URL, and click to start streaming. This page also allows streaming parameter configuration.

Upptaka

Virkja upptöku

Insert a USB drive or external hard drive (formatted to EXT4) into the RECORD port.
Press “Record” in the main menu to start. Press the Record button to start recording.

Upptökustillingar
Enable audio recording if needed. You can also check disk usage, set recording quality, or format the disk.

Chroma Key

Enable Keying
Enable to remove green/blue backgrounds from sub-screens (default B layer).
Stilla færibreytur
Adjust size/position as needed; settings save to the current view.

PTZ

Switch PTZ signal to the Preview
Select the PTZ signal in the preview screen and tap the PTZ icon in the main menu.

Stilla færibreytur
Use X/Y knobs to adjust position, zoom, or focus. Position:

Rotate X to pan the camera left/right.
Rotate Y to tilt the camera up/down Zoom:
Rotate X clockwise to zoom in.
Rotate X counterclockwise to zoom out. Focus:
Rotate X to adjust focus.

PTZ stillingar
On this interface, you can:

Switch PTZ cameras and enable controls.
Confirm PTZ port number is 01259.
Ensure the device and PTZ are on the same LAN (first three IP digits match).
Adjust PTZ speed with “+/-.”

Merki

Import Logo Material via TAO Cloud

Open TAO Cloud.
Navigate to My Collection > My Devices and access the mini device management page.
Under Basic Settings, select a scene and add logo material in the Content Management section.

Stilla lógó

Open the logo icon from the main menu interface. The logo interface will display the material applied from TAO Cloud.
Once enabled, the logo will appear in the current preview.
Use the X knob to adjust horizontal (left/right) position.
Use the Y knob to adjust vertical (up/down) position.

Replace Logo

Go to TAO Cloud and access the mini device management page.
Under Basic Settings, select a new logo material for replacement.
Return to the mini logo settings interface, tap Refresh, and the logo will update.

Xiamen RGBlink Science & Technology Co Ltd.

Sími: +86-592-5771197
Fax: +86-592-5788216
Viðskiptavinur Sími: 4008-592-315
Web: http://www.rgblink.com
Netfang:support@rgblink.com
Höfuðstöðvar: The 6th floor, No. 37-3 Banshang Community, Building 3, Xinke Plaza, Torch Hi-Tech Industrial Development Zone, Xiamen, China

Algengar spurningar

Does the mini basic version include HDMI output?

No, the mini basic version does not include HDMI output. To obtain HDMI output, subscribe to PGM HDMI on the TAO Cloud.
