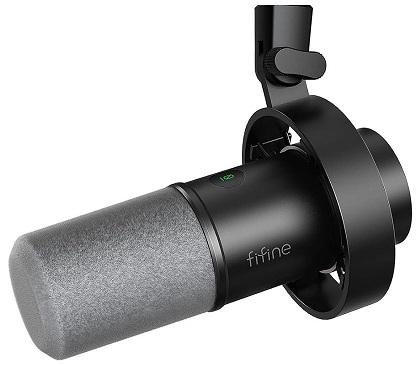

fifine K688 USB-XLR Dynamic Microphone
WARRANTY
Every Fifine product comes with a Limited Warranty that in normal use of product will be free of any defects in material or workmanship for a period of one year from its original date of purchase. For detailed warranty info, please refer to the warranty policy on our website, or contact us directly.
CERTIFICATION
- Eligible to bear CE Marking.
- Authorized European Representative:
- Name: AOCE INFORMATION TECHNOLOGY Address: 61 rue de Lyon 7501 2 Paris France
- Tel: +33-633297410
- Authorized British Representative:
- Name: AOCE LIMITED
- Address: Office Suite 29a 3/F 23 Wtiarf Street, London, England, SE8 3GG
- Tel: +44-759 7659 775
WHAT’S IN THE BOX
- 1X Microphone with Shock Mount
- 1X 8.2ft (2.5m) USB Cable
- 1X 5/8″ to 3/8″ Adapter
- 1X User’s Manual
PRODUCT DESCRIPTION
- Dynamic Microphone Capsule
- Detactiable Windscreen
- Mute Button and LED Indicator
- Shock Mount
- Screw Adapter
- XLR Port
- Type-C Port
- Headphones Volume Control
- Microphone Gain Knob
- Headphone Jack
- USB Cable
Tips: No XLR cable is included
GUIDELINES FOR USE
Installation and Use
Attach the arm stand (NOT INCLUDED) to the mic via the included 5/8″ to 3/8″ adapter for better effect. Always keep the top of the mic facing the audio source.
USB-C Port Connection
Connect the microphone to the computer or PS4/PS5 via the USB cable (INCLUDED).
Tips: It is suggested to connect USB-A port at the rear of PS4/PS5.
XLR Port Connection
Connect the microphone to mixer or audio interface via the XLR cable (NOT INCLUDED). No preamp or phantom power are needed.
Tips: All the function keys and headphones monitoring on the mic are only available when using USB-C port connection, but invalid when using XLR port connection.
FUNCTION KEY INSTRUCTION
Microphone Gain and Headphones Volume Control
COMPUTER SET-UP
(MAC OS & WINDOWS)
Input Settings
Output Settings
Output the audio tram Internal speakers
Output the audio rrom headphones
Output the audio from mlc
Windows (Only Applicable 1 or USB Connection)
Input Settings
Output Settings
Output the audio from built-In speaker
Output the audio rrom headphones
Output the audio from mlc
Tips
- “Speaker Properties”-“Level”-Make sure turn on the “speaker icon” under “Microphone” before monitoring the mic.
- Manually select the “speaker (Realtek High Definition Audio)” as the default playback device if you want to output computer audio via the computer’s built-in speaker.
- There is no XLR cable included.
- When the microphone is connected to the computer, mic input volume is only adjusted by gain knob on the mic, but can not be adjusted by the computer setting.
- Select “fifine Microphone” as the input device from the settings when using recording software.
SPECIFICATION
- Model Number: K688
- Element: Dynamic
- Polar Pattern: Cardioid
- Connector: USB-C and XLR
- Frequency Range: 50Hz-16KHz
- S/N Ratio: >80dB
- Sensitivity: -50+3dB
- Power Supply: 5+0.25V
