DANTHERMGROUP RJ45 Simplify Monitoring Control System
symbols
- DANGER Batteries can be highly dangerous if swallowed. Therefore, keep batteries out of reach of children. If a battery has been swallowed, seek medical advice immediately.
- Warning Risk of injury Should a battery have leaked, avoid contact with skin, eyes, and mucous membranes. If necessary, rinse the affected areas with plenty of clean water and consult a doctor immediately.
- Caution Lithium batteries can explode if inserted the wrong way. Therefore, by all means, ensure correct polarity (+/-) when inserting batteries.
- Appliances marked with this symbol must not be disposed of along with household refuse! You are legally obliged to dispose of old appliances separately from household refuse. For information about how to dispose of, contact local authorities.
- Batteries must not be disposed of along with household refuse! You are legally obliged to dispose of flat batteries at a local authority collection point or to return them to a battery retailer.

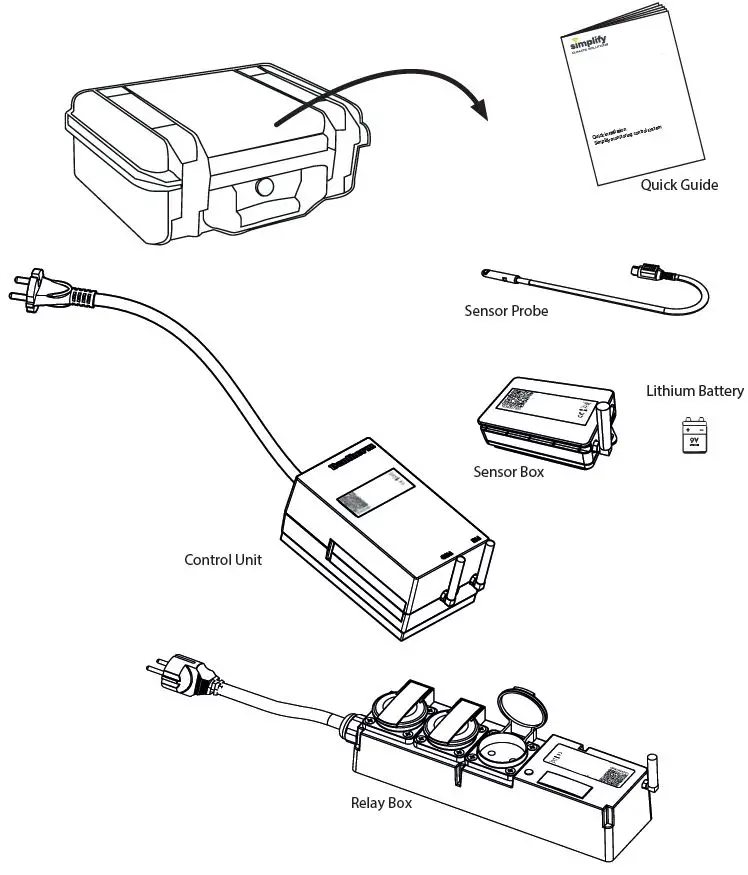

Content of suitcase may vary

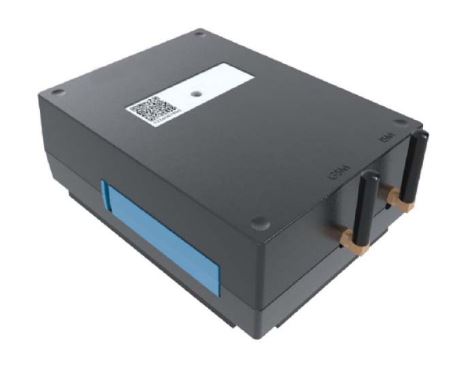

Simplify Monitoring Control System
Step 1
Step 2

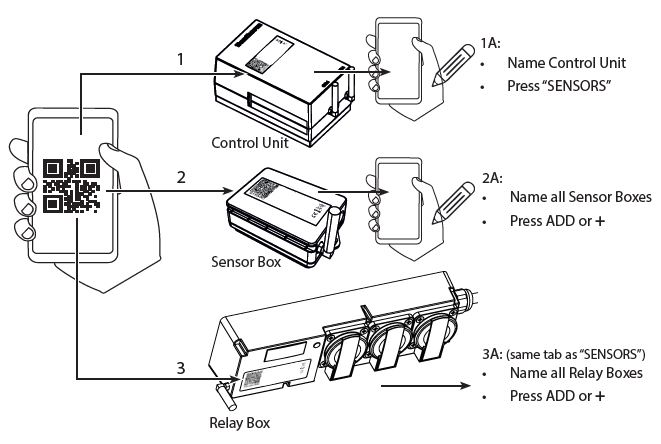

SCAN all the components QR-code in the order as shown:
If CDT’s are fitted with Integration Box
- Scan the QR code on the CDT, name it and press ADD or +. If Simplify CC4 box is used:
- Scan the QR code on the box, name it and press ADD or +
When all components are scanned and named:
- Press “Control Unit”
- “Register”

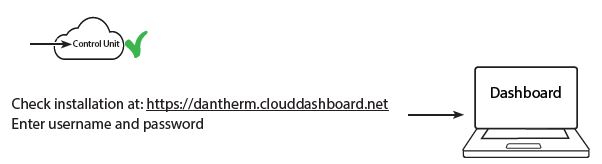

Check installation at: https://dantherm.clouddashboard.net Enter username and password
Step 3
Step 4
Step 5

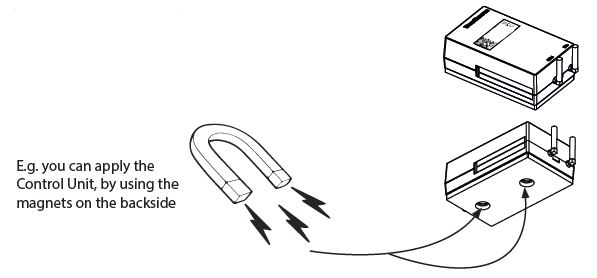

Place Control Unit on the desired location

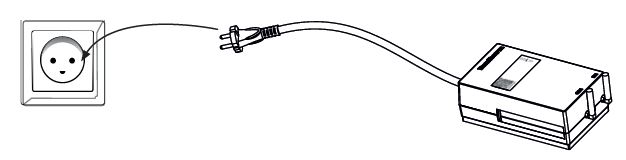

Step 6
Step 7
| Signal | Funktion |
| GSM signal | |
| Flashing:
Start-up/installation phase or in the absence of contact with sensor boxes. Do not connect sensor boxes untill green LED flash on control box Constant: All sensor boxes has contact to the Control Unit |
|
| No 230 V power supply
Emergency power: ON |
Step 8
Various equipment can be connected to the Relay Box
Step 9
Step 10

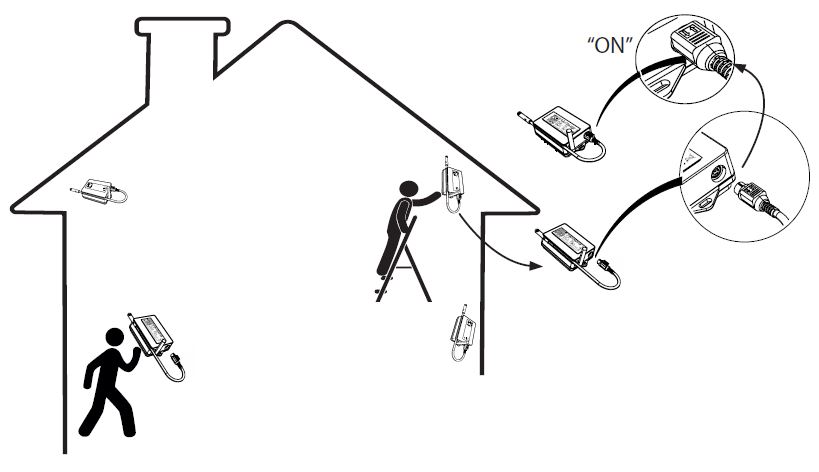

Remember to disconnect the sensor probe when sensor box is not in use, in order to prevent the battery from running out of power . The sensor is now in the “OFF” position.
Step 11
How to close a case
Step 1
Step 2
Step 3
Step 4

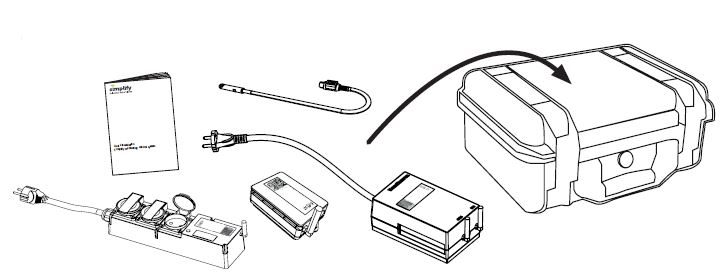

Place components in the suitcase
Check that case is archived in DASHBOARD
