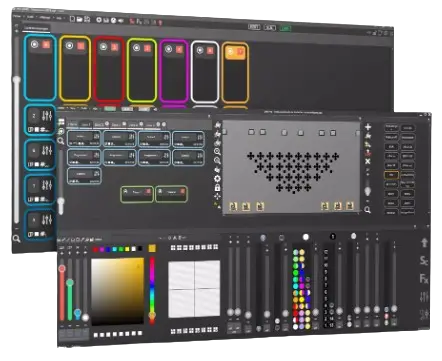

CHROMATEQ ProDMX 2 LED Lighting Control Software
Introduction
- The CHROMATEQ ProDMX 2 is a professional LED lighting control software designed to provide precise and flexible control over DMX-compatible fixtures. Built for lighting designers, technicians, and event professionals, ProDMX 2 offers an intuitive interface with advanced programming tools to create dynamic lighting effects for stage productions, concerts, clubs, architectural installations, and live events.
- It supports real-time control, scene building, timeline programming, and visual effects with smooth performance. The software is compatible with a wide range of CHROMATEQ DMX interfaces and is engineered to handle both small-scale and large-scale lighting installations. With user-friendly operation and powerful customization options, ProDMX 2 delivers a reliable solution for professional lighting management.
Specifications
- Product Name: Studio DMX
- Control Interface: Art-Net and sACN
- Compatibility: ProDMX 2
Product Usage Instructions
Control Studio DMX via Art-Net or sACN input
- To control Studio DMX, you have to create a ProDMX 2 patch with all the fixtures you want to see in the 3D.
- Refer to Pro DMX 2 manuals.

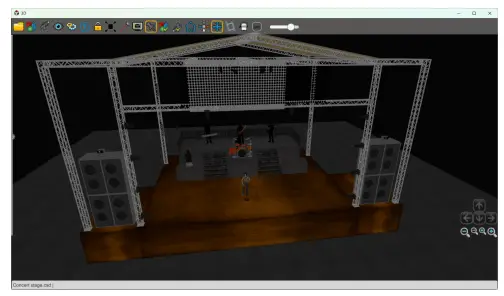

- Then start Studio DMX to create the 3D show :
- -> Click on “Tools” and “3D”
Refer to the Studio DMX manual to create the show.
By Art-Net
Once the show is created, set Pro DMX 2 Art-Net input settings :

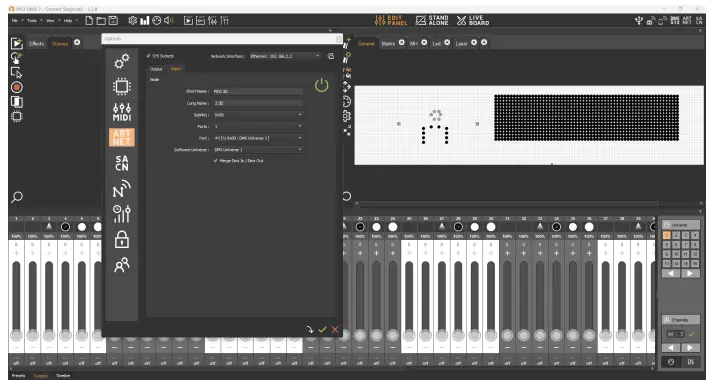

- Click to “Tools” -> “Options”-> ARTNET
- Select the network card corresponding to your Art-Net installation -> Activate the “Merge DMX In / DMX Out” option.
- Activate Art-net Input
Now you can send Art-Net from your external source and see the result in Studio DM.X.
By sACN
Once the show is created, set Pro DMX 2 Art-Net input settings :

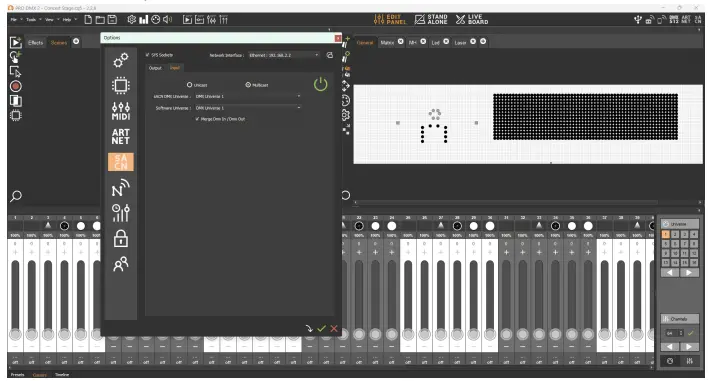

- Click to “Tools” -> “Options”-> SACN
- Select the network card corresponding to your Art-Net installation -> Select “Unicast” or “Multicast”
- Activate the “MerDMXDmx In / DMX Out” option
- Activate sACN Input
Now you can send sACN from your external source and see the result in Studio DMX.
Troubleshooting
- If you don’t see your fixtures patched in Pro DMX 2 in Studio DM, check the Network part in Options :
- Click to “Tools” -> “Options”-> Network
- Select the “Localhost” network card and activate the cube icon (Studio DMX)
If an Art-Net or sACN signal is not received in ProDMX 2, check the firewall settings to allow cthe corresponding UDP ports :
- Art-Net: port 6454
- sACN: port 5568
Safety Instructions – CHROMATEQ ProDMX 2
- Official Installation Only
- Download the software exclusively from the official CHROMATEQ website or trusted distributors to avoid corrupted or unsafe versions.
- Verify that your computer meets the minimum system requirements before installation.
- Electrical & Hardware Safety
- Use the ProDMX 2 software only with compatible DMX interfaces and lighting equipment.
- Always ensure the power to connected fixtures is properly rated and stable.
- Connect and disconnect DMX cables only when devices are powered off to avoid short circuits or equipment damage.
- Data & Software Security
- Regularly update the software to the latest version to ensure optimal performance and protection against bugs.
- Backup your show files and configurations to prevent data loss.
- Operational Safety
- Test all programmed lighting effects before live use to prevent sudden light flashes, strobing, or unsafe intensity changes.
- Avoid using lighting sequences that may trigger photosensitive epilepsy (e.g., rapid strobe effects) without proper audience warning.
- Ensure fixtures are securely mounted and positioned before running automated programs.
- User Responsibility
- The operator must be familiar with DMX protocol, lighting safety, and venue regulations.
- Only authorized personnel should have access to the show files and system control.
- Environment
- Operate the software in a safe, dry environment with adequate ventilation for connected devices.
- Do not run the control system on unstable or virus-infected computers.
FAQs
Q: What should I do if I encounter issues with patching fixtures in Studio DMX?
A: Check the Network part in Options under Tools to select the correct network card and activate the cube icon for Studio DMX.
Q: How can I resolve problems with Art-Net or sACN signal reception in ProDMX 2?
A: Ensure that your firewall settings allow the corresponding UDP ports - for Art-Net, use port 6454, and for sACN, use port 5568.
