Bol com A5 Q9 100% LED Screen Power Display
Product Information
- Input: 5V=2A (Lightning), 5V=3A, 9V=2A, 12V=1.5A (Type-c interface/PD)
- Output: 5V/2A, 9V/2.22A, 12V/1.5A (Type-c interface/PD), 5W/7.5W/15W (Wireless output)
Product Usage Instructions
To use the product, follow these steps
- Make sure the power bank is charged and has sufficient battery capacity.
- Identify the appropriate input port based on your device’s charging cable:
- If your device uses a Lightning cable, connect it to the 5V/2A (Lightning) input port.
- If your device uses a Type-C interface with Power Delivery (PD) support, connect it to the 5V/3A, 9V/2A, or 12V/1.5A (Type-c interface/PD) input port based on the required voltage.
- Connect your device to the power bank using a compatible charging cable.
- Ensure that the power bank is turned on if it has a power switch.
- Monitor the charging progress on your device’s screen or LED indicators.
- To use the wireless charging feature, place your Qi-compatible device on top of the power bank’s wireless charging pad.
- Once your device is fully charged, disconnect it from the power bank.
- If you’re done using the power bank, disconnect all cables and turn it off (if applicable).
Introduction
The mobile power supply adopts an aluminum + plastic material shell, supports the apple, and the Type-C input, uses the built-in Type-C PD to Connect to other mobile devices, and a magnetic suction wireless charger can charge the battery for the equipment.

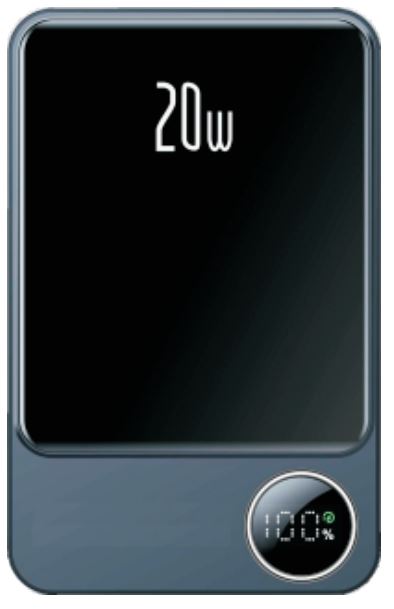

Product Description
Power switch
- (click to open the mobile power supply, the use of the quick charger/ the wireless charger will display symbols 3.
- Type C interface/PD (input/output)
- The Apple Line interface
- LED display to check the power
- Magnetic suction wireless charger
Specifications
- Input: 5V=2A(Lightning)
- Input: 5V=3A 9V=2A 12V=1.5A (Type-c interface/PD)
- Output: 5V/2A 9V/2.22A 12V/1.5A (Type-c interface/PD)
- Output: 5W/7.5W/15W (Wireless output)
- Battery: lithium polymer battery
- Number of cycles to be recharged: 500 times
- Suitable environmental temperature: 0°C-40°C
User manual
- The built-in Type-C and Apple input ports can be connected to battery products.
- Use the built-in Type-C PD for other mobile devices and magnetic suction outlet connection wireless charger can charge the battery for the equipment.
- Click to open the mobile power supply equipment, and the use quick charger/wireless charger will display symbols

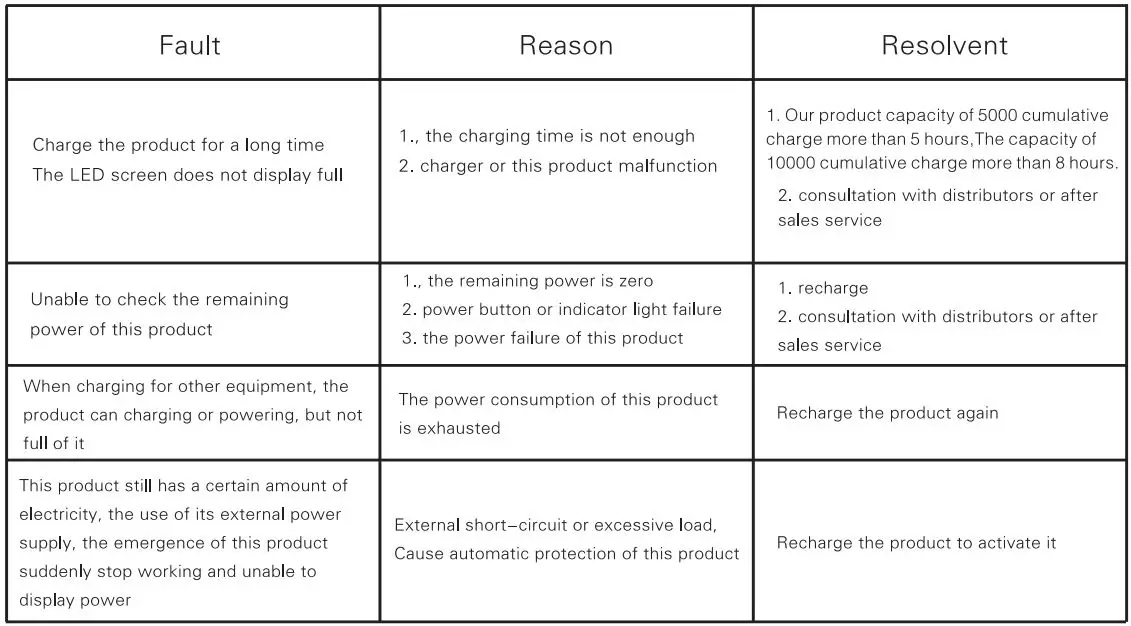

Common Problems and Solutions
Matters needing attention
The first use of this product, cycle, charge and discharge once, can better improve the service life of the product! Please read all the instructions carefully before using the product! Please do not disassemble the product, or it will cause the warranty invalid!
Documents / Resources
 |
Bol com A5 Q9 100% LED Screen Power Display [pdf] User Manual A5 Q9 100 LED Screen Power Display, A5 Q9, 100 LED Screen Power Display, LED Screen Power Display, Screen Power Display, Power Display, Display |
