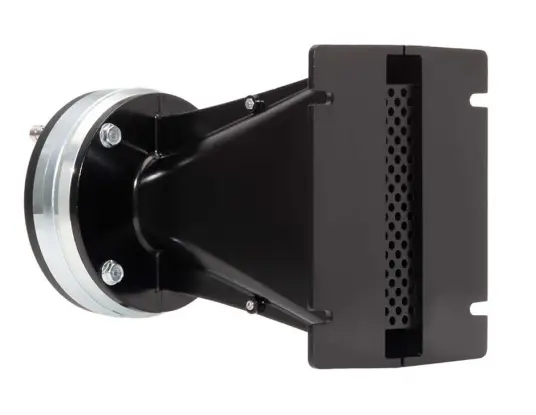

BC SPEAKERS WGX880TN Line Array Driver with Waveguide
- Line Array optimized Waveguide with DE880TN driver
- 120° max horizontal coverage
- 220 W continuous program power capacity 75 mm (3 in) aluminum voice coil
- Titanium diaphragm
- 500 – 17000 Hz response
- 108 dB sensitivity
- Neodymium magnet assembly with shorting copper cap
- Waveguide horns are not sold separately
Line Array Sources- 1.4 Inches
SPECIFICATIONS
| Horizontal Coverage | 120 ° Max | Exit Size | 153×25 mm (6×1 in) | |
| Active Radiating Factor | 93.7 % | Driver Diameter | 124 mm (4.9 in) | |
| Recommended Crossover1 | 0.8 kHz | Dimensions 163x130x235 | mm (6.4×5.1×9.3 in) | |
| Waveguide Material | Cast Aluminium | Net Weight | 3.1 kg (6.83 lb) | |
| Nominal Impedance | 8 Ω | Shipping Units | 1 | |
| Minimum Impedance | 8.1 Ω | Shipping Weight | 3.2 kg (7.05 lb) | |
| Nominal Power Handling2 | 110 W | Shipping Box |
- Sensitivity4 108.0 dB
- Frequency Range5 0.5 – 17.0 kHz
- Voice Coil Diameter 75 mm (3.0 in)
- Winding Material Aluminium
- Diaphragm Material Titanium
- Flux Density 1.85 T
- Magnet Material Neodymium Ring
- 12 dB/Oct. Or higher slope high-pass filter.
- 2-hour test made with continuous pink noise signal (6 dB crest factor) within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.
- Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
- Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
- Waveguide mounted on 90°x10° bell horn
