DORTALA 4 Piece Wicker Patio Conversation Set

1. Safety Information

Please read and understand all instructions before assembly and use. Keep this manual for future reference.

• Ensure all components are present and undamaged before beginning assembly. Do not use if any parts are missing or broken.
• Assemble the furniture on a soft, clean surface to prevent scratches.
• Tighten all bolts and screws securely. Periodically check and re-tighten fasteners to ensure stability.
• Do not exceed the weight capacities: Single Sofa: 400 lbs (180 kg), Loveseat: 800 lbs (360 kg), Corner Sofa: 800 lbs (360 kg), Coffee Table: 165 lbs (75 kg).
• Keep children away from the assembly area. Small parts can be a choking hazard.
• Avoid placing hot items directly on the tempered glass tabletop without protection.
• Do not stand or jump on the furniture.

2. Package Contents

Verify that all the following components are included in your package:

• 1 x Single Sofa
• 1 x Loveseat
• 1 x Corner Sofa (Lounge Sofa)
• 1 x Coffee Table
• 1 x Single Sofa Seat Cushion
• 1 x Loveseat Seat Cushion
• 1 x Corner Sofa Seat Cushion
• 4 x Back Cushions
• 1 x Instruction Manual (this document)
• Assembly Hardware (screws, bolts, wrench)

The image above displays the complete DORTALA 4 Piece Wicker Patio Conversation Set, including the single sofa, loveseat, lounge sofa, and coffee table, each with its respective cushions. Please ensure all these items are present in your package.

3. Setup and Assembly

Assembly of this patio set requires careful attention to detail. It is recommended that two people assemble the set for ease and safety.

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft, and flat surface to prevent damage.
2. Identify Parts: Refer to the included hardware list and diagrams (if provided separately) to identify each component.
3. Assemble Frames: Begin by assembling the frames of each furniture piece (single sofa, loveseat, corner sofa, coffee table) according to the specific instructions provided in the separate assembly guide. Ensure all screws are aligned correctly before tightening.
4. Secure Connections: Once all frames are assembled, ensure all bolts and screws are fully tightened. Do not overtighten.
5. Place Cushions: Position the seat and back cushions onto their respective furniture pieces.
6. Install Coffee Table Glass: Carefully place the tempered glass top onto the coffee table frame.
7. Connect Sections (Optional): If arranging the sofas as a sectional, use the provided sofa fastener clips to securely connect the pieces, preventing them from shifting.

This diagram provides detailed dimensions for the single sofa, loveseat, lounge sofa, and coffee table, along with their maximum weight capacities. Refer to these measurements during assembly and placement to ensure proper fit and safe use.

4. Operating and Usage

The DORTALA 4 Piece Wicker Patio Conversation Set is designed for comfortable outdoor relaxation. Its versatile configuration allows for various arrangements to suit your space and needs.

• Arrangement: The individual pieces (single sofa, loveseat, corner sofa) can be arranged independently or connected using the sofa fastener clips to form a larger sectional.
• Comfort: The soft cushions, made with breathable fabric and high-density foam, provide comfort. The curved backrests offer additional lumbar support.
• Coffee Table Use: The 2-tier coffee table features a tempered glass top for drinks and snacks, and an extra storage shelf below for magazines or other items.
• Placement: This set is suitable for various outdoor environments such as patios, gardens, poolside areas, or backyards.

This image illustrates a possible arrangement of the DORTALA patio set on an outdoor patio, complete with decorative elements, highlighting its suitability for creating a comfortable and inviting outdoor living space.

The image above shows the DORTALA patio set situated beside a swimming pool, emphasizing its versatility and suitability for various outdoor settings, including poolside areas.

5. Maintenance

Proper maintenance will extend the lifespan and preserve the appearance of your DORTALA patio set.

• Cushion Care: The seat cushion covers are removable for easy cleaning. Machine wash cold with mild detergent, gentle cycle. Air dry only; do not tumble dry. Ensure cushions are completely dry before storing or replacing to prevent mildew. Keep cushions dry when not in use to extend their lifespan.
• Rattan Frame Care: Wipe the PE rattan with a damp cloth and mild soap. Rinse thoroughly with clean water and dry completely. Avoid using harsh chemicals or abrasive cleaners.
• Steel Frame Care: The steel frame is rustproof. Clean with a damp cloth. For prolonged outdoor exposure, consider using a furniture cover during inclement weather or off-season.
• Tempered Glass Top: Clean with a glass cleaner and a soft cloth. Avoid abrasive materials that could scratch the surface.
• General: Periodically check all fasteners and re-tighten as necessary to maintain structural integrity.

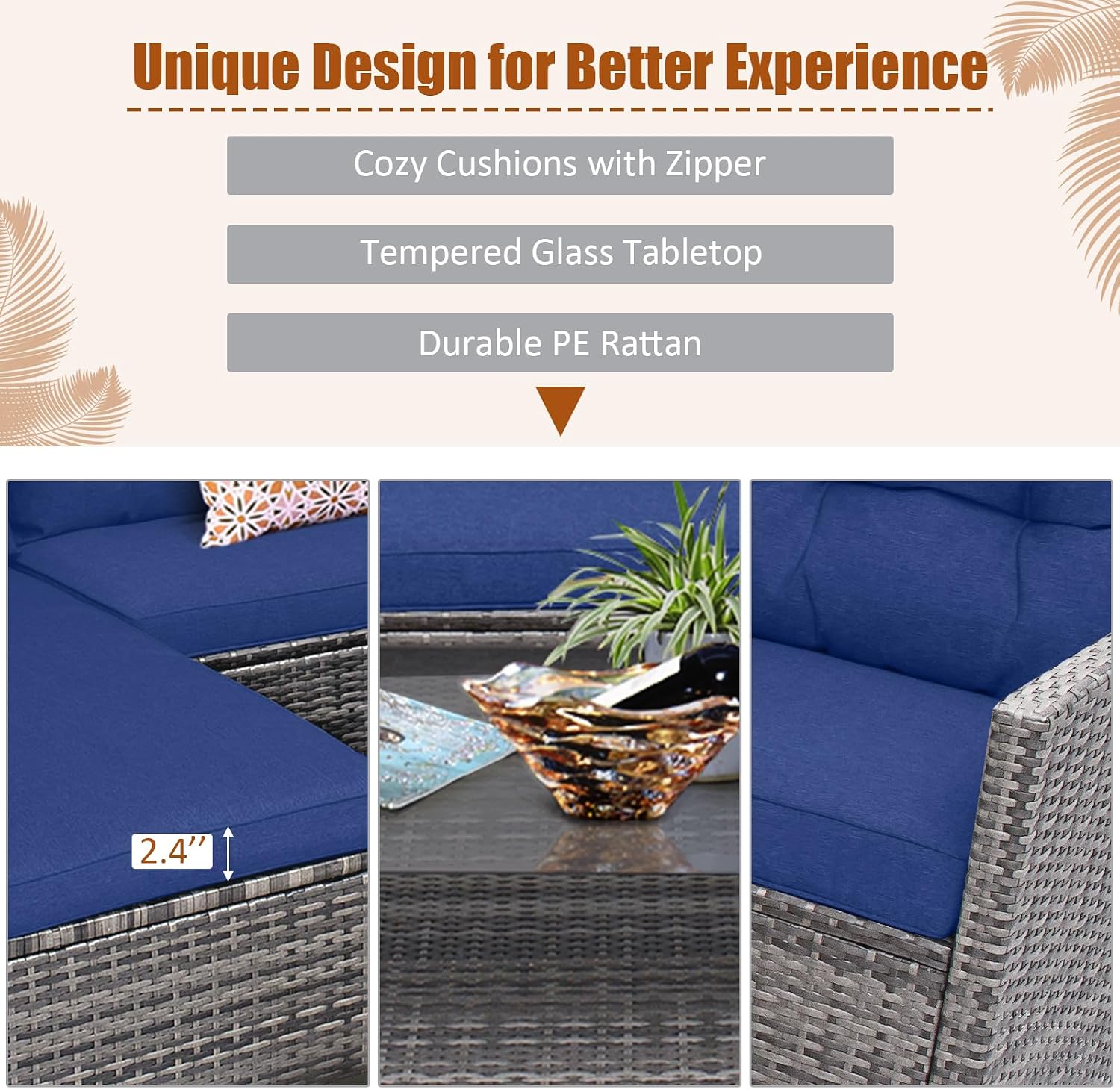

This image highlights key design elements: the zippered cushion for easy removal and cleaning, the durable tempered glass tabletop, and the weather-resistant PE rattan weave, all contributing to the set's longevity and ease of maintenance.

The image above details the quality of the cushion's sewing, the non-slip foot pads designed to protect surfaces and stabilize the furniture, and the practical large storage space integrated beneath the coffee table.

6. Troubleshooting

If you encounter issues during assembly or use, refer to the following common solutions:

• Missing Parts: Double-check all packaging materials. If parts are genuinely missing, contact DORTALA customer support with your purchase information.
• Difficulty Aligning Screws: Ensure all parts are oriented correctly as per the assembly diagrams. Do not fully tighten any screws until all corresponding screws for that section are partially threaded. This allows for minor adjustments.
• Wobbly Furniture: Ensure all bolts and screws are tightened evenly and securely. Check that the furniture is placed on a level surface.
• Cushion Color Variation: Slight color variations in cushions may occur due to light exposure and shading. This is normal and not a defect.

7. Specifications

8. Warranty and Support

This DORTALA product comes with a 1 Year Warranty Against Manufacturer Defects.

For warranty claims, missing parts, or technical assistance, please contact DORTALA customer support. Have your purchase receipt and model number (DO-HW75303NY) ready when contacting support.

You can typically find contact information on the DORTALA brand website or through your retailer's customer service portal.
